ABB 3BSE042237R2 PP836A
Overview
The ABB 3BSE042237R2 PP836A is an industrial automation device manufactured by ABB, belonging to the Panel 800 series (industrial automation human-machine interface, HMI). Its core function is to provide a human-machine interface (HMI) for monitoring, controlling, and configuring industrial automation systems, and it is widely used in fields such as manufacturing, energy, and infrastructure. Some materials describe it as a "motion controller" or "operation panel," but its core positioning is a control and monitoring device in industrial automation.
Parameters
Display

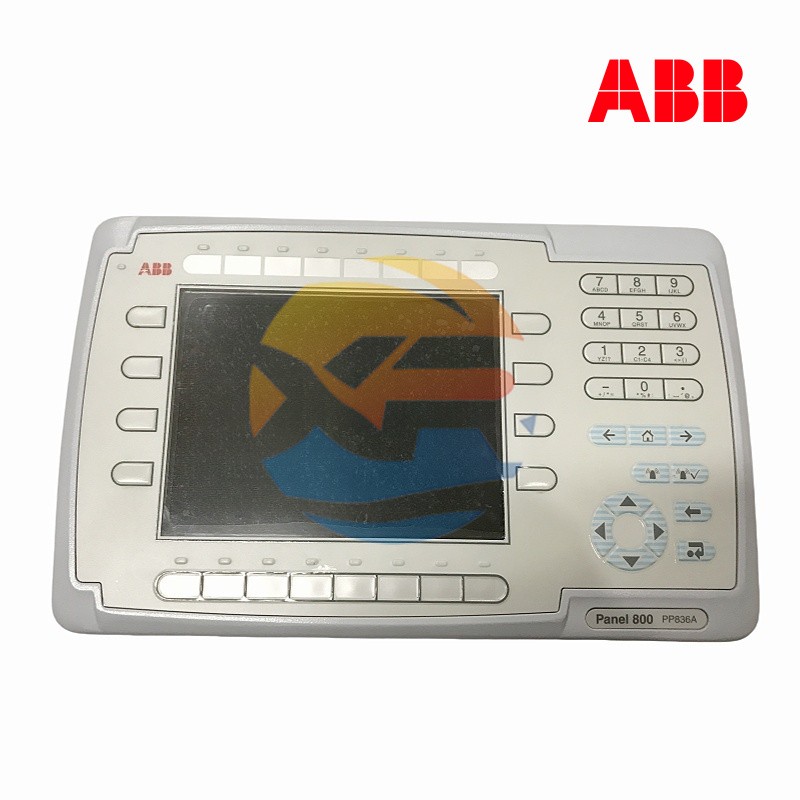

High-resolution color touch screen (such as 8-inch TFT LCD with a resolution of 800×600 or higher).
Supports multi-language display, touch operation, and dynamic information display (such as alarms, trend graphs).
Communication Interfaces
Supports communication protocols such as Ethernet, RS-232/485, and CAN bus, and is compatible with various industrial equipment (such as PLCs, servo drives).
Power Supply and Environment
Power supply: 24V DC (optional 12V DC or 24V AC/DC).
Operating temperature: -20℃ to +60℃, protection class IP65 (dustproof and waterproof).
Other Parameters
Processor: ARM9 (1GHz); Memory: 512MB-2GB RAM.
Product Features
High Performance and Reliability
High-reliability design, suitable for harsh industrial environments, supporting long-term stable operation.
Modular design, supporting extended functions (such as redundant backup, alarm management).
Usability
Intuitive touch screen operation, supporting multi-language interface and custom configuration.
Compatibility
Compatible with various industrial equipment (such as PLCs, servo systems) and supports multiple communication protocols.
Structure and Composition
Hardware Composition

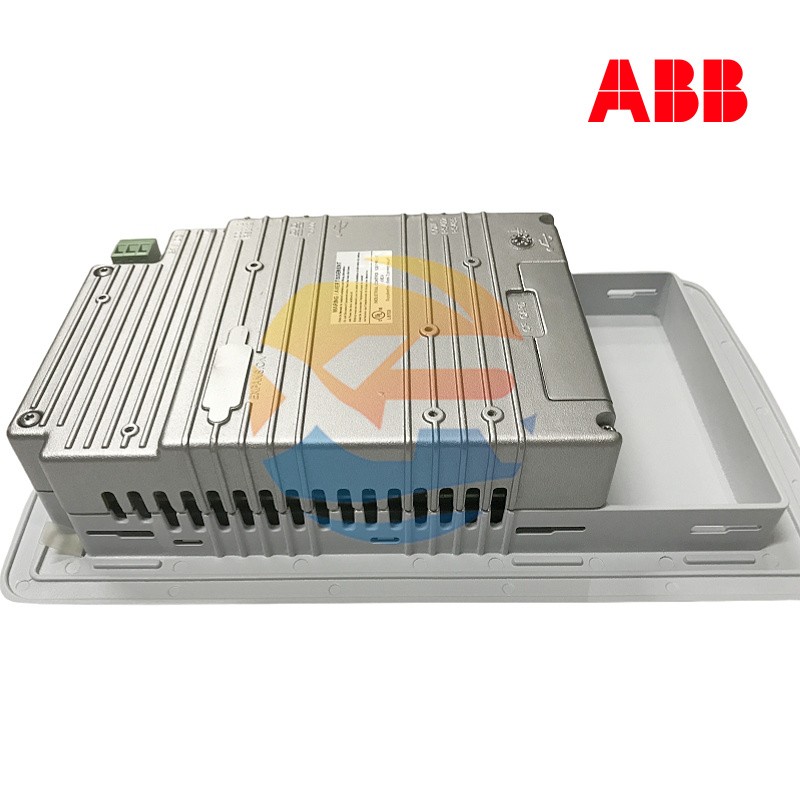

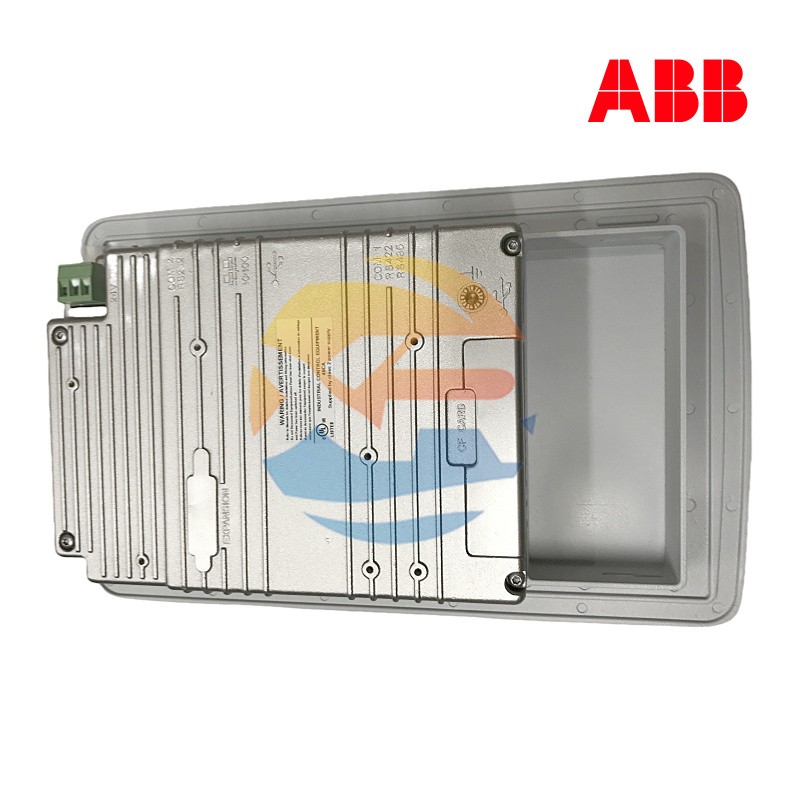

Touch screen, communication interfaces, power module, control panel (aluminum housing, IP65 protection).
Structural Features
Modular design, facilitating installation and maintenance.
Application Fields
Industrial Automation
Manufacturing (production lines, robot control), energy (power systems), infrastructure (water treatment, rail transit).
Other Fields
Transportation, building automation, process control, etc.
Installation and Maintenance
Installation
Supports standard installation methods and must meet the IP65 protection requirements.
Maintenance
Regularly check communication interfaces and power connections to ensure environmental adaptability (temperature, humidity).
