Model：ABB CTB810 HN800

Brand: ABB
Price range (USD): 100-20000
Country: Switzerland
Parameter: Rated voltage: 690VAC
Rated current: 800A
Power: 560kW
Control method: AC
Installation method: DIN rail mounting
Dimensions: 225mm × 144mm × 97mm; Weight: 3.5kg

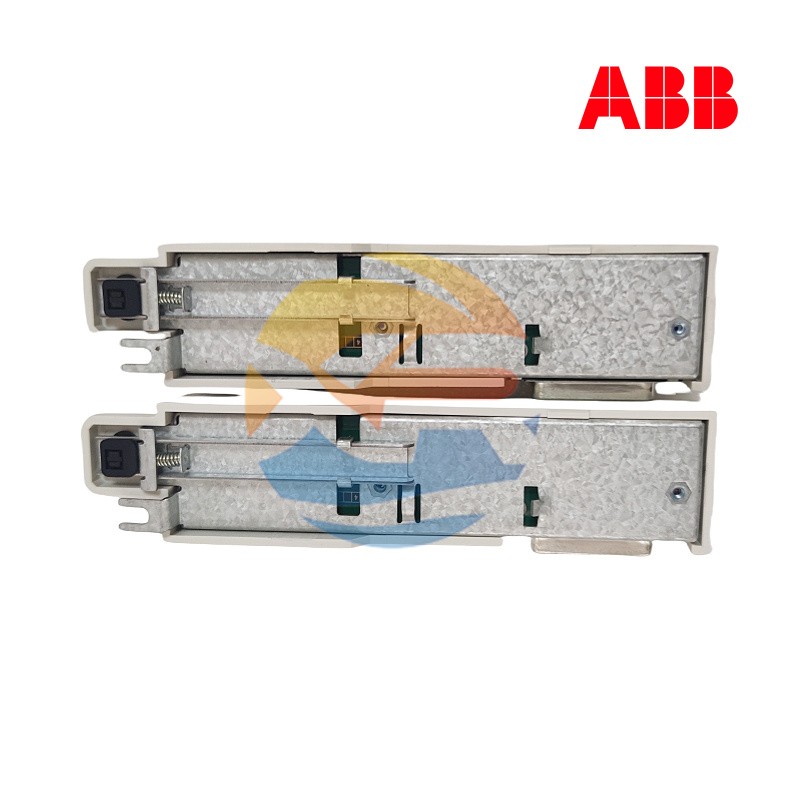

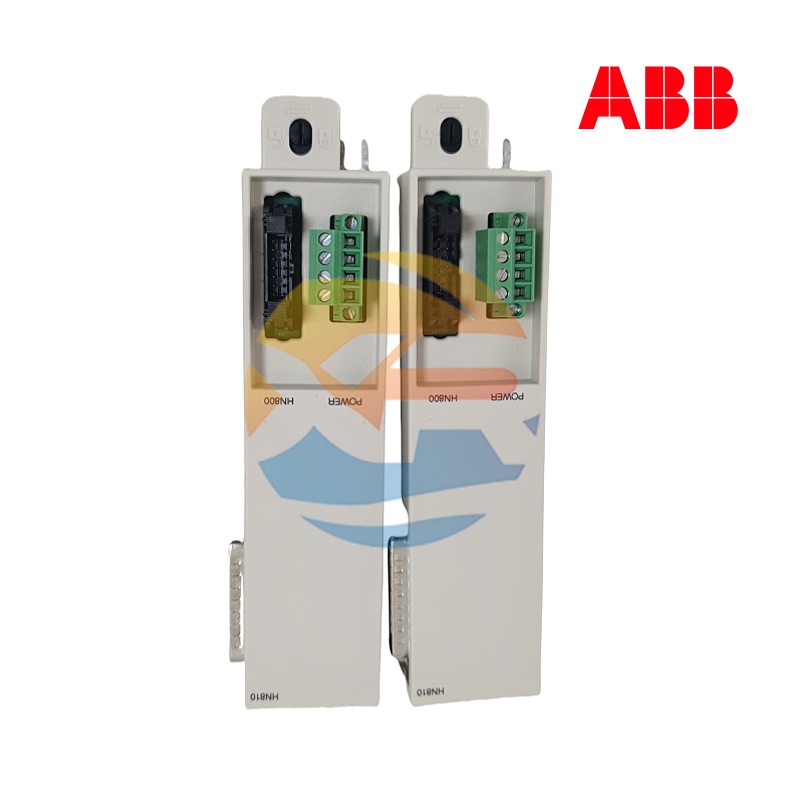

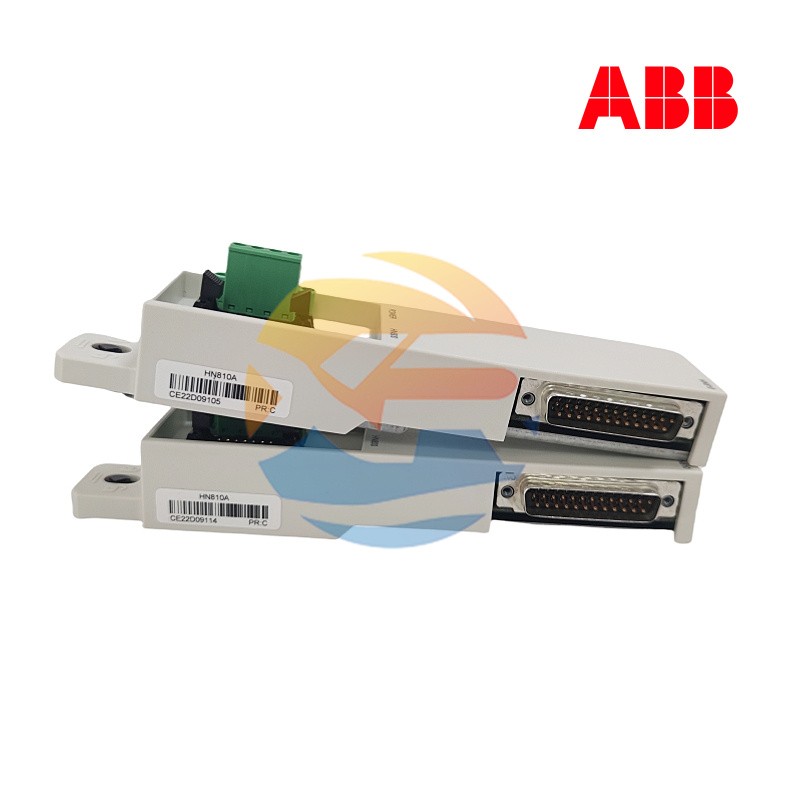

ABB CTB810 HN800

1. Overview

The ABB CTB810 HN800 is a motor protection circuit breaker, primarily designed to safeguard motors against overload, short circuit, phase loss, and other faults. It finds extensive application in fields such as industrial automation, mechanical manufacturing, electronic manufacturing, textile machinery, and packaging machinery. Its core function is to cut off fault currents through the rapid action of the circuit breaker, thereby ensuring the safety of circuits and equipment.

2. Parameters

Rated voltage: 690VAC
Rated current: 800A
Power: 560kW
Control method: AC
Installation method: DIN rail mounting
Dimensions: 225mm × 144mm × 97mm; Weight: 3.5kg

3. Product Features

Protection functions: Equipped with overload, short circuit, and phase loss protection functions to ensure equipment safety.
Reliability: Reliably designed and suitable for industrial environments.
Ease of use: Simple to operate and convenient to maintain.
Application fields: Industrial automation, mechanical manufacturing, electronic manufacturing, textile machinery, packaging machinery, etc.

4. Structure and Composition

Structure: As a circuit breaker, its internal structure includes the circuit breaker body, contact system, tripping mechanism, etc.

5. Application Fields

Industrial fields: Widely used in industrial automation, mechanical manufacturing, electronic manufacturing, textile machinery, packaging machinery, etc.
Other fields: Low-voltage power distribution systems, industrial automation control systems, etc.

6. Installation and Maintenance

Installation: Adopts DIN rail mounting, which facilitates installation and maintenance.
Maintenance: Regular inspection and maintenance are required to ensure the normal operation of the equipment, but specific maintenance details are not elaborated.
