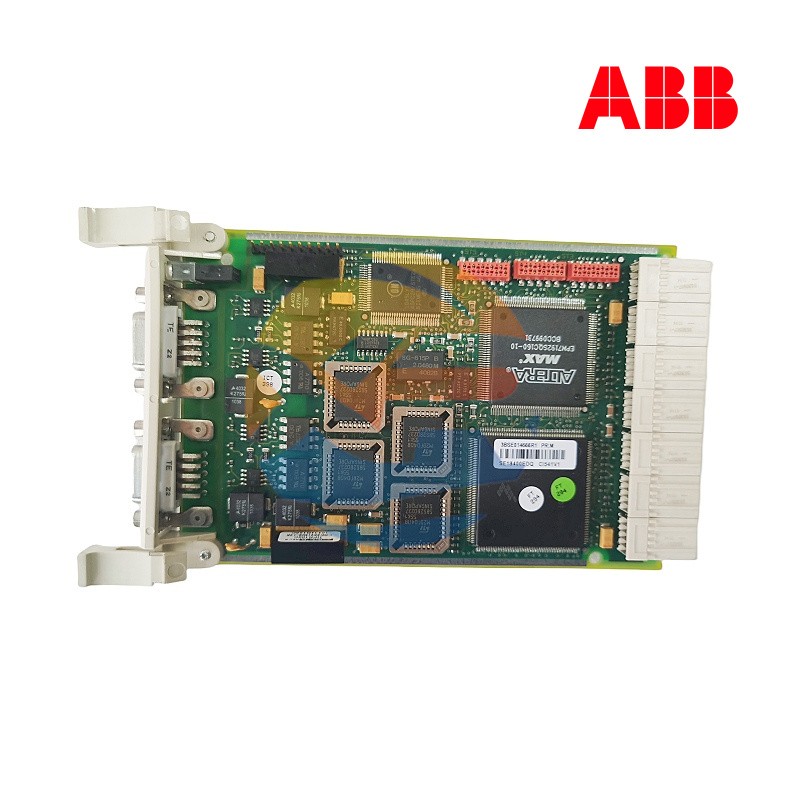

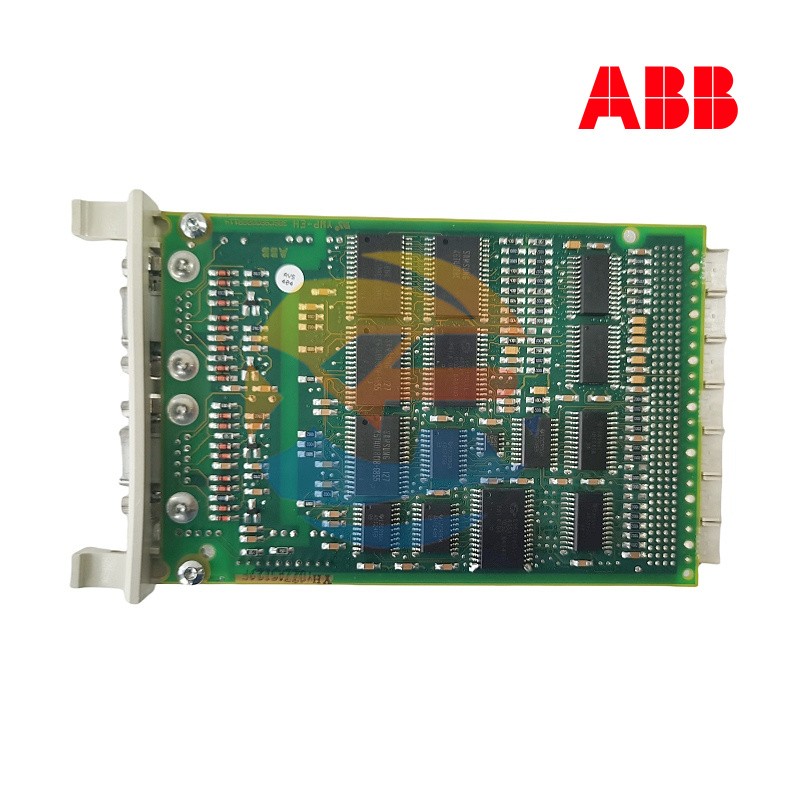

ABB CI541V1 3BSE014666R1
Overview
The ABB CI541V1 3BSE014666R1 is an industrial automation module belonging to the ABB Advant Controller 400 series or AC800M series. It is a PROFIBUS DP interface sub-module, designed to connect the PROFIBUS DP fieldbus to the control system, and supports data communication and control functions in industrial automation.
Parameters
Model and Brand: The model is CI541V1 3BSE014666R1, and the brand is ABB.
Communication Interfaces: Supports multiple communication protocols such as PROFIBUS DP, EtherNet/IP, Modbus, TCP/IP, OPC, etc.
Power Supply and Voltage: Input voltage is 24V DC, output voltage is 24V DC, and the operating voltage range is -20°C to 60°C or -40°C to 85°C.
Dimensions and Weight: The external dimensions are approximately 100mm × 50mm × 30mm or 100mm × 125mm × 20mm, and the weight is about 0.1kg to 0.2kg.
Processing Capacity: Equipped with a dual-core ARM Cortex-A9 processor, 1GB RAM, and 4GB Flash memory.
Input/Output: Supports digital input/output and analog input/output, with the specific number varying by version.
Product Features
High Performance and Reliability: It has high-speed processing capability, modular design, and remote management functions (such as remote parameter setting and program upgrade).
Communication Capability: Supports multiple industrial communication protocols, suitable for complex control and data processing needs.
Environmental Adaptability: Has a wide operating temperature range, with protection grades of IP20 or IP65, making it suitable for industrial environments.
Structure and Composition
Modular Design: Adopts a modular structure, facilitating installation and expansion.
Installation Method: Usually installed via DIN rail, supporting standard installation methods.
Application Fields
Industrial Automation: Widely used in industries such as discrete manufacturing, process control, power systems, automotive manufacturing, chemical industry, pharmaceuticals, food and beverage, metallurgy, etc.
Specific Applications: Production line control, power transmission monitoring, industrial process control, etc.
Installation and Maintenance
Installation: Installed via DIN rail, supporting standard installation methods. It is necessary to ensure that the environment meets the requirements of operating temperature and protection.
Maintenance: Regularly check the status of communication connections, power supplies, and interfaces, and follow the maintenance cycle recommended by the manufacturer.
