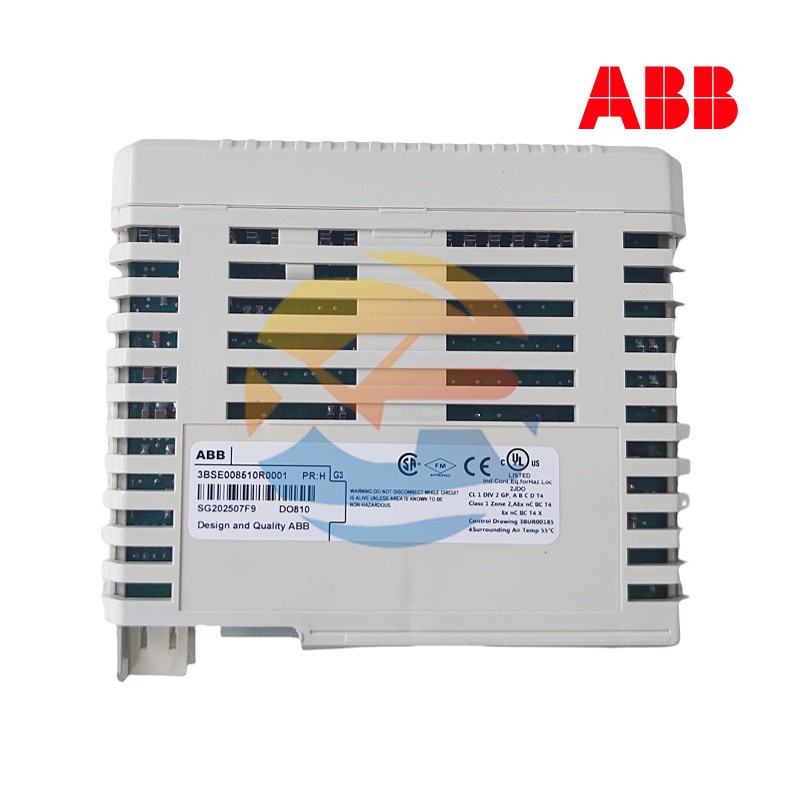

ABB 3BSE008510R0001
1. General Description
The ABB 3BSE008510R0001 is a digital output module belonging to the ABB Advant S800 I/O series. It is designed to provide digital signal output in industrial automation control systems. This module is part of the DO810 series, with the model number MOD.DO 810, and is primarily used in industrial automation fields such as manufacturing, energy, and construction.
2. Parameters
Model and Specifications: 3BSE008510R0001 belongs to the DO810 series, with a backup model number 3BSE008510R1.

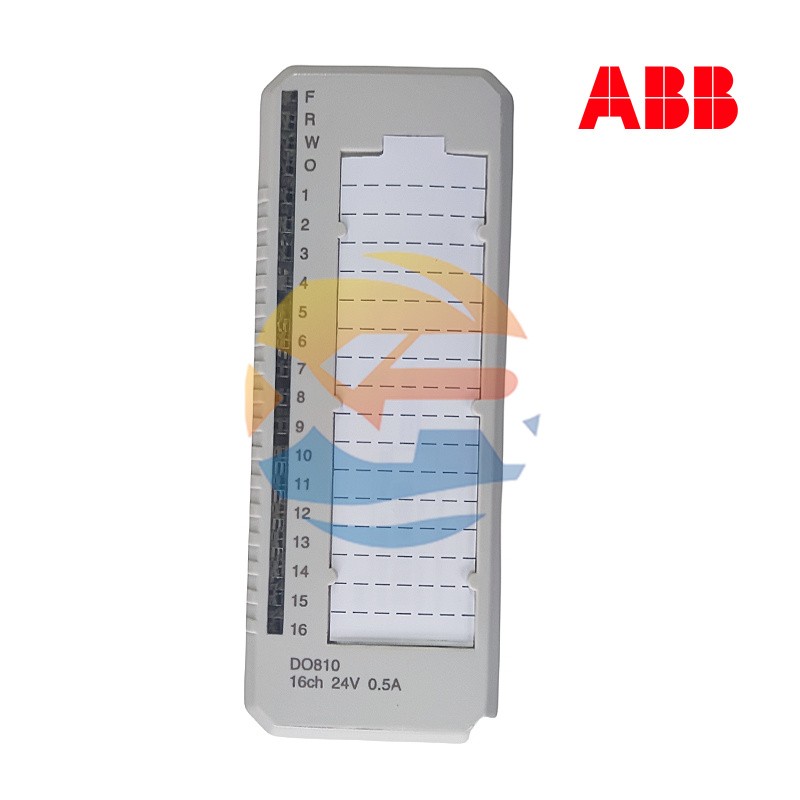

Output Channels: 16 digital output channels, each with a maximum output current of 0.5A and an output voltage of 24V DC.
Electrical Parameters: Input voltage of 24V DC, equipped with short-circuit protection function, isolation voltage of 50V, impedance greater than 1 KOhm, and frequency range of 47-63 Hz.
Physical Characteristics: Weight is approximately 0.2kg (or 200g); dimensions are not specified, but the design is compact.
Operating Environment: Operating temperature ranges from 0-55°C, storage temperature from -40-85°C, and relative humidity from 5-95% (non-condensing).
3. Product Features
High Reliability and Stability: ABB products are renowned for their high reliability and stability, making them suitable for long-term operation in industrial environments.
Multi-Channel Output: Supports independent configuration of multiple channels, applicable for controlling different devices.
Diagnosis and Maintenance: Equipped with diagnostic functions, it can monitor output status and provide fault alarms, facilitating quick maintenance.
Communication Interface: Supports standard industrial communication interfaces (such as Profibus-DP V1).
4. Structure and Composition

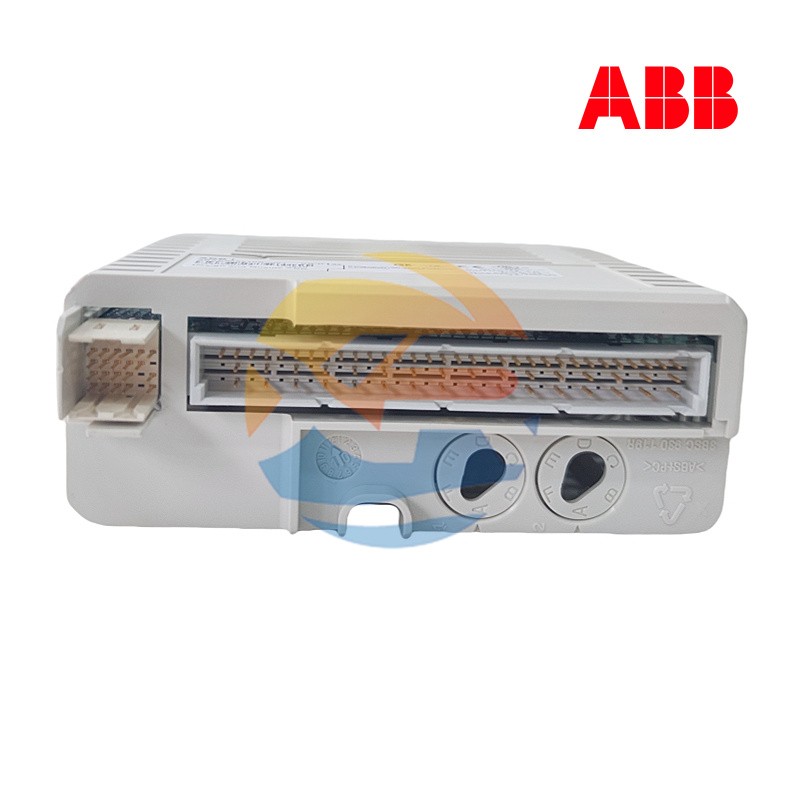

Module Composition: The module itself includes digital output channels and connection terminals (such as TU810, TU812 and other terminal units) to enhance connection and isolation performance.
Physical Structure: The module features a compact design, making it easy to install and integrate into industrial control systems.
5. Application Fields
Industrial Automation: Widely used in fields such as manufacturing, process control, energy, construction, electric power, and transportation.
Specific Applications: Controls mechanical equipment, robots, relays, valves and other devices, and is used in production lines, chemical industry, electric power, building automation systems, etc.
6. Installation and Maintenance
Installation: The module has a compact design and is easy to install, usually connected to a PLC or control system through a standard interface.
Maintenance: It is necessary to regularly check the connection status, clean the terminals, and use diagnostic functions for fault troubleshooting.
