Model：ABB REF615E_1G HBFGDAAHNDCCBNA11G

Brand: ABB
Price range (USD): 100-20000
Country: Switzerland
Parameter: Rated voltage: 230V AC
Rated current: 5A
Input voltage range: 40~60V DC
Output voltage: 12V DC
Power: 600W
Efficiency: 93%
Operating temperature: -40°C~85°C
Protection class: IP67
Dimensions: 230x120x60mm

ABB REF615E_1G HBFGDAAHNDCCBNA11G

Overview

The ABB REF615E_1G HBFGDAAHNDCCBNA11G is a high-performance feeder protection and measurement & control device, specifically designed for protection, control, measurement, and monitoring in power substations and industrial power systems. It belongs to the ABB Relion® series, complies with the IEC 61850 standard, and supports multiple communication protocols (such as IEC 61850, Modbus, and IEC 60870-5-103). This device is suitable for various distribution systems, including active, ring, and mesh distribution networks.

Parameters

Electrical Parameters

Rated voltage: 230V AC
Rated current: 5A
Input voltage range: 40~60V DC
Output voltage: 12V DC
Power: 600W
Efficiency: 93%
Operating temperature: -40°C~85°C
Protection class: IP67
Dimensions: 230x120x60mm

Communication and Interfaces

Supports communication protocols such as IEC 61850, Modbus, and IEC 60870-5-103.
Features modular design for analog and digital input/output.

Product Features

High Reliability and Modular Design

Adopts high-quality materials and advanced manufacturing processes to ensure long-term stable operation.
Modular design facilitates installation, maintenance, and upgrades.

Communication and Human-Machine Interface

Supports multiple communication protocols for easy integration with other devices.

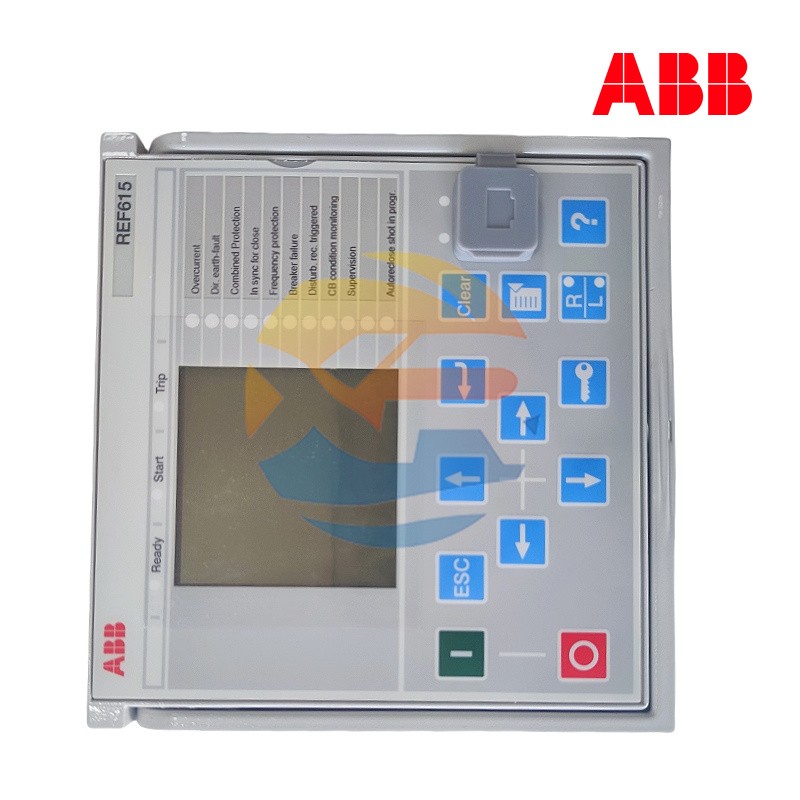

Optional LCD display with multi-language support.

Protection and Functions

Provides overcurrent, earth fault, voltage, frequency, and other protection functions.
Supports rapid fault detection and location.

Structure and Composition

Modular Design

Modular input/output design supporting analog and digital input/output.
Plug-in design for easy installation and testing.

Protection and Environmental Adaptability

IP67 protection class, adapting to harsh environments.

Application Fields

Power Systems

Suitable for utility substations, industrial power systems, and distribution networks (e.g., ring and mesh distribution).

Industrial and Municipal

Widely used in fields such as power system distribution automation, municipal construction, and industrial production.

Installation and Maintenance

Installation

The modular design facilitates on-site installation and maintenance. Detailed installation and maintenance guidelines are provided.

Maintenance

Supports remote monitoring and fault diagnosis.
