Model：ABB SC520 3BSE003816R1

Brand: ABB
Price range (USD): 100-20000
Country: Switzerland
Parameter: Dimensions: 291 mm (depth) × 300 mm (height) × 30 mm (width)
Weight: 0.742 kg
Operating temperature range: -20℃ to +60℃
Protection class: IP20
Power supply requirement: 24V DC

ABB SC520 3BSE003816R1

Overview

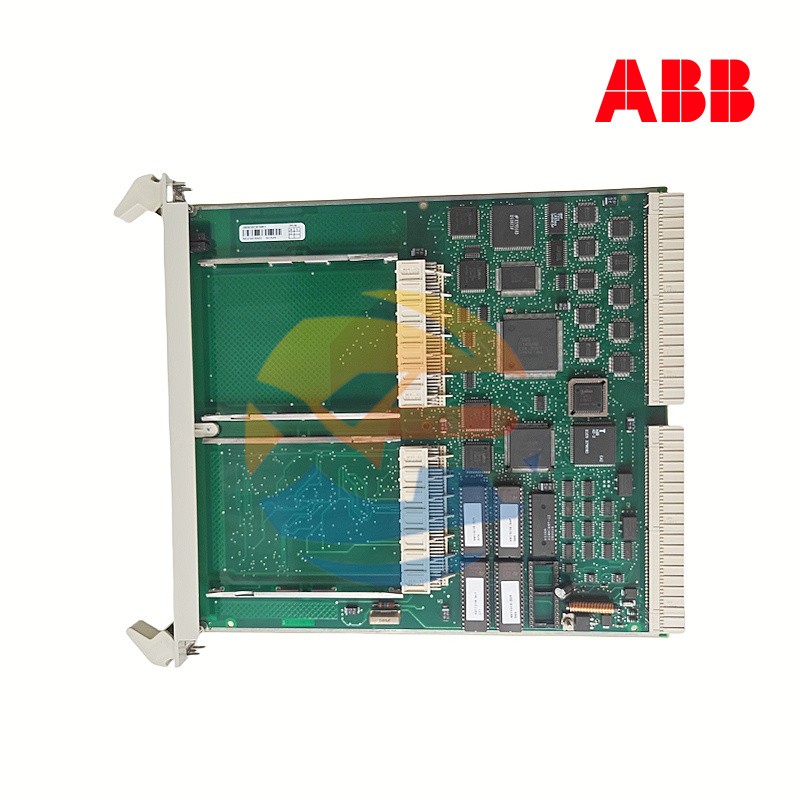

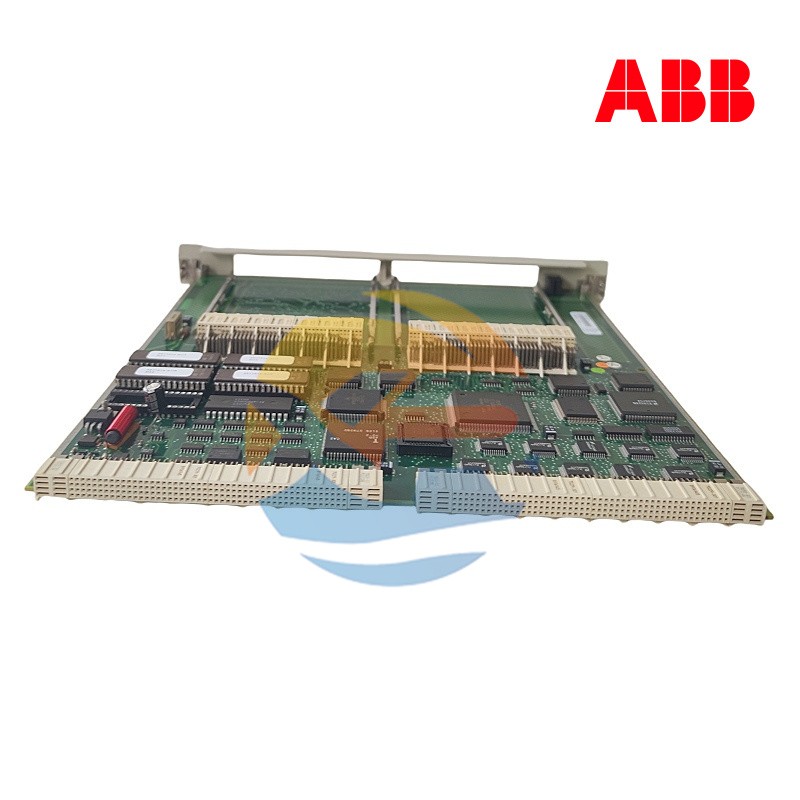

The ABB SC520 3BSE003816R1 is a sub-module carrier specifically designed for industrial automation systems. It is used to carry and fix ABB sub-modules, supporting modular expansion and integration.

Specifications

Dimensions: 291 mm (depth) × 300 mm (height) × 30 mm (width)
Weight: 0.742 kg
Operating temperature range: -20℃ to +60℃
Protection class: IP20
Power supply requirement: 24V DC

Product Features

High reliability: Manufactured with durable materials, featuring anti-vibration and dust-proof design, suitable for long-term stable operation in industrial environments.
Modular expansion: Supports hot swapping, enabling flexible expansion of I/O channels or communication interfaces, and is compatible with ABB MB300 and MB300E series sub-modules.
Efficient heat dissipation: Optimized heat dissipation structure and aluminum alloy material ensure temperature control under high load conditions.
Signal processing: Integrates signal conditioning functions, supporting signal conversion, linearization processing and filtering, and is compatible with various industrial sensor and controller protocols.

Structure and Composition

Main structure: Provides a stable platform for installing and fixing sub-modules.
Connection interfaces: Supports multiple connection methods to meet the connection needs of different sub-modules.
Heat dissipation design: Optimized structure for effective heat dissipation, ensuring stable operation of the system.

Application Fields

Industrial automation systems: Integrates PLC, DCS and intelligent sensors to realize collaborative control of equipment.
Power systems: Used for power monitoring and energy management, adapting to high-voltage input modules.
Marine and offshore engineering: Equipped with anti-corrosion coating and anti-vibration design, suitable for automation control of offshore wind power equipment and oil platforms.
Port machinery: Integrated into the distributed control systems of cranes and conveyors to improve equipment operation efficiency.

Installation and Maintenance

Installation method: Flat surface installation, suitable for non-explosive environments.
Easy maintenance: Modular design supports hot swapping, facilitating replacement and maintenance.
Environmental adaptability: Ensures long-term stable operation within the specified temperature and protection class range.
