Model：ABB DSDP170K02 3BSE019925R1

Brand: ABB
Price range (USD): 100-20000
Country: Switzerland
Parameter: Model: DSDP170K02 3BSE019925R1
Manufacturer: ABB
Series: Support module for the ABB Advant Controller 400 series PLC
Function: Provides pulse input, supports pulse input of multiple frequencies, and allows configuration of trigger events based on specific pulse counts

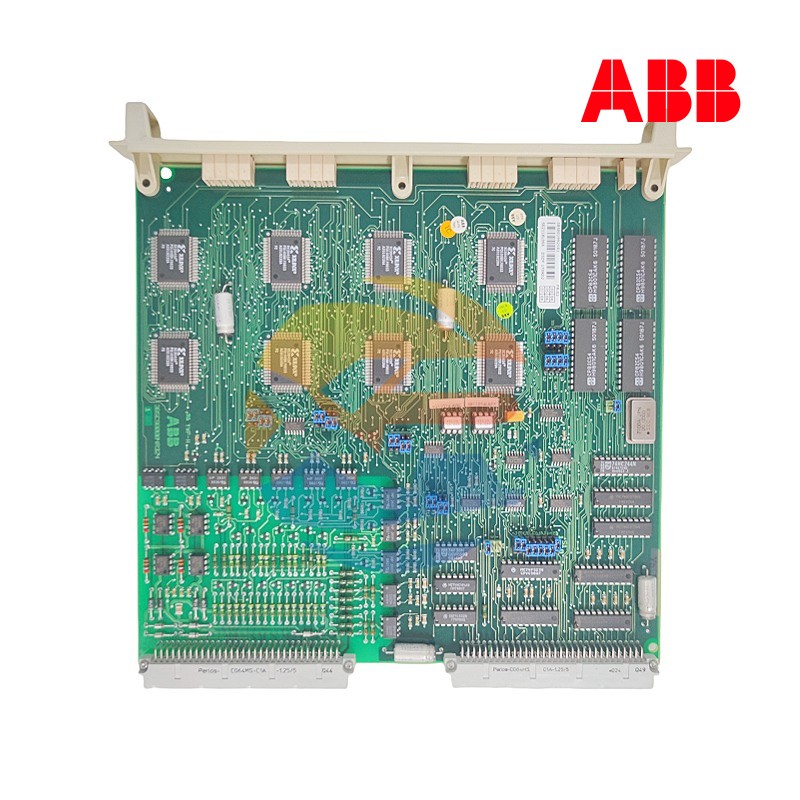

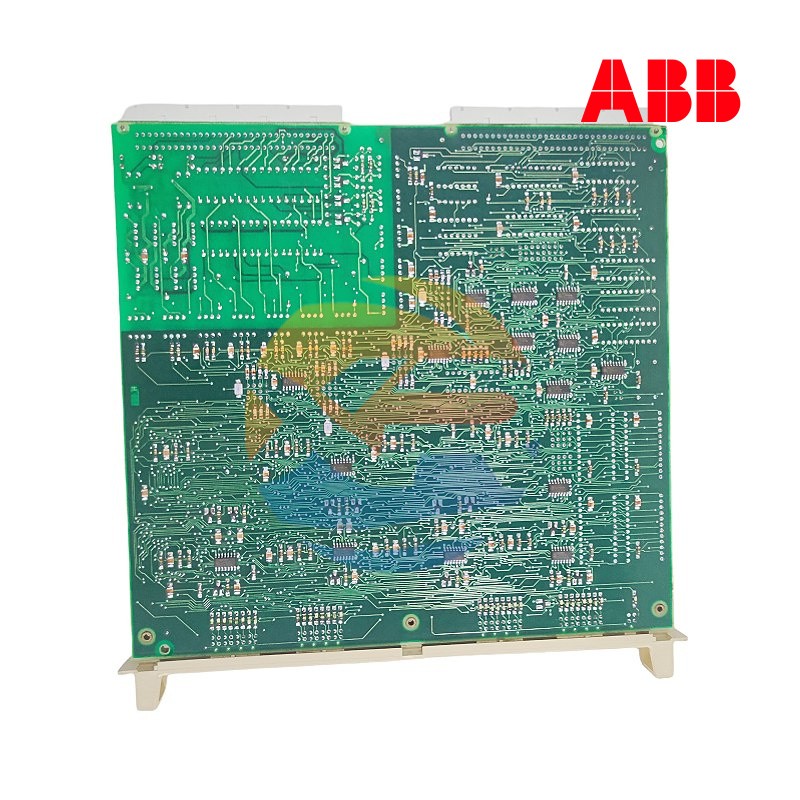

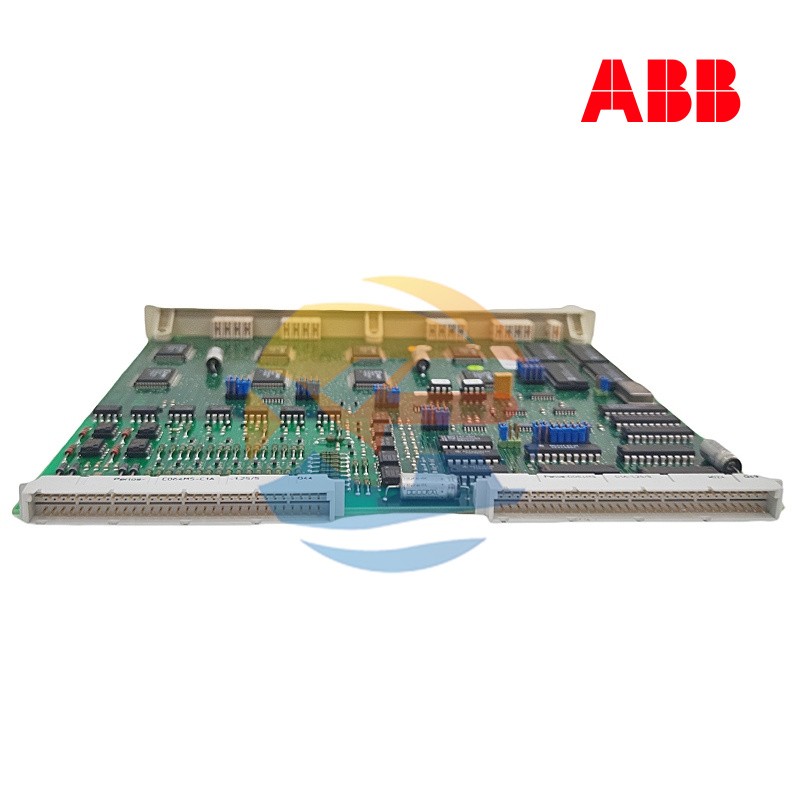

ABB DSDP170K02 3BSE019925R1

1. Overview

The ABB DSDP170K02 3BSE019925R1 is a pulse input module. It is designed to input pulse signals from external devices (such as sensors or other devices that generate electrical pulses) into the ABB Advant Controller 400 series PLC, enabling data processing and control in industrial automation applications.

2. Parameters

Model: DSDP170K02 3BSE019925R1
Manufacturer: ABB
Series: Support module for the ABB Advant Controller 400 series PLC
Function: Provides pulse input, supports pulse input of multiple frequencies, and allows configuration of trigger events based on specific pulse counts

3. Product Features

Pulse Input: Supports receiving pulse signals from external devices (e.g., sensors).
Frequency Support: Supports multiple pulse input frequencies, which can be configured according to specific pulse counts.
Trigger Events: Trigger events can be configured based on pulse counts.
Modular Design: Adopts a modular design to enhance the flexibility and efficiency of system development.
Wireless Data Transmission: Although the module itself is not a wireless data transmission module, ABB offers related wireless data transmission products and technologies to adapt to a wider range of industrial automation applications.

4. Structure and Composition

Modular Design: The modular design method decomposes complex problems into manageable local problems, improving the flexibility and efficiency of system development.
Physical Structure: As an I/O module, it is used to connect to the I/O system of the ABB Advant Controller 400 series PLC.

5. Application Fields

Motor Speed Monitoring: Used to monitor motor speed and provide real-time data support.
Piece Counting: Used in production lines to count the number of items passing through conveyors.
Signal Frequency Tracking: Used for signal frequency tracking in various industrial automation and monitoring applications.
Speed Measurement: Measures the speed of rotating shafts, motors, or conveyor belts.
Position Measurement: Tracks the position of linear actuators or valves.
Flow Measurement: Measures the flow of liquids or gases.
Event Counting: Counts discrete events, such as product units or machine cycles.
Industrial Control Systems: Performs various counting and measurement tasks in different industrial environments.

6. Installation and Maintenance

Installation: Before use, please read the instruction manual carefully to ensure the module is correctly installed, configured, and used. This is to achieve optimal performance and protect equipment safety.
Maintenance: Conduct regular inspection and maintenance of the equipment to ensure its long-term stable operation.

7. Other Information

Environmental Adaptability: Specific environmental adaptability parameters are not mentioned in the reference document.
RoHS Status: Non-RoHS compliant.
WEEE Category: Category 5 (Small Equipment).
