ABB TP867 3BSE043664R1_Xiamen XingRuiJia Import and Export CO,LTD

Model：ABB TP867 3BSE043664R1

Brand: ABB
Price range (USD): 100-20000
Country: Switzerland
Parameter: Input/Output Voltage: 24V DC
Input/Output Channels: 16 input/output channels
Operating Temperature Range: -20℃ ~ 60℃
Storage Temperature Range: -40℃ ~ 85℃
Dimensions: 175mm x 100mm
Communication Protocols: Supports Modbus, Profibus, Ethernet/IP, RS-232/485, etc.

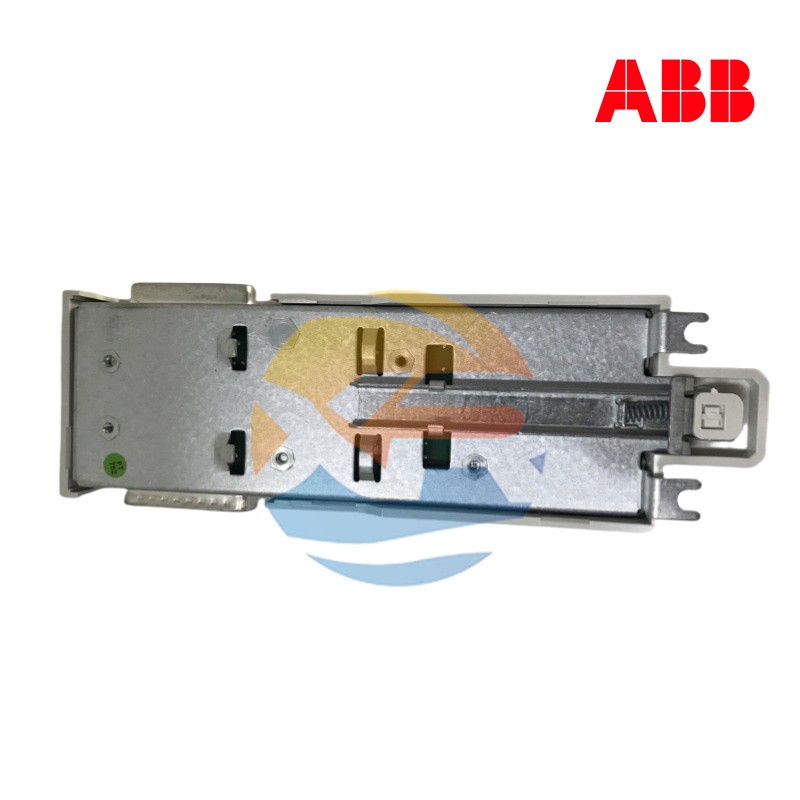

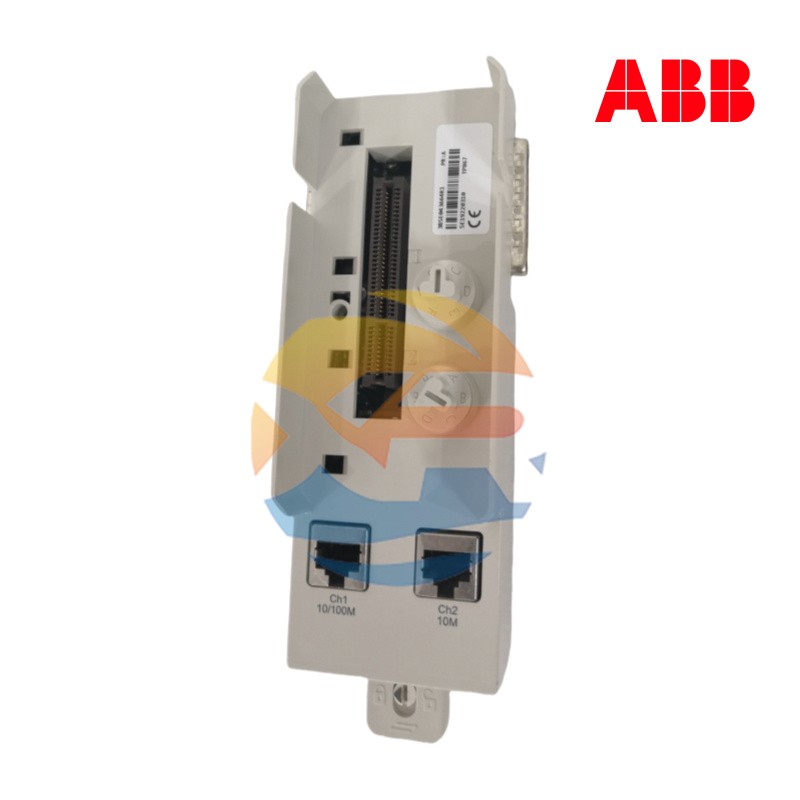

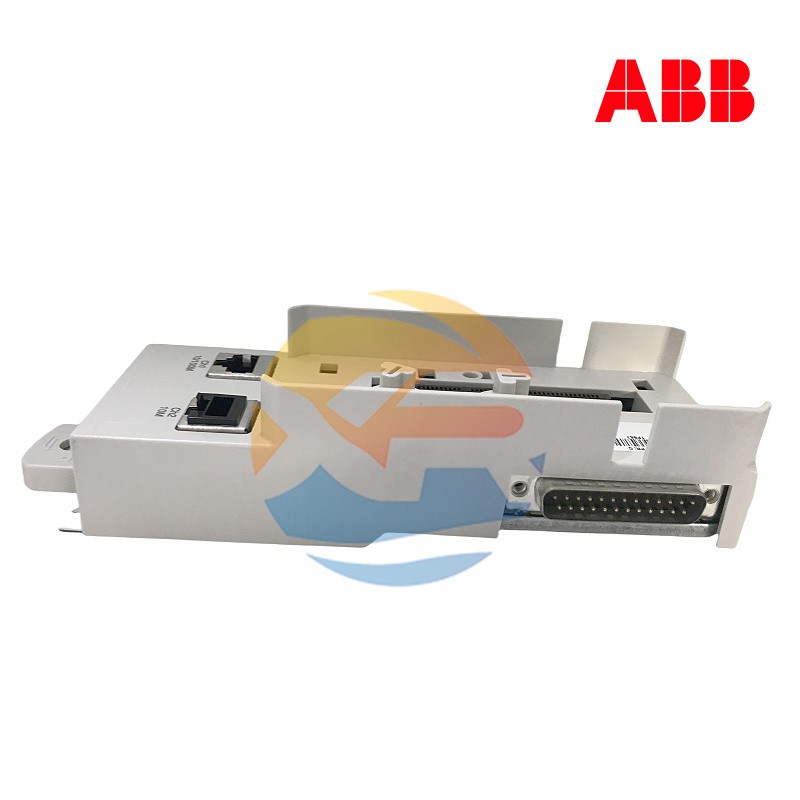

ABB TP867 3BSE043664R1

1. Overview

The ABB TP867 3BSE043664R1 is an interface module in industrial automation and control systems, designed for data transmission and communication. It supports a variety of communication protocols (such as Modbus, Profibus, Ethernet/IP). As part of the ABB safety control system, it is widely used in fields including industrial automation, PLC control, data acquisition, building automation, and energy management. Its design goal is to provide high reliability, modularization, and flexible communication capabilities to meet the needs of complex industrial environments.

2. Specifications

Input/Output Voltage: 24V DC
Input/Output Channels: 16 input/output channels
Operating Temperature Range: -20℃ ~ 60℃
Storage Temperature Range: -40℃ ~ 85℃
Dimensions: 175mm x 100mm
Communication Protocols: Supports Modbus, Profibus, Ethernet/IP, RS-232/485, etc.

3. Product Features

Multi-protocol Support: Compatible with multiple communication protocols, facilitating integration with different devices.
Modular Design: Supports modular expansion and flexible configuration, making it easy to integrate into complex systems.
High Reliability and Safety: Equipped with online diagnosis, fault detection, and safety functions to ensure the stability and security of data transmission.
High-performance Communication: Enables high-speed data transmission and real-time control.

4. Structure and Composition

Interface Module: Serves as the interface module in industrial automation systems, used to connect devices and sensors for data transmission.
Backplane/Base Plate: According to some documents, it functions as a backplane for module installation and supports multi-module integration.
Communication Interfaces: Compatible with a variety of industrial standard interfaces (such as Ethernet, PROFIBUS, Modbus).

5. Application Fields

Industrial Automation: Widely applied in industries such as PLC control, data acquisition, robotics, conveyors, presses, chemical engineering, electric power, and energy.
Building and Energy: Used in building automation, energy management, remote monitoring, and other scenarios.

6. Installation and Maintenance

Installation: Must comply with ABB guidelines. Keep the equipment clean and dry, and ensure compatibility.
Maintenance: Conduct regular inspection, cleaning, and testing to ensure long-term stable operation.
