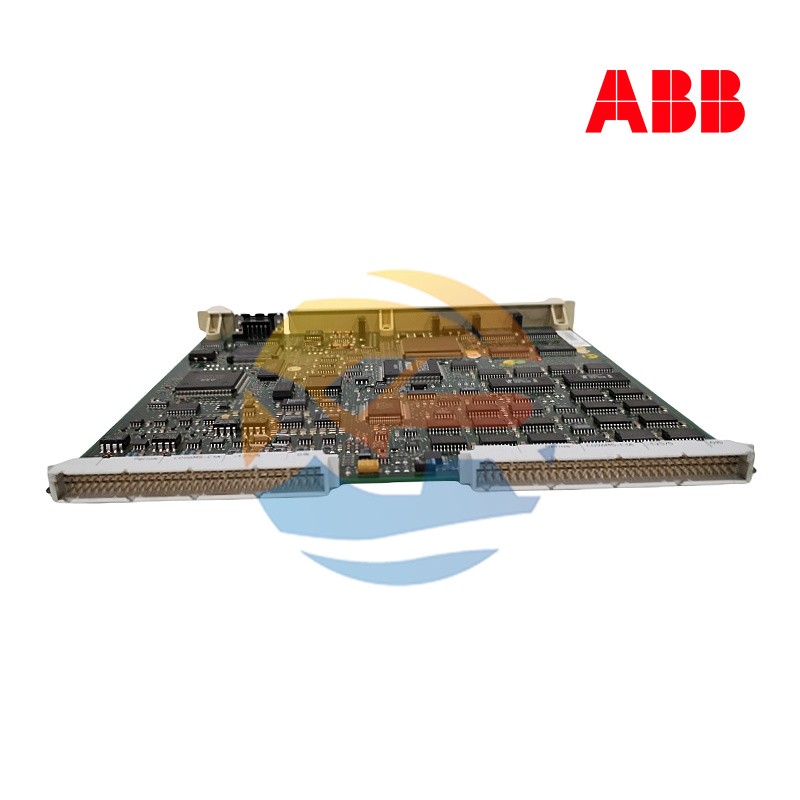

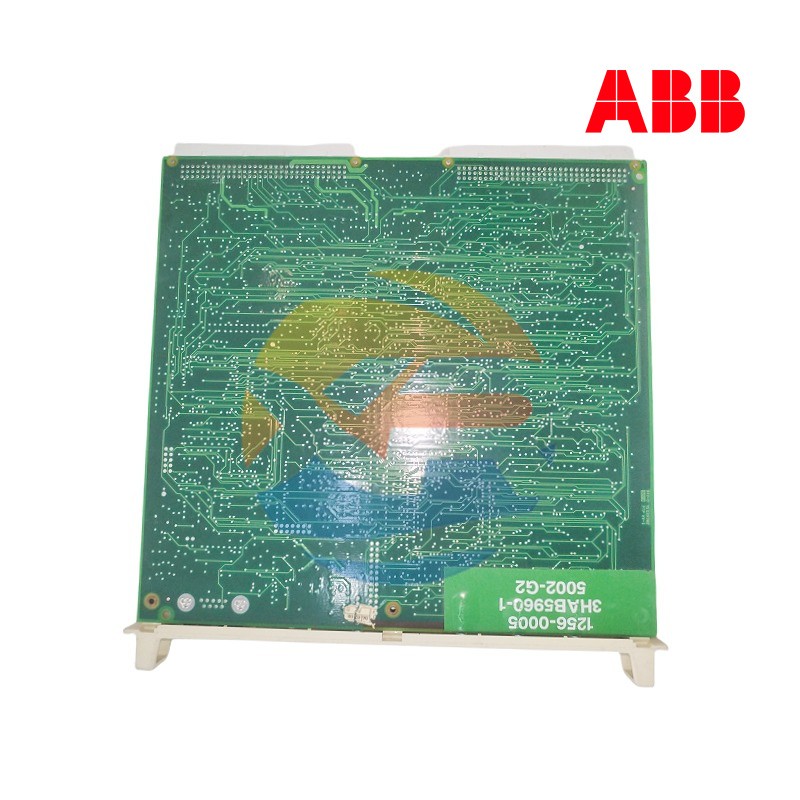

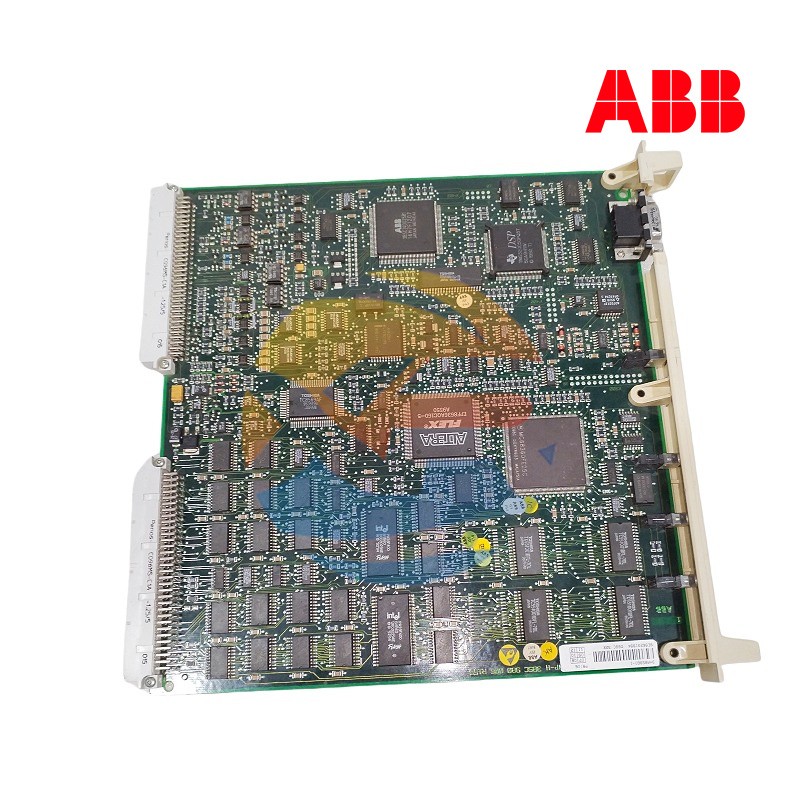

ABB DSQC322
The ABB DSQC322 is a high-performance digital I/O module specifically designed for industrial robots. It belongs to the extensive DSQC series of peripheral products under the ABB Robotics Division. In robotic automation workstations, this module serves as a critical "neural hub"—it acts as the core interface for signal interaction between the robot controller (IRC5) and external devices, including sensors, actuators, tools, and peripheral equipment (such as PLCs, conveyors, and pneumatic valves).
The ABB DSQC322 provides high-density bidirectional digital signal channels, enabling reliable reading of switch states from external devices (e.g., limit switches, photoelectric sensors) and control of actuator actions (e.g., relays, indicator lights, solenoid valves). Its core value lies in excellent anti-interference capability, a compact modular design, and seamless integration with ABB robot systems. These features ensure real-time, accurate, and reliable signal transmission in complex application scenarios like welding, material handling, and assembly, making it an indispensable standard component for building efficient and stable robotic automation units.
Product Specifications
Product Model: DSQC322
Manufacturer: ABB
Product Type: Digital I/O Module (for ABB robot systems)
I/O Points: 16 input points / 16 output points
Input Type: 24 VDC, sinking (NPN) or sourcing (PNP), software-configurable
Output Type: 24 VDC, sourcing (PNP), 0.5 A (per point)
Output Voltage: 24 VDC ±10%
Response Time: < 1 ms
Isolation Method: Optoelectronic isolation (500 Vrms) between channels and bus
Diagnostic Functions: Built-in short-circuit protection (output), status LED indicators (per point)
Connection Method: Removable screw terminal blocks
Power Requirement: 24 VDC supplied by the robot controller or an external source
Power Consumption: Typical 5 W
Operating Temperature: 0°C to +55°C
Mounting Method: Standard DIN rail mounting
Structure and Composition
The ABB DSQC322 adopts a compact modular design. Its robust plastic housing features two rows of 32 high-brightness LED indicators on the front—green indicates valid input signals or activated outputs, while red may signify faults—providing intuitive channel status diagnosis. Inside the module, input and output circuits are electrically isolated from each other and from the backplane bus.
Input Side: All 16 channels are equipped with optocouplers, which convert external 24V field signals into internal logic levels recognizable by the controller.
Output Side: The 16 channels use transistor outputs, capable of directly driving loads such as solenoid valves and relay coils. Each output integrates overcurrent and short-circuit protection circuits.
The module uses removable terminal blocks for on-site wiring, greatly simplifying installation and maintenance. A dedicated bus connector on the bottom or rear of the module enables communication with the main computer unit of the ABB robot controller (or DeviceNet master module) via a branch cable (e.g., DSQC1000).
Key Features and Advantages
1. High Configuration Flexibility and Integration
The standout feature of the ABB DSQC322 is that its 16 input points and 16 output points can be flexibly configured as sinking (NPN) or sourcing (PNP) modes via RobotStudio software or a teach pendant. This allows seamless connection to sensors and actuators of almost all brands, eliminating concerns about signal type mismatches and significantly simplifying system integration and spare parts inventory management.
2. Excellent Reliability and Real-Time Performance
Designed specifically for industrial environments, the module’s 500 Vrms optoelectronic isolation effectively prevents ground loops and high-voltage transients from damaging the robot controller. Its fast response time (less than 1 ms) ensures that signal interaction between robot programs and peripheral equipment meets the cycle requirements of high-speed automated production, guaranteeing production real-time performance and synchronization.
3. Convenient Diagnosis and Maintenance
Each I/O point is equipped with an independent LED status indicator, allowing maintenance personnel to instantly locate faults—whether from on-site equipment, wiring, or the module itself—greatly reducing the Mean Time to Repair (MTTR). The removable terminal blocks support front-side wiring; when replacing the module, there is no need to rewire—simply remove the terminal block and install it on the new module, ensuring highly efficient maintenance.
Application Fields
The ABB DSQC322 is widely used in all automation fields employing ABB robots:
Automotive Manufacturing: It connects clamping sensors of welding fixtures and controls the oil injection solenoid valves of welding torches.
Material Handling: It detects pallet in-place signals and controls the air circuits of suction cups or grippers.
3C Product Assembly Lines: It reads OK/NG signals from vision systems and activates screwdriver tools.
Other Sectors: In food packaging, plastic molding, and machine tool loading/unloading applications, the DSQC322 remains the preferred standard I/O solution for achieving efficient and reliable communication between robots and peripheral equipment.
Installation and Maintenance
Pre-Installation Preparation
Before installing the ABB DSQC322, ensure the robot system is powered off. Select an appropriate DIN rail position and mount the module. Plan the wiring for on-site equipment, using wires with a cross-sectional area of 0.5 mm² to 1.5 mm². Before wiring, be sure to configure all channels to the correct sinking or sourcing mode via software to avoid damaging on-site equipment or the module.
Maintenance Recommendations
Daily Maintenance: Keep the module clean and check if the LED status indicators are normal.
Fault Handling: If an output point malfunctions (LED turns red), it usually indicates a short circuit in the external load. After resolving the external fault, the red LED will turn off, and the module will recover automatically.
Module Replacement: Disconnect the power supply, unplug the bus connector and terminal block of the old module, then install them on the new module—no rewiring is needed, making the process highly convenient.
Periodic Check: Regularly inspect if the screws on the terminal blocks are loose.
