ABB SPNIS21_Xiamen XingRuiJia Import and Export CO,LTD

Model：ABB SPNIS21

Brand: ABB
Price range (USD): 100-20000
Country: Switzerland
Parameter: Input Voltage: 24V DC
Operating Temperature Range: -20°C to +60°C
Dimensions: 120mm × 80mm × 35mm
Weight: Approximately 0.2 kg
Installation Method: Standard DIN rail mounting
Communication Interfaces: Supports protocols such as Ethernet, Modbus TCP, OPC UA, and RS-232
Protection Class: IP65

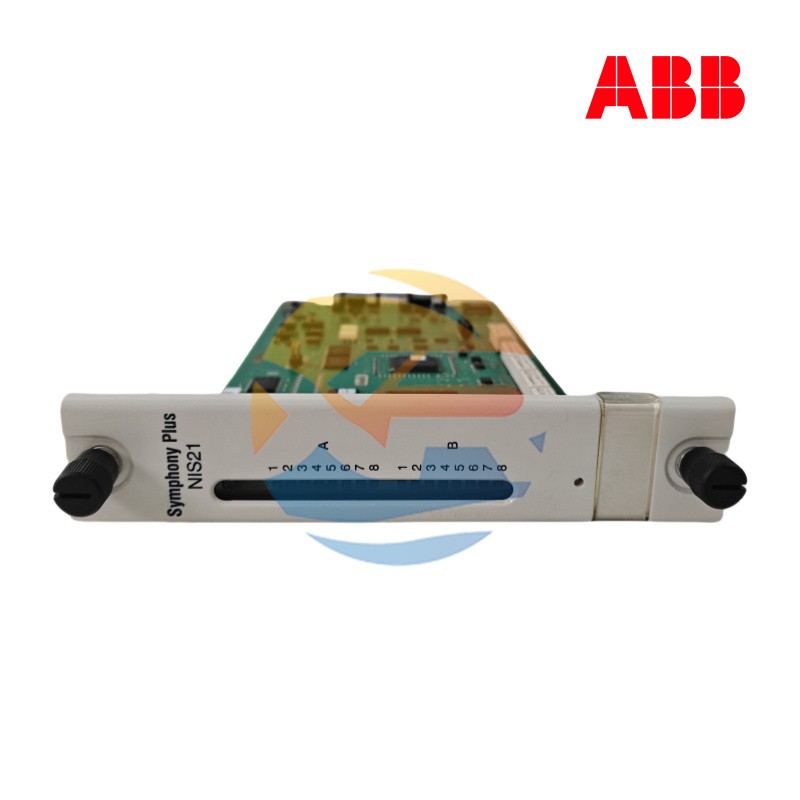

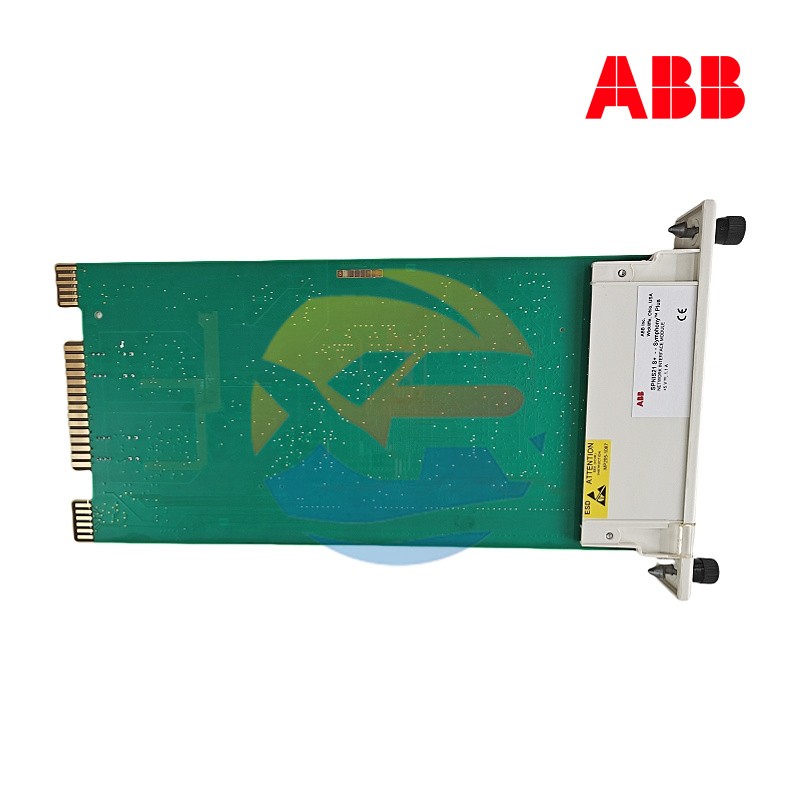

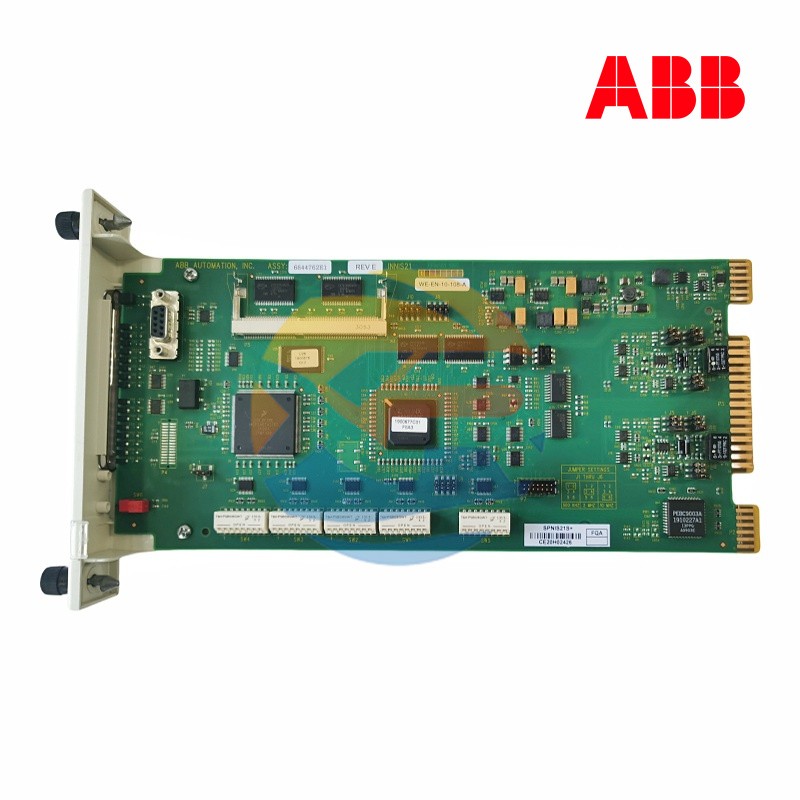

ABB SPNIS21

1. Overview

The ABB SPNIS21 is a network interface module designed to connect ABB’s SPNI-S bus to Ethernet, enabling data exchange and communication between different devices. This module belongs to ABB’s Symphony Plus series and is part of its DCS (Distributed Control System). As a communication module in ABB’s automation systems, it is widely used in industrial control, process control, and automation fields.

2. Specifications

Input Voltage: 24V DC
Operating Temperature Range: -20°C to +60°C
Dimensions: 120mm × 80mm × 35mm
Weight: Approximately 0.2 kg
Installation Method: Standard DIN rail mounting
Communication Interfaces: Supports protocols such as Ethernet, Modbus TCP, OPC UA, and RS-232
Protection Class: IP65

3. Product Features

High Performance and Reliability: Adopts an industrial-grade design, featuring high reliability and stability, and can operate continuously in harsh industrial environments.
Multi-Protocol Support: Compatible with multiple communication protocols, including Modbus TCP, Ethernet/IP, and PROFINET IO, making it suitable for a variety of industrial applications.
Easy Integration: Can be seamlessly integrated into ABB automation systems, facilitating system integration and maintenance.
High Precision and Reliability: Manufactured with high-quality components, ensuring high precision and reliability, which is ideal for industrial control and process control scenarios.
Easy Maintenance: Features a modular design for convenient installation and maintenance, and supports remote diagnosis and troubleshooting.

4. Structure and Composition

As a network interface module, the ABB SPNIS21 mainly consists of the following components:

Communication Interfaces: Supports communication interfaces like Ethernet, Modbus TCP, and RS-232 for data transmission and communication.
Power Interface: Provides 24V DC power input, supporting external power supply or power supply from the DCS rack.
Physical Structure: Adopts a modular design for easy installation and maintenance, and typically uses DIN rail mounting.
Internal Circuits: Includes communication protocol processing circuits, data processing circuits, and interface circuits, which are used for data processing and communication.

5. Application Fields

The ABB SPNIS21 is mainly applied in the following fields:

Industrial Control: Used to connect on-site industrial equipment, enabling data communication and control between devices.
Process Control: Applied to connect process equipment, realizing monitoring and control of process flows.
Automation: Utilized to connect automation equipment, achieving monitoring and control of automation systems.
Industrial Automation Systems: As part of ABB’s automation systems, it is widely used in power plants, industrial process control, and other fields.

6. Installation and Maintenance

Installation: Typically uses DIN rail mounting, which is simple and convenient, and supports modular expansion.
Maintenance: The modular design allows for easy maintenance and replacement, and supports remote diagnosis and troubleshooting.
Maintenance Recommendations: Regularly check the module status to ensure normal communication and prevent faults caused by environmental factors.
