Model：ABB UFC719AE01

Brand: ABB
Price range (USD): 100-20000
Country: Switzerland
Parameter: Input Voltage: 24 V DC
Output Voltage: 24 V DC
Current: 1 A
Protection Class: IP20
Operating Temperature: -10°C to 60°C
Communication Interfaces: Supports protocols such as Ethernet, RS-232, RS-485, and Modbus RTU

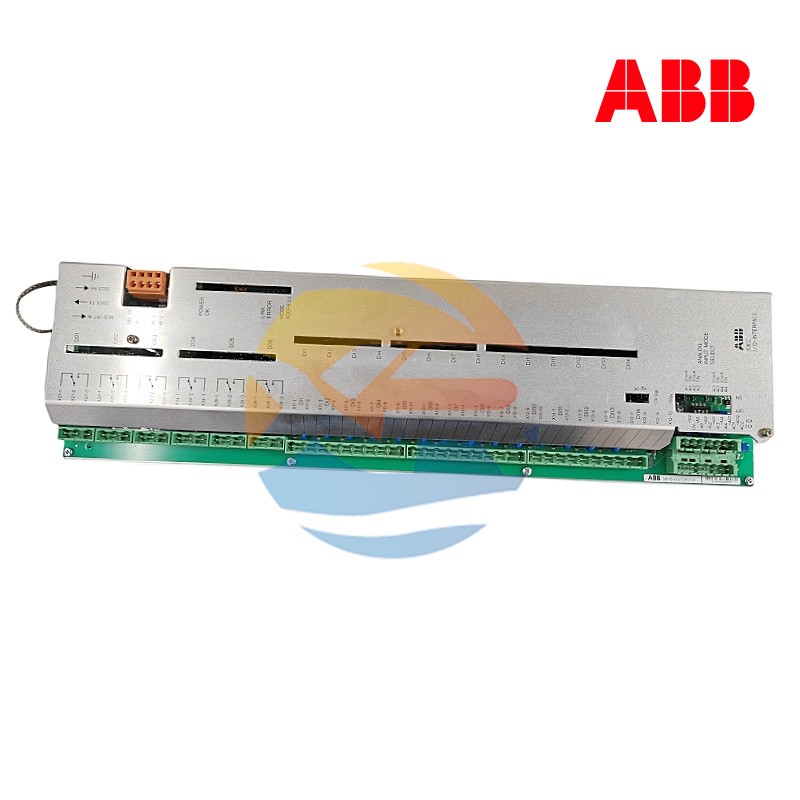

ABB UFC719AE01

1. General Description

The ABB UFC719AE01 is a high-performance industrial controller module, which belongs to ABB’s industrial automation product line. It is used for control, monitoring, and data processing in industrial automation systems. Its core functions include logic control, motion control, process control, and data acquisition.

2. Product Series

It is part of the UFC Series. This series features a modular design that supports flexible configuration and integration, making it suitable for a variety of industrial application scenarios.

3. Parameters

3.1 Electrical Parameters

Input Voltage: 24 V DC
Output Voltage: 24 V DC
Current: 1 A
Protection Class: IP20
Operating Temperature: -10°C to 60°C
Communication Interfaces: Supports protocols such as Ethernet, RS-232, RS-485, and Modbus RTU

3.2 Physical Characteristics

It adopts a modular design, supports DIN rail mounting, and comes in various sizes.

4. Product Features

4.1 High Performance and Reliability

Equipped with a 32-bit RISC CPU that provides fast processing capabilities, supporting complex control logic and algorithms.
Features a high-reliability design, suitable for harsh industrial environments.

4.2 Flexibility and Modularity

Adopts a modular design, supporting flexible configuration and expansion for easy installation and maintenance.
Supports multiple control modes (open-loop, closed-loop, sequential control) and communication protocols.

4.3 Safety and Protection

Built-in overload and short-circuit protection, and supports remote monitoring and fault diagnosis.

5. Structure and Composition

5.1 Modular Design

It adopts a modular structure, facilitating installation, maintenance, and expansion.

5.2 Interfaces and Installation

It supports DIN rail mounting, and some models provide jumper configuration (e.g., JP1, JP4).

5.3 Structural Composition

It includes a processor, I/O interfaces, communication modules, and a power management unit.

6. Application Fields

6.1 Industrial Automation

It is widely used in fields such as manufacturing, process control, energy management, transportation, and water treatment.

6.2 Specific Industries

It is applied in industries including electric power, chemical engineering, petroleum, metallurgy, automotive, food, packaging, printing, and electronics.

6.3 Typical Applications

Its typical applications cover automated production lines, robot control, machine tools, packaging machinery, and safety control.

7. Installation and Maintenance

7.1 Installation Method

It supports DIN rail mounting, and some models require jumper configuration (e.g., jumpers JP1, JP4).

7.2 Maintenance

The modular design facilitates maintenance, and it supports remote monitoring and fault diagnosis.

7.3 Precautions

It is necessary to ensure that the operating environment (such as temperature and ventilation) complies with specifications to avoid overheating.
