Model：ABB PFTL101A 1.0KN

Brand: ABB
Price range (USD): 100-20000
Country: Switzerland
Parameter: Measurement Range: 0 to 1.0 kN (1000 N)
Accuracy: Typically ±0.05% or ±0.2% of Full Scale (FS)
Output Signal: Analog signal (e.g., 4-20 mA) or digital signal (e.g., RS232)
Operating Temperature Range: -40°C to +85°C or -20°C to +70°C
Protection Class: IP65 or IP67
Dimensions and Weight: Approximately 50×50×25 mm in dimensions, and about 0.2 kg in weight

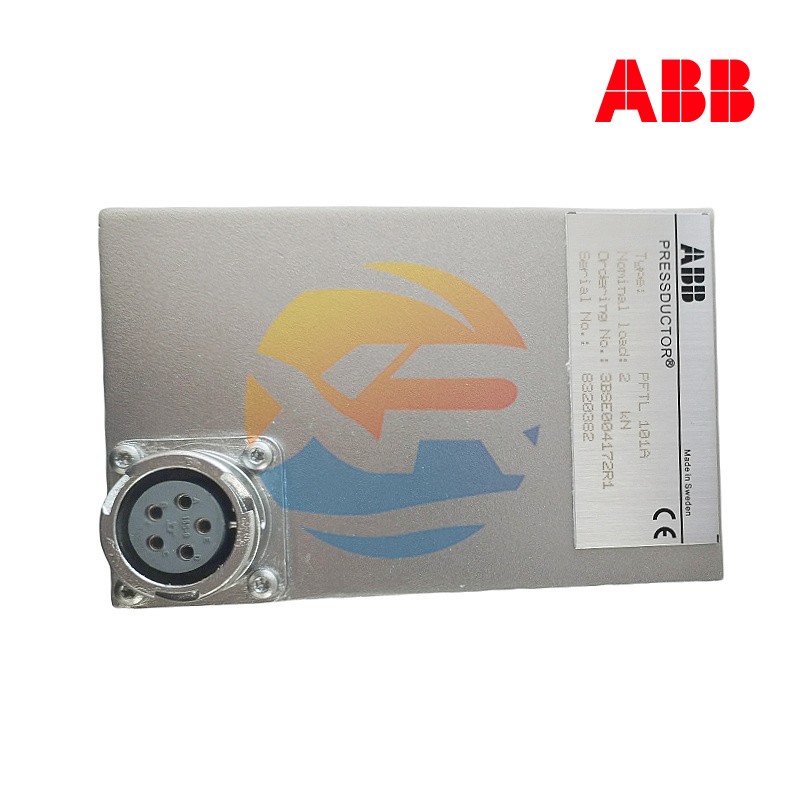

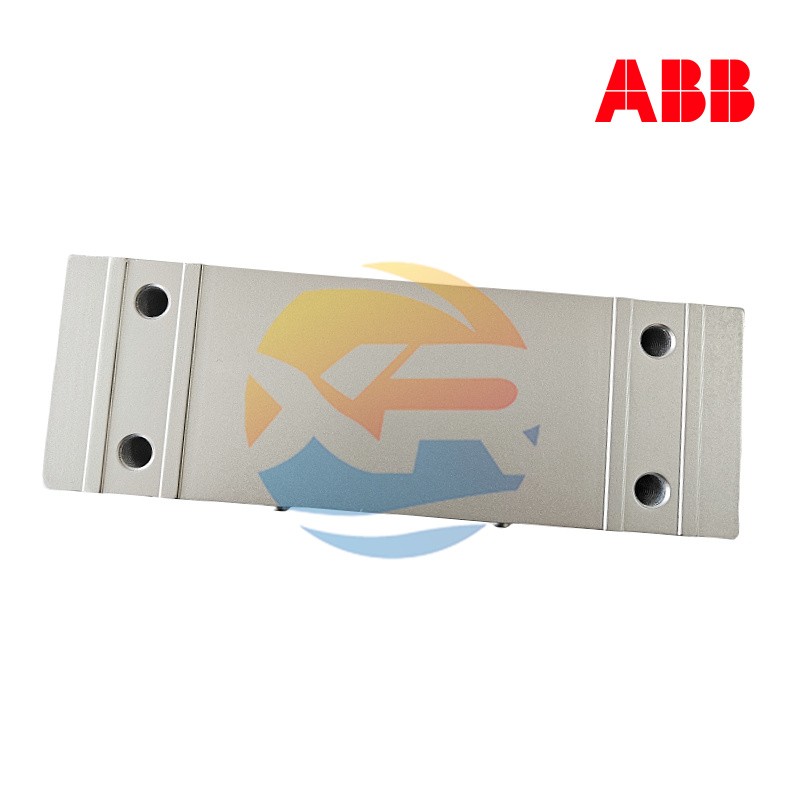

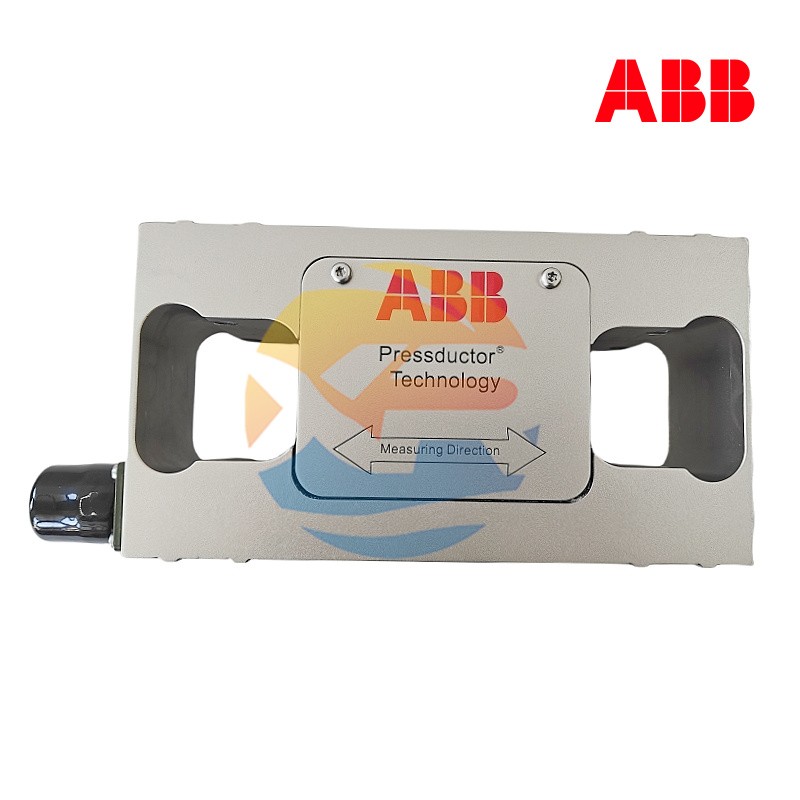

ABB PFTL101A 1.0KN

The ABB PFTL101A 1.0KN is a high-precision and high-performance tension or force measurement sensor, widely used in fields such as industrial automation, material testing, aerospace, and robotics. Its core function is to accurately measure the magnitude of tension or force, meeting the high-precision requirements in industrial production.

Parameters and Specifications

Measurement Range: 0 to 1.0 kN (1000 N)
Accuracy: Typically ±0.05% or ±0.2% of Full Scale (FS)
Output Signal: Analog signal (e.g., 4-20 mA) or digital signal (e.g., RS232)
Operating Temperature Range: -40°C to +85°C or -20°C to +70°C
Protection Class: IP65 or IP67
Dimensions and Weight: Approximately 50×50×25 mm in dimensions, and about 0.2 kg in weight

Product Features

High Precision and Stability: Adopting advanced strain gauge technology and high-precision signal processing circuits, the measurement error is controlled within ±0.5%.
Durability: Designed for harsh industrial environments, it features corrosion resistance, shock resistance, and a long service life.
Versatility: Supports multiple signal outputs and installation methods, adapting to different application scenarios.
High Reliability: Compliant with industrial standards (e.g., OIML R60, CE, RoHS).

Structure and Composition

As a force sensor, the ABB PFTL101A 1.0KN has a core structure including strain gauges, signal processing circuits, and a housing. Specific structural details are not described in detail in the reference information, but its design emphasizes compactness, easy installation, and a high protection class.

Application Fields

Industrial Automation: Used in scenarios such as robotics, production lines, and quality control.
Material Testing: Used for measuring material tension and pressure.
Specific Industries: Paper making, textile, packaging, aerospace, automotive manufacturing, etc.
Other Applications: Horizontal weighing, pressure monitoring, and industrial process control.

Installation and Maintenance

Installation: The installation process is simple and supports multiple installation methods. Operations must be performed with reference to the product manual or user manual.
Maintenance: Regular calibration (factory calibration or on-site calibration) is required to maintain cleanliness and the protection class.
Precautions: Avoid overloading (the overload capacity is usually 150%) and the impact of extreme environments.
