Model：ABB 5SHX2645L0004

Brand: ABB
Price range (USD): 100-20000
Country: Switzerland
Parameter: Input Voltage: 24V DC ±20%
Input Current: Maximum 0.5A
Communication Protocols: Supports industrial communication protocols such as Modbus and EtherNet/IP.
Dimensions: 120mm × 90mm × 70mm
Operating Temperature Range: -20℃ to +60℃
Weight: Approximately 2.6 kg

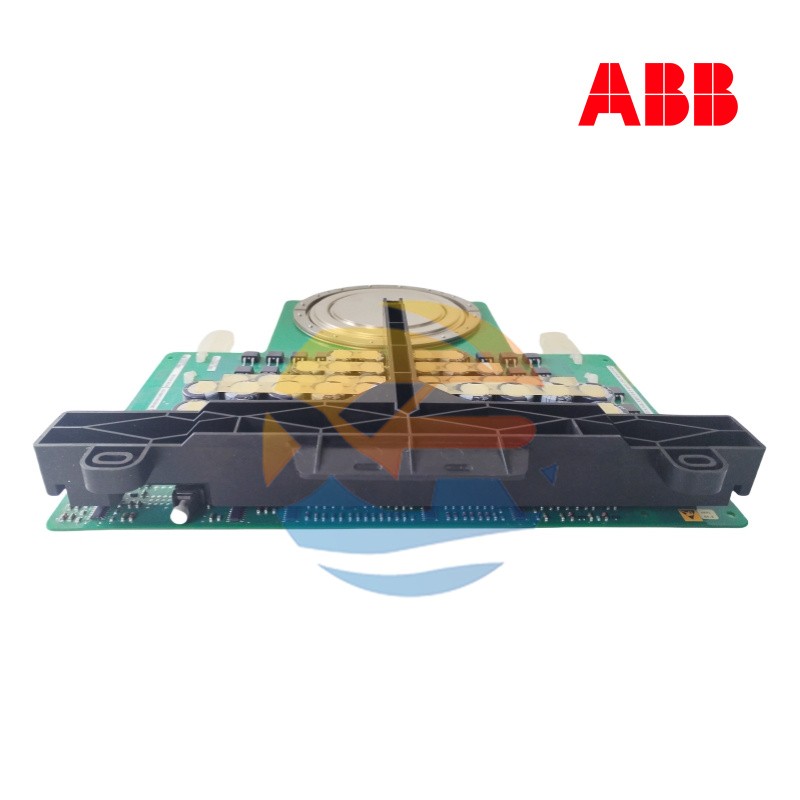

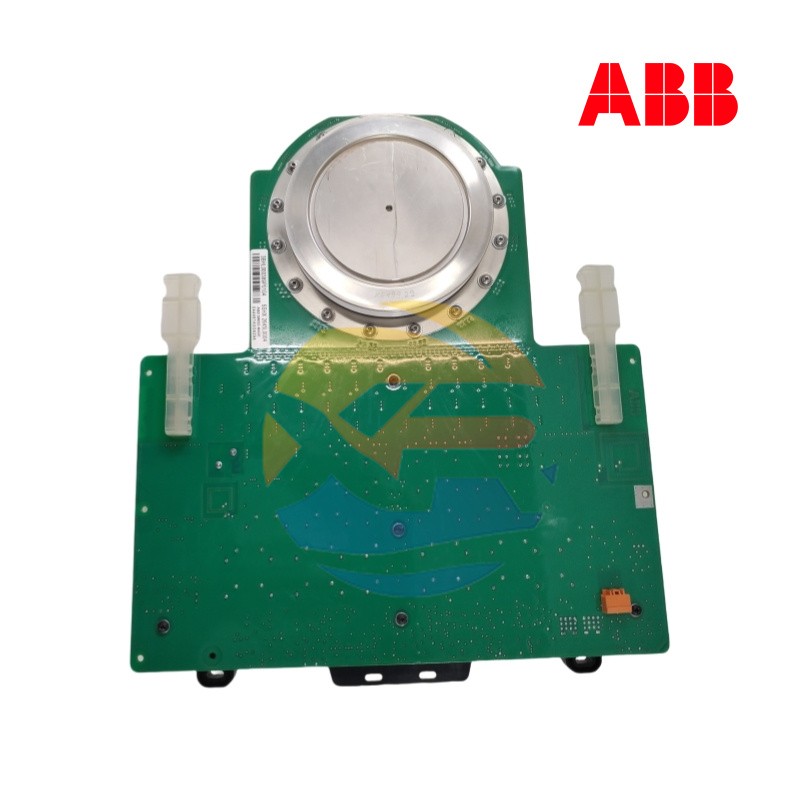

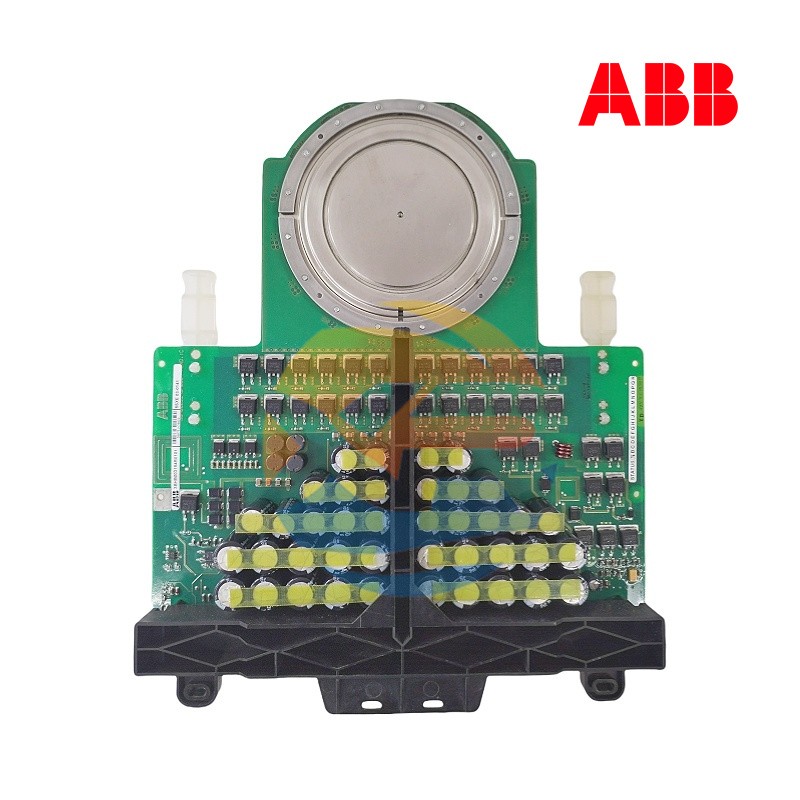

ABB 5SHX2645L0004

Overview

ABB 5SHX2645L0004 is an industrial automation module manufactured by ABB, which belongs to the company’s drive system or control system series. It is widely used in the fields of industrial automation, power control, and communications. This module combines the programming flexibility of PLC (Programmable Logic Controller) and the power control capability of thyristors, making it suitable for complex industrial automation control systems. Its design aims to provide high-performance, high-reliability, and high-efficiency industrial control solutions.

Parameters

Input Voltage: 24V DC ±20%
Input Current: Maximum 0.5A
Communication Protocols: Supports industrial communication protocols such as Modbus and EtherNet/IP.
Dimensions: 120mm × 90mm × 70mm
Operating Temperature Range: -20℃ to +60℃
Weight: Approximately 2.6 kg

Product Features

High Performance: Equipped with high current, high blocking voltage, high switching frequency, and high reliability.
Compact Structure: Features a compact design for easy installation and maintenance.
Low On-State Loss: Reduces energy loss and improves system efficiency.
Communication Capability: Supports multiple communication interfaces (e.g., Modbus, Ethernet).
Protection Rating: IP55
High Reliability: Manufactured with high-quality components, suitable for complex environments.

Structure and Composition

Physical Structure: Adopts a modular design and uses DIN rail mounting.
Cooling Method: Natural cooling or air cooling.
Composition: Includes digital input/output ports (16 channels each), communication interfaces, and control logic circuits.

Application Fields

Industrial Automation: Used for motor control, power regulation, temperature control, etc.
Manufacturing Industry: Suitable for high-precision equipment such as CNC machine tools, engraving machines, and packaging machinery.
Power and Energy: Applied in fields like power transmission, renewable energy generation, metallurgy, and chemical engineering.
Commercial and Building Sectors: Used for circuit protection in commercial buildings and residential areas.

Installation and Maintenance

Installation Method: Supports DIN rail mounting for quick installation and maintenance.
Maintenance: Features a compact structure, facilitating daily maintenance and troubleshooting.
Protection: Has a high protection rating (e.g., IP55) to adapt to complex environments.
