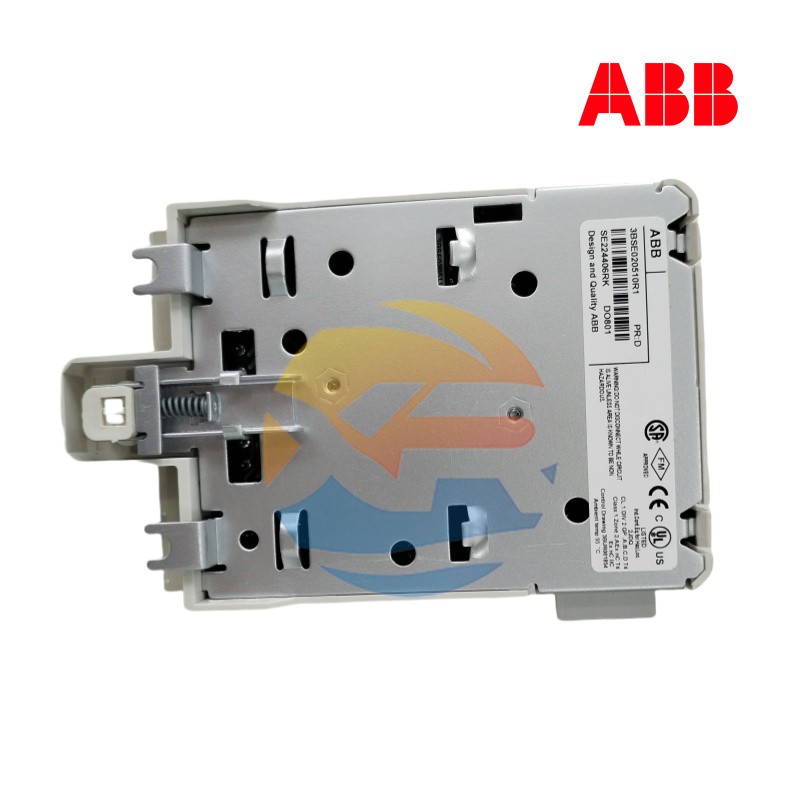

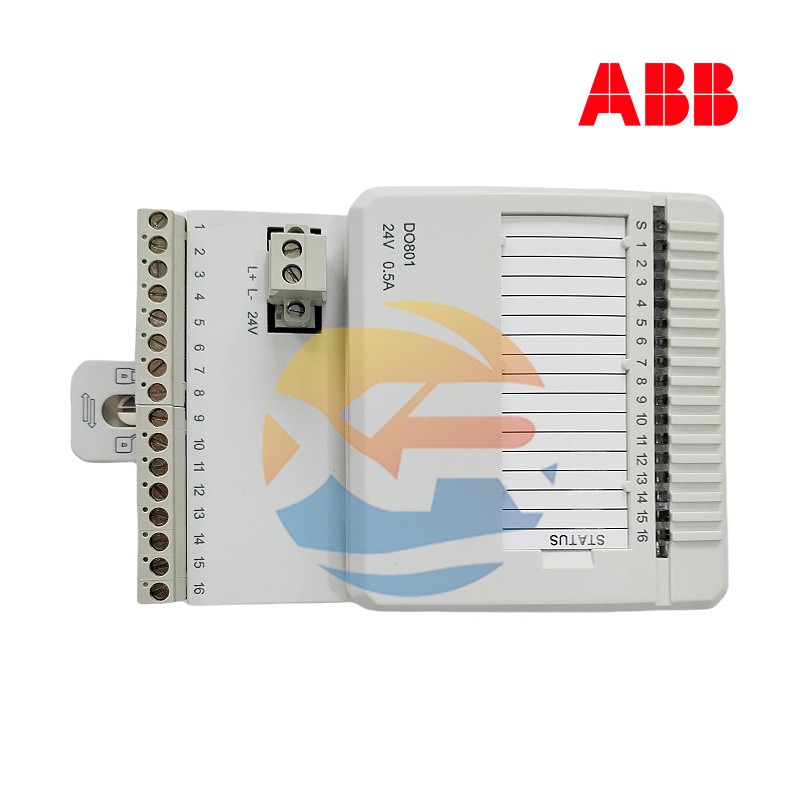

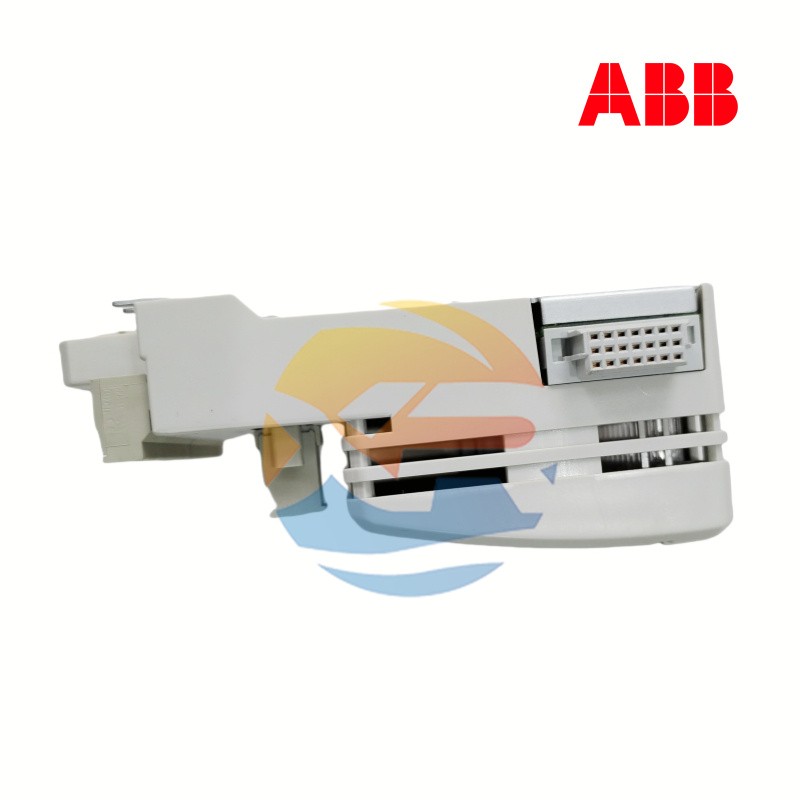

ABB DO801_Xiamen XingRuiJia Import and Export CO,LTD

Model：ABB DO801

Brand: ABB
Price range (USD): 100-20000
Country: Switzerland
Parameter: Output Type: Digital output (digital signal)
Number of Channels: 8 channels
Output Voltage: Typically 24V DC
Output Current: Maximum 0.5A
Isolation Voltage: 250V AC or 2500V AC
Operating Temperature: -25°C to +70°C
Dimensions: Approximately 123mm × 89mm × 66mm
Protection Class: IP20

ABB DO801

1. Overview

The ABB DO801 is a digital output module designed to convert digital signals from a Programmable Logic Controller (PLC) into actual control outputs. These outputs are used to drive actuators such as motors, valves, and relays. Featuring a modular design, the module facilitates easy installation and maintenance, making it suitable for fields including industrial automation, power, chemical engineering, and building automation. Its core function is to control the start-stop operations and logical actions of industrial equipment via digital signals.

2. Specifications

Key specifications of the ABB DO801 are as follows:

Output Type: Digital output (digital signal)
Number of Channels: 8 channels
Output Voltage: Typically 24V DC
Output Current: Maximum 0.5A
Isolation Voltage: 250V AC or 2500V AC
Operating Temperature: -25°C to +70°C
Dimensions: Approximately 123mm × 89mm × 66mm
Protection Class: IP20

3. Product Features

Modular Design: Enables easy installation and maintenance, and supports flexible configuration.
High Reliability: Adopts an industrial-grade design suitable for harsh environments, with short-circuit protection and overload protection functions.
Compatibility: Compatible with ABB’s AC800M series controllers, S800 series, and other related products.
Flexibility: Supports multiple output types and configurations to adapt to different application scenarios.

4. Structure and Composition

The ABB DO801 adopts a modular structure, consisting of digital output channels, isolation circuits, a power management module, and connection interfaces (e.g., backplane connections). Its compact design allows for easy installation and maintenance, and it supports hot swapping and modular expansion.

5. Application Fields

The ABB DO801 is widely used in the field of industrial automation, including but not limited to:

Industrial Automation: Control of production lines, equipment monitoring, robot control, etc.
Power and Energy: Power system control, energy management, etc.
Building Automation: Control of systems such as lighting, ventilation, and air conditioning.
Manufacturing: Control of actuators like motors, valves, and relays.

6. Installation and Maintenance

Installation: The modular design simplifies installation, which is usually carried out via DIN rails or backplane connections.
Maintenance: Regular checks of connections, cleaning, and fault diagnosis are required. The module also supports remote maintenance and fault indication.
