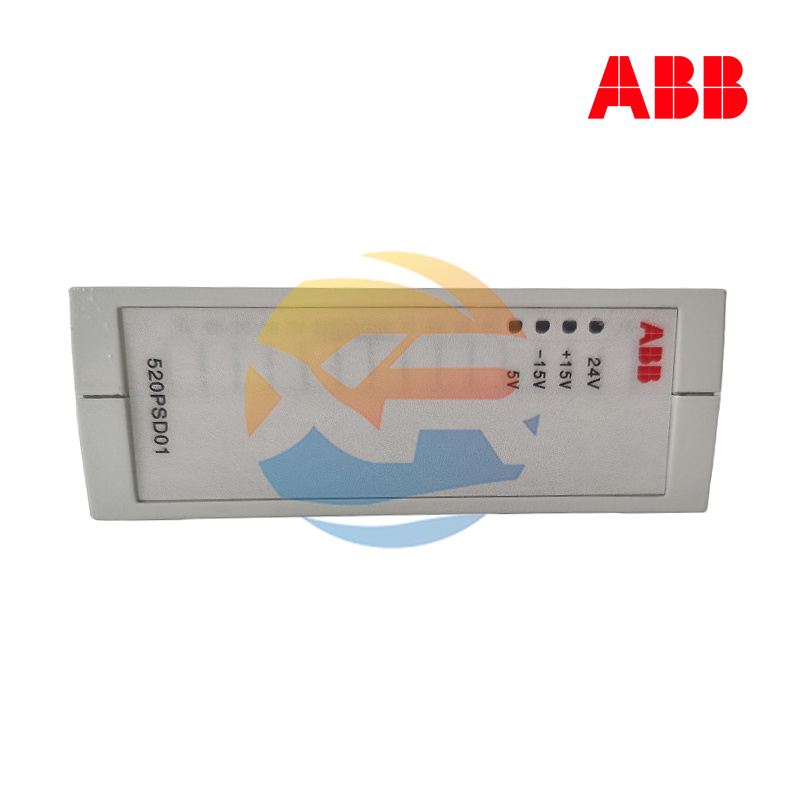

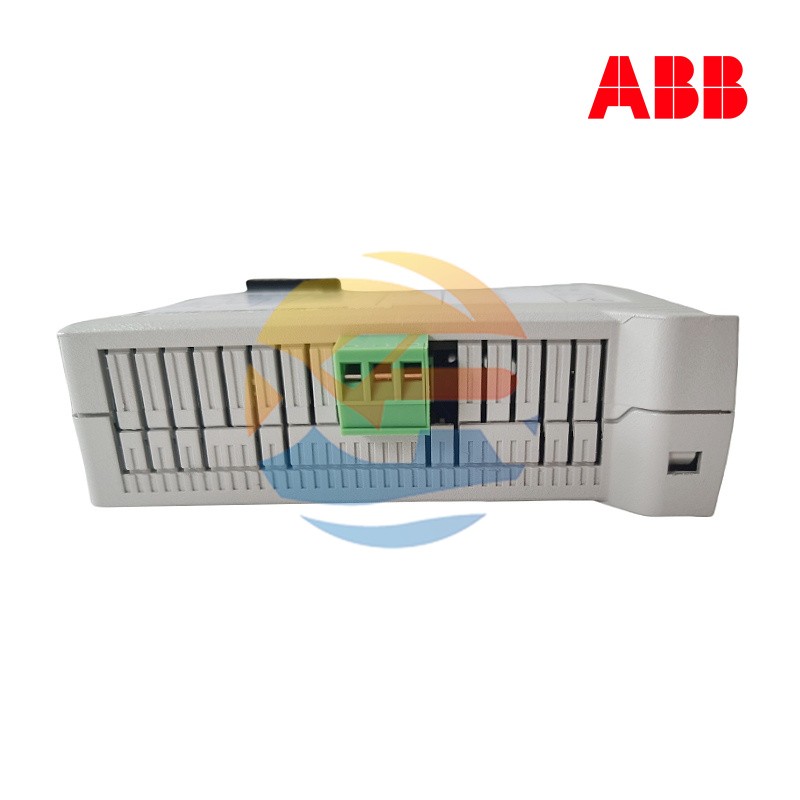

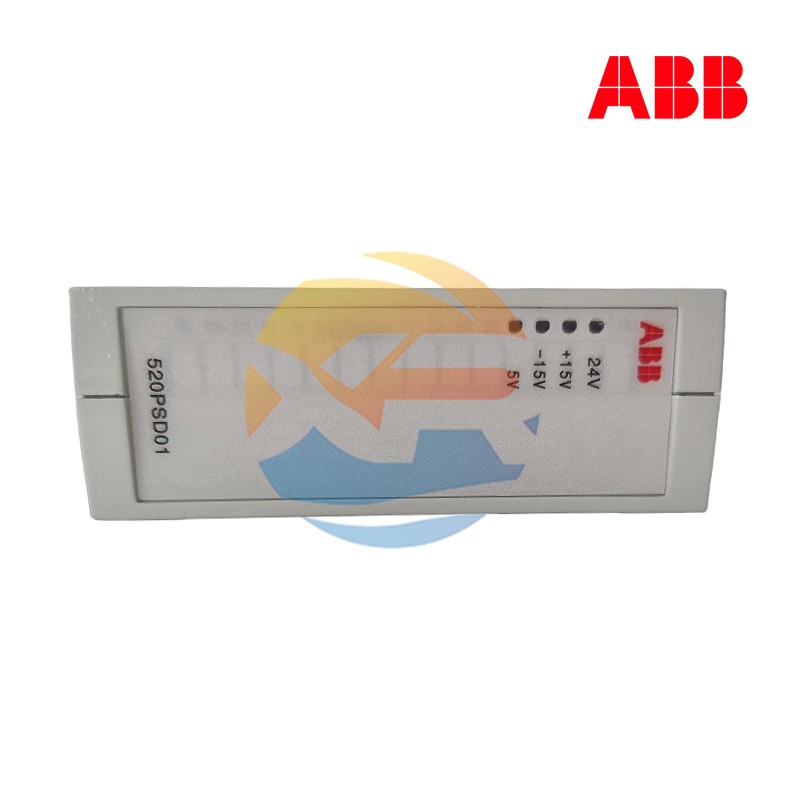

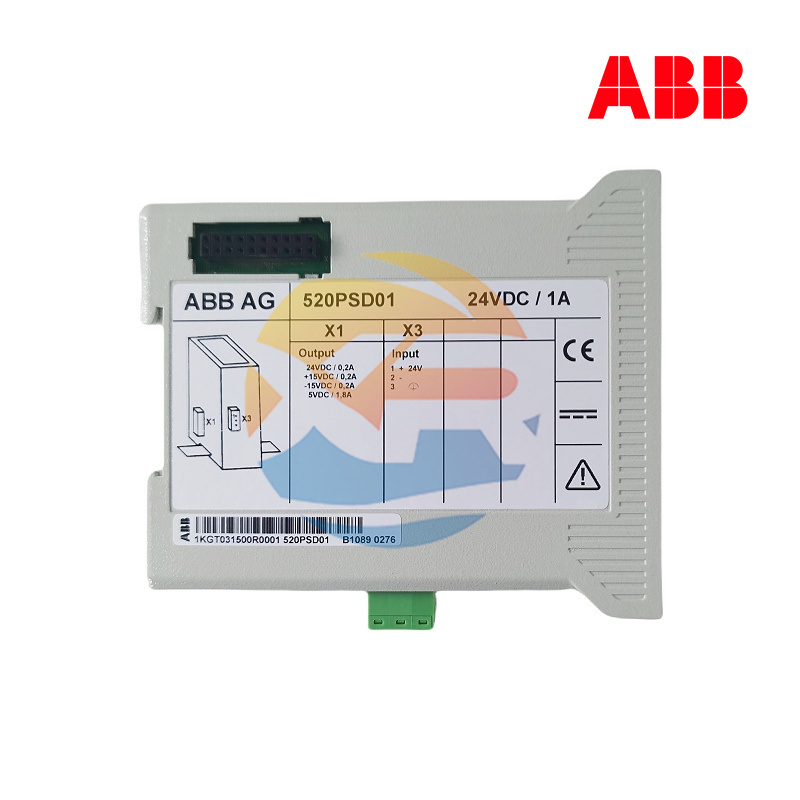

ABB 520PSD01 Power Supply Module

Product Overview

The ABB 520PSD01 is a reliable power supply unit designed for ABB’s industrial automation systems. It delivers stable and efficient DC power to critical control modules, I/O boards, and communication devices within distributed control systems (DCS). Engineered with ABB’s high safety and performance standards, the 520PSD01 ensures long-term operational stability in demanding industrial environments.

Technical Specifications

Input Voltage: 100–240 V AC, wide-range universal input

Output Voltage: 24 V DC regulated

Output Current: up to 5 A

Efficiency: >90%

Operating Temperature: –25 °C to +70 °C

Cooling: Natural convection or forced ventilation (depending on cabinet design)

Mounting: DIN-rail or panel installation

Key Features

High-efficiency DC conversion for reduced energy consumption

Built-in overvoltage, overload, and short-circuit protection

LED status indicators for input and output conditions

Hot-swappable design for minimal downtime during maintenance

Compact footprint suitable for control cabinets with limited space

Structure and Components

The module is housed in a rugged metal enclosure with enhanced shielding to minimize electromagnetic interference. Internally, the 520PSD01 integrates:

Input filter stage for stable operation under fluctuating mains power

Switching regulator circuit to maintain precise DC voltage output

Protection circuitry safeguarding downstream control modules

Connector terminals allowing easy field wiring

Application Areas

The ABB 520PSD01 is widely used across sectors such as:

Power generation and distribution – supplying DCS controllers in substations and plants

Oil & gas facilities – ensuring reliable power for safety and control systems

Chemical and pharmaceutical industries – supporting continuous and batch processes

Metals and mining – powering rugged automation systems in harsh conditions

Installation and Maintenance

Install on a DIN rail within a dust-free control cabinet

Ensure adequate ventilation to maintain temperature within specified limits

Regularly check LED indicators to monitor system status

Replacement can be performed without shutting down the entire system thanks to its hot-swap design

ABB recommends scheduled preventive maintenance checks every 12–18 months

Why Choose ABB 520PSD01?

With ABB’s proven engineering heritage, the 520PSD01 offers long service life, stable operation, and strong compatibility with ABB control systems. It reduces downtime risks and provides a dependable power backbone for mission-critical industrial automation.

-
