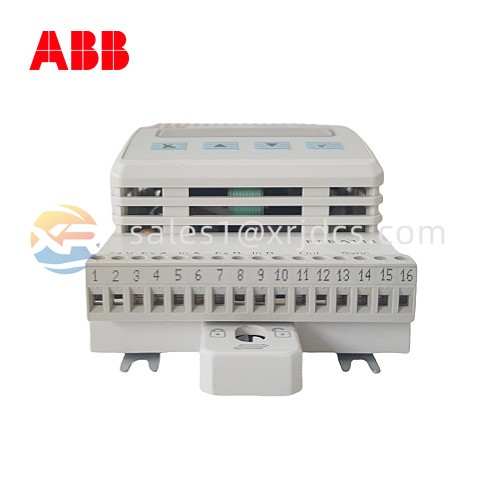

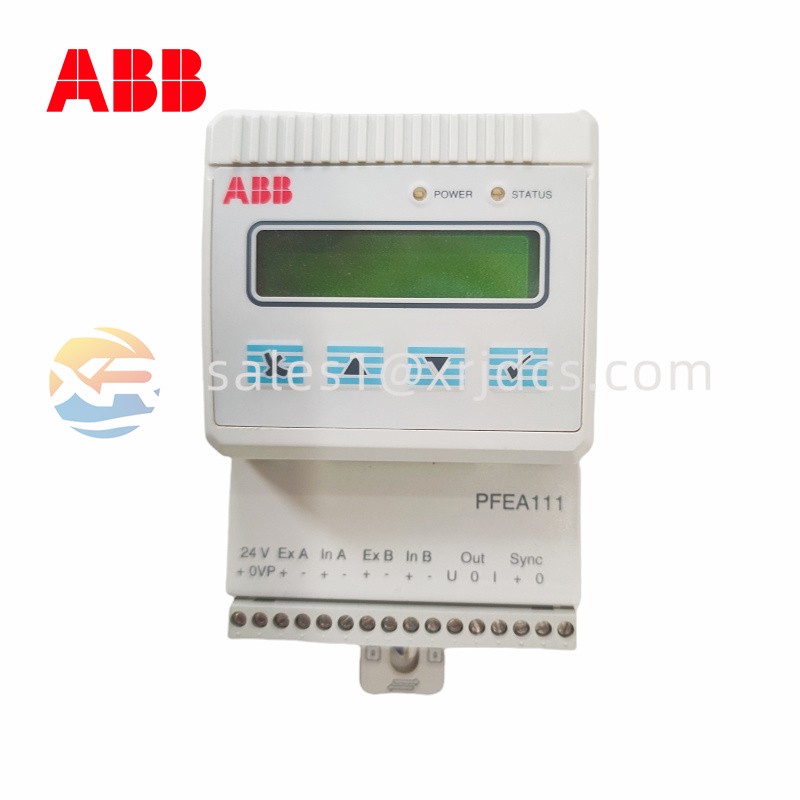

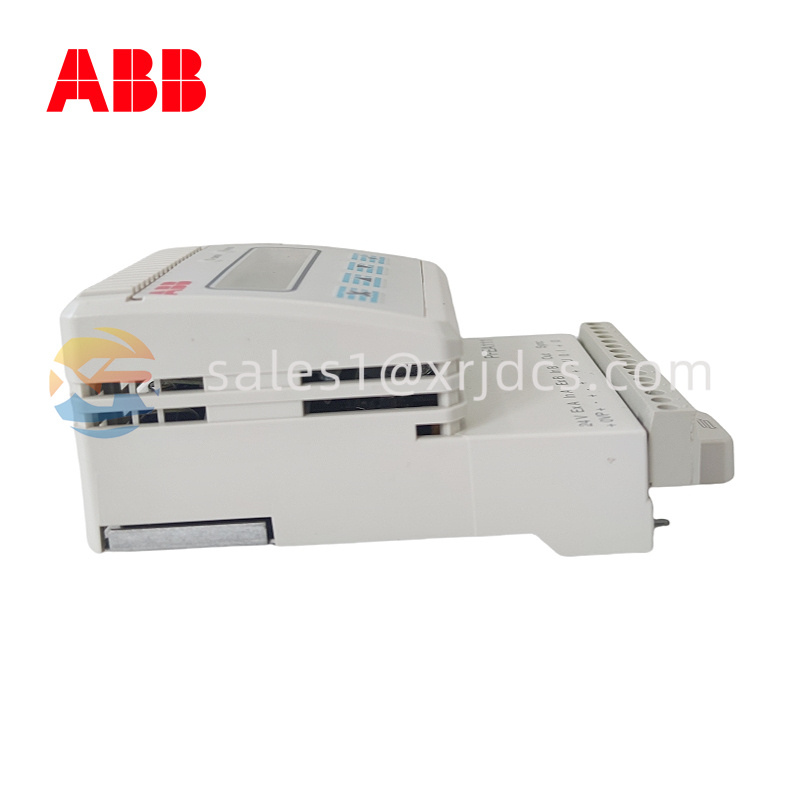

ABB PFEA111-20 3BSE050090R20 — Pulse Encoder Interface Module

Technical Introduction

The ABB PFEA111-20 3BSE050090R20 is a Pulse Encoder Interface Module designed for high-precision feedback and position measurement in ABB drive and control systems. This module plays a critical role in motion control applications by accurately converting encoder signals into digital data that can be interpreted by ABB’s drive controllers, ensuring precise motor speed regulation, synchronization, and positioning.

Built with industrial-grade components and ABB’s renowned reliability standards, the PFEA111-20 is a robust and intelligent interface solution for complex automation environments.

Product Features

High-Accuracy Signal Processing: Provides precise pulse decoding and signal conditioning for a wide range of encoder types.

Versatile Compatibility: Fully compatible with ABB’s AC 800M, Freelance, and System 800xA control platforms.

Noise-Resistant Design: Shielded circuitry minimizes electromagnetic interference for stable and accurate readings.

Flexible Configuration: Supports incremental, absolute, and frequency-based encoder signals.

Rugged Industrial Build: Designed for continuous operation in high-vibration and high-temperature environments.

Compact and Modular: Fits seamlessly into ABB’s modular I/O system architecture for simplified installation and maintenance.

Diagnostic Functions: Built-in self-monitoring and fault detection for proactive maintenance.

Structure & Composition

The PFEA111-20 module is built around a high-speed signal processing unit, ensuring low latency and accurate signal conversion. Its structure includes:

Input Terminals: Accept encoder and reference signal inputs.

LED Indicators: Display module status, signal activity, and diagnostic alerts.

Backplane Connector: Enables seamless data exchange with ABB system controllers.

Protective Casing: Industrial-grade thermoplastic enclosure provides insulation and durability against mechanical stress.

This modular design ensures reliability, easy integration, and quick replacement in case of service or system expansion.

Technical Specifications

Applications

The ABB PFEA111-20 3BSE050090R20 is widely used in motion control and feedback systems requiring accurate pulse measurement, including:

Motor speed and torque control in drive systems

Robotics and precision automation machinery

CNC and servo motion platforms

Paper and steel production lines

Pumping and compressor systems

Renewable energy drive systems (wind, hydro, etc.)

By providing real-time position and velocity data, it enhances both performance and energy efficiency in industrial automation processes.

Installation & Commissioning

Mounting:

Install the module on a DIN rail or within an ABB controller rack.

Ensure sufficient spacing for heat dissipation.

Wiring:

Connect encoder outputs to the input terminals, following polarity and shielding recommendations.

Verify grounding to avoid signal distortion.

Configuration:

Set encoder type and parameters through the ABB configuration software (e.g., Control Builder or Freelance).

Test pulse detection and verify synchronization with drive controllers.

Testing:

Observe LED indicators to confirm proper signal reception and system readiness.

Maintenance Guidelines

Regularly check cable connections for wear or looseness.

Keep the module and surrounding area free of dust and moisture.

Inspect LED diagnostics periodically for early detection of signal faults.

Replace damaged units only with ABB-certified modules to maintain performance integrity.

Advantages

Ensures high-precision speed and position control.

Simple integration with ABB’s control ecosystem.

Compact, durable, and maintenance-friendly design.

Extended operational lifespan under harsh industrial conditions.

Supports multiple encoder signal standards for flexibility.

Conclusion

The ABB PFEA111-20 3BSE050090R20 Pulse Encoder Interface Module exemplifies ABB’s commitment to precision engineering and system reliability. Designed for accuracy, durability, and easy integration, it plays a vital role in advanced drive and automation systems where precise motion control is critical.

With its modular design, robust performance, and seamless compatibility, the PFEA111-20 remains a top choice for engineers seeking dependable encoder interfacing solutions in modern industrial applications.
