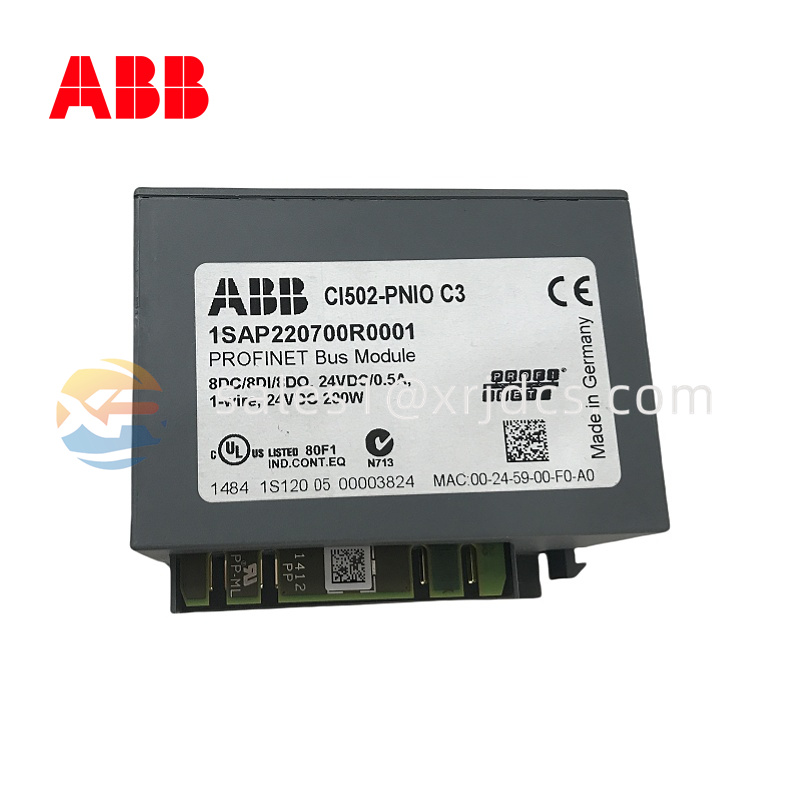

ABB CI502-PNIO – PROFINET Communication Interface Module for Industrial Automation

Overview

Engineered for high reliability and real-time communication, the CI502-PNIO supports both cyclic and acyclic data transfer. It is ideal for applications that require efficient communication, minimal latency, and continuous operation under demanding industrial conditions.

Key Features

Supports PROFINET RT (Real-Time) communication with fast update cycles.

Dual Ethernet ports enable line, ring, and star topologies for flexible network architecture.

Automatic device detection simplifies setup and configuration.

High immunity to electromagnetic interference (EMI) and industrial noise.

LED indicators for quick network diagnostics and connection status.

Seamless integration with ABB’s AC500 PLC and other control platforms.

Compact and durable design optimized for cabinet and DIN-rail installation.

Technical Specifications

The ABB CI502-PNIO is designed to ensure exceptional network performance and compatibility across a wide range of automation systems.

Product Type: PROFINET Communication Interface Module

Manufacturer: ABB

Model Number: CI502-PNIO

Communication Protocol: PROFINET IO (Real-Time)

Interface: Dual RJ45 Ethernet ports (100 Mbps, full duplex)

Supported Topologies: Line, Star, and Ring (MRP – Media Redundancy Protocol)

Power Supply: 24 VDC nominal (range: 18–30 VDC)

Power Consumption: < 3 W

Configuration: Via ABB Automation Builder or Control Builder M software

Indicators: LEDs for Power, Link/Activity, and Module Status

Operating Temperature Range: -25°C to +70°C

Protection Class: IP20 (suitable for control cabinets)

Mounting Type: DIN rail

Certifications: CE, UL, and RoHS compliant

Structure & Composition

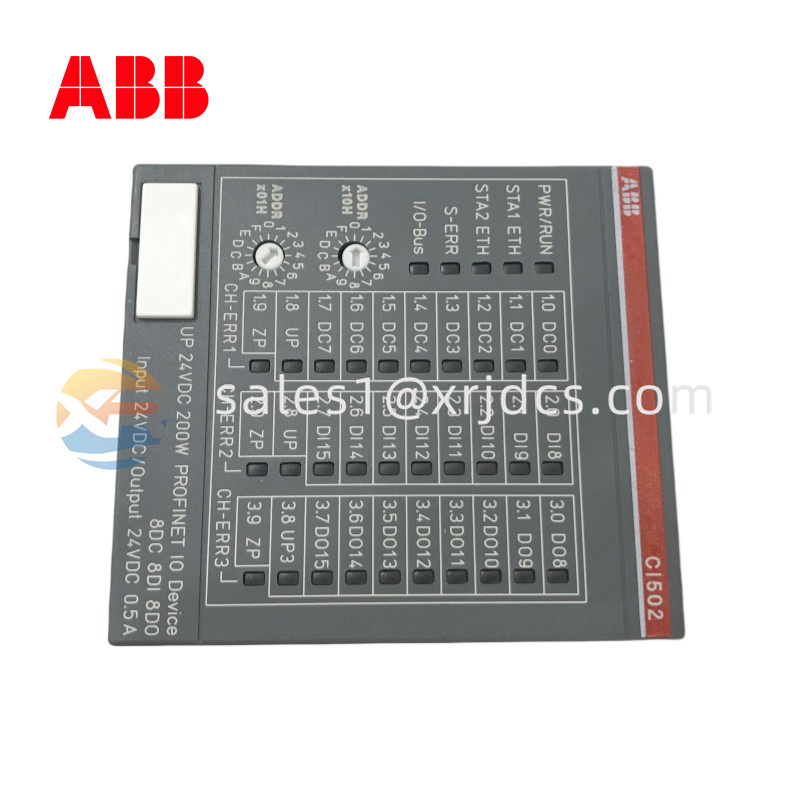

The CI502-PNIO features a rugged industrial housing with two front-facing RJ45 connectors and clearly labeled LED indicators for quick visual status checks. Internally, it houses a high-speed communication processor, an embedded memory module for network parameters, and surge protection circuits to ensure stability during voltage fluctuations. Its compact form factor allows for space-efficient installation in densely populated control panels.

Applications

The ABB CI502-PNIO is widely used across industries that demand reliable, high-speed communication between controllers and field devices:

Manufacturing Automation – for robotic cells, production lines, and motion control systems.

Process Control Systems – in chemical, water treatment, and food industries.

Power and Energy Management – connecting field instruments to supervisory controllers.

Material Handling and Packaging Systems – for real-time device coordination.

Building Automation – linking HVAC and energy systems via industrial Ethernet.

Installation & Maintenance

Installation is straightforward:

Mount the module securely onto a DIN rail within a control cabinet.

Connect Ethernet cables to the RJ45 ports according to the desired network topology.

Supply 24 VDC power and configure network parameters via ABB software.

Verify operation using the LED indicators and controller diagnostics.

Maintenance is minimal. The CI502-PNIO requires only occasional inspection of connectors and cables to ensure reliable signal transmission. Firmware updates can be performed via the network to maintain optimal performance.

Advantages

Reliable and high-speed PROFINET communication

Easy integration with ABB automation systems

Supports redundancy for uninterrupted operation

Compact, durable, and maintenance-free design

Quick troubleshooting through LED diagnostics

Conclusion

The ABB CI502-PNIO PROFINET Interface Module delivers industrial-grade communication performance tailored for the next generation of connected automation systems. Its blend of speed, reliability, and easy integration makes it a trusted choice for engineers seeking efficient communication between PLCs and field devices.
By combining ABB’s engineering excellence with advanced PROFINET technology, the CI502-PNIO ensures seamless, real-time data exchange that enhances productivity and system uptime in any industrial environment.
