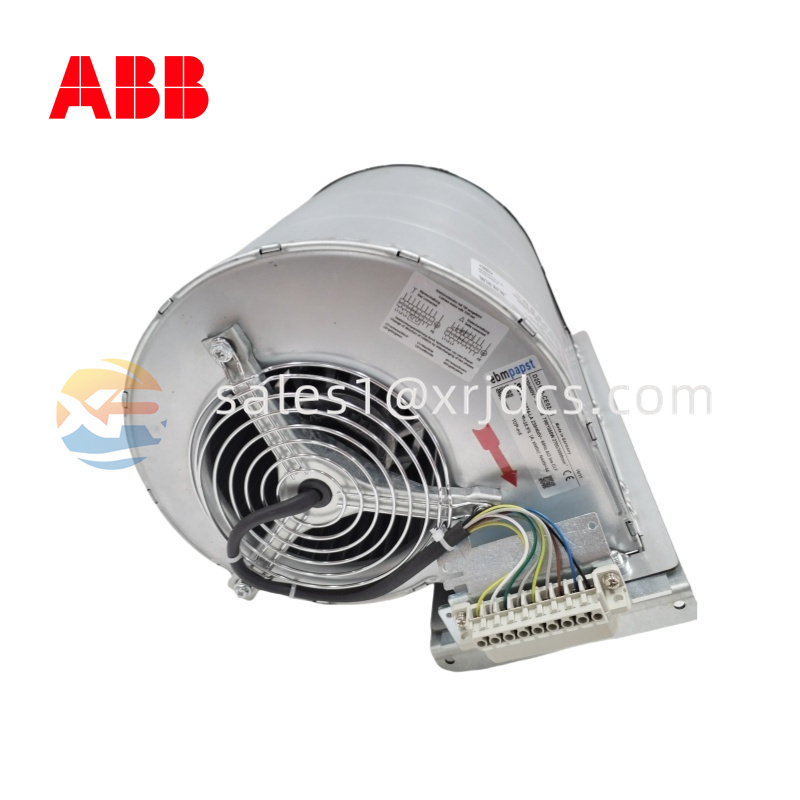

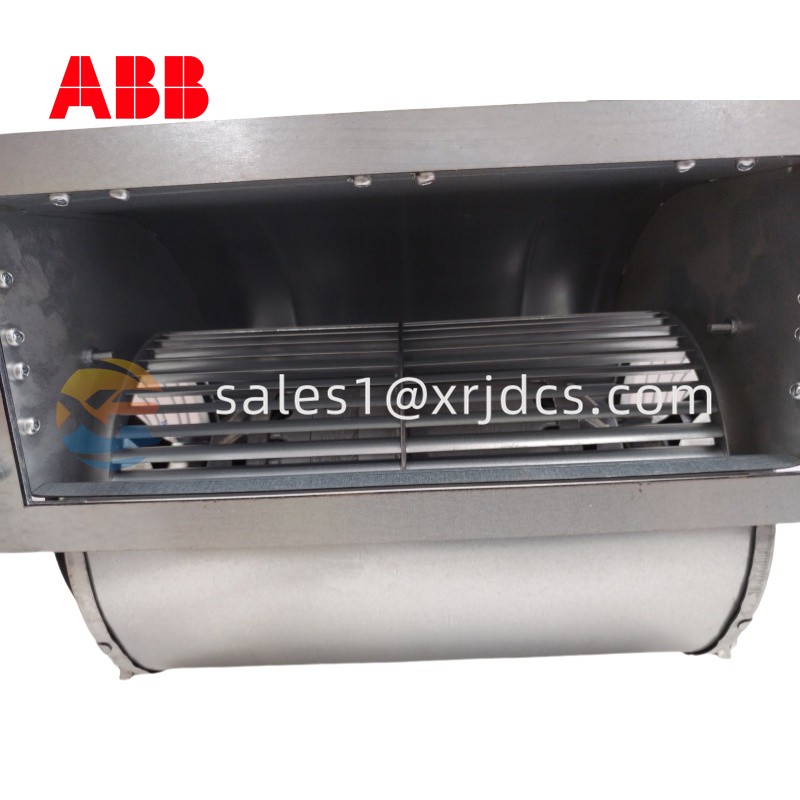

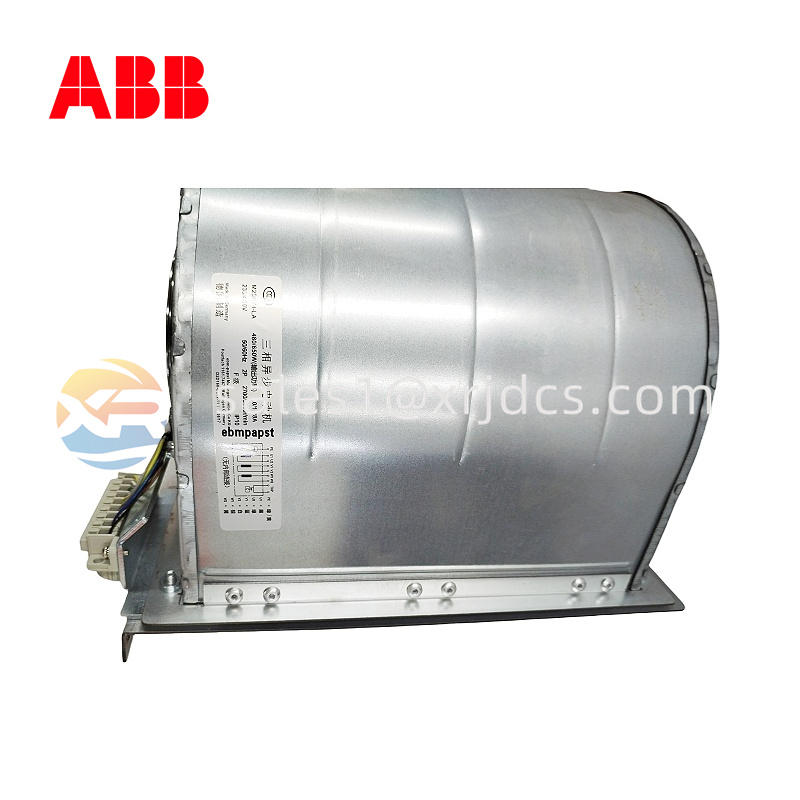

ABB D2D160-CE02-11 – Industrial Axial Fan for Cooling and Ventilation Systems

Product Overview

The ABB D2D160-CE02-11 is a high-efficiency industrial axial fan, engineered to deliver consistent airflow and reliable performance in demanding environments. Designed with ABB’s advanced motor technology, this unit ensures excellent energy efficiency, smooth operation, and long-term durability. It is widely used in industrial ventilation, electrical cabinet cooling, HVAC systems, and machinery airflow management.

Built for continuous operation, the fan combines robust materials, a balanced impeller, and low-noise operation. Its compact yet powerful design makes it suitable for integration into tight spaces while maintaining optimal cooling performance.

Key Technical Specifications

Unlike traditional fans, the D2D160-CE02-11 blends mechanical precision with ABB’s signature motor reliability.

Manufacturer: ABB

Model: D2D160-CE02-11

Type: Industrial Axial Fan

Voltage: 230 / 400 V AC

Frequency: 50 / 60 Hz

Rated Power: 0.55 kW

Speed: 1500 revolutions per minute

Airflow Rate: Approx. 1100–1400 m³/h (depending on installation)

Insulation Class: F

Protection Class: IP55

Ambient Temperature Range: -25°C to +60°C

Mounting Type: Flange or foot mounting

Noise Level: Low-vibration, low-noise operation

Weight: Around 15 kg

Compliance: CE, RoHS, and IEC industrial standards

Features and Benefits

Energy Efficiency: Optimized impeller design reduces energy usage while maintaining strong airflow.

Quiet Performance: Precision balancing and vibration damping ensure near-silent operation.

Durable Build: Aluminum housing and corrosion-resistant components guarantee long service life.

Flexible Installation: Suitable for multiple mounting orientations and compact spaces.

Integrated Safety: Thermal overload protection prevents overheating under heavy loads.

Maintenance-Free Bearings: Long-life sealed bearings eliminate the need for regular lubrication.

Structure & Design

The D2D160-CE02-11 features a compact, high-strength aluminum frame with a directly coupled motor-to-impeller configuration for maximum mechanical efficiency. Its aerodynamic blade design improves airflow uniformity and pressure distribution while minimizing turbulence. This structure enhances operational stability and extends bearing life even in high-vibration or dusty environments.

The external surfaces are treated for resistance to corrosion and oxidation, ensuring dependable performance in both indoor and outdoor installations.

Applications

The ABB D2D160-CE02-11 is engineered for a wide variety of industrial and commercial uses:

HVAC Systems: Circulating air and maintaining temperature stability.

Machinery Cooling: Dissipating heat from motors, drives, and control panels.

Electrical Enclosures: Preventing component overheating in control cabinets.

Industrial Ventilation: Ensuring clean and constant airflow in workshops or production lines.

Renewable Energy Systems: Cooling inverter modules in solar or wind power equipment.

Installation Guidelines

Mount the fan on a stable surface using standard bolts or brackets.

Verify correct airflow direction before operation.

Connect power according to ABB’s wiring instructions (ensure proper grounding).

Maintain sufficient clearance for air intake and exhaust.

Check rotation and functionality before full operation.

Maintenance & Service

Routine maintenance is minimal due to its sealed-for-life bearings and robust motor design. To ensure consistent airflow efficiency:

Periodically remove dust or debris from the impeller and housing.

Inspect wiring and connections annually.

Ensure the motor ventilation path remains unobstructed.

Why Choose ABB D2D160-CE02-11

Proven ABB quality and long operational lifespan.

Compact and efficient for industrial installations.

Low noise and low energy consumption.

Designed for reliability in harsh environments.

Conclusion

The ABB D2D160-CE02-11 Industrial Axial Fan embodies ABB’s excellence in airflow engineering and motor efficiency. It provides powerful, quiet, and maintenance-free performance, making it an ideal choice for demanding industrial ventilation, cooling, and HVAC applications.
Combining durability, flexibility, and high efficiency, this model is a dependable solution for maintaining system reliability and environmental control across diverse industries.
