ABB FPBA-01 – PROFIBUS DP Adapter Module for Industrial Drives and Automation Systems

Introduction

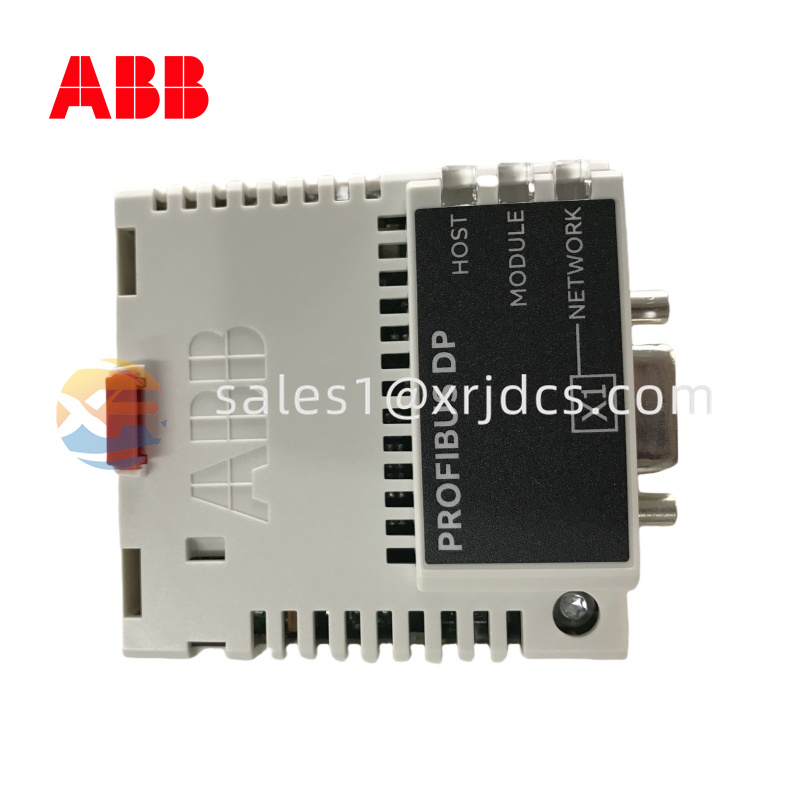

The ABB FPBA-01 is a PROFIBUS DP communication adapter module designed to integrate ABB industrial drives and controllers into PROFIBUS networks. It serves as a seamless communication bridge between ABB frequency converters and distributed control systems (DCS) or programmable logic controllers (PLC) that operate on PROFIBUS.

This module enables high-speed, reliable data exchange for control commands, process feedback, and diagnostics — enhancing automation efficiency across a wide range of industrial applications. Built on ABB’s engineering excellence, the FPBA-01 ensures easy installation, robust performance, and compatibility with multiple ABB drive families.

Main Features

Seamless Integration: Enables ABB drives to connect directly to PROFIBUS DP networks.

High-Speed Communication: Supports data transfer rates up to 12 Mbit/s.

Flexible Configuration: Parameters can be easily set through ABB Drive composer tools or via the control system.

Robust Construction: Designed for demanding industrial environments with high resistance to electrical noise.

Status Indicators: LEDs for network communication, error, and module activity diagnostics.

Hot-Swappable: Allows module replacement without shutting down the entire system.

Backward Compatibility: Supports a range of ABB drive series, ensuring long-term system scalability.

Technical Specifications

The following performance characteristics make the FPBA-01 a reliable communication interface for industrial automation:

Manufacturer: ABB

Model: FPBA-01

Function: PROFIBUS DP Adapter Module

Supported Drives: ACS350, ACS550, ACS800, ACS880, and other ABB drives

Communication Protocol: PROFIBUS DP-V0 and DP-V1 compliant

Transmission Speed: 9.6 kbit/s to 12 Mbit/s (automatic detection)

Bus Connection: 9-pin D-sub connector (female)

Galvanic Isolation: Yes, between drive and PROFIBUS network

Power Supply: From the connected drive unit

LED Indicators: RUN, ERR, and ACT (status display)

Operating Temperature: -10°C to +60°C

Storage Temperature: -40°C to +70°C

Dimensions: Approx. 65 × 45 × 15 mm

Weight: Approx. 50 g

Standards Compliance: CE, UL, RoHS, and IEC industrial EMC standards

Structure & Design

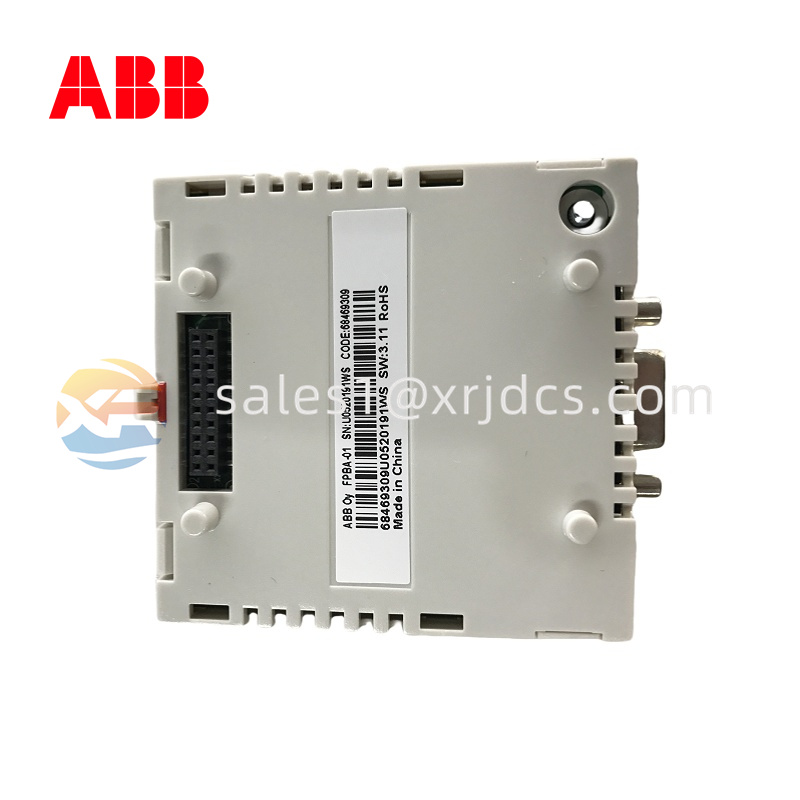

The FPBA-01 is a compact plug-in module that fits directly into the communication slot of ABB drives. Its 9-pin D-sub connector provides a standard PROFIBUS interface, while its internal electronics handle data transmission, signal conditioning, and isolation.
LED indicators on the module’s face allow quick status monitoring, making it simple to diagnose communication conditions without additional tools. The design ensures a stable mechanical fit, even in vibration-prone environments.

Applications

The ABB FPBA-01 is ideal for integrating ABB drives into large-scale automation systems, including:

Factory Automation: Synchronization of multiple drives under a central PLC.

Process Industries: Real-time monitoring and control in chemical, food, and paper plants.

Material Handling: Coordination of conveyors and robotic systems.

HVAC Systems: Optimized control of fans, pumps, and compressors.

Power and Energy Management: For precise control of motors in energy-efficient systems.

Installation & Configuration

Mounting: Insert the FPBA-01 into the designated communication slot of the ABB drive.

Connection: Attach the PROFIBUS cable to the D-sub connector and secure it firmly.

Parameter Setup: Configure the module parameters through ABB Drive Composer or directly from the PLC using GSD files.

Verification: Check the LED indicators to ensure successful communication and no fault signals.

The module is plug-and-play, requiring minimal setup for standard PROFIBUS configurations.

Maintenance & Service

Periodically inspect the connector for dust or oxidation to maintain signal quality.

Verify LED indicator functionality during routine maintenance.

The module requires no internal servicing; replacement is fast and simple.

Advantages

Easy integration of ABB drives into PROFIBUS-based control systems.

Reliable, noise-immune communication with galvanic isolation.

Fast data transfer and efficient process control.

Compact, durable, and low-maintenance design.

Backward compatibility with legacy ABB drives.

Conclusion

The ABB FPBA-01 PROFIBUS DP Adapter Module is a robust and efficient communication interface that simplifies system integration in modern industrial automation.
Combining ABB’s reliability with PROFIBUS network flexibility, it enhances operational control, diagnostics, and connectivity for a broad range of drives and processes.
Whether in manufacturing, energy management, or process automation, the FPBA-01 delivers stable, high-speed communication that ensures smoother and smarter industrial performance.
