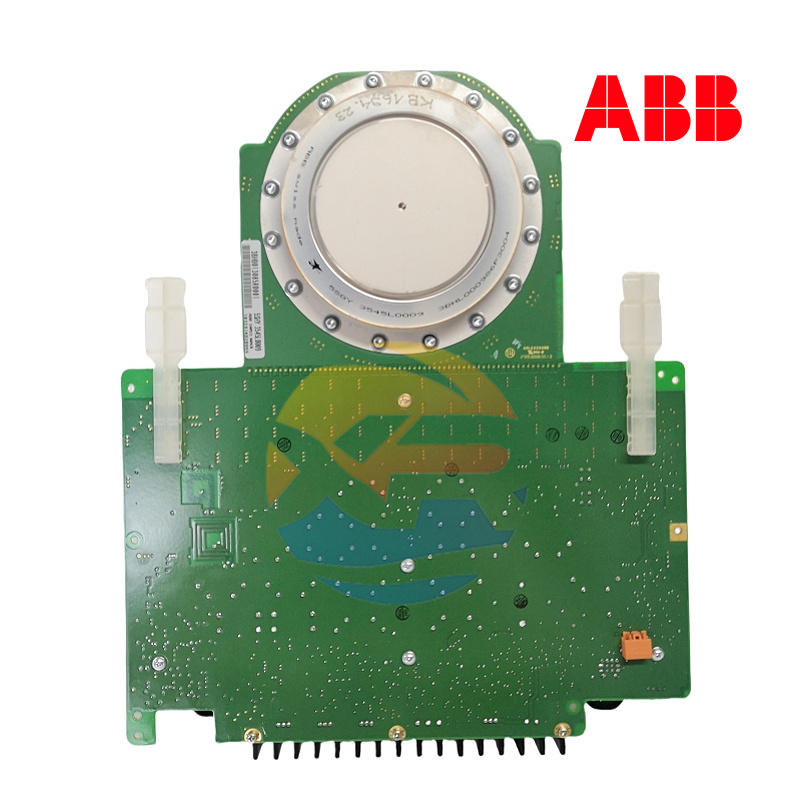

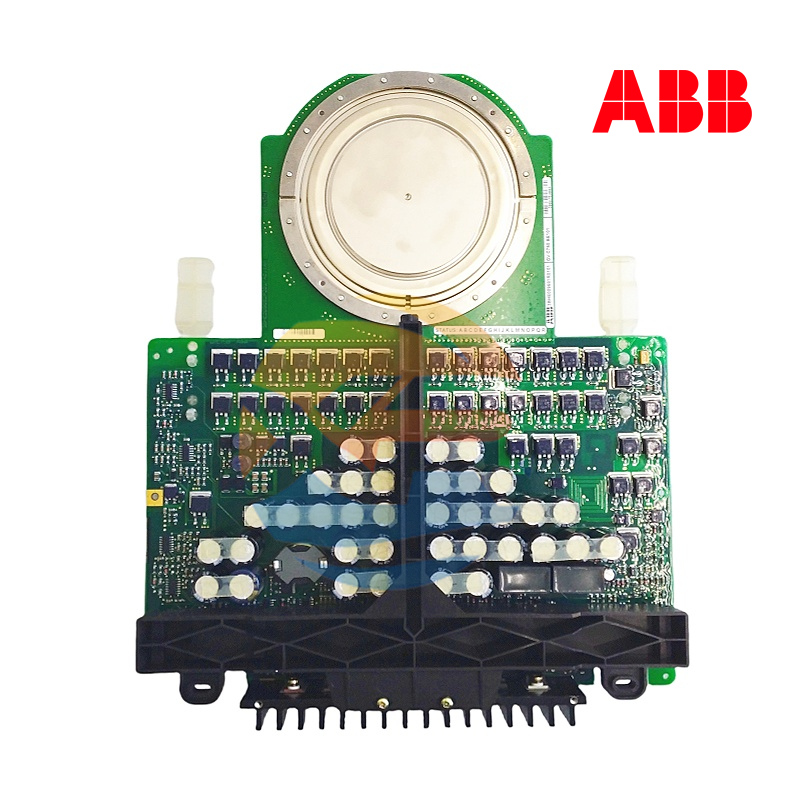

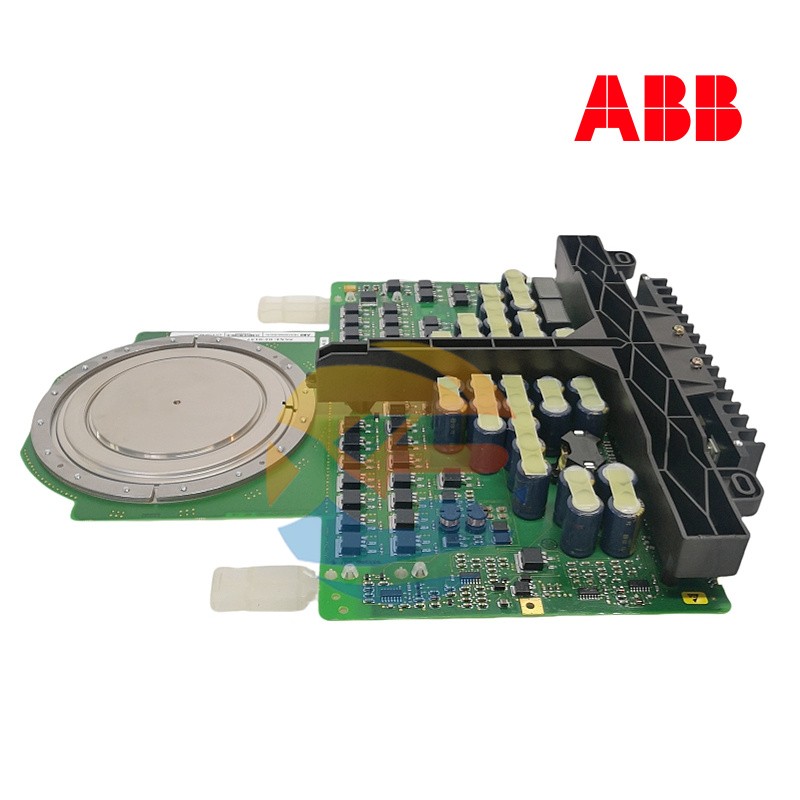

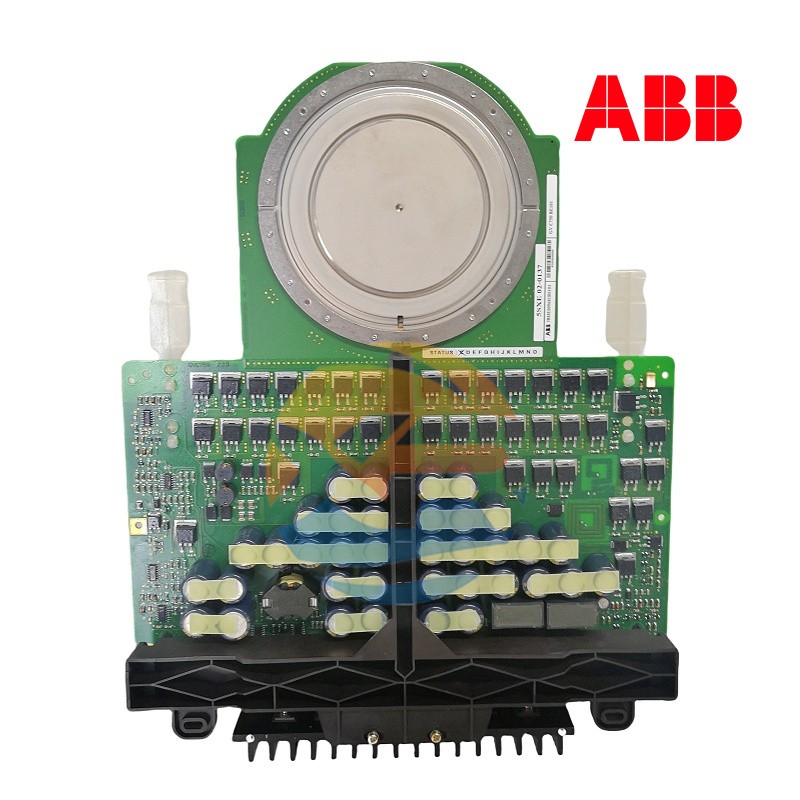

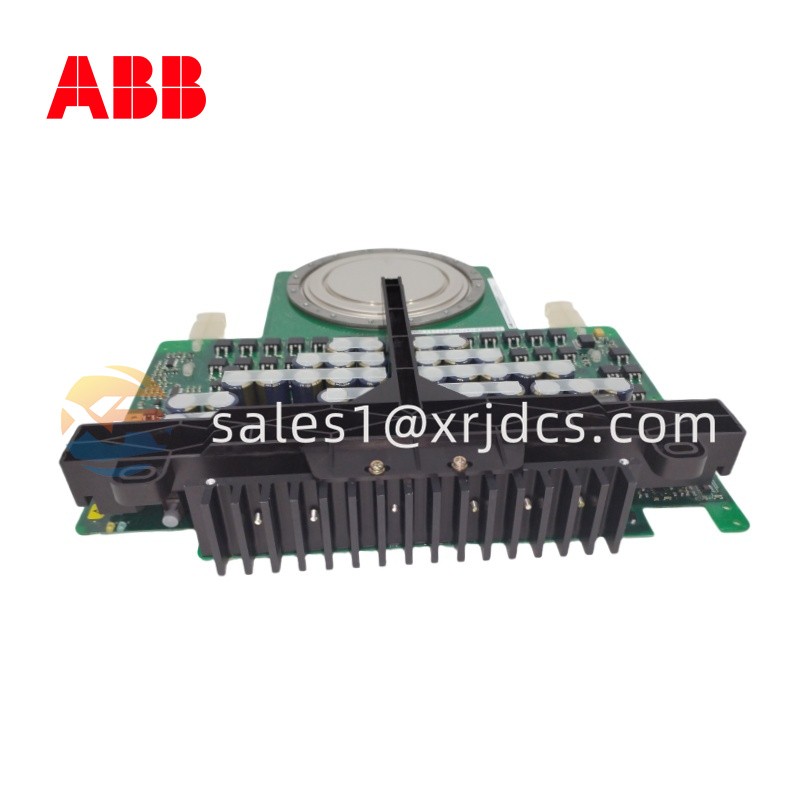

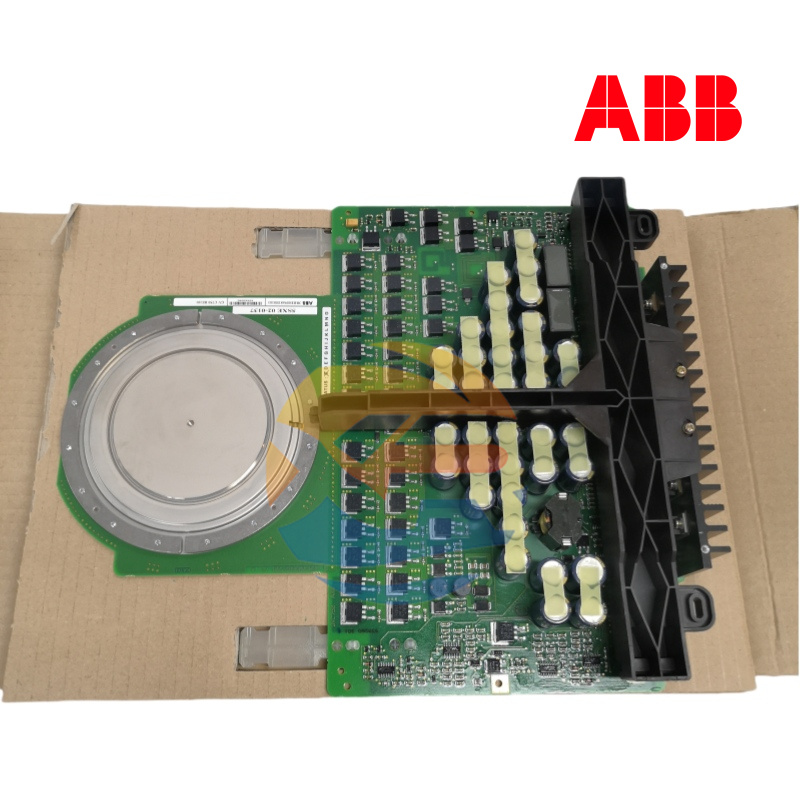

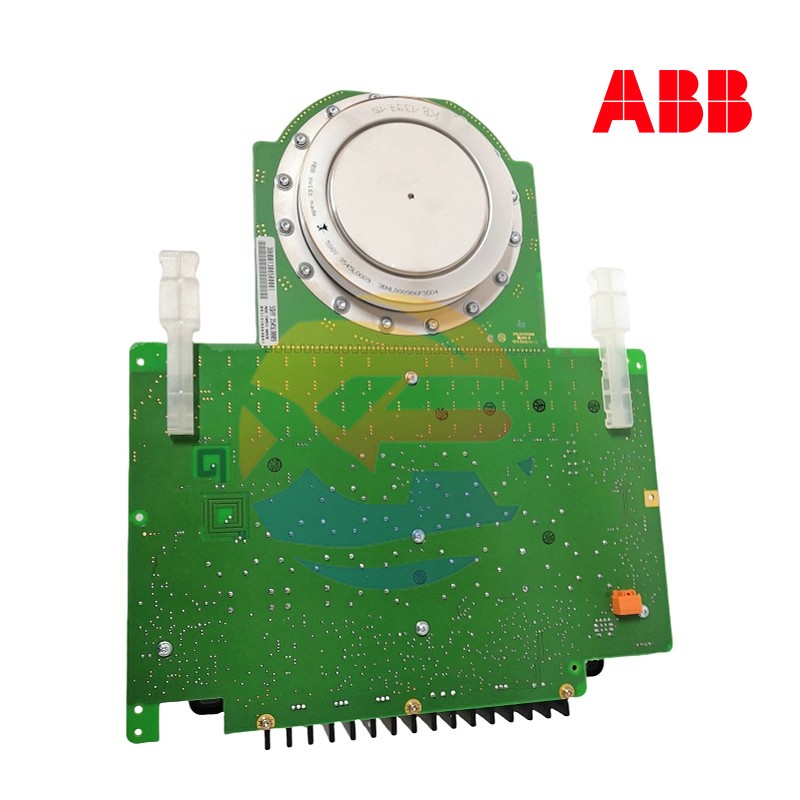

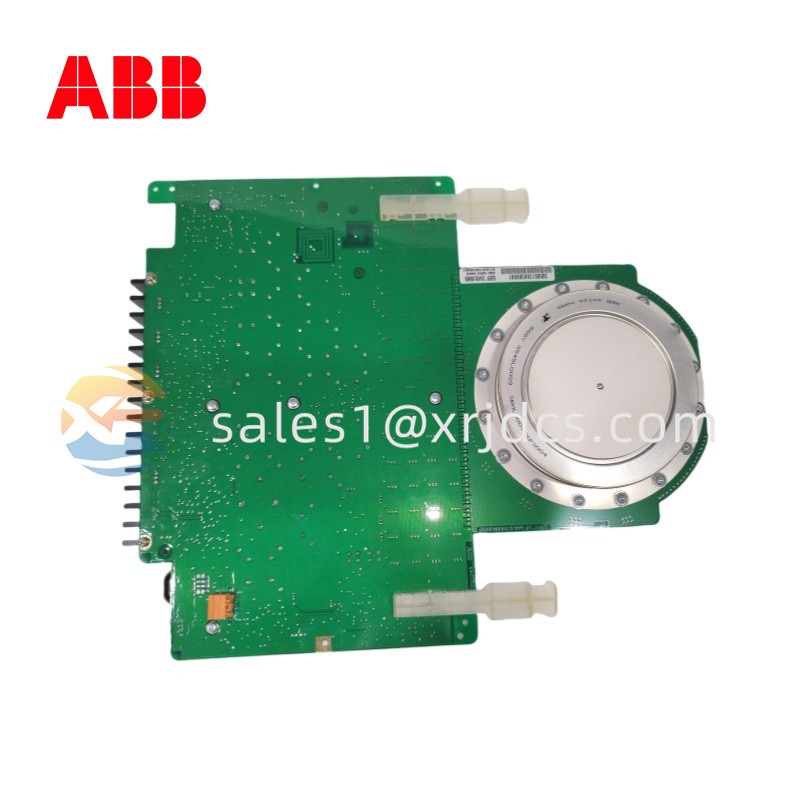

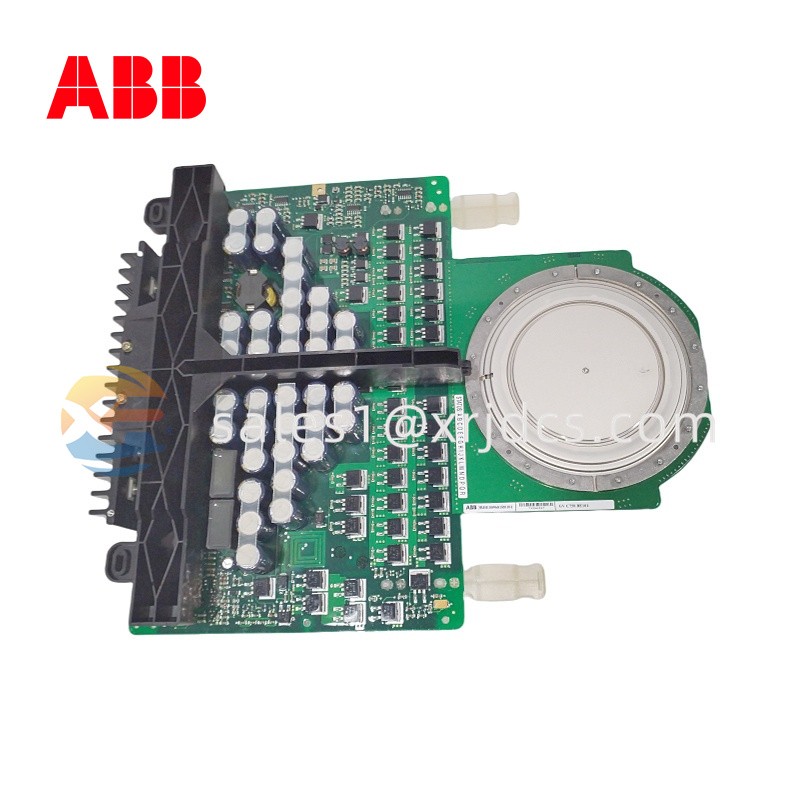

ABB 5SHY3545L0009 3BHB013085R0001 IGBT Power Module

Overview

The ABB 5SHY3545L0009 3BHB013085R0001 is a high-performance IGBT (Insulated Gate Bipolar Transistor) Power Module engineered for demanding industrial and power conversion applications. Combining ABB’s advanced semiconductor technology with exceptional durability, this module delivers reliable performance in variable speed drives, converters, inverters, and other power control systems.

Its superior switching efficiency, low power loss, and rugged thermal management system make it ideal for high-power environments that require precision, stability, and long operational life.

Main Features

High Current Capacity: Designed to handle large load currents for heavy-duty applications.

Low Switching Loss: Improves energy efficiency and reduces heat generation during operation.

Integrated Thermal Protection: Enhances module safety and lifespan under high thermal stress.

Optimized Electrical Design: Ensures low inductance and minimal noise interference.

Long Service Life: Built with ABB’s high-quality semiconductor materials for extended reliability.

Compact and Robust Housing: Easy to integrate into compact inverter or converter designs.

Technical Parameters

Structure & Composition

The ABB 5SHY3545L0009 module consists of several key elements:

IGBT Chip Assembly – High-quality silicon chips ensure fast switching with minimal loss.

Freewheeling Diode Section – Provides protection against reverse currents and overvoltage.

Baseplate and Thermal Interface – Designed for efficient heat transfer to heatsinks, ensuring stable operation under load.

Gate Drive Interface – Allows precise control of switching behavior.

Encapsulated Housing – Protects internal components from dust, vibration, and moisture.

ABB’s structural design emphasizes mechanical rigidity and thermal conductivity, enabling long-term performance even in harsh industrial conditions.

Applications

The ABB 5SHY3545L0009 3BHB013085R0001 module is widely used in:

Medium and high-voltage variable speed drives

DC/AC converters and inverters

Traction and railway propulsion systems

Renewable energy systems (wind and solar inverters)

Power grid converters and industrial automation equipment

Heavy industrial motor control systems

Its ability to handle high current and voltage levels makes it a preferred choice for energy-intensive applications.

Installation and Handling

Mounting Surface: Ensure a flat and clean heatsink surface to achieve proper thermal contact.

Torque Control: Use appropriate screw torque to prevent mechanical stress or overheating.

Insulation Check: Verify proper electrical insulation between the baseplate and mounting plate.

Thermal Paste Application: Apply a thin layer of high-quality thermal compound to enhance heat dissipation.

Storage Conditions: Keep in a dry, dust-free environment at room temperature.

Routine inspection of connection points and cooling systems is recommended to maintain consistent performance.

Maintenance and Reliability

ABB’s IGBT modules are designed for minimal maintenance, but regular system checks ensure optimal performance:

Monitor operating temperatures and switching efficiency.

Clean connectors and check for corrosion.

Replace thermal interface material periodically in high-duty applications.

Conduct periodic insulation resistance tests.

Performance Advantages

The combination of high current tolerance, low switching losses, and excellent thermal management allows this IGBT module to deliver stable and efficient energy conversion. It minimizes downtime and maximizes productivity across industrial systems that demand reliability and energy savings.

Conclusion

The ABB 5SHY3545L0009 3BHB013085R0001 IGBT Power Module exemplifies ABB’s commitment to high-efficiency semiconductor solutions. With its robust construction, superior electrical performance, and outstanding heat management, it ensures safe, efficient, and long-term operation in even the most challenging power control environments.
