ABB PM862K01 Central Processing Unit (CPU Module)

1. Product Overview

The ABB PM862K01 is a high-performance CPU module designed for the ABB AC 800M control system, part of the 800xA distributed control architecture. It serves as the primary processing unit that manages control logic, communication, and data coordination across I/O modules and field devices. Engineered for maximum reliability, scalability, and system uptime, the PM862K01 is widely used in critical industrial automation environments.

2. Technical Specifications

3. Structure and Composition

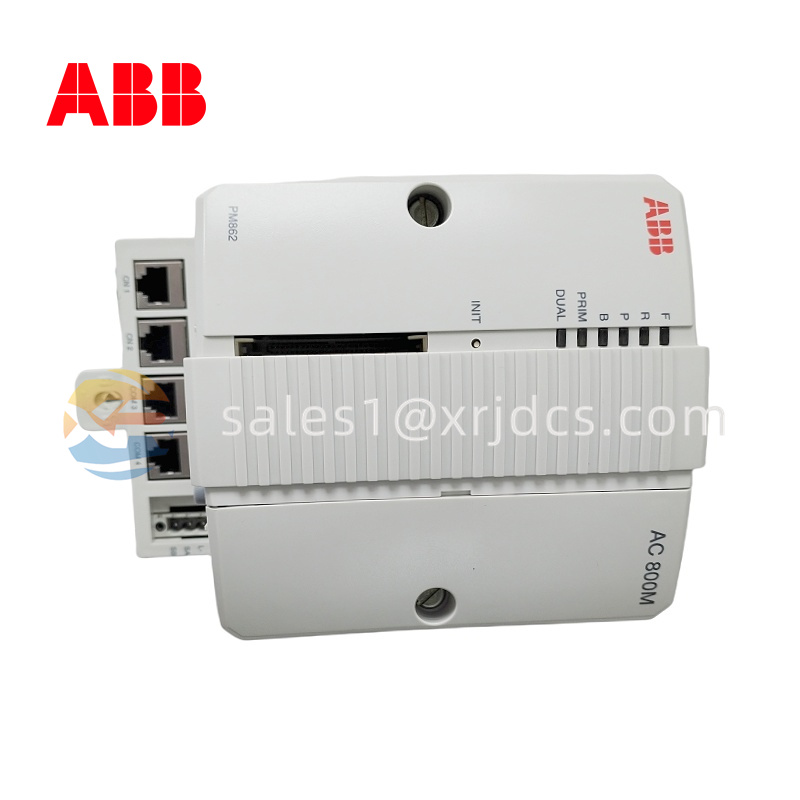

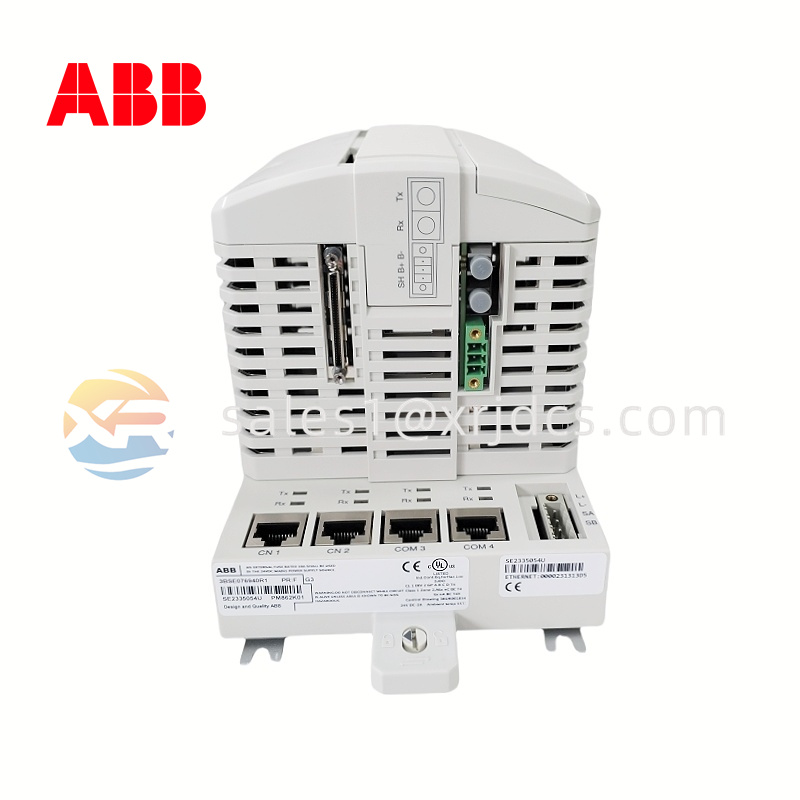

The PM862K01 CPU module features a compact modular design, integrating the processor, communication ports, and memory components into a single unit. The module mounts onto an ABB baseplate and connects to I/O modules via the ModuleBus interface. Front-facing LEDs indicate RUN, ERROR, and COMM statuses, allowing quick monitoring. A removable battery unit supports real-time clock and memory retention during power outages.

4. Features and Advantages

High-speed processing for real-time control applications

Dual Ethernet ports for redundant or segmented network configurations

Comprehensive communication support for multi-protocol integration

Built-in diagnostic functions for system health monitoring

Battery-backed memory to preserve data during power loss

Compact and modular form factor simplifies system expansion

Hot-swap capability for minimal downtime during maintenance

Seamless integration with ABB’s 800xA automation platform

5. Application Fields

The ABB PM862K01 is suitable for a wide range of industrial and process automation systems, including:

Power generation and distribution

Oil and gas refining and transportation

Chemical and petrochemical processing

Water and wastewater treatment

Pulp and paper production

Manufacturing and material handling systems

6. Installation and Maintenance

Mount the CPU module securely on an ABB-approved baseplate.

Connect all communication and power cables according to wiring guidelines.

Ensure the 24 V DC power supply is stable and correctly polarized.

Maintain a clean, ventilated cabinet to prevent overheating.

Replace the battery periodically to maintain clock accuracy and memory retention.

Use ABB’s Control Builder M engineering tool for configuration, diagnostics, and firmware updates.

The CPU supports hot swapping, enabling online replacement without interrupting system operation.

7. Operational Benefits

The PM862K01 CPU module provides outstanding computational power, stability, and connectivity. It ensures real-time process control, reduces downtime, and simplifies maintenance with its modular architecture. Combined with ABB’s 800xA software environment, it delivers a powerful foundation for intelligent, scalable, and highly reliable automation systems.
