ABB SD812F Pulse Counter / Digital Input Module

1. Product Overview

The ABB SD812F is a digital input and pulse counter module designed for use within the ABB AC 800M control system. It enables the acquisition and processing of fast pulse and digital signals from field devices, providing reliable data to controllers for process monitoring, control logic, and system diagnostics. The SD812F supports high-frequency signal detection, making it ideal for applications involving flow measurement, speed monitoring, or other pulse-based instrumentation.

2. Technical Specifications

3. Design and Structure

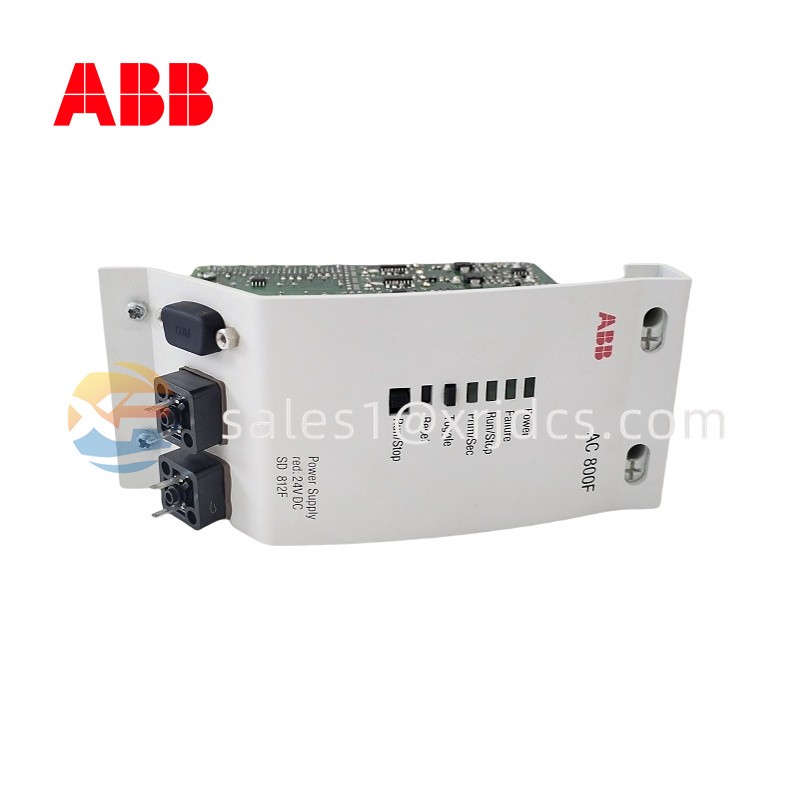

The SD812F module consists of a robust electronic board enclosed in a compact housing suitable for modular mounting within ABB’s AC 800M platform. Each input channel is electrically isolated, preventing interference and ensuring signal accuracy even in noisy industrial environments. Diagnostic LEDs on the front panel display channel status, power supply, and communication activity.

Its modular connector interface allows quick installation and removal, supporting hot-swapping for minimal downtime during maintenance. The module communicates with the CPU via the ModuleBus, ensuring fast and deterministic signal exchange.

4. Features and Functional Advantages

8-channel high-speed pulse and digital input capability

Support for up to 10 kHz pulse frequency per channel

32-bit counters for long-duration pulse accumulation

Galvanic isolation for noise immunity and signal protection

LED indicators for input and diagnostic status monitoring

Compact, modular design compatible with ABB baseplates

Easy configuration through ABB Control Builder M engineering tool

Hot-swappable for fast maintenance without system shutdown

Long operational life with robust industrial-grade components

5. Application Fields

The ABB SD812F module is widely used across a range of industries requiring precise pulse and digital signal processing:

Power generation and energy management systems

Water and wastewater flow metering

Oil, gas, and petrochemical monitoring systems

Pulp and paper process automation

Manufacturing and conveyor control systems

Mining and material handling operations

6. Installation and Maintenance

Mounting: Attach the SD812F securely onto an ABB AC 800M baseplate.

Wiring: Connect input signals to terminal blocks, observing correct polarity and isolation guidelines.

Configuration: Set up channel parameters (debounce time, signal type, counting mode) using Control Builder M.

Testing: Verify channel operation through diagnostic LEDs and system software tools.

Maintenance: Periodically inspect wiring and clean terminals; replace modules if fault LEDs persist.

Replacement: Utilize the hot-swap feature to change modules during operation without process interruption.

7. Performance and Reliability

Engineered for precision and durability, the ABB SD812F delivers fast, accurate digital signal acquisition with minimal delay. Its isolation and high-frequency capability ensure dependable performance in harsh environments. Combined with ABB’s AC 800M system, it provides a scalable and flexible solution for intelligent industrial automation and control.
