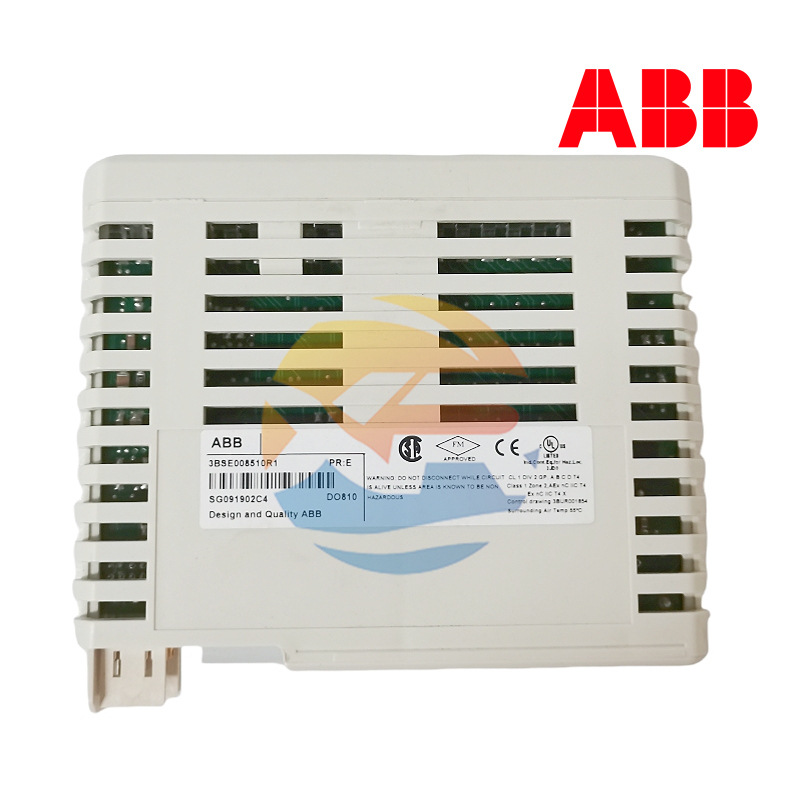

ABB DO810 Digital Output Module

1. General Overview

The ABB DO810 is a Digital Output Module designed for use in ABB’s AC 800M controller series. It provides reliable, fast, and isolated digital output signals for controlling field devices such as solenoids, relays, contactors, and indicator lamps. Known for its durability and precision, the DO810 is widely used in distributed control systems (DCS) across power, chemical, and manufacturing industries where consistent performance and system safety are vital.

2. Technical Specifications (Descriptive Format)

The DO810 module provides 16 individually isolated digital output channels, each capable of sourcing 24 V DC with a maximum current of 0.5 A per channel. It is designed for high-output switching reliability and includes built-in current limiting and short-circuit protection.

Each channel supports status feedback, enabling the controller to monitor the health and activity of connected devices in real time. Diagnostic LEDs located on the front panel indicate the ON/OFF state of each output channel and the overall module status, simplifying maintenance and troubleshooting.

The module operates from a 24 V DC system supply, with typical power consumption around 6 W. It can function within an ambient temperature range of 0°C to +55°C, with a storage tolerance of –40°C to +70°C. The unit connects directly to ABB’s ModuleBus via a baseplate, facilitating seamless integration within AC 800M systems.

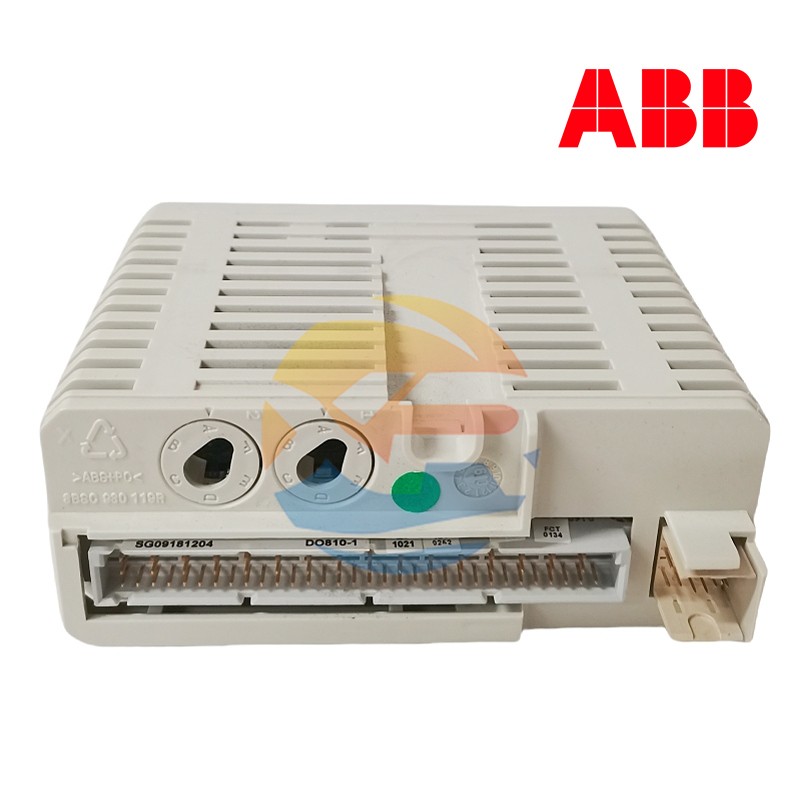

3. Design and Construction

The DO810 features a compact and modular enclosure, optimized for DIN-rail or baseplate mounting. Its design includes an electronic protection layer for each output channel, ensuring fault isolation without affecting other outputs.
The internal circuitry incorporates optocouplers for galvanic isolation between the field and logic sides, preventing electrical interference. The plug-in terminal block structure allows quick connection and disconnection during installation or replacement.

4. Main Features

16 individually isolated digital output channels

Rated at 24 V DC, 0.5 A per channel

Short-circuit and overcurrent protection built in

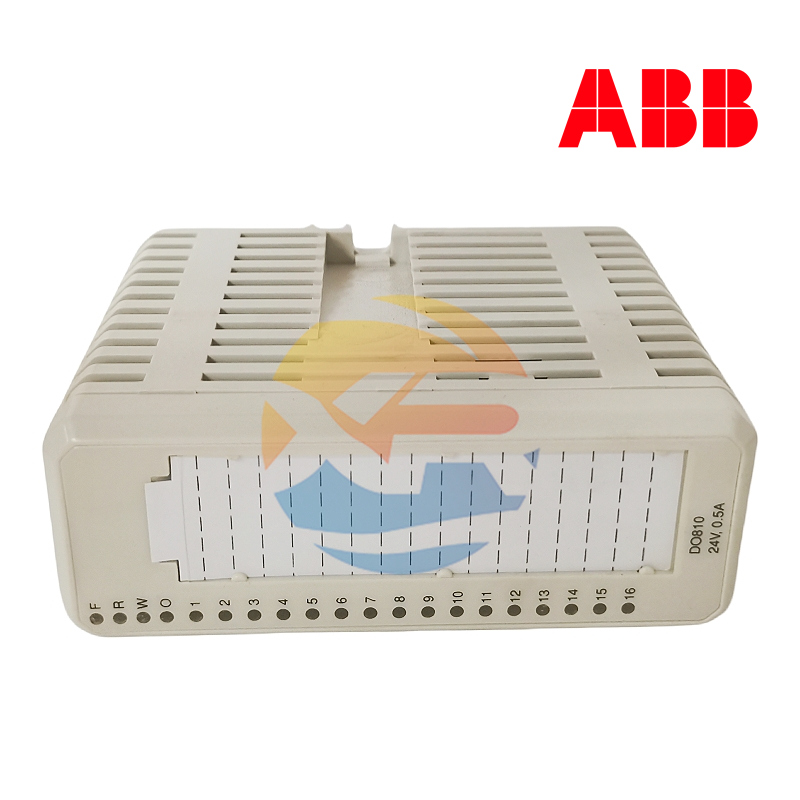

Channel and module status LEDs for easy diagnostics

Galvanic isolation for noise immunity and system safety

Hot-swappable design for maintenance without system shutdown

Compact, modular structure for easy installation

Seamless integration with ABB’s AC 800M control platform

Long lifecycle and high output switching endurance

5. Application Areas

The ABB DO810 is used in a wide range of industrial automation and control applications, including:

Power generation and substation control systems

Oil, gas, and petrochemical plant automation

Water and wastewater treatment plants

Manufacturing and process control systems

Pulp and paper production

Mining and metals processing facilities

6. Installation and Maintenance

Mounting: Install the DO810 onto a compatible AC 800M baseplate or DIN rail.

Wiring: Connect output wiring to field devices ensuring correct polarity and secure terminals.

Power Supply: Verify a stable 24 V DC supply to the module.

Testing: Use onboard LEDs and system software to confirm proper output operation.

Maintenance: Regularly inspect output wiring for loose connections or wear.

Replacement: The module supports hot-swapping, allowing replacement during operation without disrupting the system.

7. Reliability and Performance

The ABB DO810 combines robust hardware protection with advanced diagnostics, ensuring dependable performance in demanding industrial settings. Its modular design simplifies scalability, while its electrical protection circuits enhance longevity and reduce downtime. The DO810 exemplifies ABB’s commitment to delivering high-quality, field-proven components for modern automation systems.
