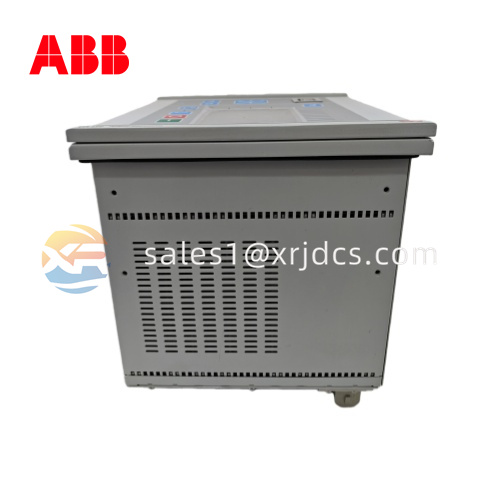

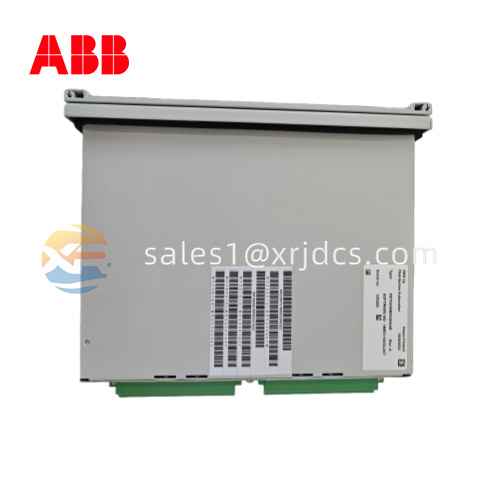

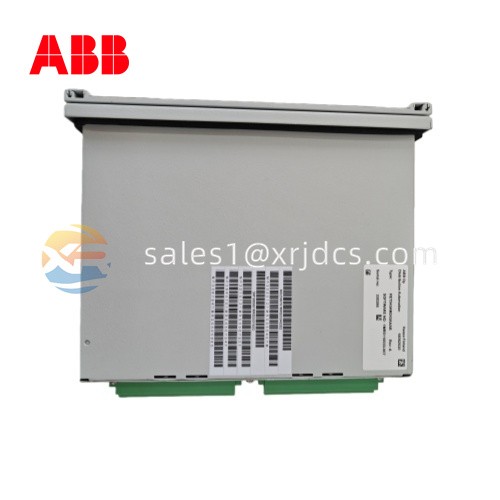

ABB RET543AM243AAAB | Transformer Protection & Control Relay

I. General Description

The ABB RET543AM243AAAB is a high-performance transformer protection relay designed for comprehensive control, supervision, and protection of power transformers in medium- and high-voltage networks. As a member of ABB’s advanced protection relay family, it integrates multiple protective functions, fault-recording capability, and flexible communication interfaces, making it suitable for both modern digital substations and retrofitted legacy systems.

Built with ABB’s proven reliability, the RET543 series is widely used in utility, industrial, and energy systems requiring high dependability, fast protection response, and secure communication.

II. Functional Capabilities

Differential Protection of Transformers ensuring rapid detection of internal faults

Restricted Earth-Fault Protection for high-sensitivity winding and core protection

Backup Overcurrent & Earth-Fault Protection

Thermal Overload Algorithms to protect transformer windings

Tap-Changer Monitoring & Supervision

Breaker Failure Protection

Flexible Logic Programming using ABB engineering tools

Extensive event, disturbance, and SOE recording for post-fault analysis

III. Technical Specifications

IV. Internal Structure & Hardware Design

The RET543AM243AAAB is engineered with a rugged architecture intended for long-term stability:

High-speed microprocessor optimized for differential calculation and real-time protection

Galvanically isolated measurement pathways to ensure CT/VT accuracy

Heavy-duty power supply section for stable performance under grid disturbances

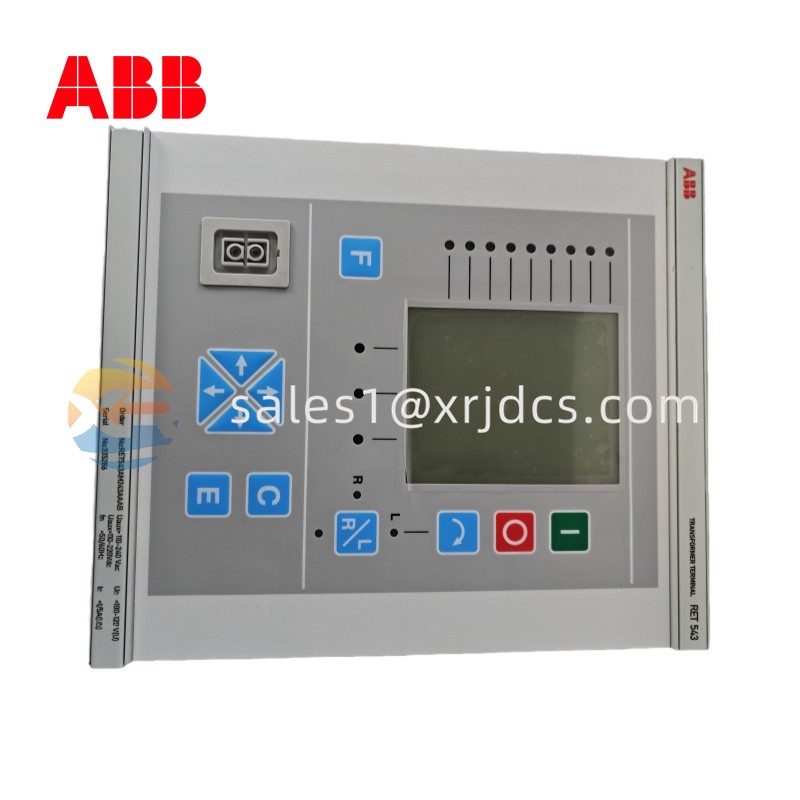

Front-panel keypad + LCD enabling on-site configuration

Modular I/O arrangement providing flexibility for auxiliary trip & signaling circuits

Internal event memory capable of storing fault records, oscillography, and sequence-of-events data

This robust hardware foundation ensures reliable protection even under severe electrical stress.

V. Application Fields

The RET543AM243AAAB is suitable for:

Power transformers in utilities and substations

Industrial plant transformers

Renewable integration substations (wind, solar, hydro)

Generator step-up (GSU) transformers

Distribution transformer protection

Its multifaceted protection suite makes it ideal for single, multi-winding, and autotransformer configurations.

VI. Installation & Configuration Guidelines

Mount the relay panel securely using ABB-standard panel cutouts.

Connect CT and VT circuits while adhering to polarity and grounding rules.

Use ABB PCM configuration tools to:

Load protection settings

Adjust differential parameters

Configure I/O logic

Set communication protocols

Perform secondary injection tests to validate differential, REF, and backup protections.

Complete system integration with SCADA or DCS through configured communication ports.

Proper grounding and shielding of CT/VT wiring are essential for accurate differential measurement.

VII. Maintenance & Operational Recommendations

Periodically download event and disturbance records for condition monitoring

Verify CT wiring integrity and tightness annually

Keep ventilation areas clean to prevent thermal buildup

Apply OEM-approved firmware updates as recommended

Perform routine trip testing to ensure reliable breaker operation

With regular maintenance, ABB RET543 relays offer long operational lifespans.

VIII. Additional Notes

The RET543AM243AAAB variant is often used as a drop-in replacement in substation upgrade projects due to its compatibility with established ABB protection infrastructures. Its fast differential protection, flexible communication, and dependable hardware design make it a trusted solution for safeguarding critical transformer assets.
