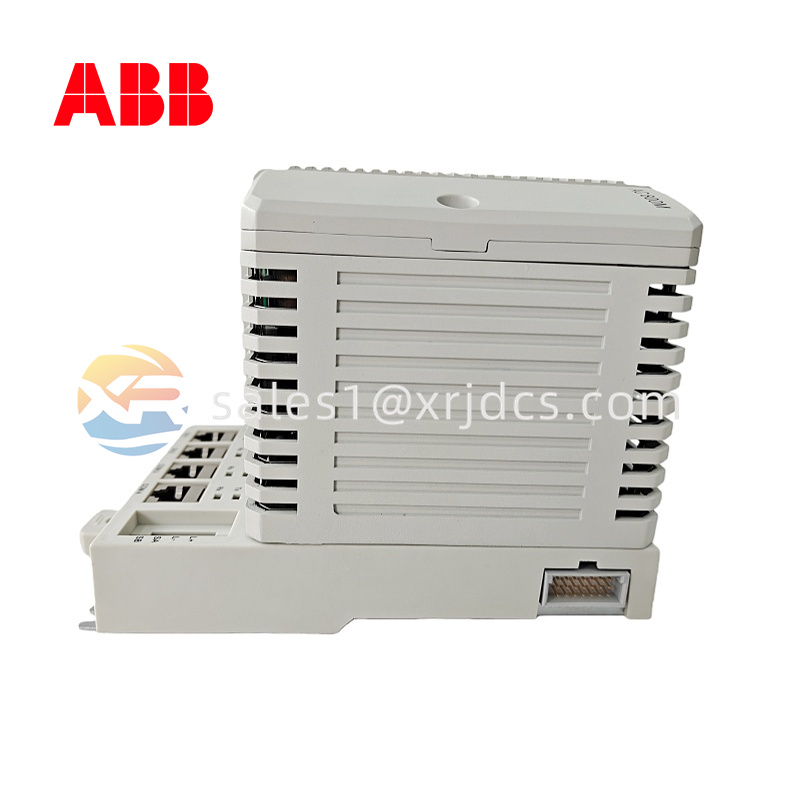

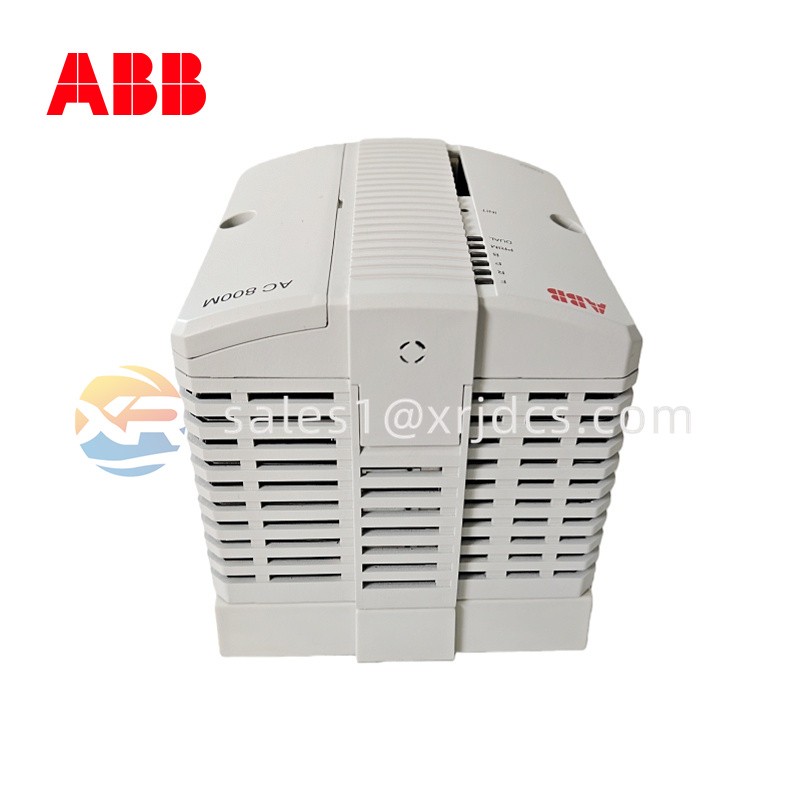

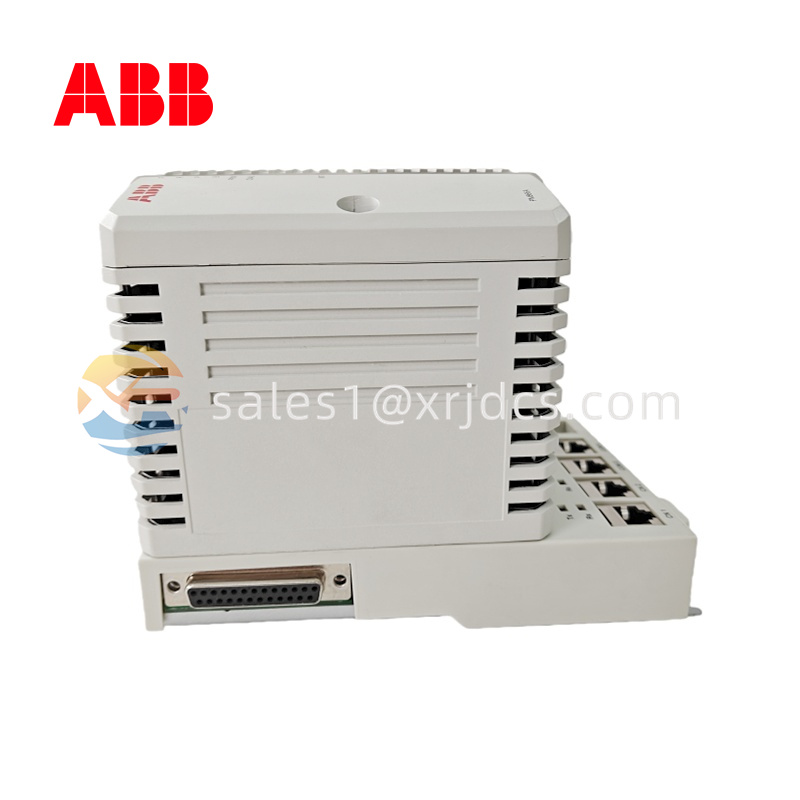

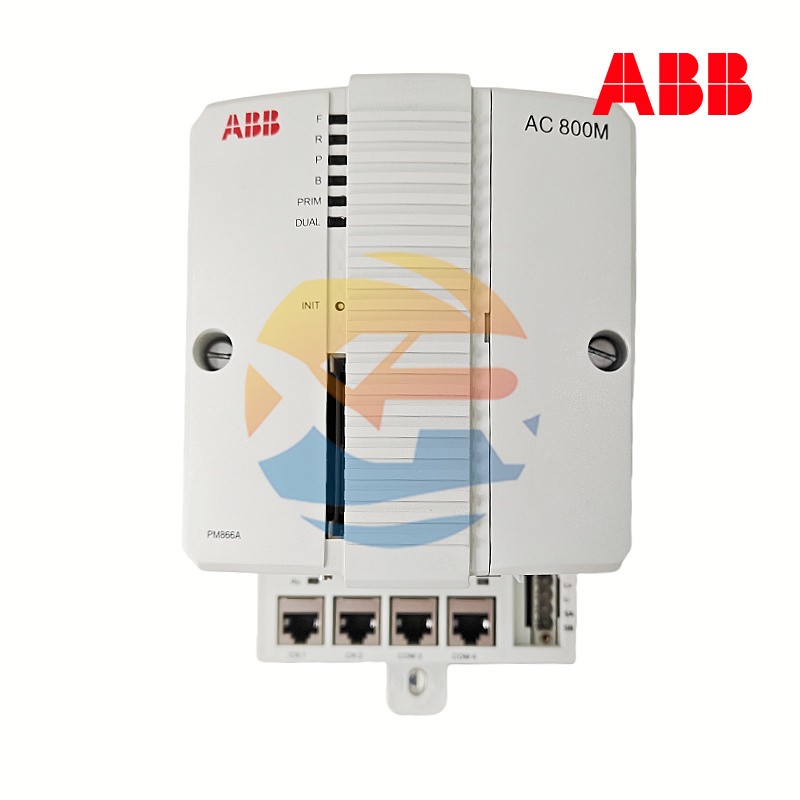

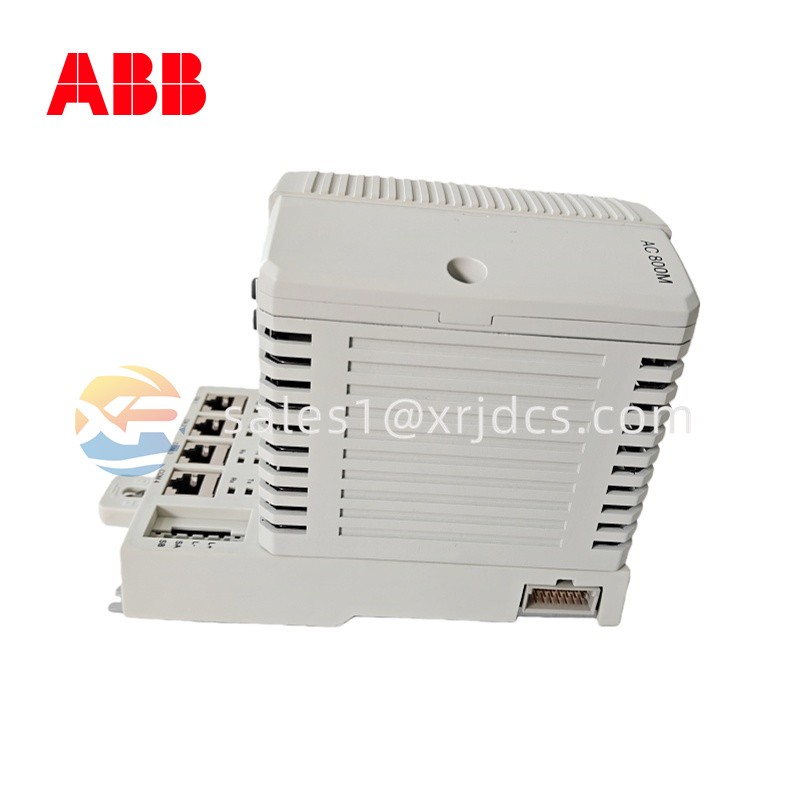

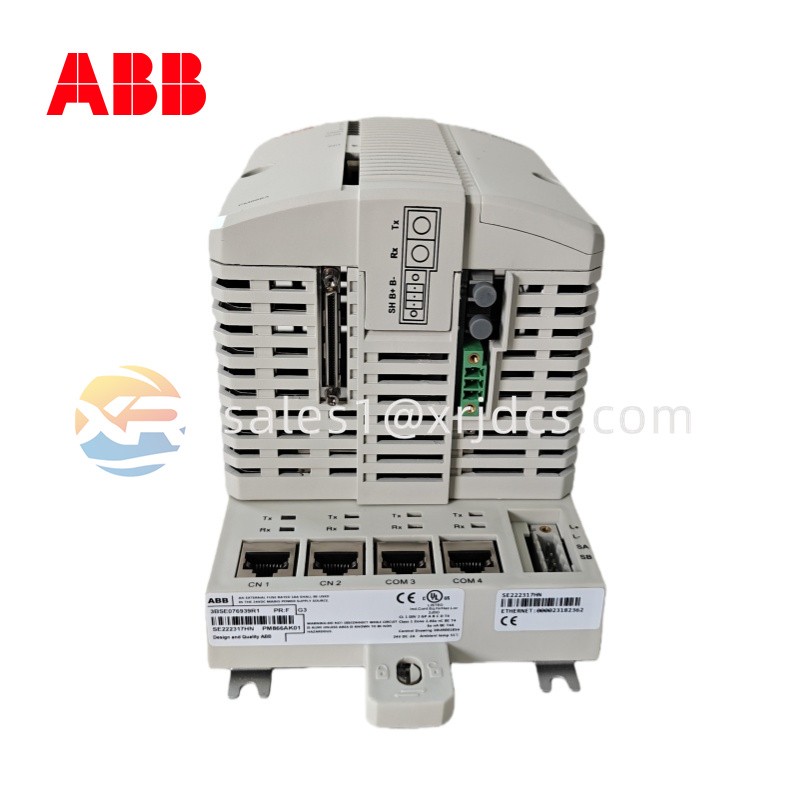

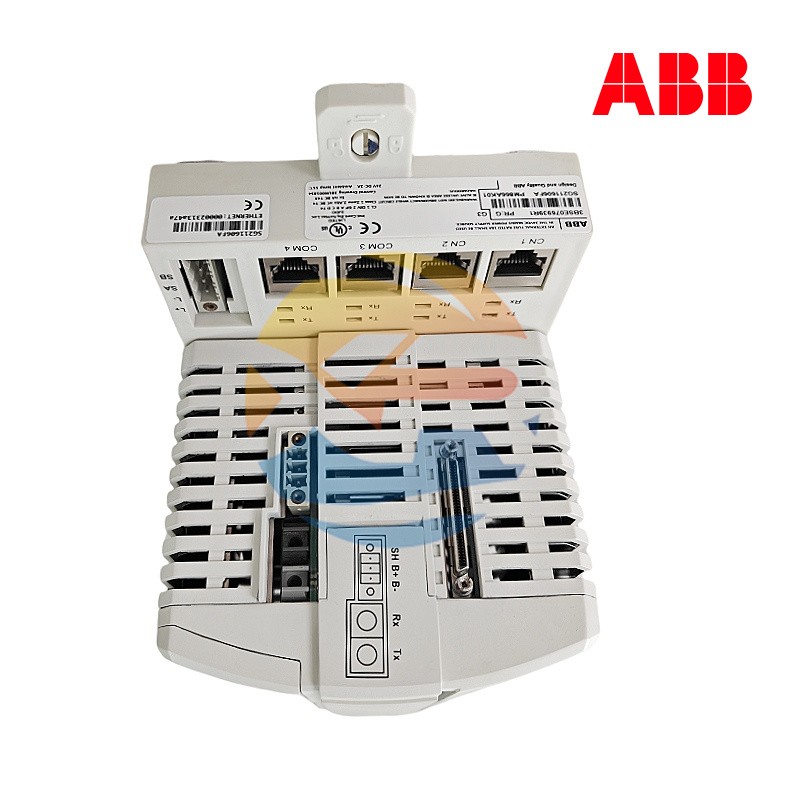

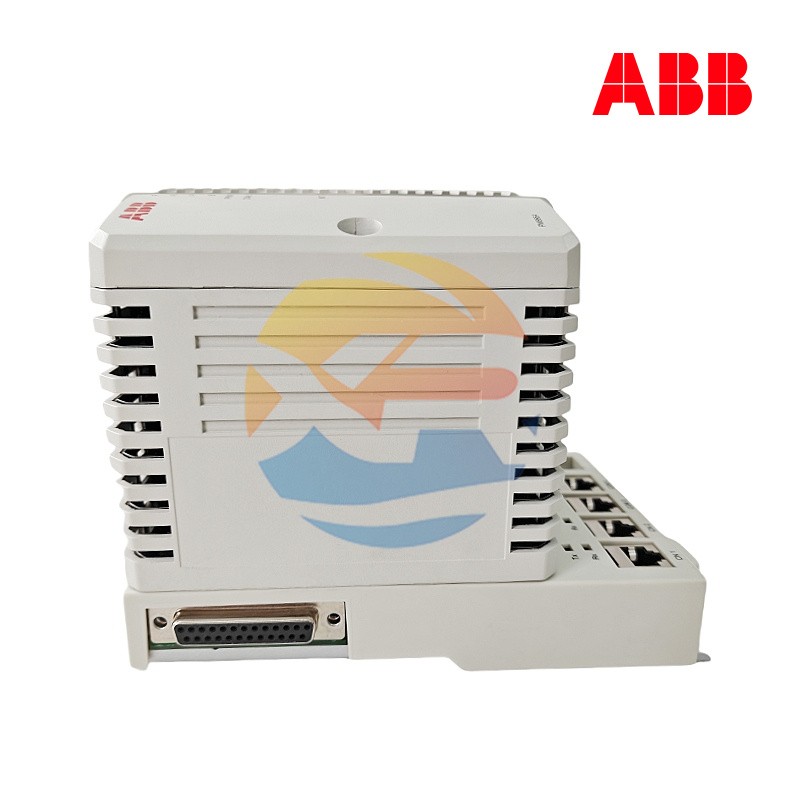

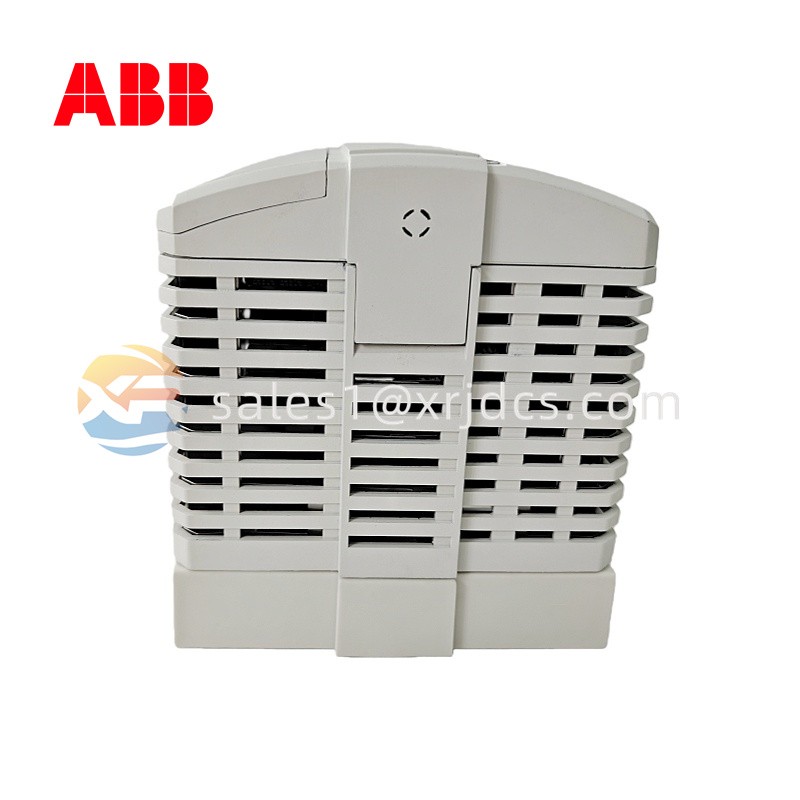

ABB PM866 3BSE050200R1 – High-Performance CPU Module

Introduction

The ABB PM866 (3BSE050200R1) is a powerful processor module used within ABB AC 800M automation systems, offering high-speed processing, robust communication capabilities, and exceptional reliability. Engineered to support complex industrial processes, it delivers stable real-time control for demanding applications across energy, manufacturing, chemical processing, and more.

Technical Specifications

Core Features

High computing capacity: Able to execute large control programs with consistent real-time performance.

Redundancy-ready: Supports hot-standby CPU redundancy to ensure uninterrupted operation.

Multiple communication options: Built-in interfaces allow easy integration with field devices, controllers, and supervisory systems.

Long-term stability: Designed for long operating hours in critical installations without performance degradation.

Efficient memory architecture: Provides fast instruction handling and secure storage of application data.

Seamless AC 800M integration: Fully compatible with ABB’s automation ecosystem and engineering tools such as Control Builder.

Structure & Internal Design

The PM866 is built using a modular, layered architecture:

Central processing core responsible for executing control logic.

Memory modules that store both operational data and user configurations.

Industrial communication chipset supporting various protocols like Ethernet-based networks.

Baseplate connection interface enabling quick installation within AC 800M racks.

Protective enclosure with EMC shielding for stability in environments with electrical noise.

Application Areas

Thanks to its processing capability and network flexibility, the PM866 is widely used in:

Distributed control systems (DCS)

Power generation and substation automation

Oil & gas production and refining

Chemical and pharmaceutical manufacturing

Pulp & paper mills

Intelligent factory automation and high-speed production lines

Its reliability makes it particularly suited for mission-critical control systems.

Installation Guidance

Ensure the PM866 is mounted securely on the appropriate AC 800M baseplate or DIN rail.

Maintain good ventilation inside the cabinet; avoid areas with excessive vibration or heat.

Connect communication cables according to ABB interface specifications to ensure optimal signal quality.

Always ground the system properly to minimize electrical noise interference.

Maintenance & Operational Tips

Periodically verify firmware versions and apply ABB-recommended updates.

Inspect communication ports and connectors for wear or loose contacts.

Monitor CPU load via the engineering software; high usage may indicate optimization needs.

Store project backups regularly to ensure quick recovery in redundancy or replacement scenarios.

Additional Notes

The PM866 3BSE050200R1 works seamlessly with ABB I/O modules, communication adapters, and system expansion components. When paired with redundant configurations and ABB diagnostic tools, it delivers exceptional operational uptime and system resilience.
