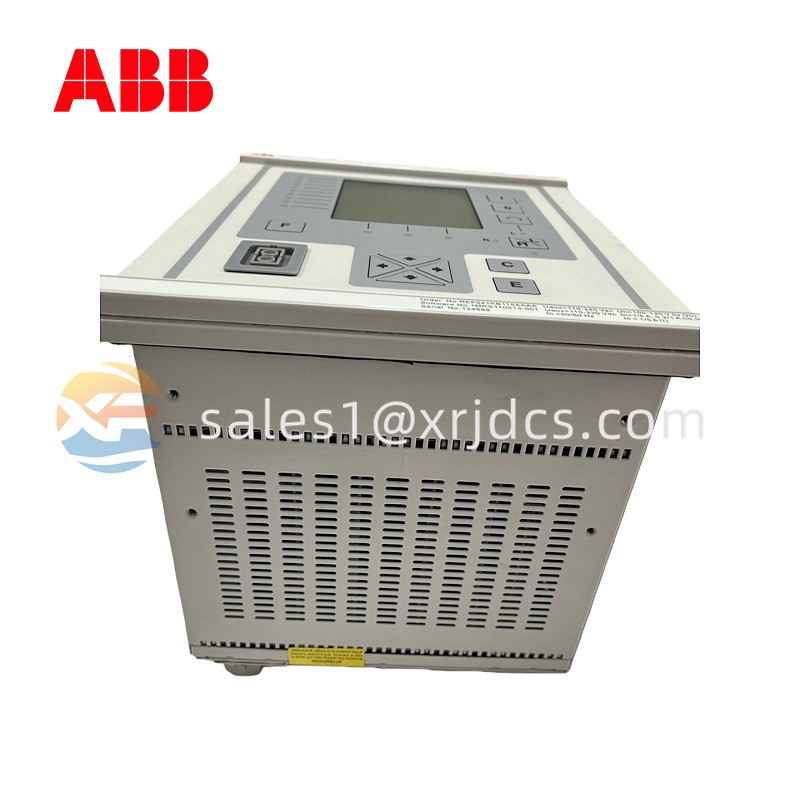

ABB REF541DB115BAAA – Feeder Protection & Control Relay Module

1. Quick Introduction

The ABB REF541DB115BAAA is a versatile protection and control relay module belonging to the REF54x family, designed for medium-voltage feeder applications. It integrates protection, measurement, control, and communication functions into a compact and intelligent IED suitable for modern distribution substations and industrial networks. With dependable accuracy and ABB’s well-established engineering standards, this model ensures reliable operation in demanding electrical environments.

2. Construction & Internal Architecture

Unlike traditional relays, the REF541DB115BAAA is built on a modular and layered structure:

Processing core running advanced protection algorithms and real-time diagnostics.

CT/VT measurement interface ensuring precise current and voltage acquisition.

Binary input/output matrix for flexible control, tripping, and signaling configurations.

Communication module capable of multiple protocols for integration with digital substations.

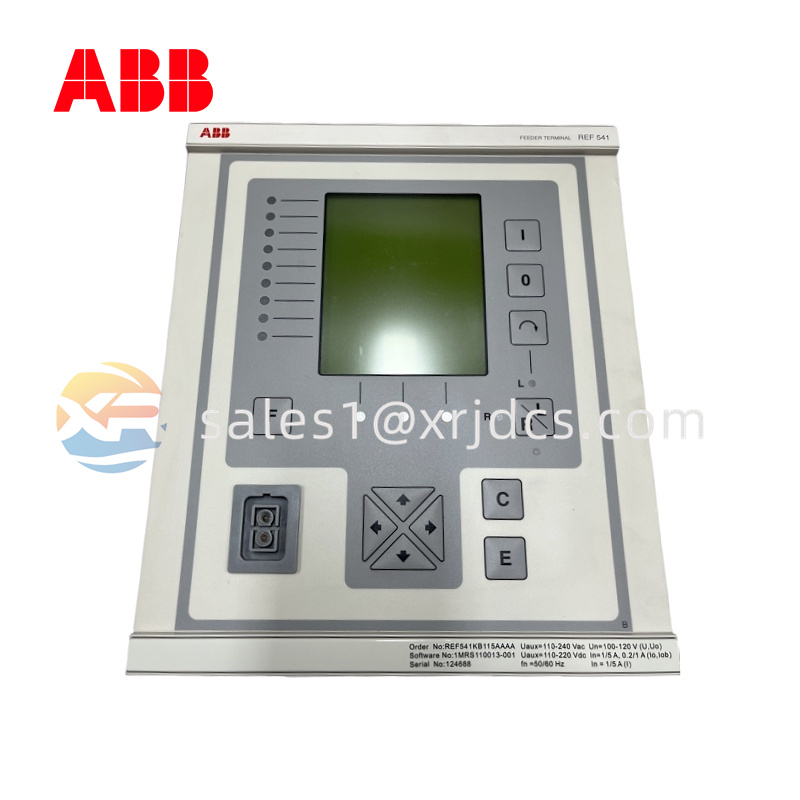

Front-panel HMI providing event indication, parameter access, and local control.

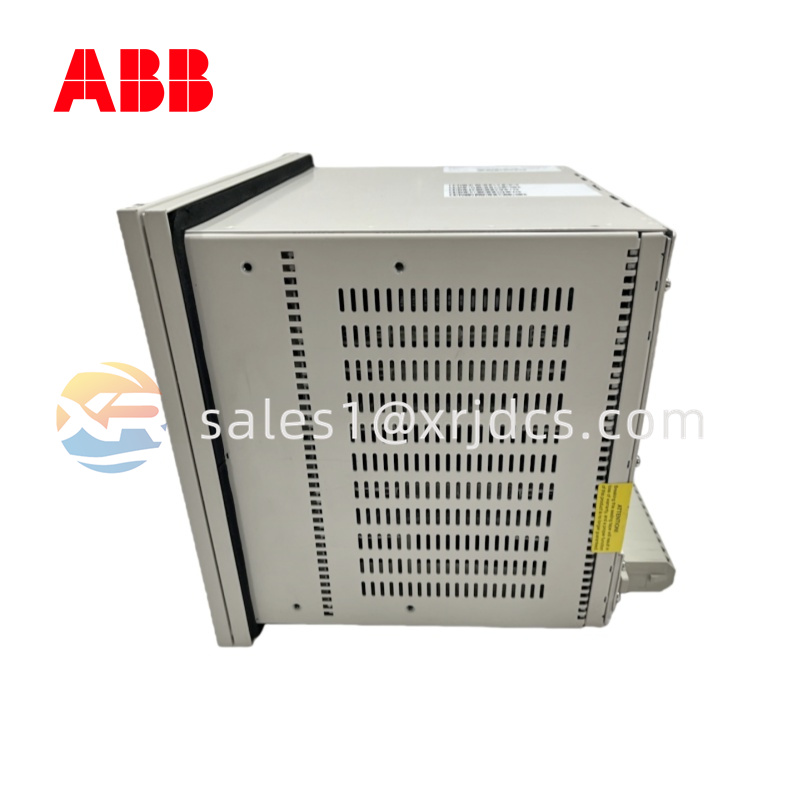

Durable enclosure offering strong EMC immunity and mechanical robustness.

This architecture supports both compact protection schemes and complex feeder automation functions.

3. Technical Parameters

4. Core Features

Comprehensive feeder protection: Includes phase/earth overcurrent, definite & inverse time curves, breaker failure logic, autoreclose, and directional functions.

Integrated control capability: Supports breaker control, interlocking, and switching sequences.

High reliability: Built for heavy-duty substation environments with strong immunity to electrical noise and transients.

Flexible configuration: Programmable logic allows engineers to tailor behavior to site-specific requirements.

Advanced self-supervision: Internal diagnostics monitor hardware, firmware, and communication health at all times.

Disturbance recording & event logging: Facilitates fault analysis, commissioning, and maintenance tasks.

5. Application Scope

The REF541DB115BAAA is suitable for a wide range of electrical distribution environments, including:

Medium-voltage feeders in utilities

Industrial power distribution systems

Ring main units (RMU) and compact substations

Transformer-feeder protection schemes

Renewable energy integration feeders

Backup protection for industrial switchgear

Its adaptability makes it valuable for both new substation projects and retrofit scenarios.

6. Installation Considerations

Mount the unit in a clean, vibration-free relay panel or switchgear compartment.

Ensure CT/VT wiring follows ABB polarity and burden guidelines to avoid measurement errors.

Maintain space around the relay for ventilation and maintenance access.

Use shielded communication cables for IEC 61850 or serial links to maintain signal integrity.

Verify configuration and I/O mapping using ABB tools such as PCM600 before energizing.

7. Maintenance & Reliability Tips

Perform periodic visual inspections for loose terminals or dust buildup.

Back up relay settings and logic diagrams regularly.

Review disturbance records after system events to assess network health.

Update firmware only with ABB-approved packages to maintain compatibility and cybersecurity.

Test trip outputs during scheduled maintenance to confirm correct operation.

8. Additional Notes

The REF541DB115BAAA offers a dependable combination of protection, control, and communication functions in a single compact device. When integrated into ABB’s substation automation ecosystem, it supports high-efficiency, high-reliability grid operations.
