ABB 3BHB002751R0106 Rectifier Supervision Board

Product Introduction

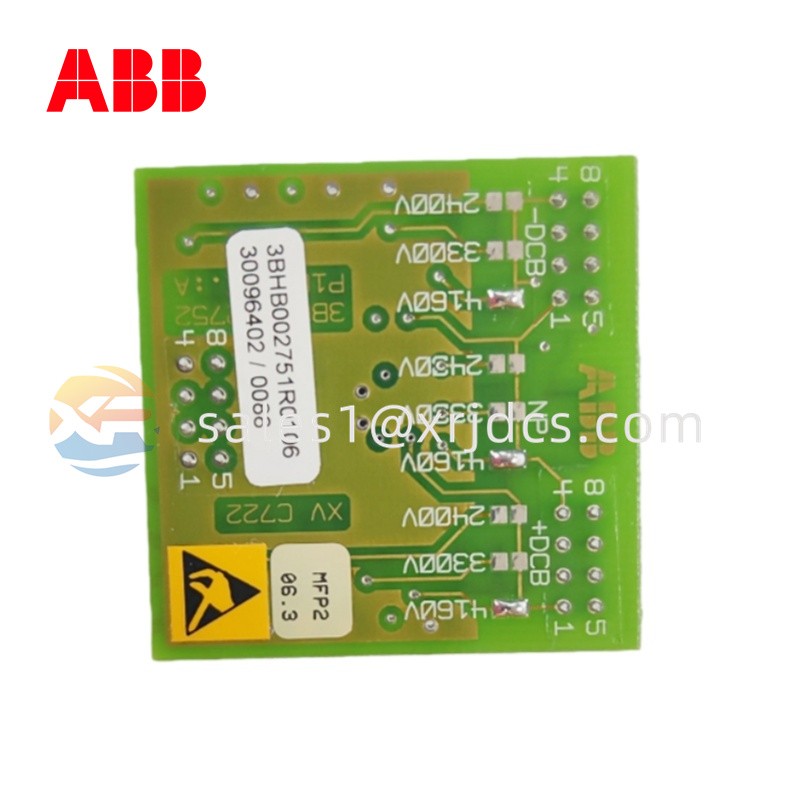

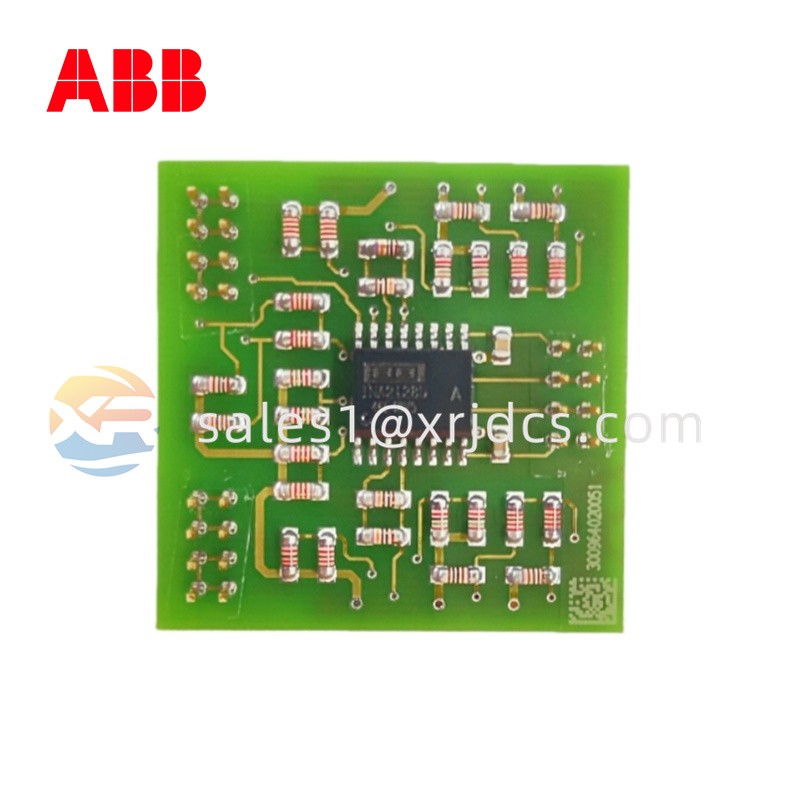

The ABB 3BHB002751R0106 is a Rectifier Supervision Board identified by ABB as SVA, XV C722 AE016 700 V. It is designed for ACS1000A/W medium-voltage drive systems, where it serves as an interface and monitoring component associated with the rectifier section. ABB product information specifically identifies the part as an ACS1000A/W rectifier supervision board with a 700 V designation.

As part of the drive's control and monitoring architecture, the board supports supervision of the rectifier stage and contributes to reliable operation of the overall power-conversion system.

Technical Specifications

The principal identification and application information for this model includes:

• Manufacturer: ABB
• Part Number: 3BHB002751R0106
• ABB Type Designation: SVA, XV C722 AE016 700 V
• Product Type: Rectifier Supervision Board
• Application: ACS1000A/W drive systems
• Rated Voltage Designation: 700 V
• Product Family: ABB ACS1000
• Ordering Unit: Piece
• Minimum Order Quantity: 1 piece
• HS Code: 85049090

ABB's product documentation lists the component specifically as the “ACS1000A/W RECTIFIER SUPERVISION BOARD.”

Functional Role in ACS1000A/W Systems

The rectifier is a critical section of a medium-voltage drive because it converts incoming electrical power for subsequent processing by the drive's power-conversion stages. The 3BHB002751R0106 provides supervision associated with this section, helping the control architecture monitor rectifier-related operating conditions.

Its role is therefore different from that of a general-purpose PLC I/O module. It is a specialized board intended for a specific ABB drive platform and should be considered as part of the ACS1000A/W power-electronics architecture.

The 700 V version is particularly important when selecting a replacement, as ABB also lists closely related rectifier supervision components with different voltage designations. For example, 3BHB002751R0105 is identified as a 400 V version, while 3BHB002751R0106 is the 700 V version.

Construction and Integration

The 3BHB002751R0106 is supplied as a dedicated electronic supervision PCB rather than as a complete drive assembly. It is intended to integrate with the internal electrical and control architecture of compatible ACS1000A/W equipment.

When servicing this type of board, technicians should consider the complete drive configuration rather than evaluating the PCB independently. Correct part-number matching is especially important because ABB uses related board references for different ACS1000 variants and voltage levels.

The board's ABB designation, SVA, XV C722 AE016 700 V, provides an additional identification reference that can be useful when cross-checking spare parts, service documentation, and existing equipment records.

Industrial Applications

The ABB 3BHB002751R0106 is primarily intended for industrial installations using ACS1000A/W medium-voltage drives. Typical environments can include:

• Heavy industrial motor-drive systems
• Process automation facilities
• Mining and mineral processing
• Oil and gas installations
• Cement and material-handling plants
• Large pumps and compressors
• Industrial fans and auxiliary machinery
• Medium-voltage motor control applications

For existing ACS1000A/W installations, maintaining appropriate spare boards can help reduce downtime when a rectifier supervision component requires replacement.

Replacement and Maintenance Notes

Before installing a replacement 3BHB002751R0106, verify the complete ABB part number, the 700 V designation, and compatibility with the specific ACS1000A/W drive configuration. This is particularly important because similar ABB part numbers may correspond to different rectifier supervision or voltage variants.

Recommended service practices include inspecting connectors and PCB surfaces, checking for contamination or signs of overheating, confirming wiring against the applicable drive documentation, and following appropriate medium-voltage isolation and discharge procedures before accessing internal equipment.

Some industrial automation distributors currently identify this part as discontinued or subject to limited availability, making accurate part-number verification and reliable spare-part sourcing important for legacy ACS1000A/W installations.

The ABB 3BHB002751R0106 is therefore a specialized replacement component for ACS1000A/W drive systems, particularly valuable for maintenance teams seeking to preserve the operational life of existing medium-voltage drive equipment.
