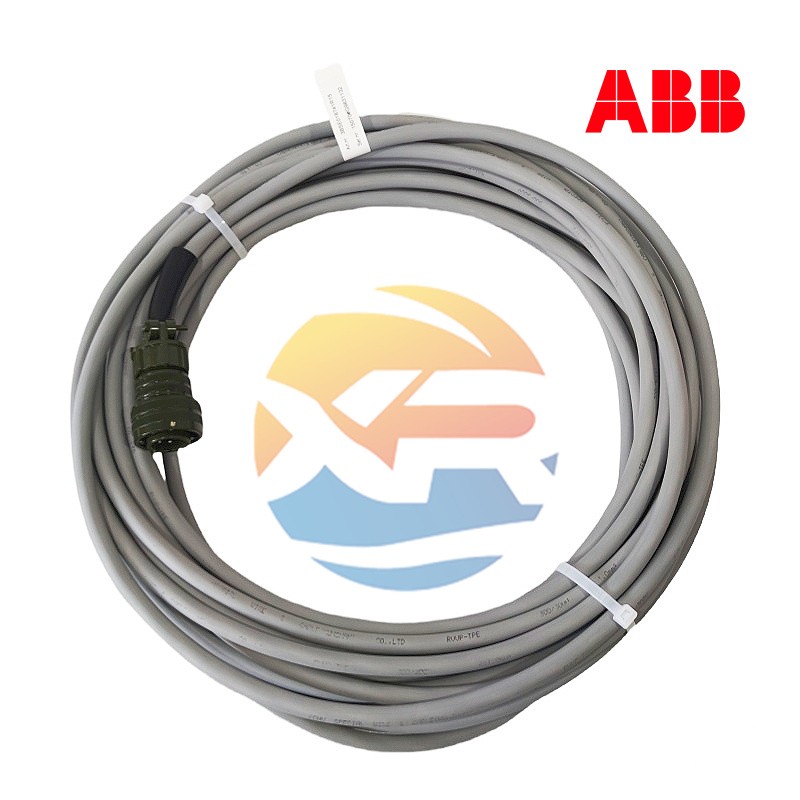

Switzerland The ABB PFTL101/201/PFCL201 15M 3BSE018741R115 is a cable with a male plug connector designed for industrial tension measurement systems. It specifically connects tension sensors (e.g., PFTL101/201/PFCL201) to control units (e.g., PFEA112). Belonging to ABB’s Tension Measurement Network, this cable is suitable for industrial equipment such as web surface tension meters. Its design complies with international environmental standards (e.g., ISO 14001 certification) and supports global compliance requirements.
Model: 3BSE018741R15
Length: 15 meters
Connector Type: Male Plug Connector
Origin: Sweden (SE), Poland (PL)
HS Code: 85389091
Net Weight: 2.5 kg
Customization: Non-Customized
Minimum Order Quantity: 1 piece
Packaging: 1 unit per package
Technical Features
Compatible with 24V DC or 24V AC power supply (requires matching electrical requirements of sensors and control units)
Shielded signal wires to reduce electromagnetic interference (EMI)
Supports Profibus-DP communication protocol (for select models)
High Precision & Reliability
Constructed with industrial-grade materials to ensure stable performance in complex environments.
Certified under ISO 14001 environmental management system, meeting eco-friendly and sustainable development standards.
Versatility & Compatibility
Suitable for multiple ABB tension sensors (e.g., PFTL101A/B, PFCL201C) and control units (e.g., PFEA112).
Applicable in various industrial scenarios, including papermaking, metallurgy, power, and hydropower.
Safety & Maintenance
Design complies with international safety standards (e.g., IP20 protection rating for dust and solid prevention).
Provides detailed installation, debugging, and fault-tracking guidelines for standardized operation.
Core Components
Cable Body: 15-meter shielded cable with internal signal and power wires.
Male Plug Connector: Enables quick connection to sensors and control units, supporting hot-swappable operation.
System Integration
Sensors: E.g., PFTL101A/B (2.0/10/20 kN), PFCL201C (10 kN) for tension or pressure measurement.
Junction Box: Intermediate interface connecting sensors and cables, providing signal isolation and protection.
Control Unit: E.g., PFEA112, converts sensor signals to digital outputs (A/B, A+B, A-B).
Installation Schematic
The cable connects to sensors and control units via a junction box, with signal wires requiring grounding to minimize interference.
Industrial Automation
Tension control in production lines, such as paper machines, textile machinery, and metal processing equipment.
Energy & Manufacturing
Monitoring equipment tension in hydropower, thermal power, and steel manufacturing.
Environmental Protection & Water Conservancy
Suitable for scenarios requiring high tension precision, such as wastewater treatment and glass manufacturing.
Other Fields
Including gas supply, metallurgy, and metallurgical equipment.
Installation Steps
1.Select an appropriate installation location based on equipment layout, ensuring the cable is away from high-temperature, humid, or corrosive environments.
2.Connect the cable to the sensor and control unit via the junction box, ensuring the plug is secure.
3.Check the power voltage (24V DC/AC) and ground the signal wires to avoid short circuits or interference.
Maintenance Recommendations
Regular Inspections: Quarterly checks for loose cable connections and good contact between sensors and control units.
Cleaning & Protection: Use dust covers for junction boxes to prevent dust or oil contamination.
Fault Troubleshooting: If signal anomalies occur, inspect the cable shield for damage or replace the faulty plug.
Recycling & Disposal
The cable falls under WEEE (Waste Electrical and Electronic Equipment) and should be recycled according to local regulations.
Metal components (e.g., sensor housings) are recyclable to reduce resource waste.
