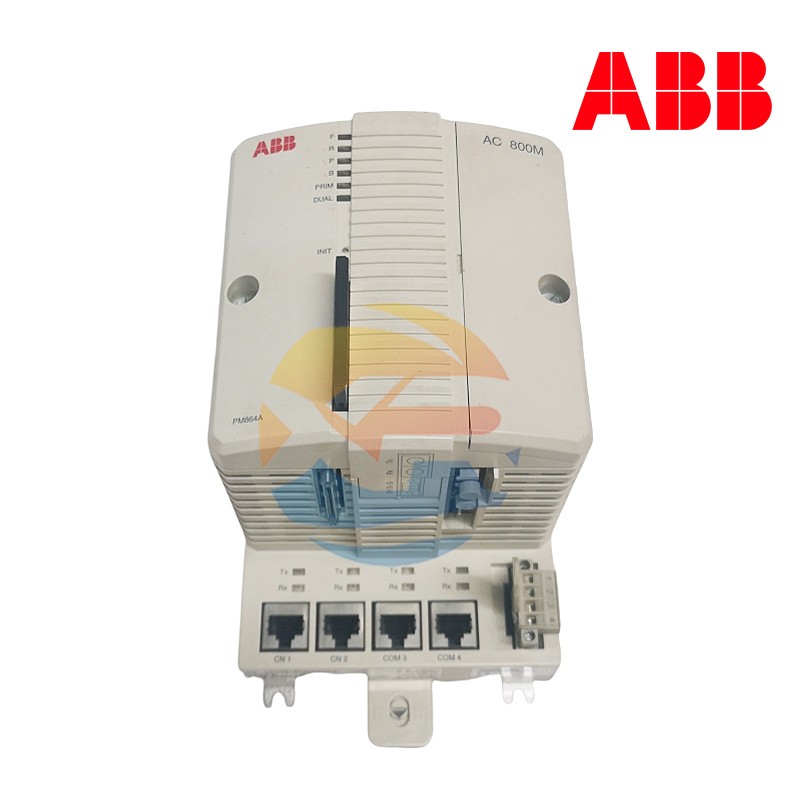

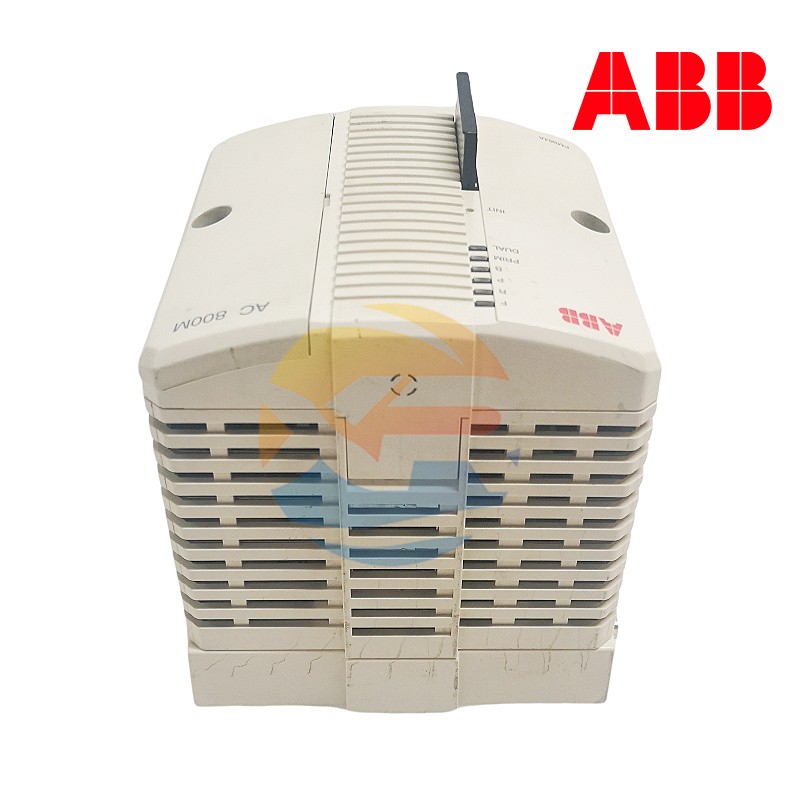

ABB PM864AK01 3BSE018161R1

PM864AK01 3BSE018161R1  is the core CPU module of the ABB AC 800M series industrial automation control system. Specifically designed for industrial applications, it features high performance, reliability, and modular expansion capabilities. The module adopts a compact design, supports real-time control and complex automation tasks, and is widely used in process control and equipment management across industries such as power, oil, chemical, steel, and paper.

Parameters

Processor: PowerPC 604e (some sources mention a dual-core processor with a 1GHz clock speed, but note that data may vary across different sources).

Clock Speed: 400 MHz (some sources mention 1GHz; please confirm whether this refers to different versions or descriptive discrepancies).

Memory: 512 MB SDRAM, 256 MB Flash storage.

Communication Interfaces: Supports Ethernet TCP/IP, PROFIBUS DP, CAN, RS-232/RS485, USB, etc.

Dimensions: Approximately 120 x 60 x 30 mm (some sources mention 200 x 120 x 45 mm or 306 x 147 x 122 mm; please refer to the latest data).

Weight: Approximately 1.2 kg (some sources mention 1.5 kg or 2.2 kg; please refer to the latest data).

Operating Temperature: -40°C to +70°C (some sources mention 0°C to 55°C; please refer to the latest data).

Power Supply Voltage: 24 V DC.

Product Features

High Performance: Equipped with an industrial-grade processor and high-speed communication interfaces, supporting real-time data processing and complex control logic.

High Reliability: Redundant design and industrial-grade components ensure long-term stable operation in harsh environments.

Modular Design: Supports multiple I/O modules and communication protocols for easy system expansion and maintenance.

Multitasking: Enables parallel processing of multiple tasks to enhance system efficiency.

Ease of Use: Provides rich programming tools and configuration functions to reduce development and maintenance difficulties.

Structure and Composition

Modular Structure: Adopts DIN rail mounting, supporting rack or panel installation.

Core Components: Includes a central processor, memory, storage, communication interfaces, and I/O interfaces.

Expandability: Integrates with field devices via protocols like PROFIBUS and Modbus, supporting a large number of I/O devices.

Application Areas

Industrial Automation: Used for production line control, robotics, motion control, and safety interlock systems.

Energy Industry: Power plants, oil and gas exploration, power transmission and distribution.

Chemical and Pharmaceutical: Chemical processing, pharmaceutical equipment control.

Manufacturing: Automotive manufacturing, packaging, food and beverage processing, water treatment, etc.

Infrastructure: Complex process control in construction, power, transportation, and other fields.

Installation and Maintenance

Installation Methods: Supports DIN rail mounting, and some models can be panel-mounted.

Maintenance Convenience: Modular design facilitates replacement and upgrades, reducing downtime.

Environmental Adaptability: Protection level IP65 (some sources mention IP20; please refer to the latest data), suitable for a wide temperature range (-40°C to +70°C).
