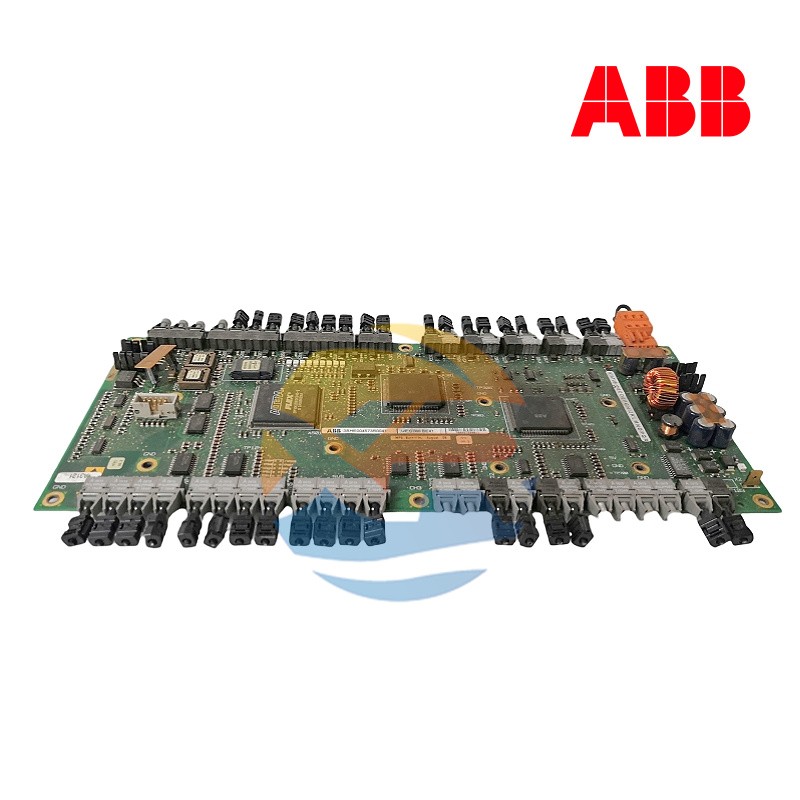

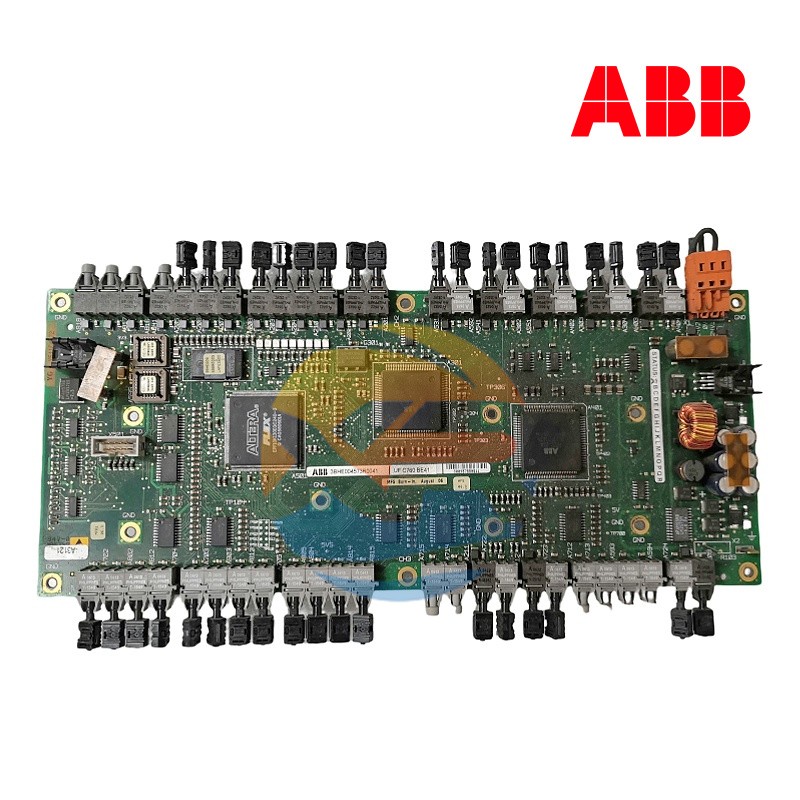

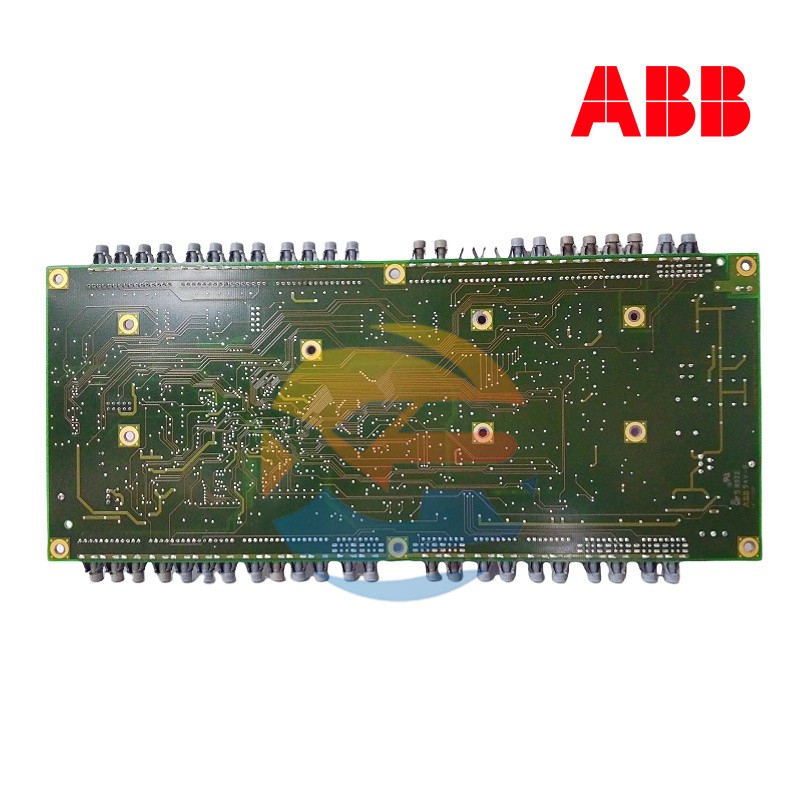

ABB UFC760BE41 3BHE004573R0041
The ABB UFC760BE41 3BHE004573R0041 is an industrial automation module based on ABB's universal drive architecture. It is mainly used for signal processing and communication expansion in frequency converters, servo drives, and control systems. Its core functions include power conversion, signal transmission, data processing, and execution of control commands, making it suitable for various industrial scenarios.
II. Parameters
Basic Parameters
Model: UFC760BE41 3BHE004573R0041
Brand: ABB
Voltage: 24 VDC (operating voltage)
Power consumption: 2 W
Communication rate: 31.25 kbps to 2 Mbps
Operating temperature: -25°C to 70°C
Dimensions: 125 x 75 x 30 mm
Weight: 0.5 kg
Extended Parameters
Rated current: 40A (partial data)
Rated voltage: 400V AC (partial data)
Frequency range: 50/60 Hz
Short-circuit breaking capacity: 6kA (partial data)
Pole number: 3P (partial data)
III. Product Features
High Performance and Reliability
It adopts industrial-grade components, featuring high anti-interference capability and stability.
Supports multiple communication protocols (such as Modbus, Profibus DP, IEC 61131-3).
Modular Design
The modular structure facilitates expansion and maintenance, and supports flexible configuration.
Provides digital/analog input/output interfaces to meet diverse needs.
Protection and Compatibility
With an IP55 protection rating (partial data), it is suitable for industrial environments.
It is compatible with ABB 800xA series controllers, supporting seamless integration.
Ease of Use
Plug-and-play design allows for quick deployment without complex configuration.
Supports remote diagnosis and maintenance, reducing operation and maintenance costs.
IV. Structure and Composition
Modular Structure
Includes digital/analog input/output modules, communication interface modules, and protection function modules.
Supports expansion up to 256 I/O points (partial data).
Series Affiliation
Belongs to the ABB AC800M series or DCS 800xA series controllers.
Key Components
Communication interfaces: RS-485, Ethernet, etc.
Protection functions: over-frequency protection, under-frequency protection, phase sequence protection, phase loss protection, etc.
V. Application Fields
Industrial Automation
Used in production line control, logistics systems, packaging machinery, etc.
Supports motion control (such as robots, motor position/speed control).
Energy and Manufacturing
Widely applied in industries such as petroleum, chemical engineering, electric power, metallurgy, and automobile manufacturing.
Suitable for controlling equipment like pumps, fans, compressors, and conveyors.
Special Scenarios
Water treatment, environmental protection projects, municipal engineering, etc.
VI. Installation and Maintenance
Installation Methods
Supports standard 35mm rail mounting or screw fixing.
Compact size (125 x 75 x 30 mm) for space-constrained environments.
Maintenance and Debugging
Provides clear wiring diagrams and user manuals for quick debugging.
Supports remote diagnosis, reducing maintenance difficulty.
Protection Measures
With an IP55 protection rating (partial data), it is dustproof and resistant to heavy splashing.
Equipped with lightning strike protection and overcurrent protection functions to adapt to harsh environments.
