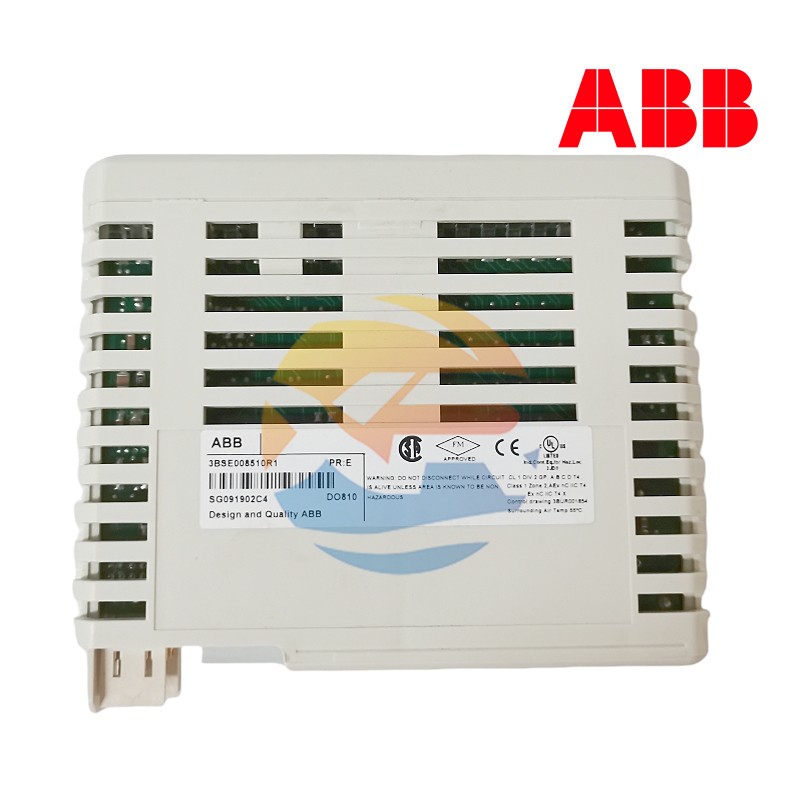

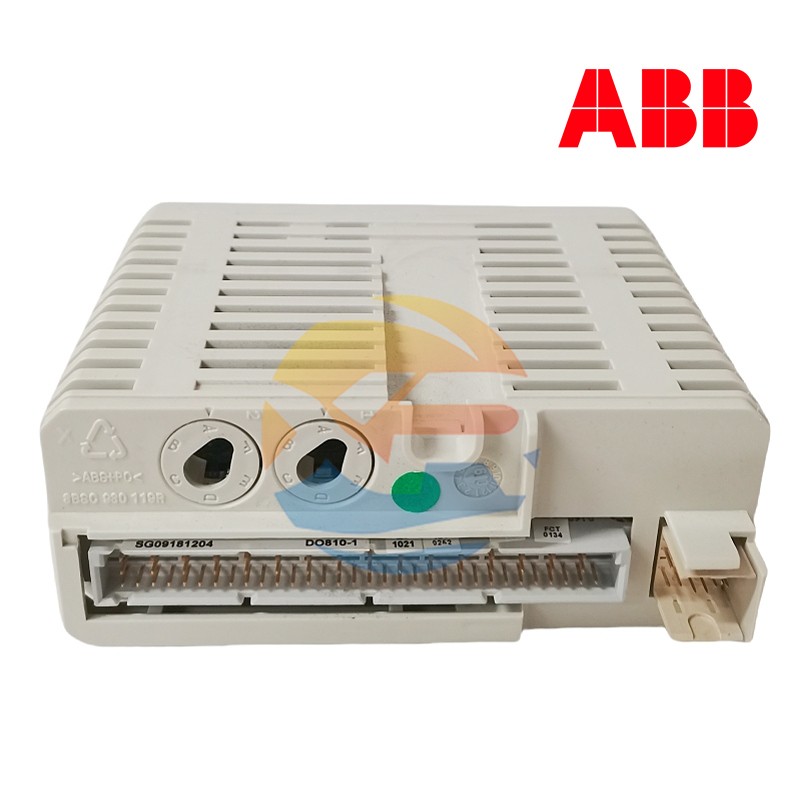

ABB DO810 3BSE008510R1ABB DO810 3BSE008510R1 is part of the ABB S800 I/O system and serves as an expansion module for the AC 800M series Programmable Logic Controllers (PLC). Its core function is to convert digital signals into relay control signals, driving industrial equipment (such as motors, valves, etc.) to achieve efficient and reliable automated control. Through modular design and flexible configuration, this module supports various industrial application scenarios and is a key component in the field of industrial automation.
Parameters
Output channels: 16 digital output channels, divided into two groups (8 channels per group).Output voltage range: 24 V DC (some documents mention 10-30 V DC).Output current: Maximum 0.5 A per channel.Isolation method: Inter-group isolation (isolation for each group of 8 channels) with a rated isolation voltage of 50 V.Operating temperature: -20°C to +70°C (some documents state -20°C to +55°C).Protection class: IP65 (not clearly specified in some documents).Communication interface: Supports PROFIBUS-DP V1 (some documents mention MODBUS RTU and RS485).Installation method: DIN rail mounting with screw terminal connections.
Product Features
High reliability: Uses high-quality components and redundant design to ensure stable operation in harsh industrial environments.Flexible configuration: Supports software programming to configure output types (such as relay output, transistor output) to meet different needs.Diagnostic function: Built-in fault detection and alarm mechanisms for quick troubleshooting.Short-circuit protection: Equipped with short-circuit protection to prevent damage to the module and external equipment.Multi-channel output: 16 channels can control multiple devices simultaneously, improving system efficiency.Real-time performance: Response time as low as 10 ms, meeting high-speed control requirements.
Structure and Composition

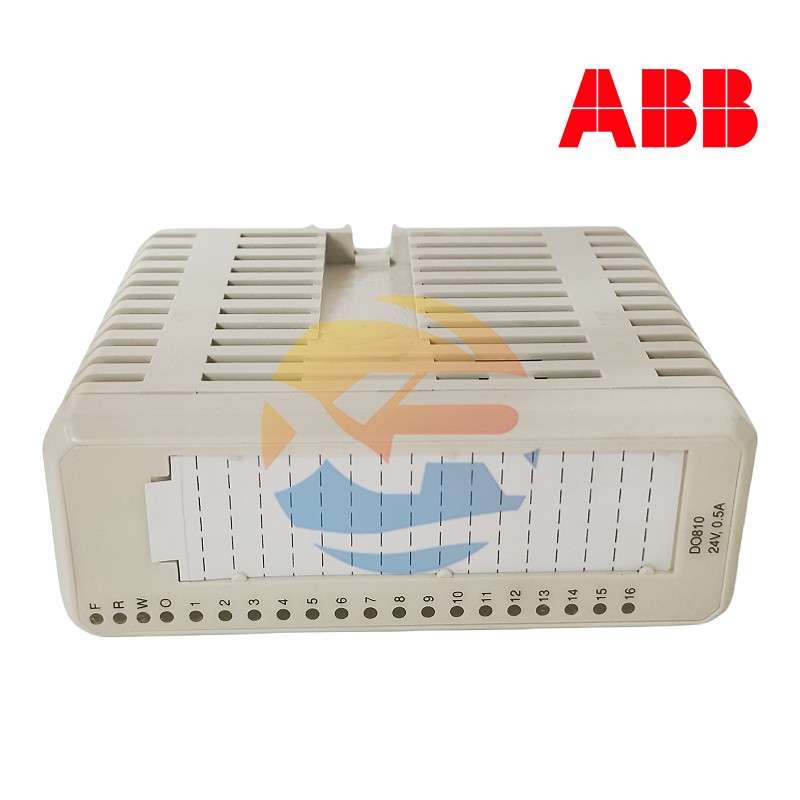

Modular design: The main body of the module is installed via DIN rail, facilitating expansion and maintenance.Terminal connection: Wiring is done using module terminal units (such as TU810, TU812, TU814).LED indicators: Each channel is equipped with an LED status indicator for easy monitoring of output status.Protective design: IP65 protection class, suitable for industrial environments with humidity, dust, etc.
Application Fields
Industrial automation: Controlling production line equipment, motors, valves, etc.Building automation: Managing systems such as lighting, air conditioning, and elevators.Energy optimization: Regulating the operation of equipment like water pumps and fans.Packaging and logistics: Driving packaging machinery, conveyor belts, and sorting equipment.Marine and energy: Used in ship control systems and energy management equipment.
Installation and Maintenance
Installation Steps
Mount the module on the DIN rail, ensuring it is securely fixed.Connect external equipment using TU series terminal units, paying attention to polarity matching.Configure output parameters (such as output type, frequency, etc.) through PLC programming.
Maintenance Recommendations
Regularly check if terminal connections are loose and clean dust from the module surface.Monitor the status of LED indicators to detect abnormal outputs in a timely manner.Replace aging or damaged terminal units to ensure circuit safety.
Fault Handling
Use the module's diagnostic function to locate fault points (such as short circuits, open circuits).
