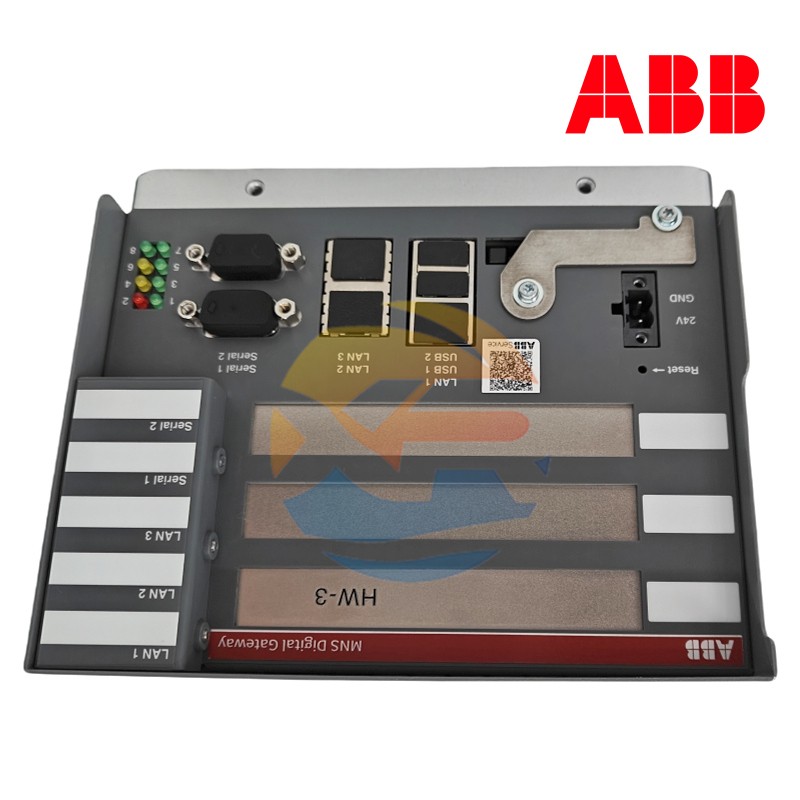

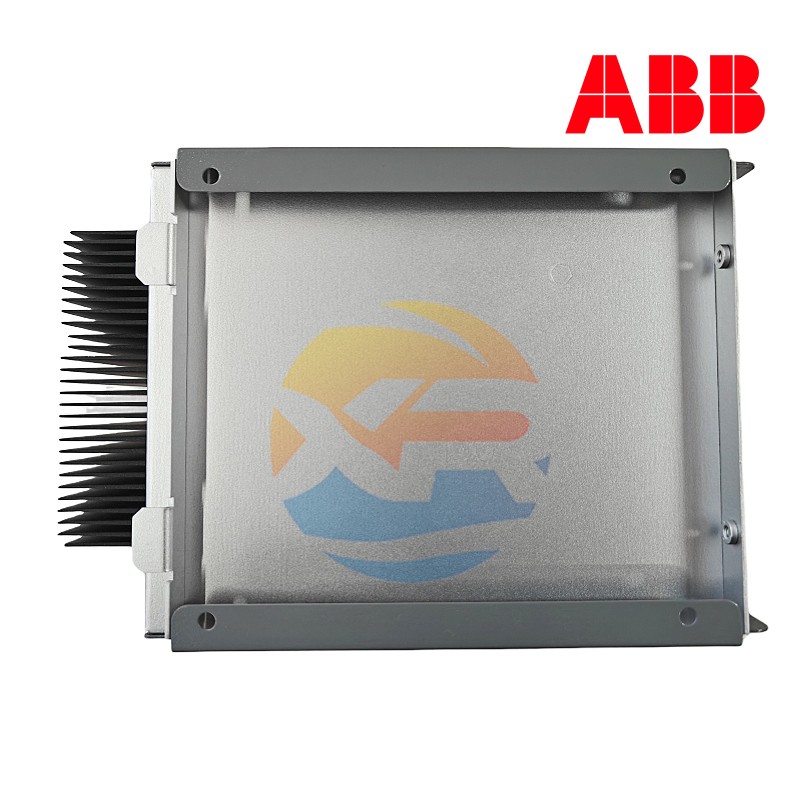

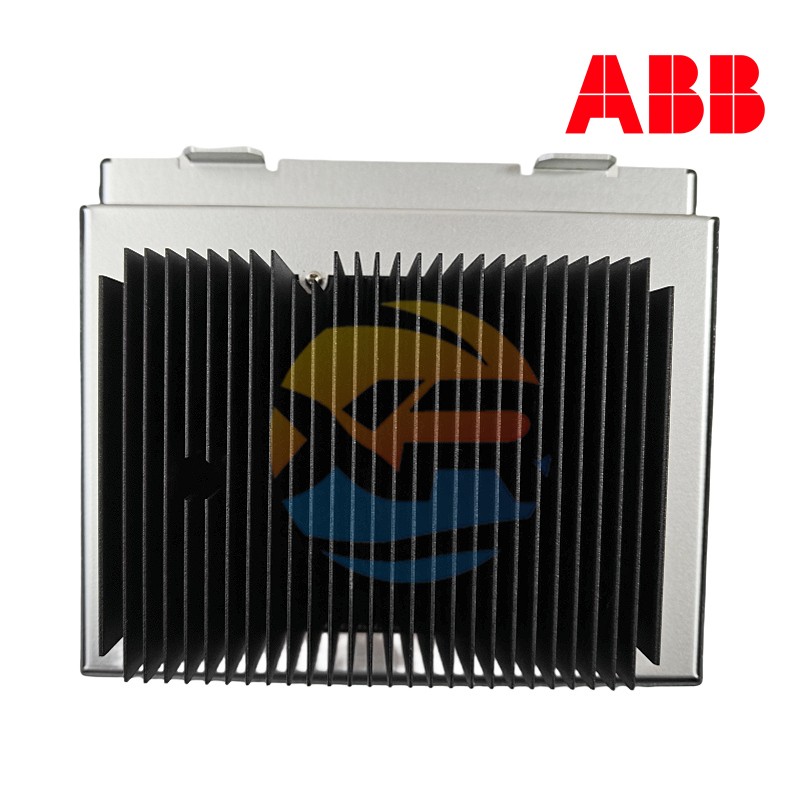

ABB 1TGE120021R0610
ABB 1TGE120021R0610 is a core component of the ABB MNS iS series industrial automation modules. Specifically designed for industrial automation systems, its main function is to enable communication between the system and upper-level computers, supporting remote monitoring, data acquisition, control, and data management. This module is part of the low-voltage distribution system and is widely used in fields such as intelligent manufacturing, energy management, and transportation.
Parameters and Specifications
Model and Brand: 1TGE120021R0610, Brand: ABBCommunication Interfaces: Supports industrial communication protocols such as Ethernet, RS485Communication Protocols: Compatible with standard protocols like MODBUS, PROFINET, Ethernet/IPOperating Environment:Operating Temperature: -25℃ to +55℃Relative Humidity: 5%~95% RH (no condensation)Installation Method: DIN rail mountingProtection Class: IP20
Functional Characteristics
Supports high-speed pulse output, suitable for fast-response scenariosEquipped with overvoltage, overcurrent protection, and fault diagnosis functions
Product Features
High Reliability and Anti-Interference Capability
Built-in overvoltage and reverse connection protection functions to ensure the safety of power supply and outputIndustrial-grade component design, adaptable to harsh industrial environments
Modularity and Compatibility
Modular design for easy installation and maintenanceCompatible with various ABB automation systems, simplifying integration
Flexible Configuration
Provides rich interfaces and configuration options to support customized needsSupports analog input/output and digital output
Structure and Composition
Core Components
Communication Unit: Integrates Ethernet and RS485 interfaces to realize data transmissionProtection Circuit: Includes overvoltage, overcurrent protection, and fault diagnosis modulesInterface Expansion: Supports connection with upper-level computers such as PLC and SCADA systems
Materials and Craftsmanship
Adopts high-quality materials to ensure long-term stable operationStandardized design, easy to integrate into complex industrial systems
Application Fields
Traditional Industrial Fields
CNC machine tools, packaging machinery, material handling systemsOil and gas, chemical industry, textile industry, electronic manufacturing, automobile manufacturing, tobacco industry, electric power, water conservancy, municipal engineering
Emerging Fields
Smart buildings, smart homes, smart transportationRobot control, semiconductor testing, automated warehousing
Installation and Maintenance
Installation Method
Adopts DIN rail mounting, standardized design for quick deploymentSupports panel mounting (some models)
Maintenance Requirements
Regularly check the status of communication interfaces and protection circuitsKeep the working environment clean, avoid interference from high temperature, high humidity, or dustProvides remote diagnosis function to reduce downtime
