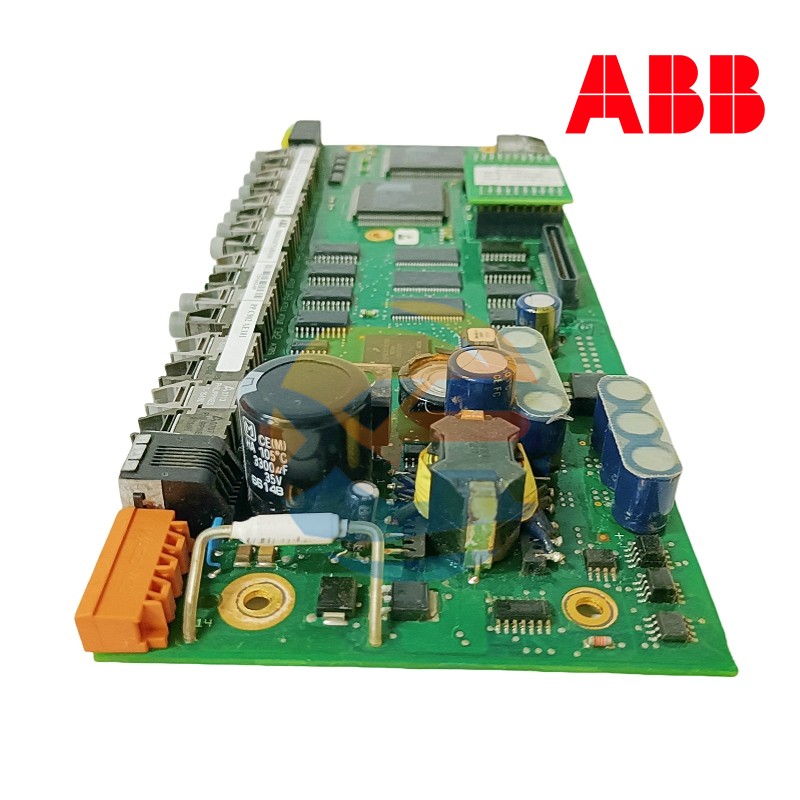

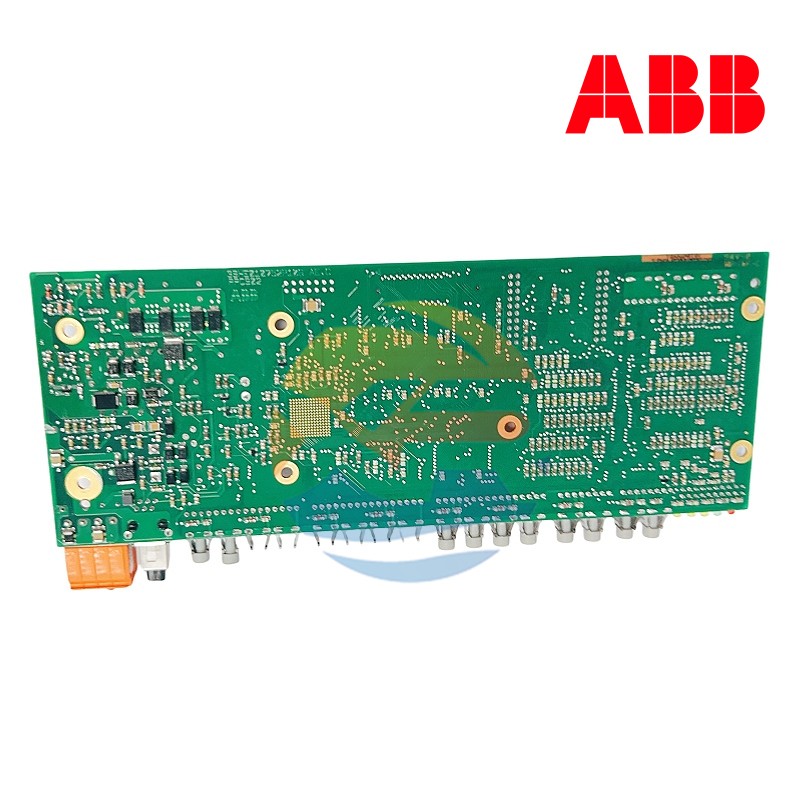

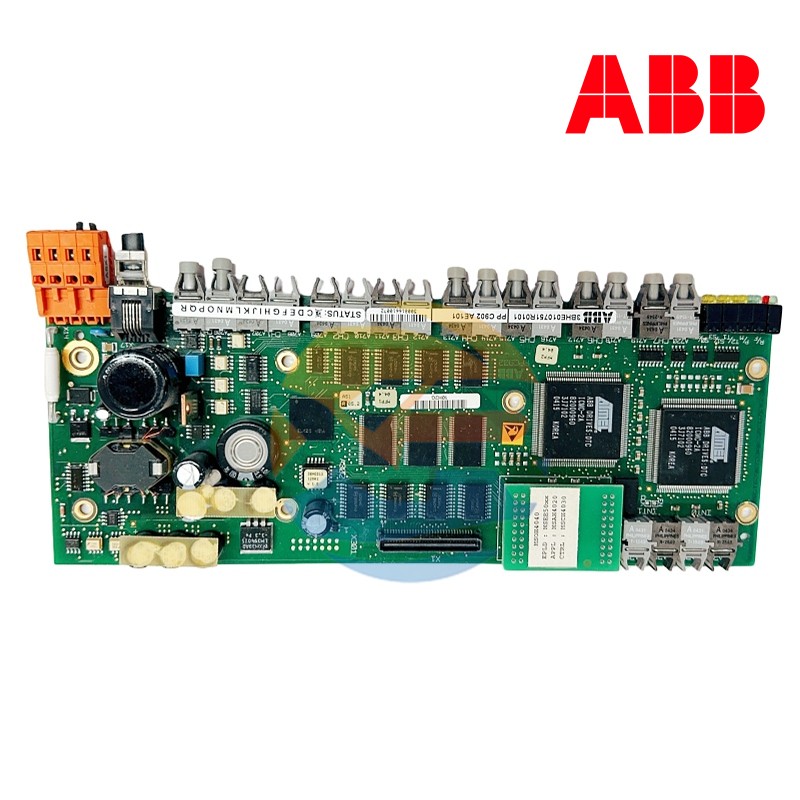

ABB PPC902AE101 3BHE010751R0101

Model:ABB PPC902AE101 3BHE010751R0101

  • Brand: ABB
  • Price range (USD): 1000-20000
  • Country: Switzerland
  • Parameter: Model: PPC902AE101 3BHE010751R0101
    Processor: PSR-2 (2.6 GHz) or dual-core ARM Cortex-A9 (some versions)
    Memory: 256 MB (some versions) or 2 GB RAM + 8 GB Flash
    Communication interfaces: Fieldbus, Ethernet
    Input/output voltage: 24 V DC (some modules)
    Dimensions: 138 x 110 x 45 mm (some versions) or 100 x 50 x 30 mm
    Weight: 0.7 kg (some versions) or 0.5 kg
    Operating temperature: -20 to +60°C (some versions) or -40 to +70°C

ABB PPC902AE101 3BHE010751R0101

The ABB PPC902AE101 3BHE010751R0101 is a processing unit (PU) for the ABB AC 800M controller, belonging to the PPC902 series. It is designed to execute control programs and communicate with other devices. This module can function as an intelligent I/O module for the ABB AC500 PLC, supporting 32 channels of digital input/output, making it suitable for industrial automation scenarios. Additionally, it can serve as an optical fiber communication board for the ABB Advant OCS/Commander 800/600 series DCS systems, enabling high-speed optical fiber communication.

Parameters
Model: PPC902AE101 3BHE010751R0101
Processor: PSR-2 (2.6 GHz) or dual-core ARM Cortex-A9 (some versions)
Memory: 256 MB (some versions) or 2 GB RAM + 8 GB Flash
Communication interfaces: Fieldbus, Ethernet
Input/output voltage: 24 V DC (some modules)
Dimensions: 138 x 110 x 45 mm (some versions) or 100 x 50 x 30 mm
Weight: 0.7 kg (some versions) or 0.5 kg
Operating temperature: -20 to +60°C (some versions) or -40 to +70°C

Product Features
High performance: Equipped with PSR-2 or ARM Cortex-A9 processors to meet complex control requirements.
High reliability: Redundant design (such as optical fiber channels, power supply) and wide temperature operating range ensure stability in harsh environments.
Flexibility: Supports multiple communication protocols (e.g., Fieldbus, Ethernet) and programming languages, facilitating expansion.
Compact design: Modular structure saves space and simplifies installation.
Ease of use: Configurable and maintainable via ABB AC500 Configurator software.

Structure and Composition
Core components: Processor, memory, communication interfaces (e.g., optical fiber transceivers, Ethernet ports).
Installation methods: Supports DIN rail mounting or panel mounting, with an IP20 protection rating.
Expandability: Can be combined with other PPC902 series modules (such as PPC902CEPPC902HE) to build a complete control system.

Application Fields
Industrial automation: Discrete manufacturing (e.g., production lines, robots), process manufacturing (e.g., petroleum, chemical industry).
Power systems: Power plant control, power conversion and monitoring.
Transportation and buildings: Traffic signal control, building automation systems.
Special scenarios: Long-distance optical fiber communication, industrial protocol transmission to avoid ground loop interference.

Installation and Maintenance
Installation:

Supports DIN rail or panel mounting. It is necessary to ensure that the power supply voltage (24 V DC) and environmental conditions (temperature, humidity) meet the requirements.
Optical fiber modules require correct connection of optical cables, with attention to port cleanliness.

Maintenance:
Regularly check the status of communication interfaces and power supplies to ensure no risk of overheating or short circuits.
Monitor module operation status through ABB Configurator software for quick fault diagnosis.
