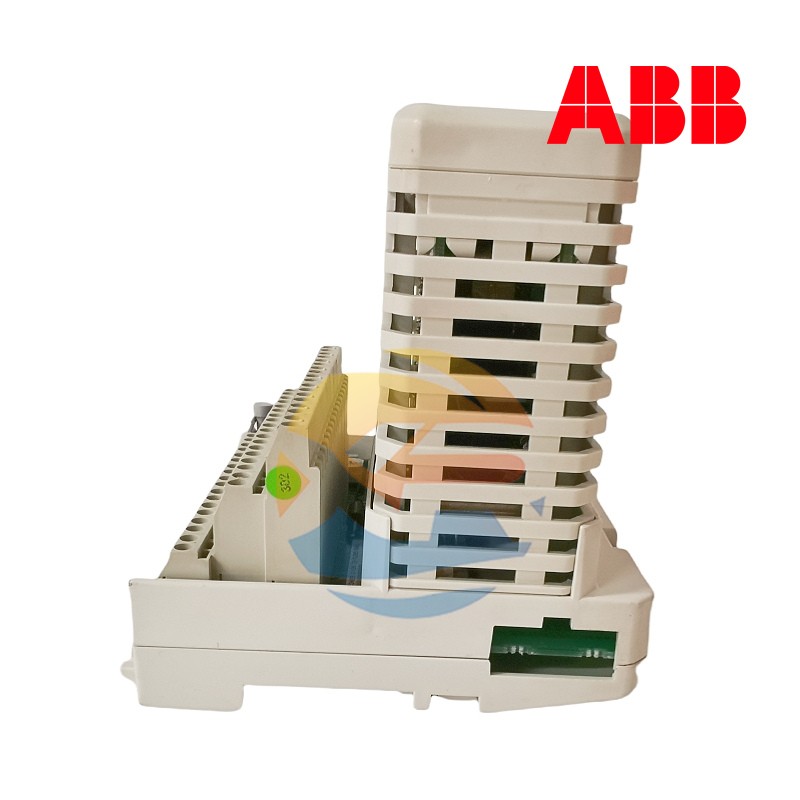

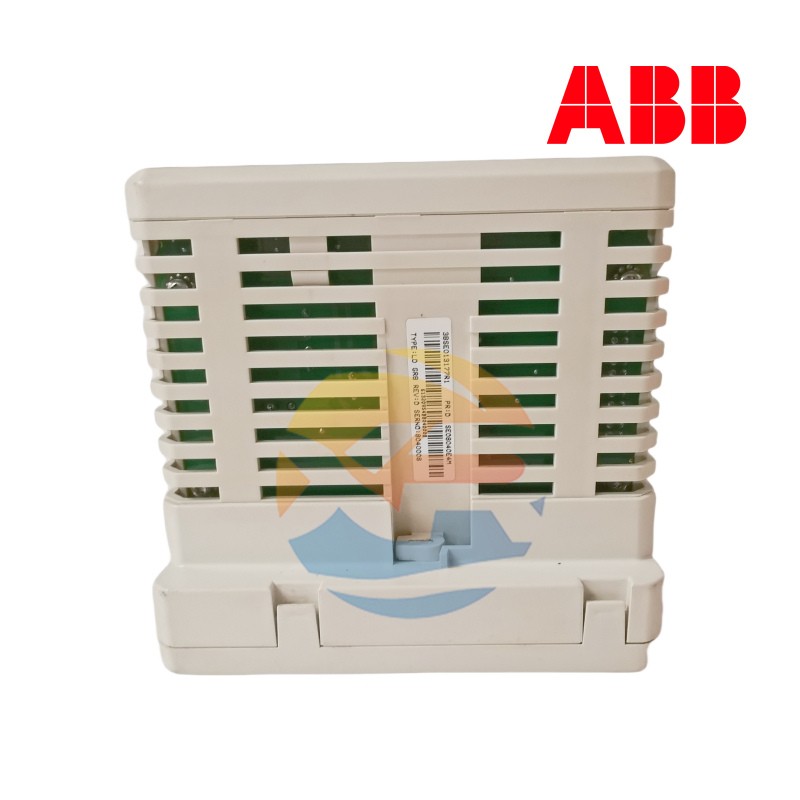

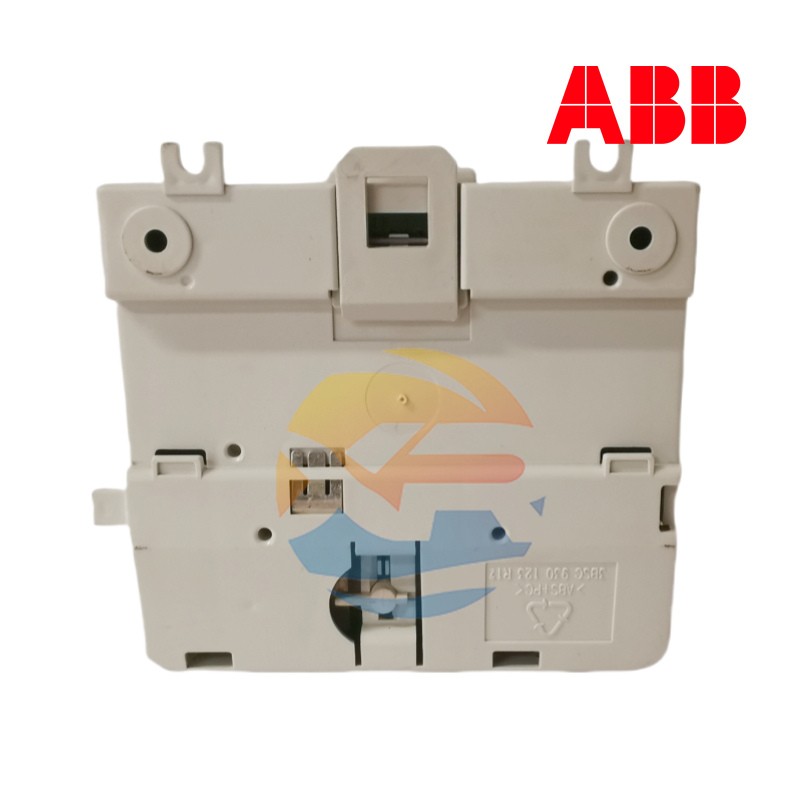

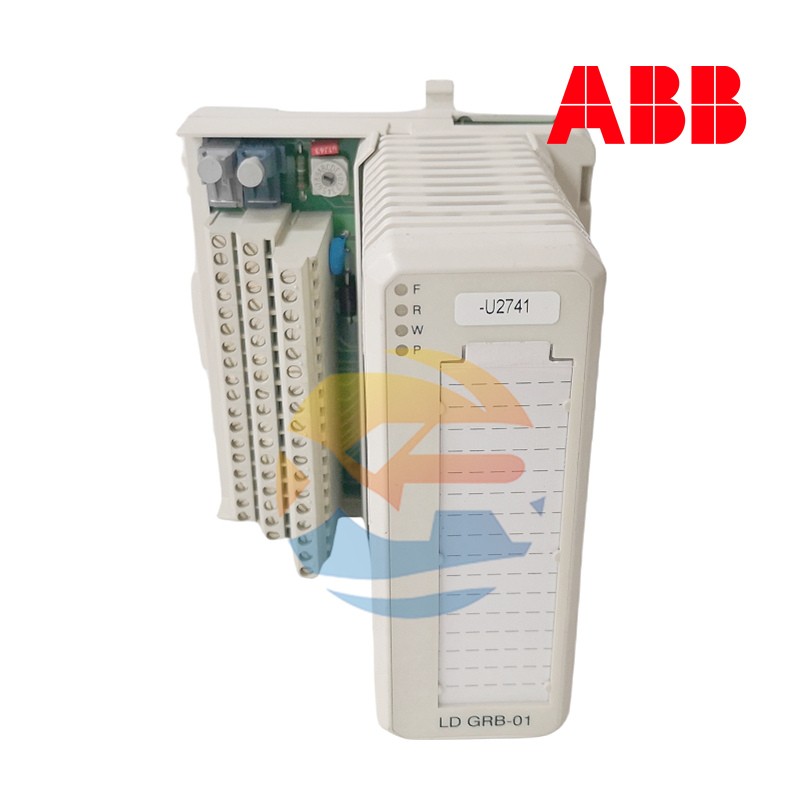

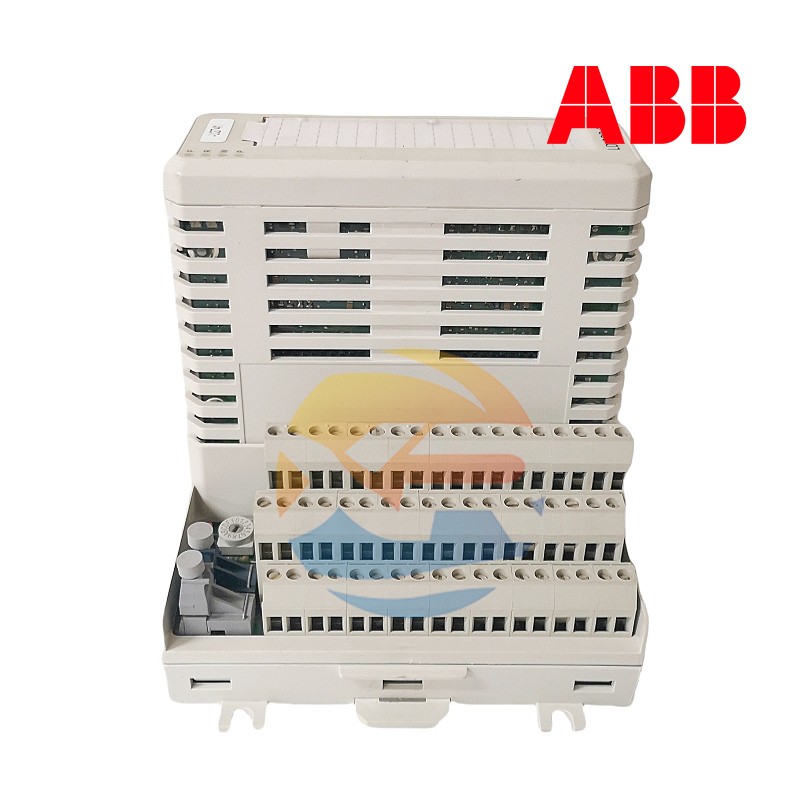

ABB LDGRB-01 3BSE013177R1
I. Overview
The ABB LDGRB-01 3BSE013177R1 is a key component in ABB industrial automation systems, widely used in fields such as industrial automation, power systems, manufacturing, and water treatment. As a universal relay module, it supports multiple control functions, including motor, lighting, and signal control, and is compatible with ABB PLC systems (such as AC800M and AC500 series). Its modular design and high reliability make it an indispensable solution in complex industrial scenarios.
II. Parameters
Basic Parameters
Input voltage: 24VDC (some versions support AC/DC hybrid input)
Output power: 2.5W (typical value, which may vary depending on configuration)
Operating temperature range: -20℃~+60℃ (some versions extend to -40℃~+70℃)
Protection class: IP20 (some versions IP65 or IP67)
Communication protocols: Supports Modbus, Ethernet, PROFIBUS DP, etc.
Physical Specifications
Dimensions: 120mm×99mm×23mm (some versions vary significantly)
Weight: 200g (some versions up to 1.5kg)
Installation method: DIN rail mounting (some are wall-mounted)
III. Product Features
High Reliability and Compatibility
Uses high-quality components and strict testing processes to ensure long-term stable operation.
Compatible with ABB PLC systems (such as S800 and AC500 series) to support seamless integration.
Modularity and Expandability
Provides 8 digital input/output channels, supporting flexible configuration.
The modular design facilitates expansion and maintenance, and supports future upgrades.
Communication and Control Functions
Supports multiple communication protocols (such as Modbus, Ethernet) to achieve efficient communication with upper computers or network devices.
Integrates relay outputs, which can directly drive loads such as motors and valves.
Environmental Adaptability
Wide operating temperature range (-20℃~+70℃) and protection class IP20/IP65, adapting to harsh industrial environments.
IV. Structure and Composition
Core Components
Circuit board: Integrates a high-performance processor to support rapid data processing.
Relay contacts: Provide multiple relay outputs for controlling external devices.
Interface terminals: Support DIN rail mounting for easy connection of sensors and actuators.
Design Advantages
Compact design: Small size (e.g., 120mm×99mm×23mm) to save space.
Easy maintainability: The modular structure allows for quick replacement or upgrading.
Other Fields
Complex control scenarios in industries such as chemical engineering, transportation, and oil and natural gas.
VI. Installation and Maintenance
Installation Requirements
Power off: The power must be disconnected before installation to avoid the risk of electric shock.
Professional operation: Installation is limited to trained technical personnel.
Environmental inspection: Ensure the installation environment meets the requirements for temperature, humidity, and protection class.
Maintenance Recommendations
Regular inspection: Monitor voltage and current parameters to prevent overload or short circuit.
Cleaning and fastening: Regularly clean terminals and wiring to ensure good contact.
Manual reference: Strictly follow the installation and maintenance guidelines in the product manual.
