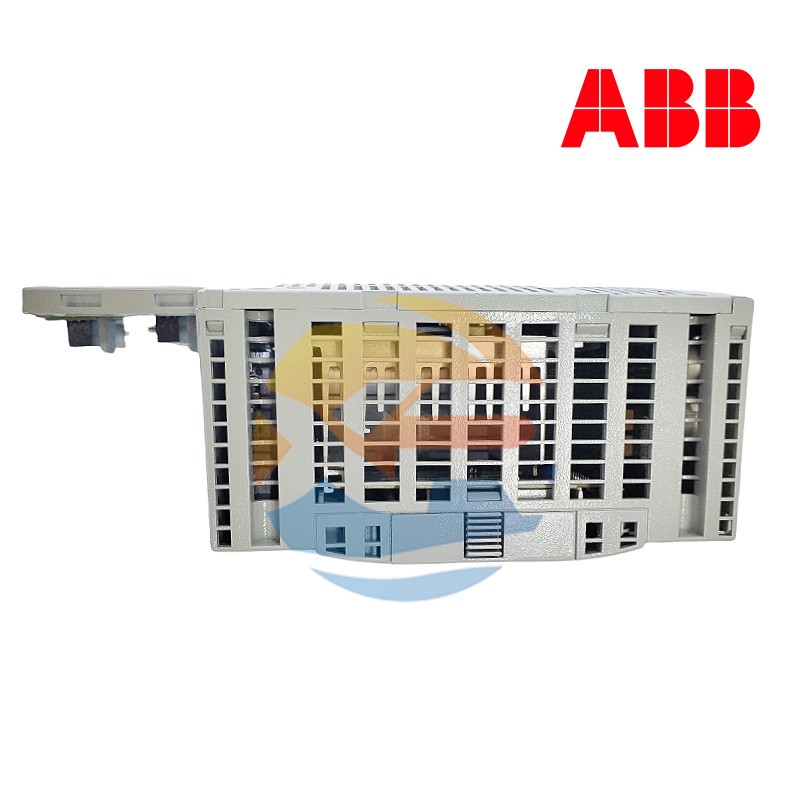

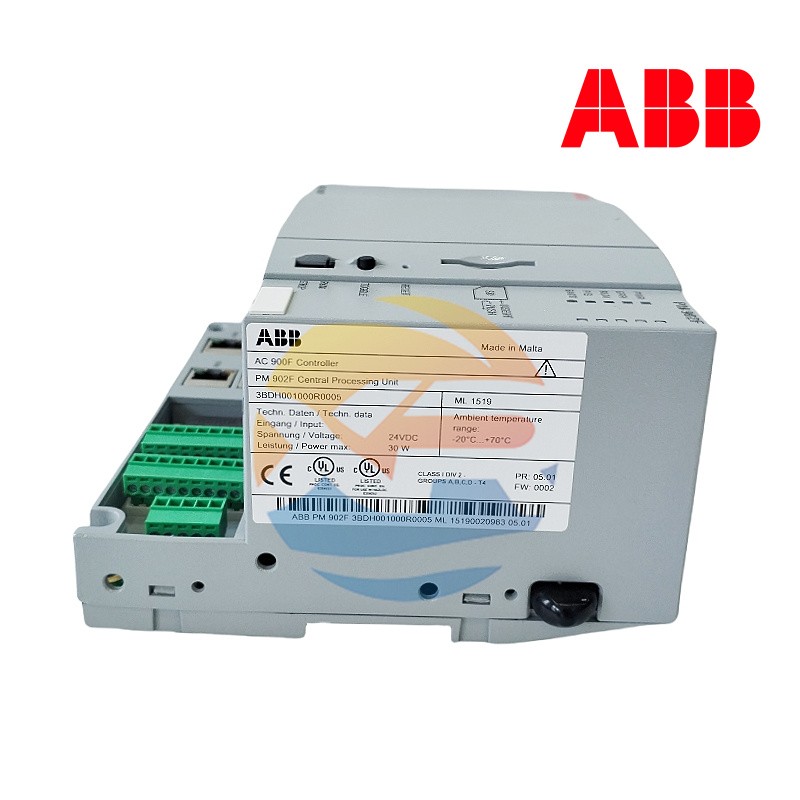

ABB PM902F 3BDH001000R0001The ABB PM902F 3BDH001000R0001 is a medium-sized basic unit in the ABB Freelance AC 900F controller series. Designed specifically for industrial automation control systems, it serves as a core component responsible for logic control, data processing, and communication functions. Its primary role is to provide efficient and stable control capabilities, making it suitable for complex industrial environments. This module supports up to 1500 I/O points and 8MB battery-buffered SRAM, ensuring the stability and reliability of data processing.II. Parameters
Model: PM902F 3BDH001000R0001
Manufacturer: ABB
CPU Clock Frequency: 800 MHz
Controller Memory: 24 MB
Battery-Buffered SRAM: 8 MB
DRAM: 16 MB
Ethernet Interfaces: 4
I/O Points: Maximum 1500
Power Requirement: External 24 VDC
Operating Temperature: -20°C to +60°C
Storage Temperature: -40°C to +85°C
Dimensions: 216 mm × 165 mm × 40 mm (or 227 mm × 152 mm × 95 mm)
Weight: Approximately 1.2 kg (some data sources indicate 1.1 kg or 0.8 kg)
Note: There are discrepancies in weight data (e.g., 0.8 kg vs. 1.2 kg), which may be due to different versions or measurement methods. It is necessary to confirm with the specific model.Product Features
High Performance and Reliability
Equipped with an 800MHz CPU and industrial-grade components, ensuring efficient data processing and execution of complex control algorithms.
High-reliability design, suitable for harsh industrial environments.
Modular Design
Provides 2 slots for expanding communication interface modules, supporting flexible configuration.
Plug-in connector design for easy installation and maintenance.
Communication Capabilities
Supports 4 Ethernet interfaces, compatible with multiple communication protocols (such as PLCopen standard languages).
Safety and Diagnostics
Integrates safety functions (e.g., overload protection, short-circuit protection) and real-time diagnostic capabilities.
Compact and Lightweight
Space-saving design, suitable for complex industrial environments.
Structure and Composition
Core Module: Central Processing Unit (CPU), integrating 800MHz CPU, 24MB controller memory, 8MB battery-buffered SRAM, and 16MB DRAM.
Communication Interfaces: 4 Ethernet interfaces and 2 slots for expanding communication modules.
Power Supply: Requires external 24VDC power supply; no built-in power module.
Operating System: No pre-installed operating system; needs to be loaded through software installation.
Application FieldsThis module is widely used in the following industrial fields:
Power Industry: Monitoring and control systems in power plants.
Chemical Industry: Automation control of chemical processes.
Metallurgy: Automation control in the metallurgical industry.
Oil and Gas: Automation control in the oil and gas industry.
Mechanical Manufacturing: Automation control of manufacturing processes.
Smart Factories: Automation control in smart factories.
Others: Papermaking, food and beverage, automobile manufacturing, textiles, rubber and plastics industries, etc.
Installation and Maintenance
Installation Requirements
Must be operated by qualified technicians to ensure compliance with safety specifications.
Avoid use in humid, dusty, or explosive gas environments.
Operating temperature range: -20°C to +60°C; storage temperature range: -40°C to +85°C.
Software and Configuration
Programming and configuration must be performed using software version 2013 or higher.
It is necessary to back up existing system configurations and data before installation.
Maintenance Recommendations
Regularly check the status of connectors and slots to ensure good contact.
Avoid extreme temperatures or physical damage to extend service life.
