Model：ABB 5SHY35L4510

Brand: ABB
Price range (USD): 100-20000
Country: Switzerland
Parameter: Maximum rated current: 3500 A (some data mention 5250 A; the latest data shall prevail)
Maximum rated voltage: 4500 V (some data mention 6000 V)
Maximum rated on-off loss: 10000 W
Maximum rated switching frequency: 2000 Hz (some data mention high frequency)
Maximum rated junction temperature: 175°C
Minimum rated gate pulse current: 10 mA
Minimum rated gate pulse voltage: 15 V

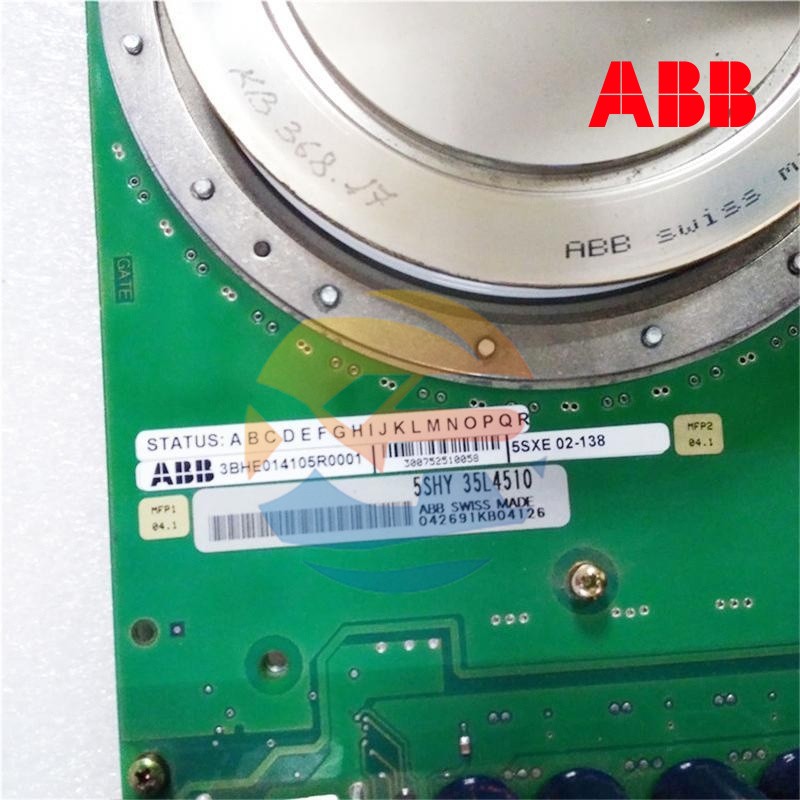

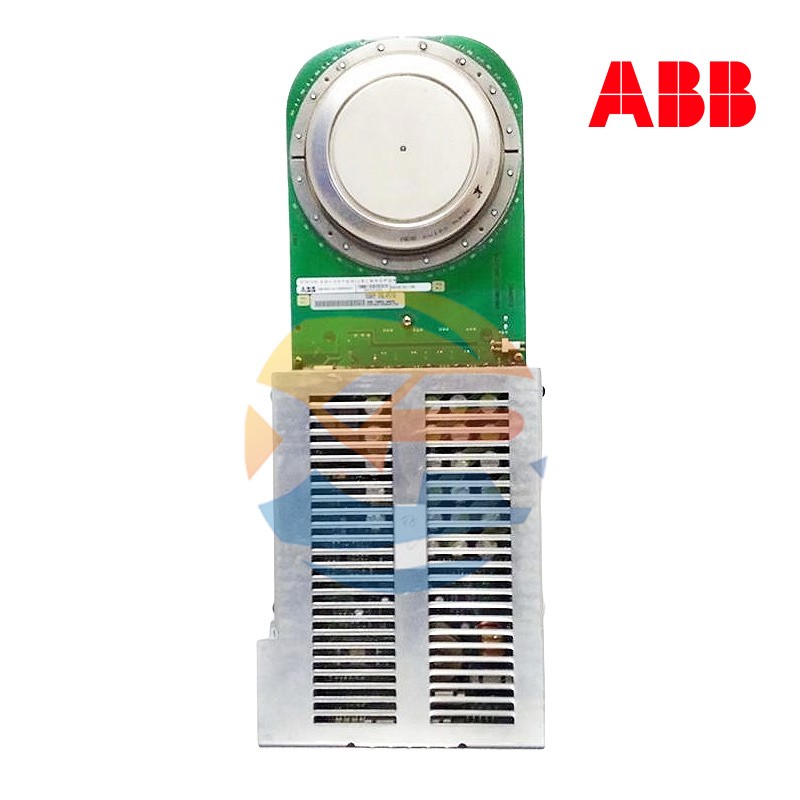

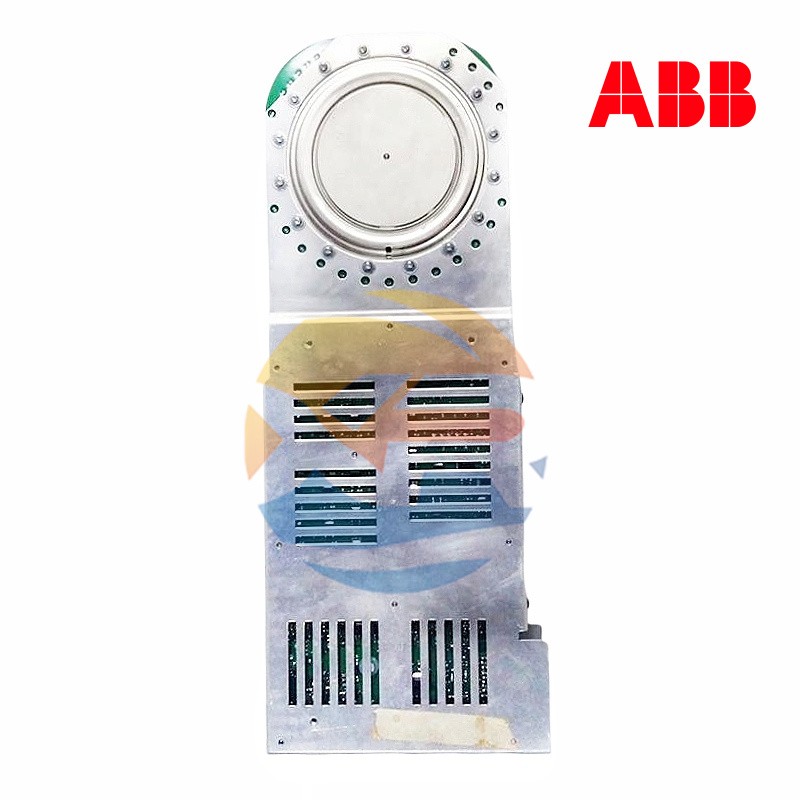

ABB 5SHY35L4510

The ABB 5SHY35L4510 is an asymmetric integrated gate-commutated thyristor (IGCT) module, designed specifically for high-power switching applications. It is suitable for high-voltage and high-current scenarios in power electronic systems. Its core function is to achieve efficient control through high current, high voltage, and fast switching characteristics, and it is widely used in fields such as industrial automation, renewable energy power generation, and rail transit.

Parameters

Electrical Parameters

Maximum rated current: 3500 A (some data mention 5250 A; the latest data shall prevail)
Maximum rated voltage: 4500 V (some data mention 6000 V)
Maximum rated on-off loss: 10000 W
Maximum rated switching frequency: 2000 Hz (some data mention high frequency)
Maximum rated junction temperature: 175°C
Minimum rated gate pulse current: 10 mA
Minimum rated gate pulse voltage: 15 V

Physical Parameters

Package type: TO-247AB (some data mention dimensions of 300mm×300mm×100mm and weight of 10kg)
Heat dissipation method: Natural cooling or forced air cooling
Weight: Approximately 2.5 kg (some data mention 10 kg; verification is required)

Product Features

High Performance and Reliability

Asymmetric structure design: Optimizes switching efficiency and reduces losses.
Advanced manufacturing process: Adopts high-reliability chip technology to extend service life.
Comprehensive protection functions: Built-in overcurrent and overvoltage protection to improve system safety.

Modularity and Ease of Use

Compact design: Integrates IGCT chip, heat sink, and gate drive circuit to simplify installation and maintenance.
Strong compatibility: Supports integration with existing RC-IGCT platforms and adapts to various industrial scenarios.

Environmental Protection and Standards

Compliant with the RoHS directive and international environmental protection requirements.

Structure and Composition

Core Components

IGCT chip: Responsible for switching control of high voltage and large current.
Heat sink: Dissipates heat through natural or forced air cooling to ensure long-term stable operation.
Gate drive circuit: Optimizes trigger signals and reduces inductive interference.

Package Type

TO-247AB: Standard package, facilitating installation and thermal management.
Dimensions: 300mm×300mm×100mm, weight 10kg.

Application Fields

Industrial Field

Power transmission systems: Motor drives, frequency converters, servo control.
Industrial robots: High-precision motion control.

Renewable Energy

Wind power and photovoltaics: Used in inverters and power conversion systems.

Transportation and Infrastructure

Rail transit: Traction converters, soft-start systems.
Electric vehicles: Battery management systems, charging control.

Special Scenarios

Metallurgy and mining: High-power load control.
Medical equipment: Precision power control.

Installation and Maintenance

Installation Requirements

Environmental conditions: Operating temperature range -40°C ~ +85°C, protection class IP4X.
Installation method: Fixed or movable, supporting manual/electric operation.
Notes: Refer to the official manual to ensure compatibility with the system.

Maintenance Recommendations

Regular inspection: Monitor temperature, current, and voltage parameters to prevent faults.
Cleaning and lubrication: Keep the heat sink clean to avoid dust accumulation.
Professional operation: It is recommended that technicians perform installation and commissioning to avoid misoperation.
