ABB 5SHY4045L0001 3BHB018162R0001 3BHE009681R0101 GVC750BE101

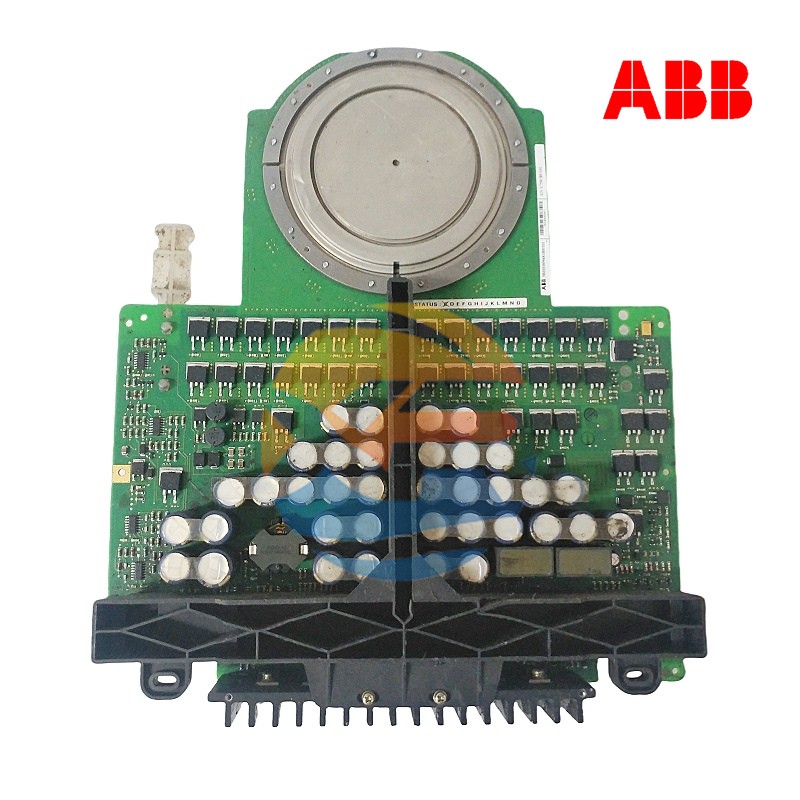

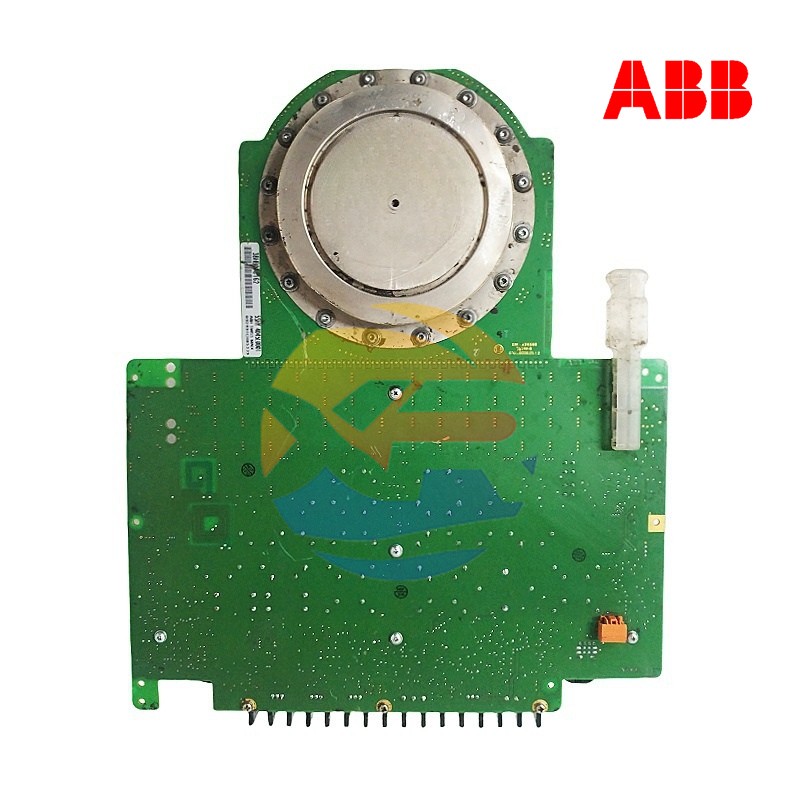

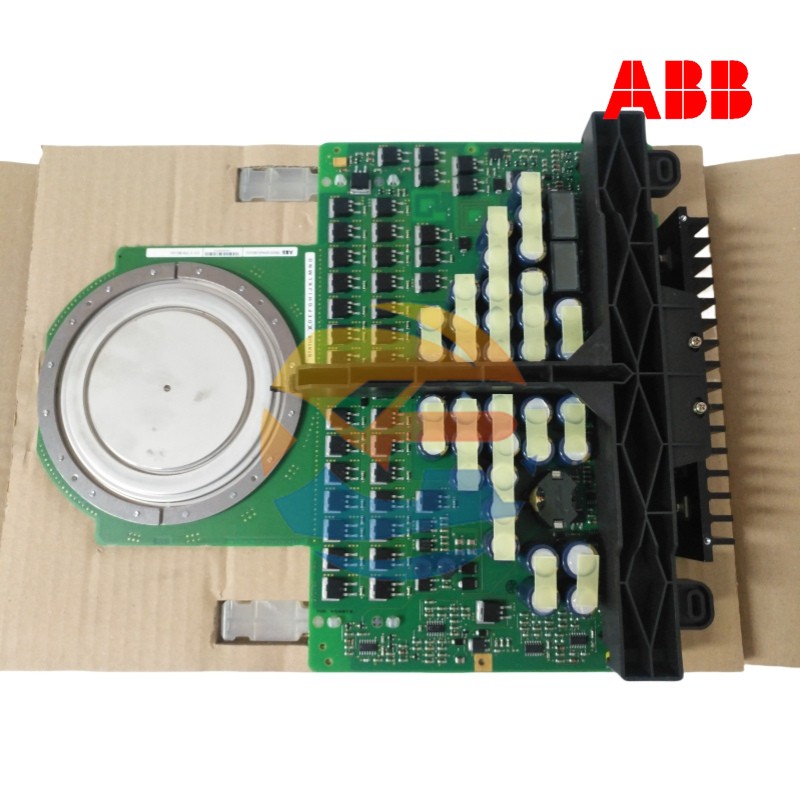

The ABB 5SHY4045L0001 3BHB018162R0001 is a high-performance power semiconductor module produced by ABB. It belongs to the asymmetric integrated gate-commutated thyristor (IGCT) module category and is widely used in high-power switching scenarios. This module combines the advantages of IGBT and GTO, featuring high voltage resistance, large current capacity, and fast switching speed, making it suitable for fields such as power electronic control, DC power management, and industrial automation.
Structure and Composition
Modular Design
It adopts a modular structure, integrating gate drive circuits and control logic, which facilitates installation and maintenance.
Core Components
- IGCT core: A high-voltage and high-current device based on thyristor technology, optimized to support snubberless turn-off conditions.
- Auxiliary circuits: Including soft-start circuits, protection circuits, and communication interfaces (such as Ethernet and serial communication).
Connection Method
It supports drawer-type or on-site installation and is compatible with various industrial control systems.
Parameters
- Brand: ABB
- Model: 5SHY4045L0001 / 3BHB018162R0001
- Type: IGCT module
- Rated current: 45A
- Rated voltage: 380V / 4500V (high voltage level)
- Auxiliary contacts: Normally open / normally closed
- Installation method: Drawer-type / on-site installation
- Overall dimensions: 75.8mm x 144mm x 128mm
- Weight: Approximately 1.2kg
Product Features
High Power Performance
It has high current (45A) and high voltage (4500V) capabilities, suitable for high-power applications. It also features fast switching speed and excellent dynamic response performance.
Energy Efficiency and Reliability
With low on-state voltage drop (small loss), it achieves high efficiency. It can work stably within a wide temperature range (-25°C to +85°C).
Technical Advantages
Compared with IGBT, IGCT has higher voltage resistance in high-voltage scenarios, reducing the number of devices. The modular design simplifies maintenance and supports remote diagnosis.
Application Fields
Power System
It is used in backbone network equipment such as power transmission and distribution, DC circuit breakers, and DC transformers.
Renewable Energy
Applied in wind turbines, photovoltaic power generation systems, and electric vehicle drives.
Industrial Automation
Used in power transmission systems, industrial robots, elevators, air conditioning compressors, etc.
Rail Transit and Shipping
Employed in high-speed trains, ship propulsion systems, and aerospace equipment.
Installation and Maintenance
Installation Method
It supports drawer-type installation (compact type) or on-site installation (flexible deployment). The modular design facilitates integration into existing systems.
Maintenance Requirements
Regularly inspect the heat dissipation system and connection terminals to ensure no overheating or poor contact. It provides remote diagnosis functionality to reduce downtime.
