Model：ABB 5SHY3545L0005

Brand: ABB
Price range (USD): 100-20000
Country: Switzerland
Parameter: Rated Voltage: 4500V
Rated Current: 4500A
Maximum Voltage: 6000V
Maximum Current: 6750A
Switching Speed: 1μS
Dimensions: 300mm x 300mm x 100mm
Weight: 12kg

ABB 5SHY3545L0005

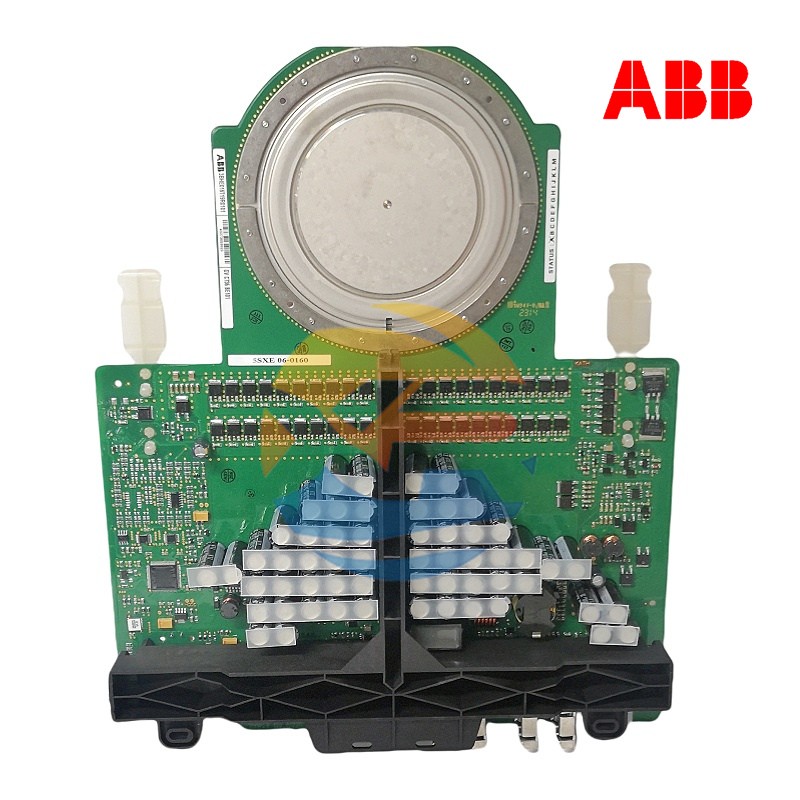

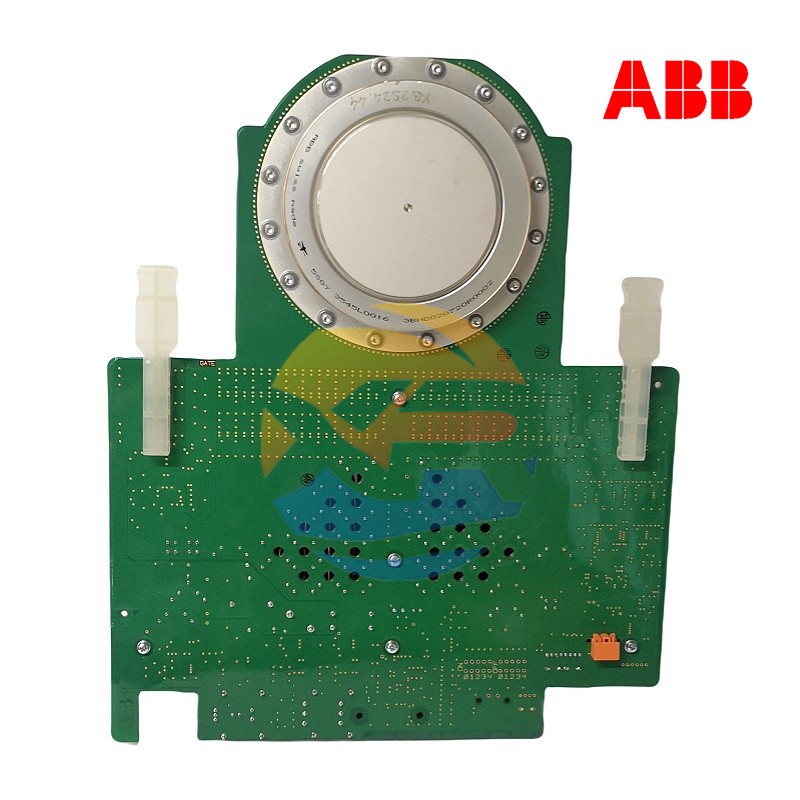

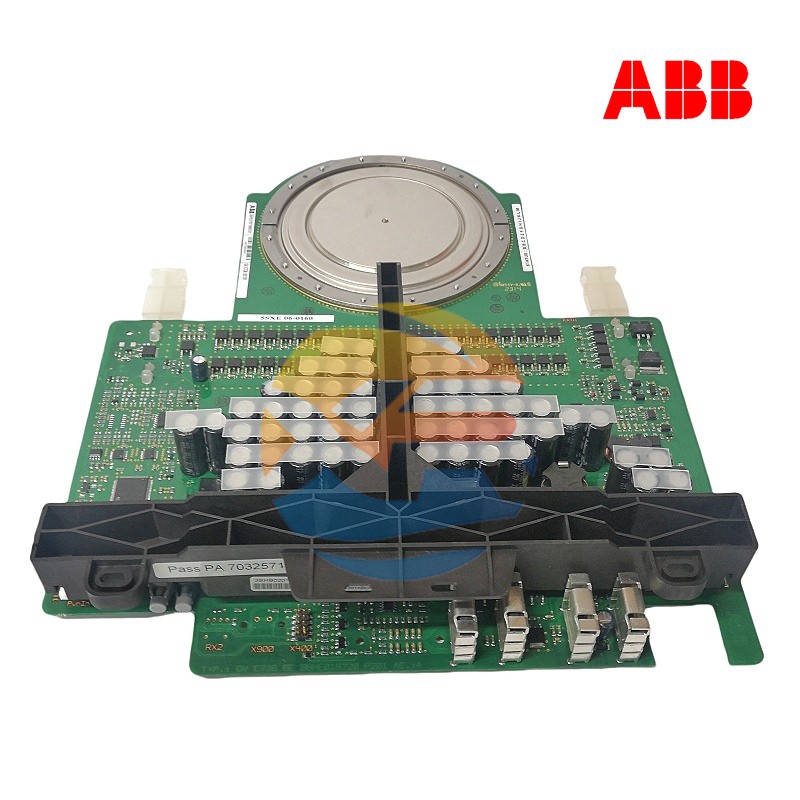

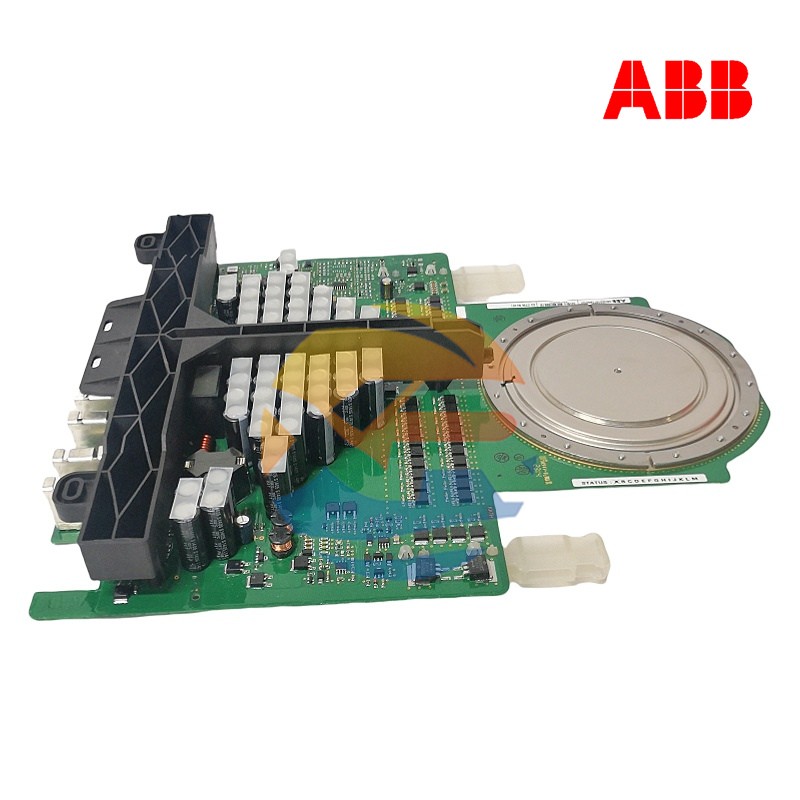

The ABB 5SHY3545L0005 is a high-performance asymmetric thyristor (IGCT) module, specifically designed for high-voltage and high-current control. It finds extensive applications in the fields of power electronics, industrial automation, and renewable energy. This module combines the advantages of silicon-controlled rectifiers (SCR) and thyristors, featuring high voltage, high current, fast switching, and soft switching characteristics, making it suitable for power systems that demand high efficiency and high reliability.

II. Structure and Composition

Core Components

IGCT Chip: Adopts advanced asymmetric thyristor technology to achieve high blocking capability and fast switching performance.
Heat Sink: Ensures stability during high-power operation through an efficient heat dissipation design.
Package and Connectors: The module has a compact structure, facilitating easy installation and maintenance.
Gate Driver: Integrated before the anode to realize zero-voltage turn-on and enhance the bidirectional drive adjustment capability of the inverter.

Additional Functions

Supports multiple triggering methods, facilitating integration into control systems.
Equipped with comprehensive protection functions such as overvoltage and overcurrent protection, improving system reliability.

III. Parameters

Rated Voltage: 4500V
Rated Current: 4500A
Maximum Voltage: 6000V
Maximum Current: 6750A
Switching Speed: 1μS
Dimensions: 300mm x 300mm x 100mm
Weight: 12kg

IV. Product Features

Performance Advantages

High Voltage and High Current Capability: Suitable for high-voltage and high-current control scenarios.
Fast Switching and Soft Switching: Reduce switching losses and improve system efficiency.
Miniaturization and Lightweight: Small in size and light in weight, making installation and maintenance convenient.

Reliability and Compatibility

High Reliability: Undergoes rigorous testing to ensure stable operation in harsh environments.
Compatibility: Supports seamless integration with existing power systems and automation equipment.

Safety

Built-in multiple protection mechanisms to prevent faults such as overvoltage and overcurrent.

V. Application Fields

Power Electronics

It is used in frequency converters, AC-DC converters, flexible AC transmission systems, etc.

Industrial Automation

Applied in industries such as numerical control machinery, metallurgy, oil and gas, chemical industry, papermaking and printing.

Renewable Energy

Employed in electric vehicles, wind power generation, and solar power generation systems.

Transportation

Used in traction systems of high-speed trains, subways, etc.

Other Fields

Including automatic voltage regulation (AVR), tension control, etc.

VI. Installation and Maintenance

Installation Requirements

Environmental Conditions: It should be installed in a dry and well-ventilated environment, avoiding high temperature or humidity.
Electrical Connections: Connect strictly in accordance with electrical specifications to ensure grounding and insulation performance.
Heat Dissipation Management: Ensure there is no obstruction around the heat sink; additional forced ventilation is necessary if required.

Maintenance Suggestions

Regular Inspection: Monitor temperature, current, and voltage parameters to prevent potential faults.
Cleaning and Lubrication: Regularly clean the surface of the heat sink and keep the contact parts lubricated.
Fault Diagnosis: Utilize the built-in protection functions to quickly locate problems and reduce downtime.

Precautions

Before installation, confirm compatibility with the existing system.
Abide by safety operating procedures to avoid equipment damage caused by misoperation.
