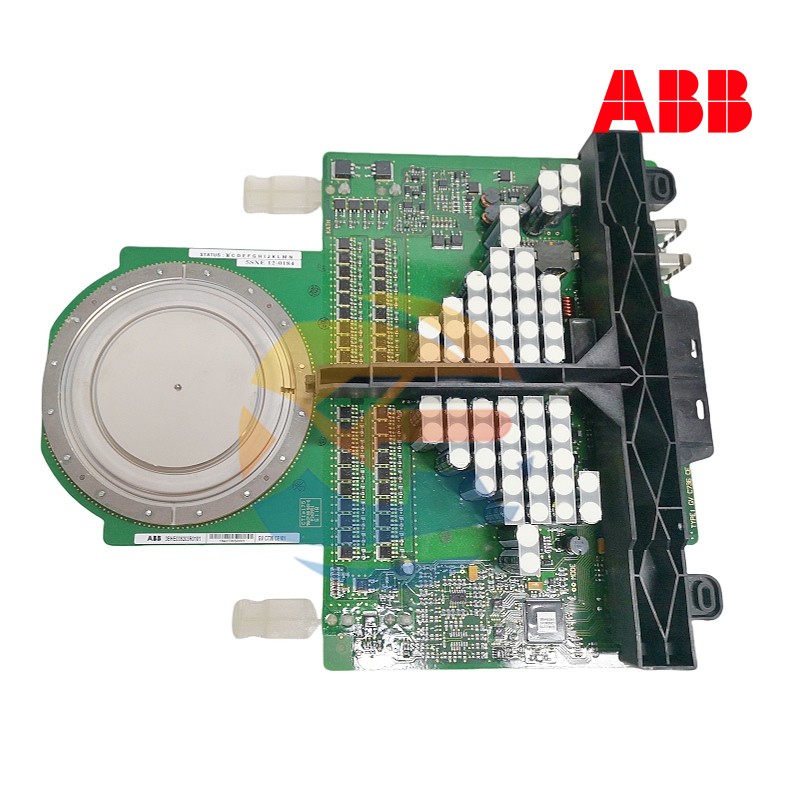

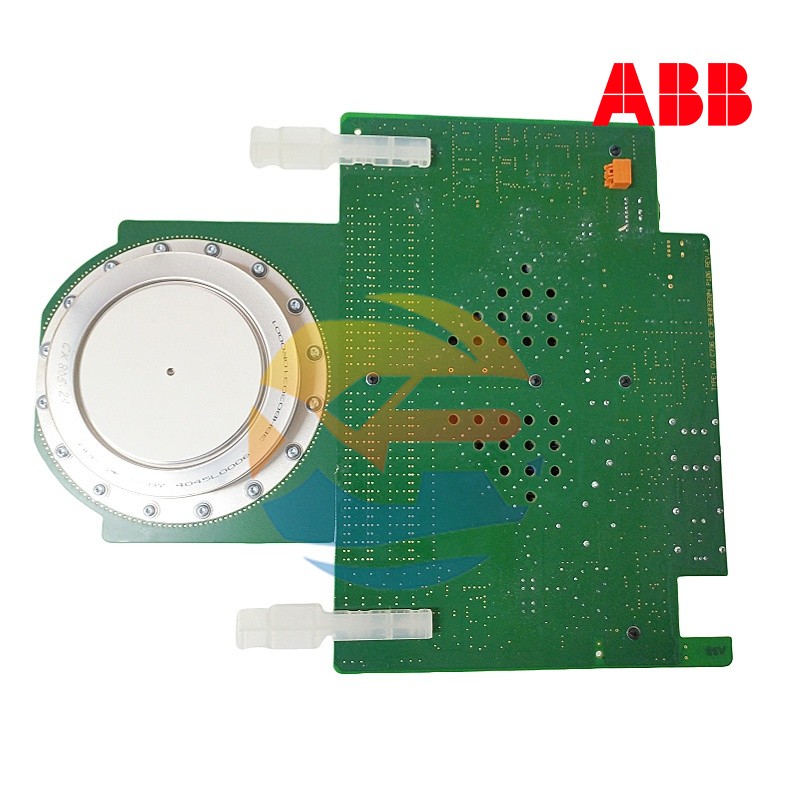

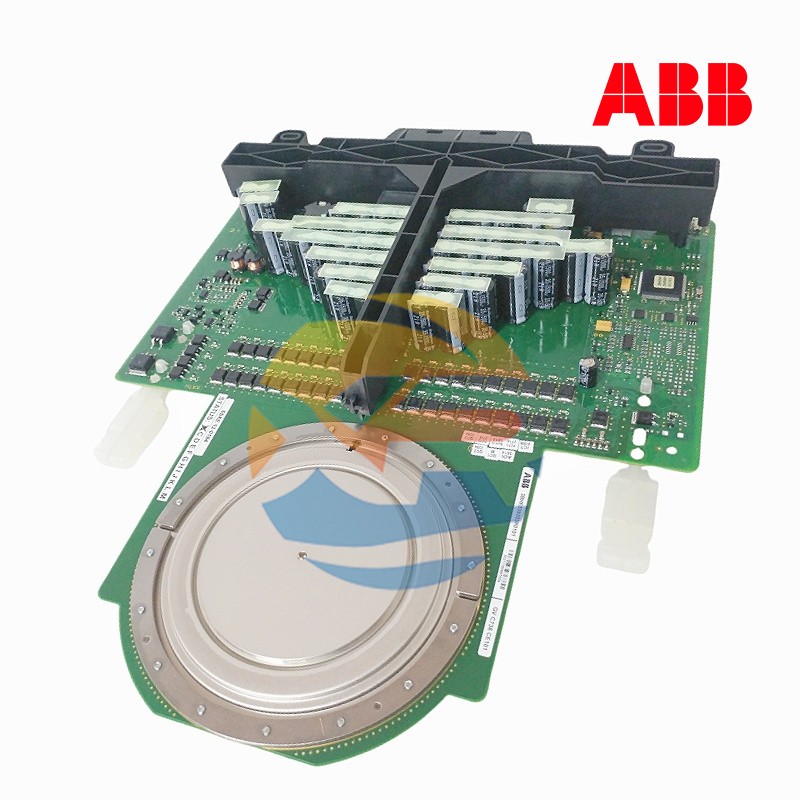

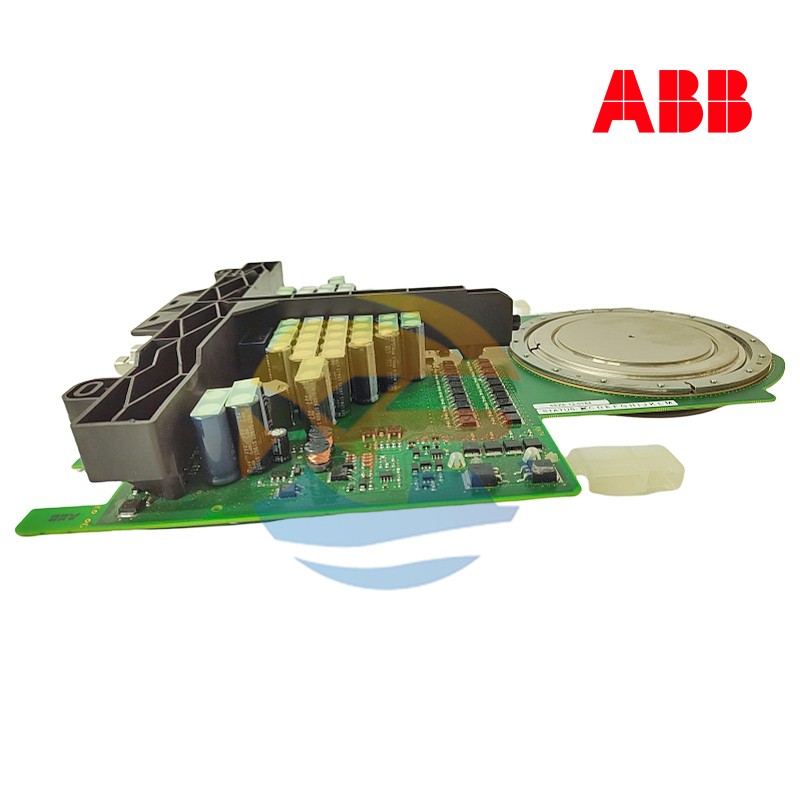

ABB 3BHB030310R0001 5SHY4045L0006

I. Parameters

Basic Parameters

Model: 5SHY4045L0006 / 3BHB030310R0001
Type: IGCT module (Insulated Gate Commutated Thyristor)
Rated voltage:
4500V (for medium-voltage frequency converters)
1700V (for ACS800 series frequency converters)
Rated current:
2400A (for high-voltage frequency converters)
40A (small circuit breaker version)
Power: 6.5kW (IGCT module)
Switching frequency: 2kHz to 16kHz
Operating temperature: -20°C to +60°C (IGCT module)

Protection and Safety

Protection class: IP20 (standard protection), IP54 (some industrial environments)
Insulation resistance: >100MΩ
Heat dissipation method: Natural cooling (IGCT module), air cooling (power module)


II. Product Features

High Performance

Fast switching speed (microsecond level), high voltage withstand capability (4500V), low on-state voltage drop (improving efficiency).
High efficiency (99%), suitable for high-power industrial scenarios.

High Reliability

Modular design, facilitating installation and maintenance.
Strict quality control, complying with IEC 60947-2 standard.

Flexibility and Compatibility

Supports multiple communication protocols (such as Ethernet/IP, Modbus TCP/IP).
Can be integrated into ABB control systems, supporting thermal-magnetic protection and electronic thermal protection.

Safety

Equipped with protection functions such as overcurrent, overvoltage, and undervoltage.
Protection class IP20/IP54, adapting to harsh industrial environments.


III. Structure and Composition

Core Structure

IGCT chip integration: Combines the characteristics of IGBT and GTO chips to improve the efficiency of frequency converters.
Modular packaging: Compact design, easy for installation and maintenance.


Key Components

Heat dissipation system: Natural cooling or air cooling design to ensure long-term stable operation.
Connection interface: Compatible with standard industrial connectors, supporting quick integration.

Dimensions and Weight

Dimensions:
225mm × 100mm × 75mm (IGCT module)
600mm × 400mm × 400mm (power module)
Weight:
Approximately 2kg (IGCT module)
Approximately 3kg (some modules)


IV. Application Fields

Industrial Automation

Motor drive, frequency control, industrial robot control.
Suitable for manufacturing plants, rail transit, aerospace and other fields.

Power System

Static var compensators, flexible alternating current transmission systems (FACTS).
High-voltage direct current (HVDC) transmission systems, improving transmission efficiency.

New Energy

Electric energy conversion and transmission in wind power generation, photovoltaic power generation, and energy storage systems.

Special Scenarios

High reliability requirements in petrochemicals, water treatment facilities, and transportation systems.


V. Installation and Maintenance

Installation Requirements


Standard rail mounting: Suitable for small circuit breaker versions.
Environmental conditions: Need to meet the operating temperature range (-20°C to +70°C), avoid humid or dusty environments.
Compatibility: Need to be correctly configured with ABB systems (such as ACS800 series).


Maintenance Suggestions
