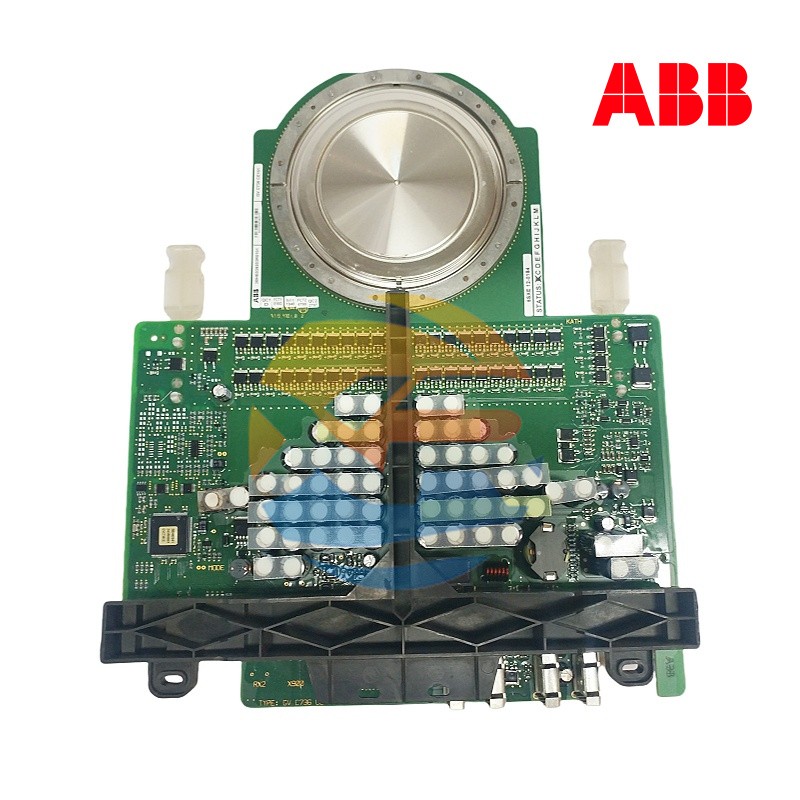

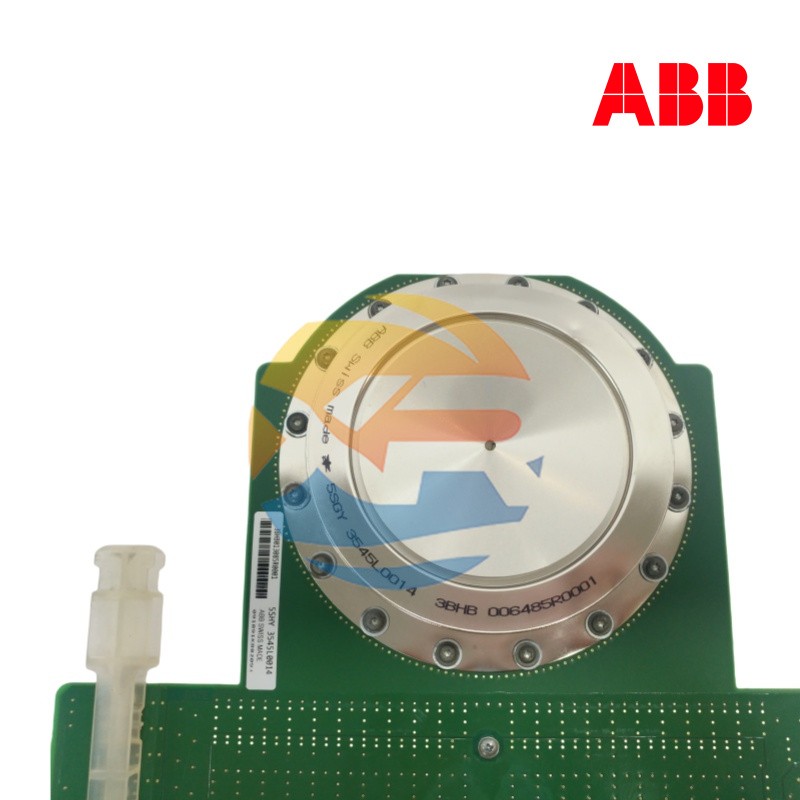

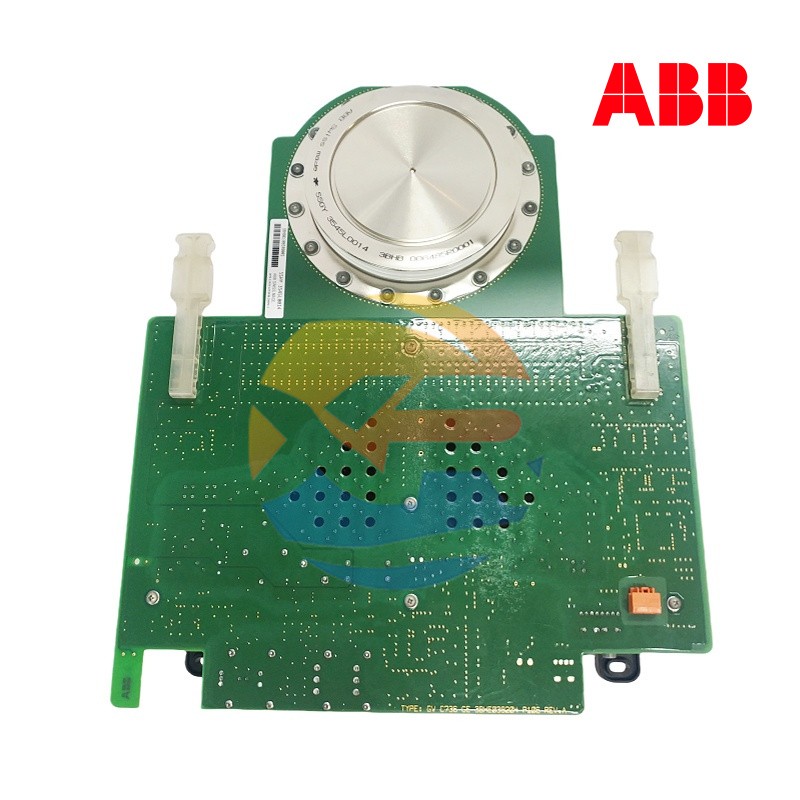

ABB 5SHY3545L0014 3BHB013085R0001_Xiamen XingRuiJia Import and Export CO,LTD

Model：ABB 5SHY3545L0014 3BHB013085R0001

Brand: ABB
Price range (USD): 100-20000
Country: Switzerland
Parameter: Model: 5SHY3545L0014 / 3BHB013085R0001
Type: Thyristor module / IGCT module
Rated Voltage: 600V (Thyristor) / 4500V (IGCT)
Rated Current: 45A (Thyristor) / 3500A (IGCT)
Power: 27kW (Thyristor) / 14000W (IGCT)
Package Type: TO-220 / TO-247AB
Cooling Method: Natural cooling / Water cooling
Operating Temperature Range: -40°C to 85°C / -25°C to 70°C
Protection Class: IP20

ABB 5SHY3545L0014 3BHB013085R0001 3BHE039203R0101 GVC736CE101

I. Overview

The ABB 5SHY3545L0014 3BHB013085R0001 is an industrial automation control device with a modular design. It belongs to ABB's System 800xA Distributed Control System (DCS) or IGCT (Insulated Gate Commutated Thyristor) module, specifically designed for high-power switching applications. Its core function is to control the on-off and direction of current to achieve electrical energy conversion, regulation, and protection. It is widely used in power systems, industrial automation, renewable energy, and other fields.

II. Parameters

Model: 5SHY3545L0014 / 3BHB013085R0001
Type: Thyristor module / IGCT module
Rated Voltage: 600V (Thyristor) / 4500V (IGCT)
Rated Current: 45A (Thyristor) / 3500A (IGCT)
Power: 27kW (Thyristor) / 14000W (IGCT)
Package Type: TO-220 / TO-247AB
Cooling Method: Natural cooling / Water cooling
Operating Temperature Range: -40°C to 85°C / -25°C to 70°C
Protection Class: IP20

III. Product Features

High Performance: Adopts advanced control technology, providing high efficiency and low loss, suitable for high-voltage and high-current environments.
High Reliability: Redundant design and long-life characteristics ensure stable operation in harsh industrial environments.
Modular Design: Supports flexible expansion and integration, facilitating maintenance and upgrades.
Compatibility: Compatible with ABB industrial automation systems (such as DCS, PLC) and supports multiple communication protocols (such as Modbus, Profinet).
Safety Protection: Built-in multiple protection mechanisms for overload, short circuit, undervoltage, etc.
Low Noise and Energy Saving: Optimized design reduces energy loss, complying with RoHS and CE standards.

IV. Structure and Composition

Core Components:

IGBT/IGCT Chip: Responsible for switching control of high current and high voltage.
Heat Sink: Uses water cooling or natural cooling to ensure efficient heat dissipation of the module.
Package Housing: TO-247AB (mainstream) or TO-220 (some models), providing mechanical protection.

Connection Methods:

Terminal Interface: Standard DIN rail mounting, supporting multiple input and output channels.
Communication Interface: RS485, Ethernet, Profibus, etc., used for linkage with upper computers or PLC systems.

V. Application Fields

Industrial Automation: Motor control, variable frequency drives, robot systems.
Power Systems: High-voltage direct current transmission (HVDC), substations, power grid distribution.
Renewable Energy: Inversion and grid-connection control of wind power and photovoltaic power generation systems.
Rail Transit: High-speed train traction systems, subway power supply.
Other Scenarios: Elevators, air conditioning compressors, industrial heating equipment, etc.

VI. Installation and Maintenance

Installation Requirements:

Environmental Conditions: Keep clean and dry, avoid dust and corrosive gases.
Installation Method: It is recommended to use DIN rail or panel mounting to ensure firm fixation.
Wiring Specifications: Strictly follow electrical safety standards to avoid short circuits or overloads.

Maintenance Suggestions:

Regular Inspection: Monitor temperature and current load, and clean dust on the heat sink in a timely manner.
Troubleshooting: Use the ABB Ability™ cloud platform for remote diagnosis, combined with local sensor data.
Spare Parts Replacement: Priority should be given to original accessories to ensure compatibility.
