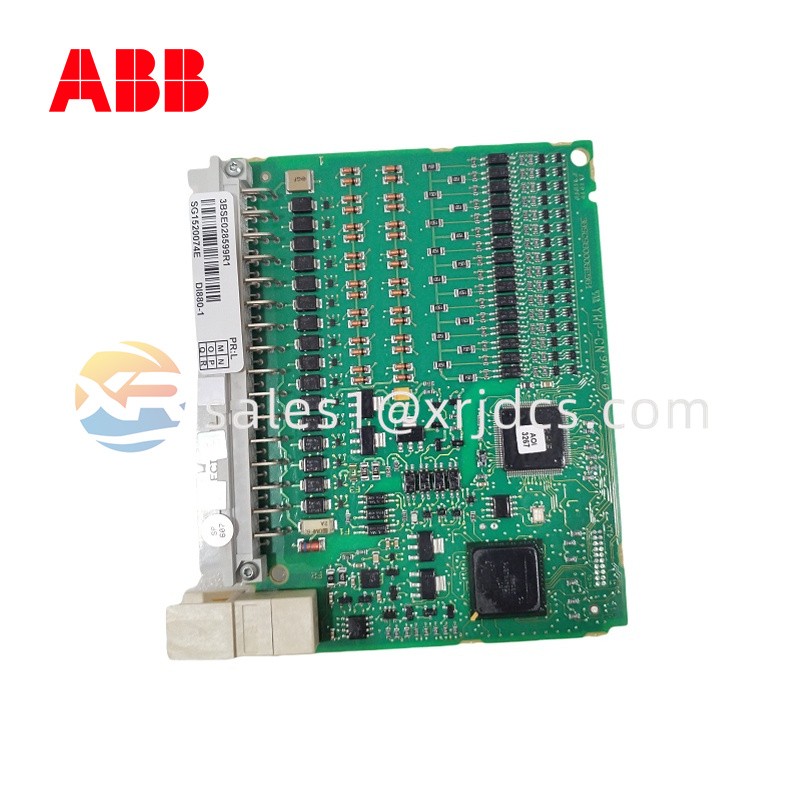

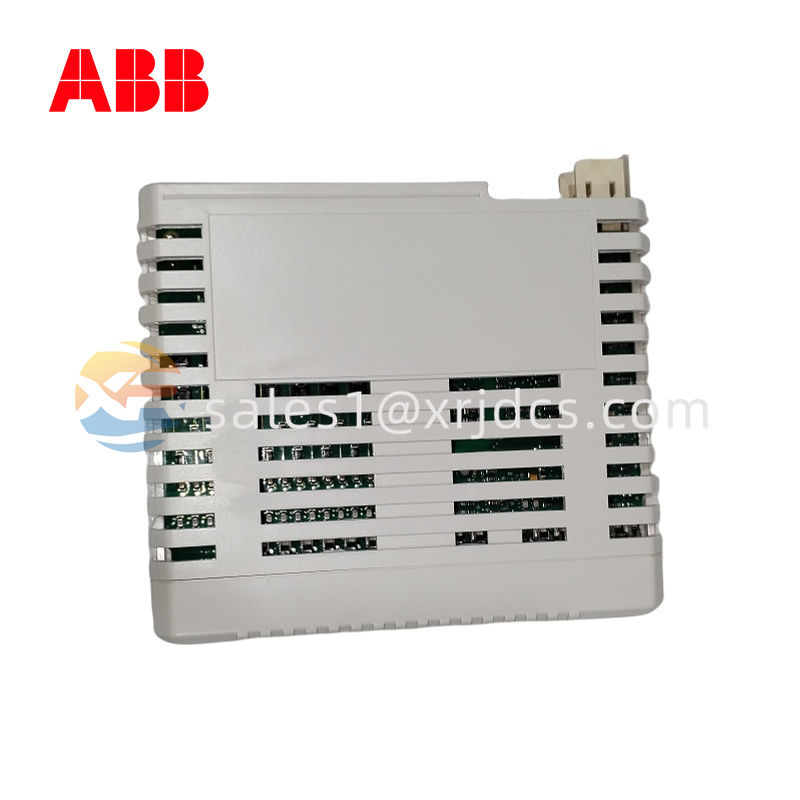

ABB DI880 3BSE028586R1 – 16-Channel Digital Input Module (S800 I/O Series)
Product Introduction
The ABB DI880 (3BSE028586R1) is a high-density digital input module designed for the S800 I/O family, commonly used in ABB AC 800M, 800xA, Freelance, and Advant control systems. It provides 16 galvanically isolated 24 V DC digital inputs, making it suitable for industrial process applications requiring reliable monitoring of field devices such as switches, sensors, and pushbuttons.
This module supports ModuleBus communication, diagnostic reporting, hot-swapping, and built-in noise filtering, ensuring long-term stability in harsh environments.
Technical Parameters
| Specification |
Details |
| Input Channels |
16 digital inputs |
| Input Voltage Range |
18–30 V DC (nominal 24 V DC) |
| Input Signal Type |
IEC 61131 Type 1 compliant |
| Isolation |
Channel-to-bus isolated, 50 V |
| Input Delay / Filtering |
Configurable (0.05–12 ms typical) |
| Current Consumption |
120 mA from ModuleBus |
| Status LEDs |
Per-channel indication + module status |
| Operating Temp |
–25 °C to +70 °C |
| Field Wiring |
Single / Double wiring on TU8xx base |
| Installation |
DIN rail module base (TU830/TU833/TU843 etc.) |
| Protection Class |
IP20 |
| Certifications |
CE, UL, CSA, Marine, SIL-rated system use |
Key Features
16-channel high-density digital input module
Galvanically isolated inputs for industrial-grade signal integrity
Support for diagnostic bits such as open wire, signal loss, and state change
Compact form factor, ideal for large distributed control systems
Plug-in modular design — no rewiring during module replacement
Compatible with redundant communication modules and high-availability systems
Supports voltage supervision via external sensor wiring
Hot-swappable without shutting down the process
Module Structure & Components

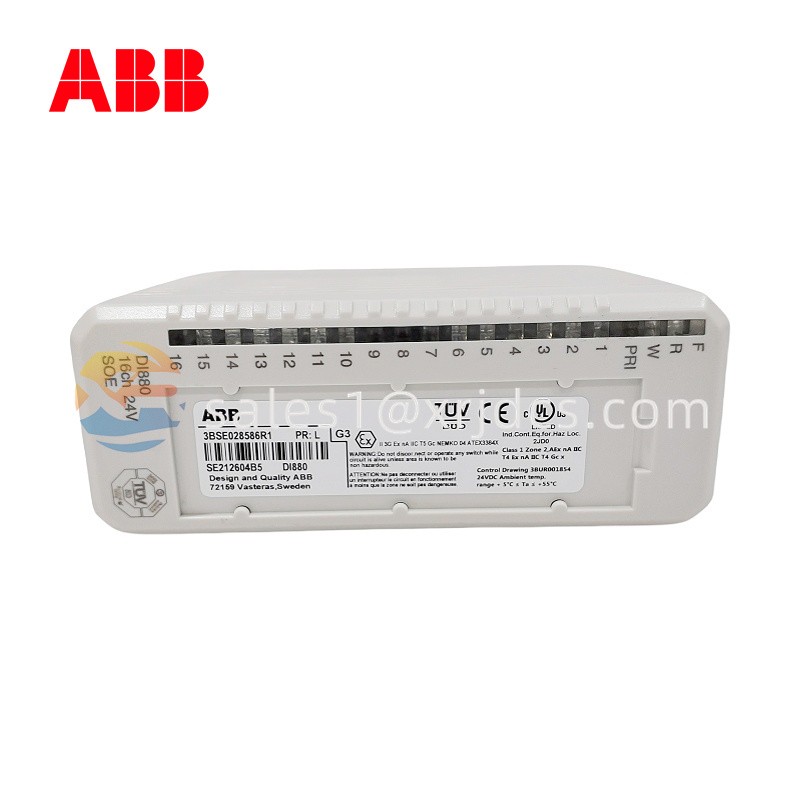

Front Panel LEDs – Input state + module health
ModuleBus Connector (rear) – Communications & power interface
Field Signal Connector (via terminal unit) – Screw or spring terminals depending on base
Internal EMC Protection – Filtering for transient spikes and industrial noise
Firmware Logic – Onboard processing of debounce, fail-state detection
Supported Terminal Bases
| Terminal Unit |
Description |
| TU830 / TU833 |
16-channel terminal base, 1-wire connection |
| TU842 / TU843 |
16-channel + extended shielding and grounding |
| TU852 |
Compact base for high-density cabinets |
Application Areas
Continuous process control (chemical, pulp & paper, food, pharma)
Power generation (gas, steam, hydro turbine control signals)
Oil & gas upstream/downstream I/O cabinets
Water & wastewater plants (pump status, limit switches, alarms)
Factory automation and safety interlock monitoring
Marine and offshore control panels
Installation & Commissioning Notes
Install onto TU base before connecting field wiring
Ensure input common (0 V reference) is shared across sensors
Recommended to enable debounce filtering for mechanical switches
Signal test can be performed via system diagnostics in 800xA / Control Builder
Use shielded cable in high-EMI environments
Module automatically detected by the controller upon power-up
Maintenance & Lifecycle
No calibration required
Replaceable while powered; system auto-recognizes replacement
Input status can be read via system diagnostics for troubleshooting
Suggested spares: 1 DI880 per cabinet or per 10 modules installed
Fully supported in 800xA v6 and v7 LTS product lifecycle
Additional Information
Ordering code 3BSE028586R1 = Standard industrial temperature range, RoHS compliance
Successor module to older DI810 and DI801 where higher density is required
Compatible with SIL-rated safety system when used with certified logic controllers
