Overview

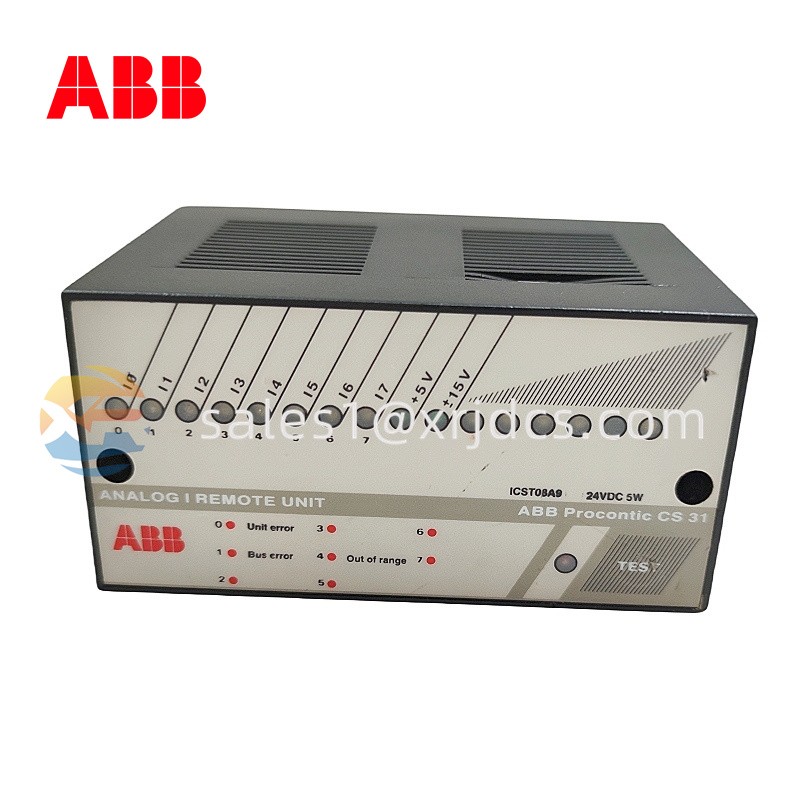

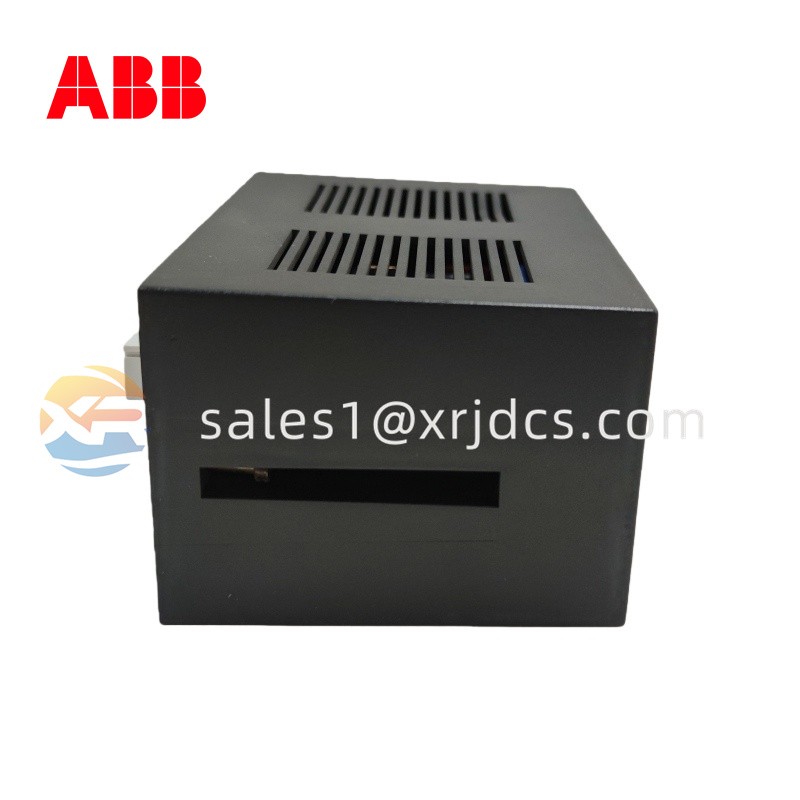

The ABB ICST08A9 is a legacy industrial analog input module belonging to the ABB Procontic CS31 automation system. It is designed to acquire and process analog temperature signals (RTD inputs such as PT100) from field instrumentation and convert them into digital data for PLC or remote control systems.
This module is commonly used in industrial process automation environments, especially in older ABB distributed control and PLC architectures where reliable temperature monitoring is required.
Technical Specifications
| Parameter |
Description |
| Manufacturer |
ABB |
| Series |
Procontic CS31 |
| Model |
ICST08A9 |
| Product Type |
Analog Input Module (RTD) |
| Input Channels |
8 analog inputs |
| Sensor Type |
PT100 RTD (Resistance Temperature Detector) |
| Temperature Range |
0°C to +300°C |
| Resolution |
8-bit |
| Power Supply |
24 VDC |
| Installation Type |
PLC rack / backplane mounted module |
| Function |
Temperature signal acquisition and conversion |
| Application |
Industrial monitoring and process control |
Key Features
- Supports 8-channel PT100 RTD temperature input
- Designed for ABB Procontic CS31 PLC systems
- Stable analog signal conversion with 8-bit resolution
- Industrial-grade design for harsh environments
- Reliable temperature monitoring for process control loops
- Compact rack-mounted module structure
- Suitable for continuous 24/7 industrial operation
Structure and Composition
The ICST08A9 is built as a modular industrial PCB unit, typically consisting of:
- RTD signal conditioning circuits
- Analog-to-digital conversion (ADC) circuitry
- Input filtering and noise suppression components
- Backplane connector interface
- Channel isolation circuitry
- Industrial protective PCB coating
Its architecture is optimized for accurate temperature signal processing in electrically noisy environments.
Working Principle
The module operates by converting resistance changes from PT100 sensors into usable digital signals:
- PT100 sensors measure temperature through resistance variation
- The module conditions and linearizes the analog signals
- Internal ADC converts signals into digital values
- Data is transmitted through the CS31 backplane to the PLC
- Control system uses data for monitoring and process regulation
This allows accurate real-time temperature supervision across industrial systems.
Applications
The ABB ICST08A9 is commonly used in:
- Industrial temperature monitoring systems
- Power plants (boiler and turbine temperature control)
- Chemical and petrochemical processes
- Water treatment facilities
- Manufacturing production lines
- HVAC and process heating systems
- Legacy ABB Procontic CS31 automation systems
Installation Guidelines
- Install only in compatible ABB Procontic CS31 racks
- Ensure correct slot alignment in PLC backplane
- Verify proper wiring of PT100 RTD sensors
- Maintain proper grounding to reduce signal noise
- Avoid high humidity and vibration environments
- Ensure correct 24V DC supply stability
Maintenance Recommendations
- Periodically inspect terminal connections for looseness
- Check RTD sensor wiring integrity
- Clean control cabinet to prevent dust buildup
- Monitor channel drift or calibration deviation
- Replace module only with identical ABB part number
- Ensure stable power supply to avoid measurement errors
Advantages
- Reliable multi-channel temperature acquisition
- Compatible with ABB Procontic CS31 systems
- Stable operation in industrial environments
- Simple integration into legacy PLC architectures
- Cost-effective solution for temperature monitoring
- Long service life with minimal maintenance needs
Conclusion
The ABB ICST08A9 is an analog input module designed for temperature measurement using PT100 sensors within ABB Procontic CS31 systems. It provides stable, multi-channel temperature data acquisition for industrial automation applications.
