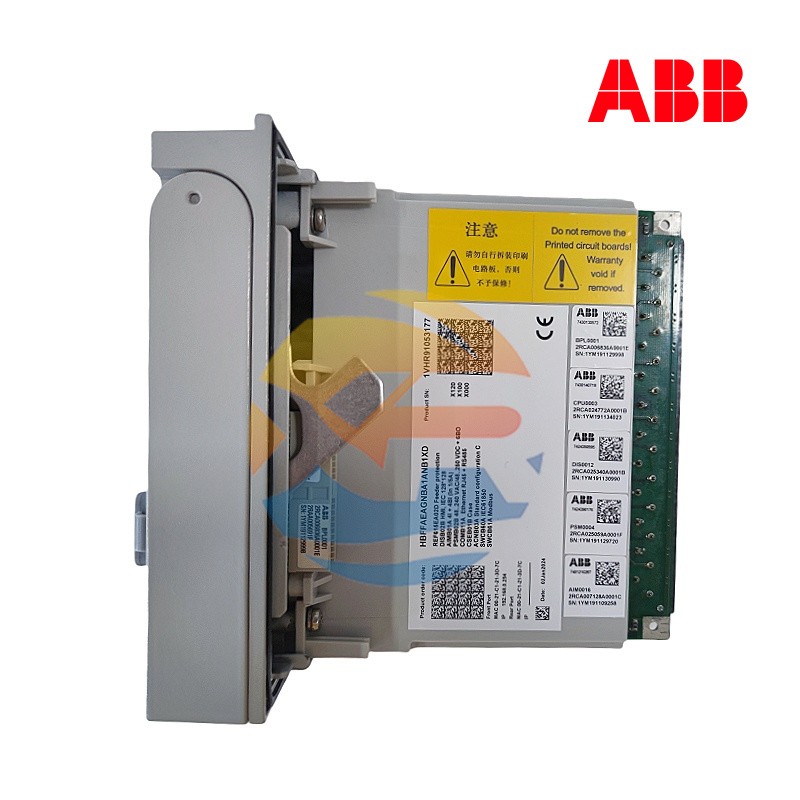

ABB REF615 HBFFAEAGNBA1ANB1XD
The ABB REF615 HBFFAEAGNBA1ANB1XD is a feeder protection relay under the ABB Relion® 615 series, specifically designed for medium-voltage distribution systems (with a rated voltage up to 15kV) in industrial, commercial, and utility sectors. This relay delivers comprehensive protection, control, monitoring, and automation functions, suitable for protecting incoming feeders, outgoing feeders, bus sections, and transformer circuits. It ensures the safe, reliable, and efficient operation of distribution systems.
Core Values of REF615
Integrated Protection: Combines overcurrent, earth fault, and voltage protection in one unit, reducing hardware configuration requirements.
Flexible Communication: Supports multiple protocols including IEC 61850, Modbus, and DNP3.0, facilitating seamless system integration.
User-Friendly Design: Features a large-sized graphic LCD and intuitive menus, simplifying on-site operations.
Product Parameters
Product Model: REF615 HBFFAEAGNBA1ANB1XD
Manufacturer: ABB
Product Type: Feeder Protection Relay
Rated Voltage: 100-240V AC/DC (power supply)
Rated Current: 1A or 5A (CT secondary side, configurable)
Protection Functions: Overcurrent (instantaneous/time-delayed/inverse time), directional overcurrent, earth fault, voltage protection
Measurement Accuracy: ±0.5% (for current and voltage)
Communication Protocols: IEC 61850, Modbus RTU/TCP, DNP3.0
Input/Output: 8× digital inputs, 6× relay outputs
Operating Temperature Range: -25°C to +55°C (-13°F to +131°F)
Protection Class: IP40 (panel mounting)
Mounting Method: DIN Rail or panel mounting
Certification Standards: IEC 60255, IEEE C37.90, UL 508

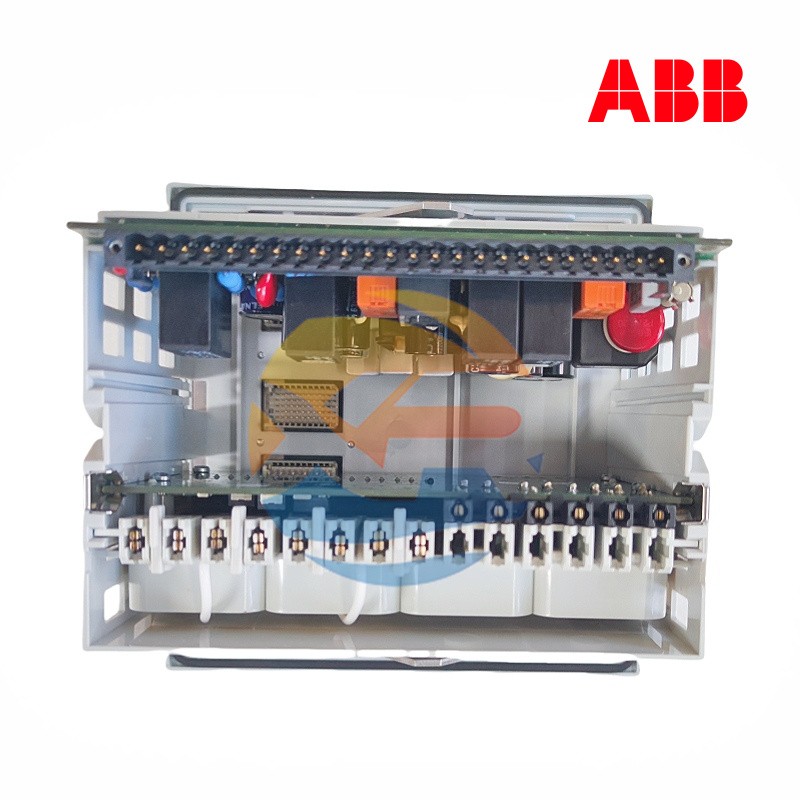

Structure and Composition
The REF615 adopts a compact, modular design, with key components including:
Signal Acquisition Unit: Equipped with high-precision CT/PT interfaces, supporting 1A/5A CT input and 0-300V AC voltage measurement.
DSP Processing Module: Performs real-time calculations of RMS values for current/voltage, power, energy, and harmonics.
Protection Logic Unit: Offers programmable protection curves (e.g., IEC inverse time curve, ANSI curve).
Communication Interface: Includes dual Ethernet ports (for IEC 61850) and an RS-485 port (for Modbus RTU).

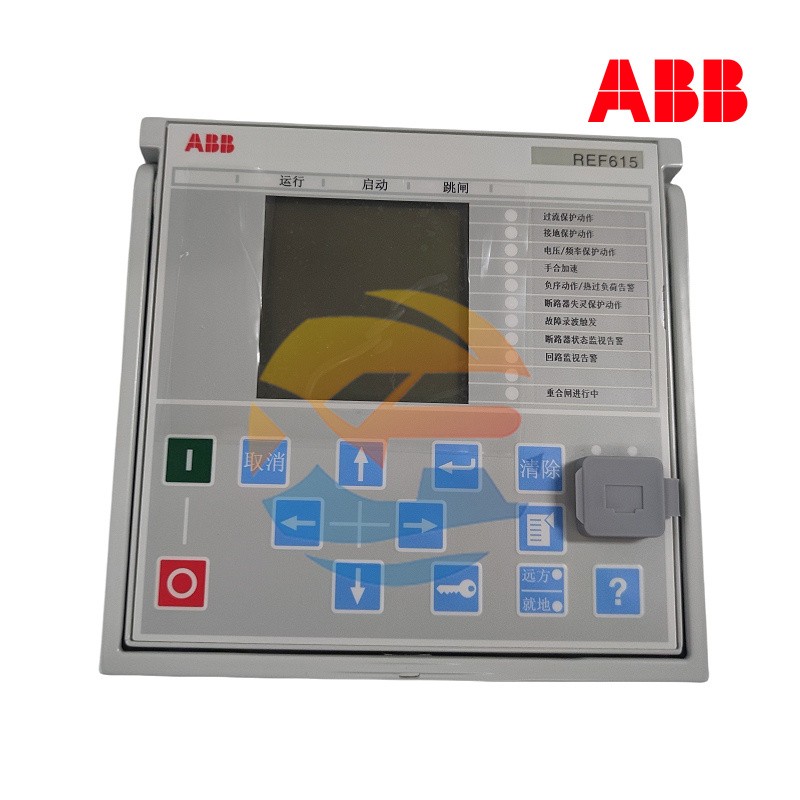

Human-Machine Interface (HMI): Features a 320×240 graphic LCD, supporting multi-language display and curve visualization.
Status Indicators: LED lights for displaying operation status, alarms, and faults.
Key Features and Advantages
1. Comprehensive Protection Functions
Directional Overcurrent Protection: Suitable for ring network systems to prevent false tripping.
High-Sensitivity Earth Fault Detection: Detects faults ranging from 0.5A to 1000A, compatible with direct/resistance grounding systems.
2. Advanced Monitoring and Metering
Real-Time Monitoring: Tracks current, voltage, power, energy, and power factor in real time.
Fault Recording: Captures ≥128 cycles of fault data, supporting the COMTRADE format.
3. Flexible Communication Integration
IEC 61850 Ed.2: Supports GOOSE fast tripping (≤8ms) and SV sampled value transmission.
Modbus TCP: Enables seamless access to SCADA/DCS systems.
4. Industrial-Grade Reliability
Wide operating temperature range: -25°C to +55°C.
Vibration resistance: 3g @ 100Hz.
Built-in self-test function for real-time monitoring of hardware health.
Application Fields
The REF615 is mainly used in the following scenarios:
Industrial Distribution: Protection for factory incoming feeders and comprehensive protection for motor circuits.
Commercial Buildings: Protection for critical distribution circuits in data centers and hospitals.
Utilities: Protection for 10kV outgoing feeders in substations and connection of distributed energy resources.
Installation and Maintenance
Installation Key Points
Use shielded wires of ≥2.5mm² for CT secondary wiring to avoid induced voltage interference.
Lay communication cables (e.g., Ethernet cables) and power cables in separate layers, with a spacing of ≥30cm.
Maintenance Recommendations
Conduct protection setting verification once a year (using a relay protection tester).
Regularly back up configuration parameters (via the PCM600 software).
