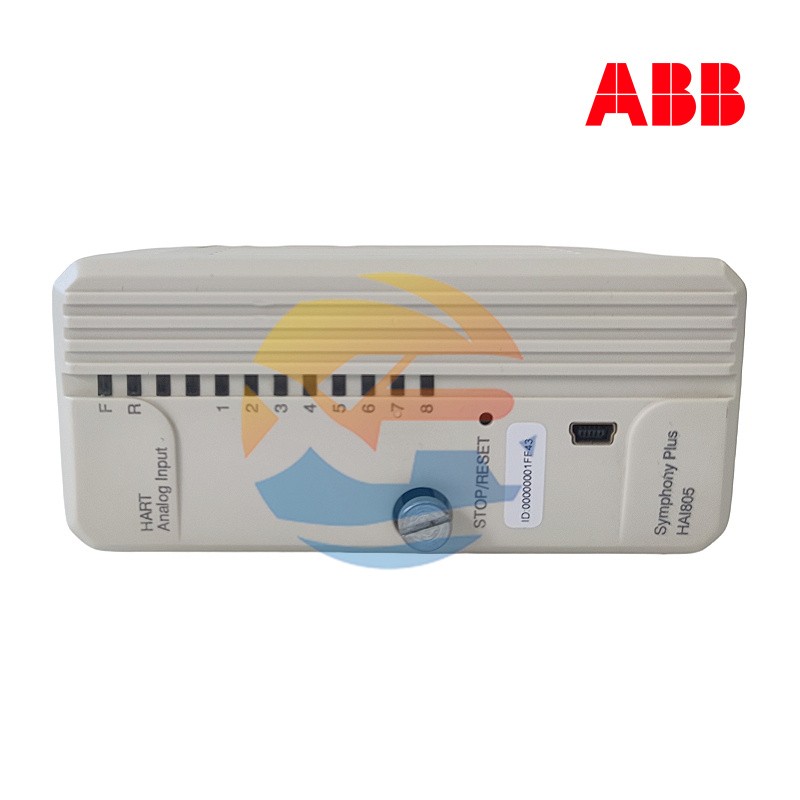

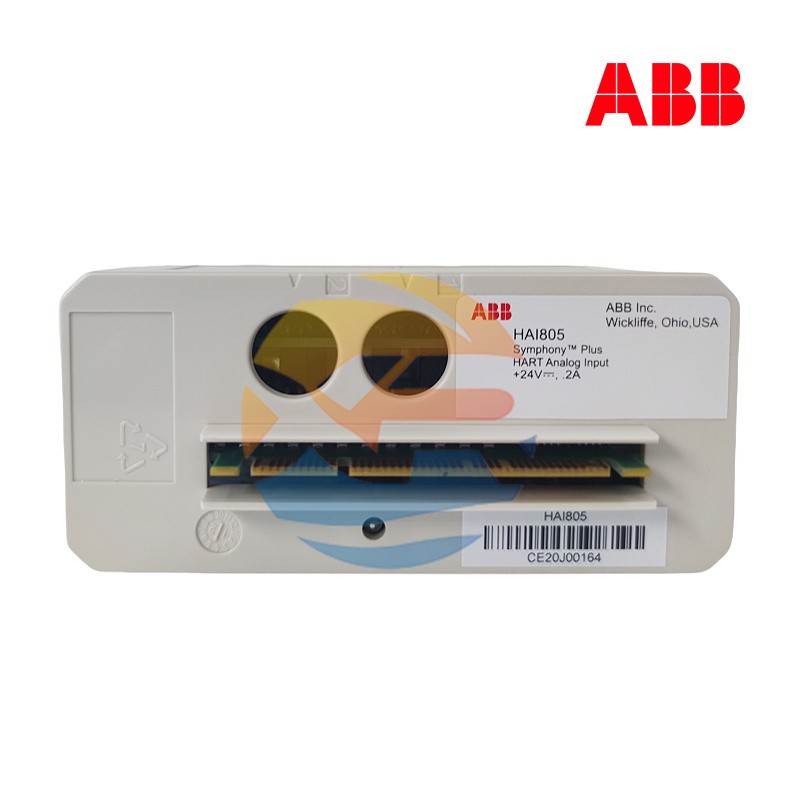

ABB HAI805
The ABB HAI805 is the core control unit of the Hai Explosion-Proof Electric Actuator series under ABB. It is an intelligent integrated controller specifically designed for harsh industrial environments. This product integrates motor control, position feedback, signal processing, and communication functions into one unit, and is directly mounted on the actuator body to form a complete intelligent actuator solution. As the "power brain" for regulating devices such as valves and dampers, the ABB HAI805 plays a key role as an end execution layer in process automation systems. It is responsible for accurately converting control signals (e.g., 4-20mA) from DCS or PLC systems into angular or linear displacements of mechanical shafts, enabling high-precision regulation of process parameters such as fluid flow, pressure, and temperature.
Its core value lies in high integration and intelligence. It integrates traditional discrete components (such as servo amplifiers and position transmitters) into a robust explosion-proof housing. This not only saves installation space and wiring costs but also provides excellent response characteristics, stable control accuracy, and rich diagnostic functions through its built-in microprocessor and advanced control algorithms. The ABB HAI805 controller ensures the reliable, safe, and efficient operation of actuators in explosive hazardous areas such as petroleum and chemical industries, making it an indispensable key device for achieving precise process control.
Product Parameters
Product Model: HAI805
Manufacturer: ABB
Product Type: Intelligent Actuator Integrated Controller
Input Signal: 4-20mA DC, potentiometer signal, or digital communication signal
Output Signal: 4-20mA DC position feedback (electrically isolated)
Power Supply Voltage: Standard: 24V AC/DC ±10%; Optional: 110V/230V AC
Output Torque: Related to the matched actuator (e.g., 30 Nm ~ 3000 Nm)
Protection Class: IP66 / IP67 (NEMA 4X)
Explosion-Proof Certification: ATEX, IECEx, cCSAus (suitable for Class I, Division 1, Groups B, C, D)
Operating Ambient Temperature: -40°C to +80°C (-40°F to +176°F)
Communication Protocol: HART protocol (standard), optional Foundation Fieldbus or Profibus-PA
Control Characteristics: Adjustable stroke time, independently set opening/closing speed, adjustable dead band
Structure and Composition
The ABB HAI805 controller adopts a die-cast aluminum housing, which features high mechanical strength and sealing performance to meet the requirements of explosion-proof and harsh outdoor environments. Its structure mainly consists of the following parts: external interfaces include a multi-pin power and signal connector, a knob or handwheel interface for local manual operation, and an infrared communication window for configuration and diagnosis. The internal core is a highly integrated multi-layer circuit board, which integrates the main control MCU (Microcontroller Unit), power management module (converts input power into working voltages required by internal chips), HART modem (for communication), signal conditioning circuit (for processing analog input and feedback output), and high-power thyristor or MOSFET output drive circuit (for directly controlling single-phase or three-phase motors in the actuator). These components work together: the MCU receives commands from the control system and valve position feedback signals, performs calculations, and then outputs trigger signals to the power drive circuit, thereby accurately controlling the start/stop and torque of the motor to achieve precise positioning of the valve.
Key Features and Advantages
High Integration and Reliability
The ABB HAI805 highly integrates control, drive, and feedback functions, reducing external wiring and interfaces, and significantly improving the overall reliability and anti-interference capability of the system. Its robust design and wide temperature range operation capability ensure long-term stable operation in the harshest industrial environments.
Advanced Diagnostic and Maintenance Functions
The controller has built-in intelligent diagnostic functions that can monitor key parameters such as operating time, number of starts, torque overload, and overheating, and upload this information via the HART protocol. This supports predictive maintenance, helping users detect potential issues in advance, avoid unplanned downtime, and greatly reduce lifecycle maintenance costs.
Flexible Configuration and Compatibility
The ABB HAI805 can be easily configured using an infrared handheld programmer or software tools, such as setting stroke, torque characteristics, signal type, and fail-safe position. It has good compatibility and can match mechanical interfaces of various standard actuators to meet the needs of different application scenarios.
Safety and Explosion-Proof Performance
The controller holds comprehensive international explosion-proof certifications, allowing it to be safely installed in hazardous areas with explosive gases (Zone 1/Zone 2). It provides an intrinsically safe option for high-risk industries such as petroleum, natural gas, and chemical engineering.
Application Fields
The ABB HAI805 controller is widely used in process industries that require high-reliability regulation and strict safety standards. In the oil and gas industry, it is used to control valves in oil pipeline pump stations, natural gas compression stations, and refinery process equipment, enabling precise regulation of flow and pressure. In the chemical industry, it is installed on equipment such as reactors, distillation towers, and pipelines to control the transportation and proportioning of various chemical media. Additionally, in water and wastewater treatment plants, it is used to regulate water pumps, weir gates, and aeration systems; in the power industry, it controls the water supply, fuel, and damper systems of boilers. Its core function is to achieve automated, high-precision, and reliable control of key process variables in hazardous or harsh environments, ensuring safe and efficient production while complying with environmental protection requirements.
