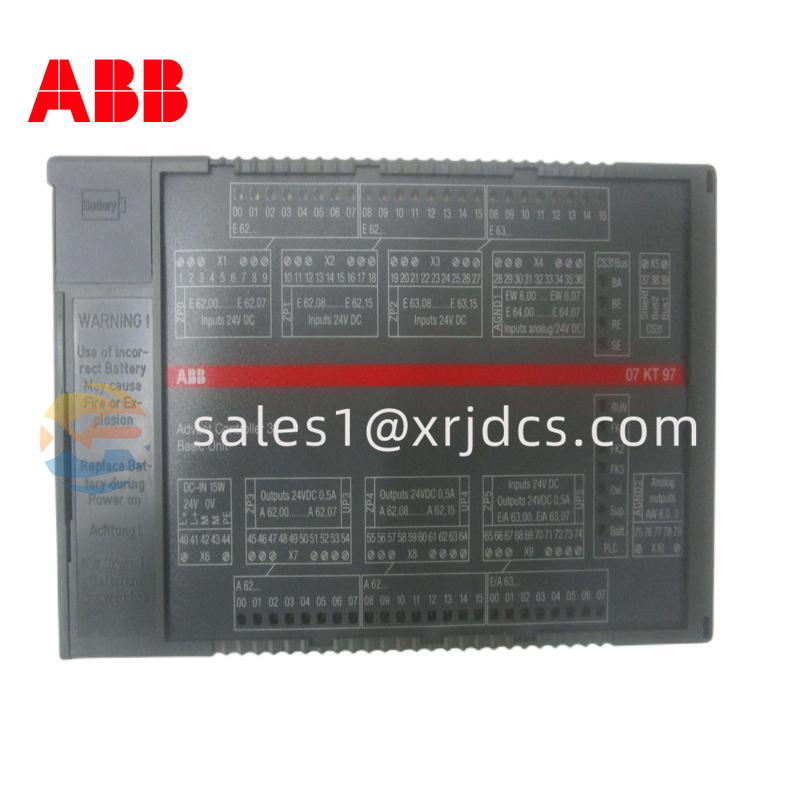

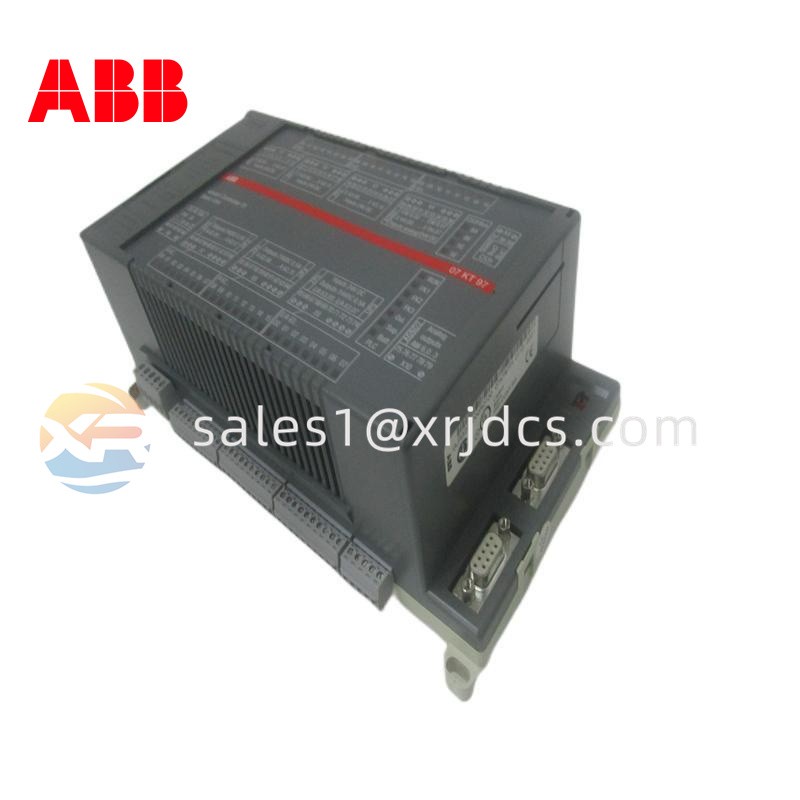

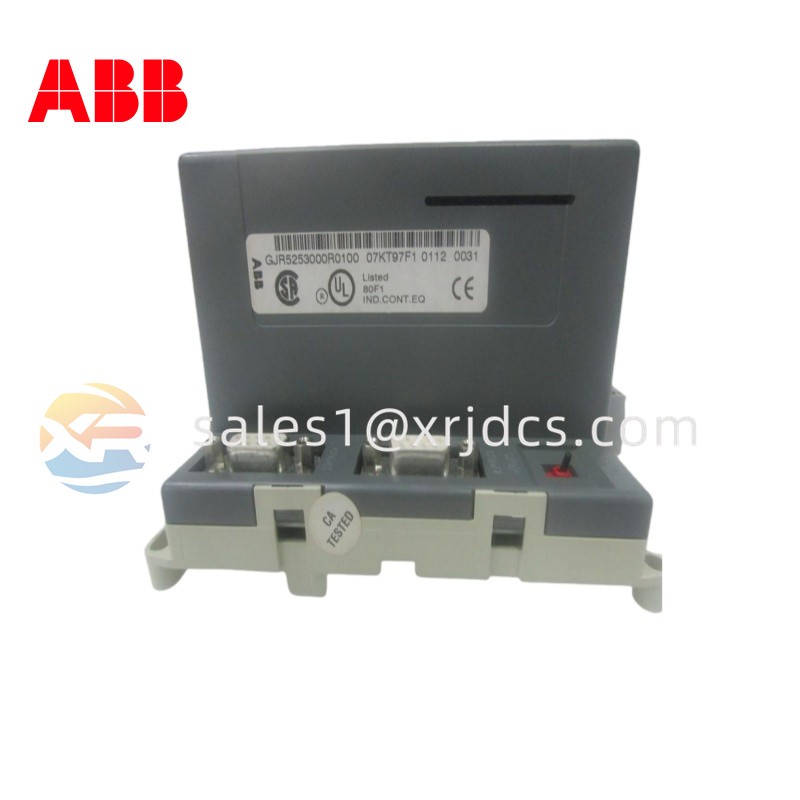

ABB 07KT97F1 Basic Unit

Product Overview

The ABB 07KT97F1 is a Basic Unit for the Advant Controller 31 (AC31) Series 90 automation platform. It is designed to serve as a central processing unit in decentralized industrial control systems, combining PLC processing, integrated I/O, and communication capabilities in a compact controller.

The 07KT97 family was developed for flexible automation applications and supports IEC 61131-3 programming. ABB documentation describes the AC31 platform as a compact PLC family with decentralized networking capabilities, while the 07KT97 belongs to its higher-performance Series 90 controller range.

Technical Parameters

ABB's documentation identifies the 07KT97 as a Series 90 AC31 basic unit. The wider 07KT97 family is available in different hardware configurations, so exact communication interfaces and memory specifications should be verified against the complete ordering code.

Controller Architecture

The 07KT97F1 combines several automation functions into one compact controller. Instead of relying entirely on separate CPU, I/O, and communication modules, the AC31 architecture integrates substantial processing and I/O functionality into the basic unit.

The controller includes 24 digital inputs and 16 transistor outputs. The digital inputs are arranged in groups and use optocoupler signal coupling. Two designated inputs can also be configured for high-speed counting applications.

Its integrated analog section provides eight analog input channels and four analog outputs. Depending on configuration, the analog inputs can handle voltage, current, and Pt100 signals, making the controller suitable for both discrete and continuous process measurements.

Communication and Networking

A major advantage of the AC31 platform is its decentralized architecture. The 07KT97 can operate as a bus master within an Advant Controller 31 system or as a remote processor, allowing control functions to be distributed across an industrial installation.

The 07KT97 family supports the CS31 system bus, while different versions can provide communication interfaces such as Ethernet, CANopen, PROFIBUS DP, ARCNET, or other fieldbus combinations. ABB's AC31 documentation specifically lists Ethernet, CANopen, PROFIBUS DP, and ARCNET support for the 07KT97 family.

This flexibility makes the controller suitable for installations where local I/O and distributed control stations need to exchange process information.

Key Features

The 07KT97F1 offers several practical features for industrial automation:

• Compact AC31 Series 90 controller design
• Integrated digital and analog I/O
• IEC 61131-3 programmable architecture
• Decentralized control capability
• CS31 system-bus compatibility
• High-speed counter functionality
• Support for industrial communication options within the 07KT97 family
• Suitable for continuous industrial operation
• Modular architecture for expansion through compatible AC31 I/O

ABB continues to maintain documentation for the AC31 platform and lists the 07KT95, 07KT96, 07KT97, and 07KT98 among its earlier controller products.

Application Areas

The controller can be used in a variety of industrial automation environments, including:

• Factory automation
• Machine control
• Process automation
• Production lines
• Material handling
• Packaging systems
• Water and utility systems
• Building and infrastructure automation
• Distributed I/O applications

Its integrated I/O makes it particularly useful for compact control systems where cabinet space and wiring complexity need to be minimized.

Installation and Maintenance

Before installing or replacing a 07KT97F1, technicians should confirm the exact hardware version and communication configuration. The 07KT97 family contains several variants with different communication options, and these should not automatically be considered interchangeable.

Recommended maintenance practices include:

1. Verify the complete model and hardware identification.
2. Confirm the 24 VDC supply and polarity.
3. Inspect terminal connections and field wiring.
4. Check digital and analog I/O status.
5. Verify CS31 or other configured communication links.
6. Inspect the controller for excessive heat, contamination, or mechanical damage.
7. Back up the PLC program and configuration before replacement whenever possible.
8. Use suitable ESD precautions when handling the controller.

After replacement, the I/O configuration, communication parameters, PLC program, and field signals should be checked before the equipment is returned to normal operation.

Replacement Value

The ABB 07KT97F1 is a valuable spare for legacy Advant Controller 31 / AC31 Series 90 installations. Its combination of PLC processing, integrated I/O, high-speed counting, and decentralized communication makes it suitable for maintaining established automation systems without replacing the entire control architecture.

For procurement, the 07KT97F1 should be matched carefully with the existing system's hardware version, communication interfaces, I/O requirements, and application configuration. ABB's official documentation confirms the 07KT97 as part of the AC31 Series 90 controller family.
