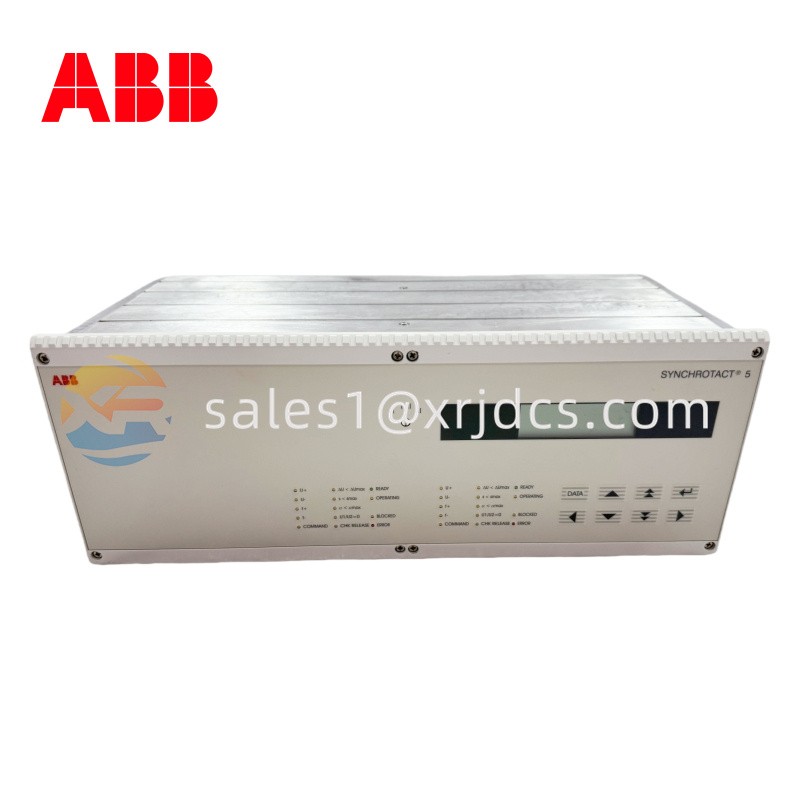

ABB 3BHB006716R0277

Overview

The ABB 3BHB006716R0277 is a synchronizer device from the SYCHROTACT 5 series, with the model number SYN5302a-Z.V277. It is primarily used for synchronization control in power systems, ensuring safe and reliable grid connection operations in power plants, industrial grids, and distributed energy systems.

Parameters

• Measurement accuracy: 0.01°
• Voltage range: 100V to 765kV
• Current range: 1A to 5000A
• Frequency range: 45Hz to 65Hz
• Communication methods: Serial port, Ethernet, fiber optic port

Product Features

• High-precision synchronization control: Real-time measurement of voltage, frequency, and phase angle to ensure accurate grid connection.
• Automated control functionality: Supports automatic grid synchronization, reducing manual intervention and improving efficiency.
• Strong compatibility: Suitable for different types of generators (e.g., synchronous generators and asynchronous generators) and various application scenarios.
• Modular design: Easy installation and maintenance.
• Built-in protection features: Power redundancy and communication redundancy designs ensure operational reliability.

Structure and Components

• Enclosure dimensions: 217mm (L) × 68.5mm (W) × 63mm (H)

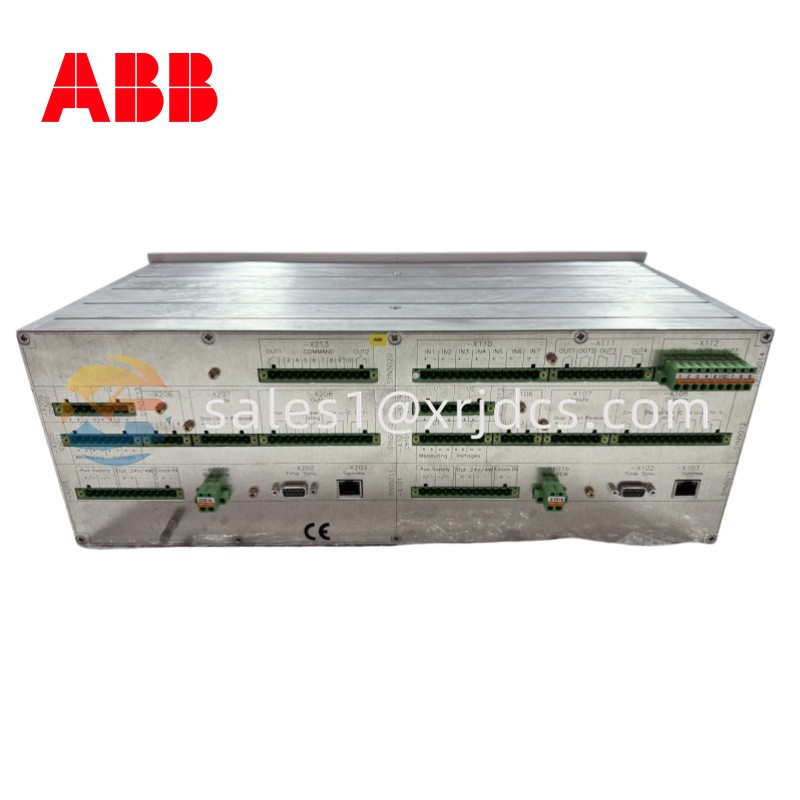

• Internally includes multiple metal contacts and connectors for electrical connections.
• Modular design for easy expansion and maintenance.

ABB 3BHB006716R0277 Applications

• Power plants: Synchronization of generators with the grid.
• Industrial grids: Ensures stable operation of industrial power networks.
• Distributed energy systems: Manages grid integration for distributed energy resources.
• Substations and distribution equipment: Provides synchronization control for substations and power distribution systems.
