ABB PCD232A 3BHE02293R0101 (PLC) module_Xiamen XingRuiJia Import and Export CO,LTD

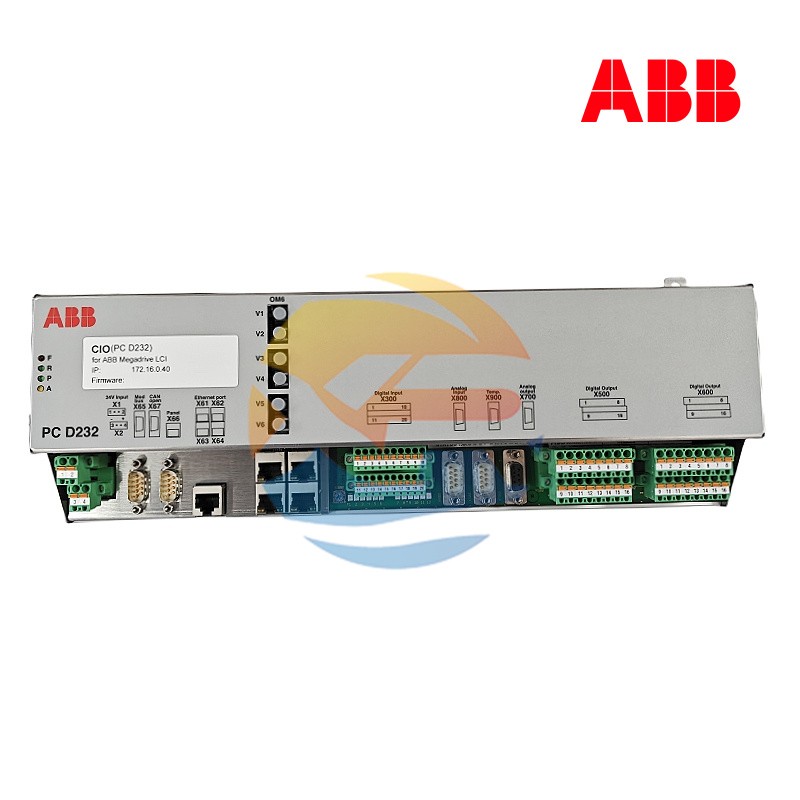

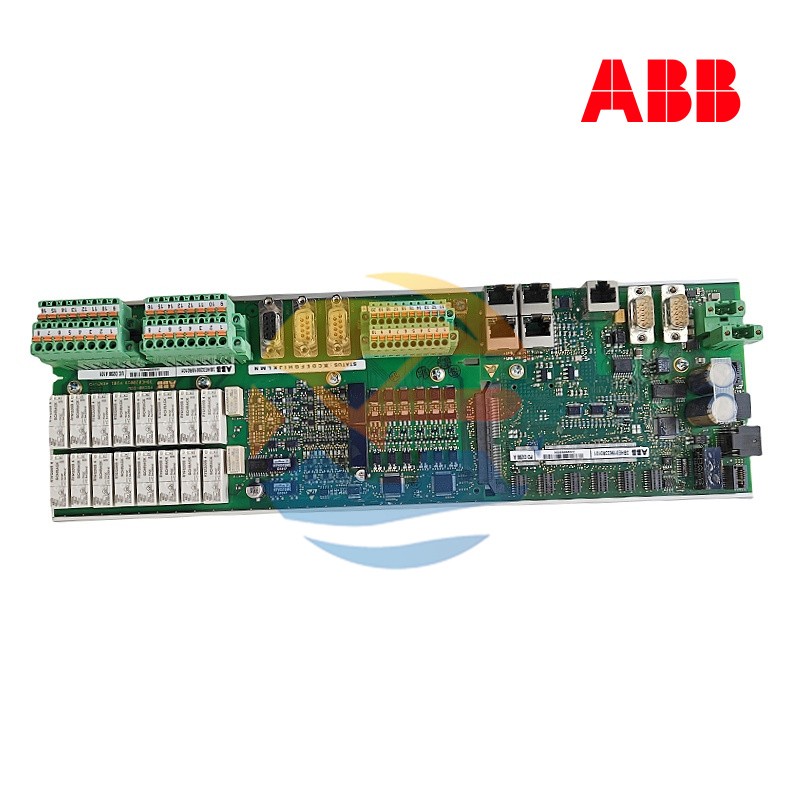

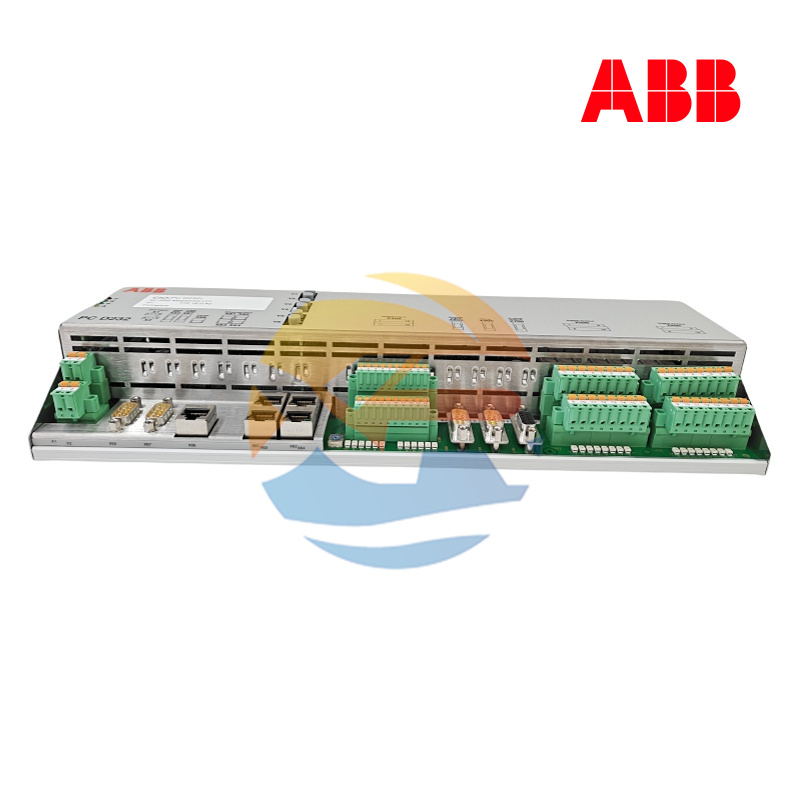

Model：ABB PCD232A 3BHE02293R0101 (PLC) module

Brand: ABB
Price range (USD): 100-20000
Country: Switzerland
Parameter: Voltage Range: 10-30 VDC
Current: 1.5 A
Communication Interfaces: RS-485/RS-232, Modbus TCP/IP, PROFIBUS DP, etc.
Operating Temperature: -25°C to +70°C
Storage Temperature: -40°C to +85°C
Processing Capacity: 32-bit microcontroller, supporting high-performance processing
Storage Capacity: 256 KB RAM, 512 KB ROM
I/O Points: 32 expandable points

ABB PCD232A 3BHE02293R0101 (PLC) module

1. Overview

The ABB PCD232A 3BHE022293R0101 is a Programmable Logic Controller (PLC) module developed by ABB, belonging to the PCD232A series. It is specifically designed for small-scale industrial control systems. Equipped with high-performance processing capabilities, this module supports a variety of industrial automation applications and is widely used in fields such as industrial automation, power, transportation, and medical care.

2. Specifications

Voltage Range: 10-30 VDC
Current: 1.5 A
Communication Interfaces: RS-485/RS-232, Modbus TCP/IP, PROFIBUS DP, etc.
Operating Temperature: -25°C to +70°C
Storage Temperature: -40°C to +85°C
Processing Capacity: 32-bit microcontroller, supporting high-performance processing
Storage Capacity: 256 KB RAM, 512 KB ROM
I/O Points: 32 expandable points

3. Product Features

High Reliability: The module features a robust design, making it suitable for harsh industrial environments and ensuring high reliability during operation.
Expandability: It supports multiple communication protocols and expansion functions, enabling its application in complex control systems.
Protection Rating: Some data sources indicate that it has protection ratings of IP30 or IP67.
Compact Structure: With a compact structure, the module is easy to install and maintain.
ABB PCD232A 3BHE02293R0101

4. Structure and Composition

Physical Structure: The module has a compact physical structure and supports DIN rail or panel mounting.
Interfaces: It provides a variety of communication interfaces, including RS-485/RS-232, Ethernet, and more.
Installation Method: It supports standard installation methods, facilitating integration into industrial control systems.

5. Application Fields

Industrial Automation: It is widely used in industrial automation control systems, covering fields like power, transportation, and medical care.
Power and Energy: It is applied in generator set control, power system stability maintenance, energy management systems, and other related scenarios.
Other Fields: It is also suitable for manufacturing, process control, automation systems, and other areas.

6. Installation and Maintenance

Installation Method: It supports DIN rail or panel mounting, and the installation process is simple and convenient.
Maintenance: The module is designed for easy maintenance, allowing regular inspection and cleaning operations.

Precautions: It is necessary to follow the installation and configuration steps to ensure the stable operation of the system.
