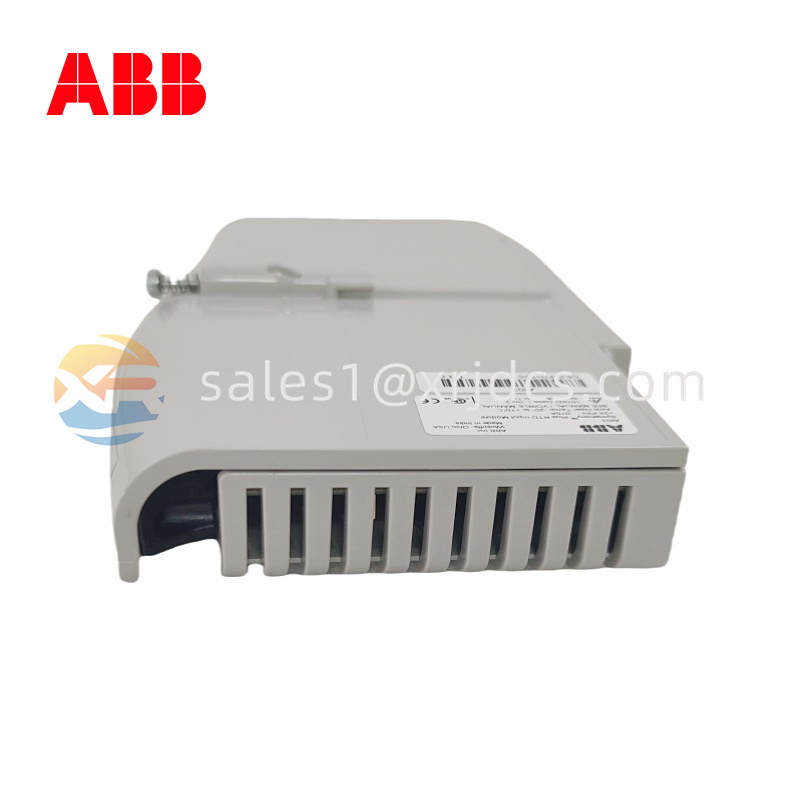

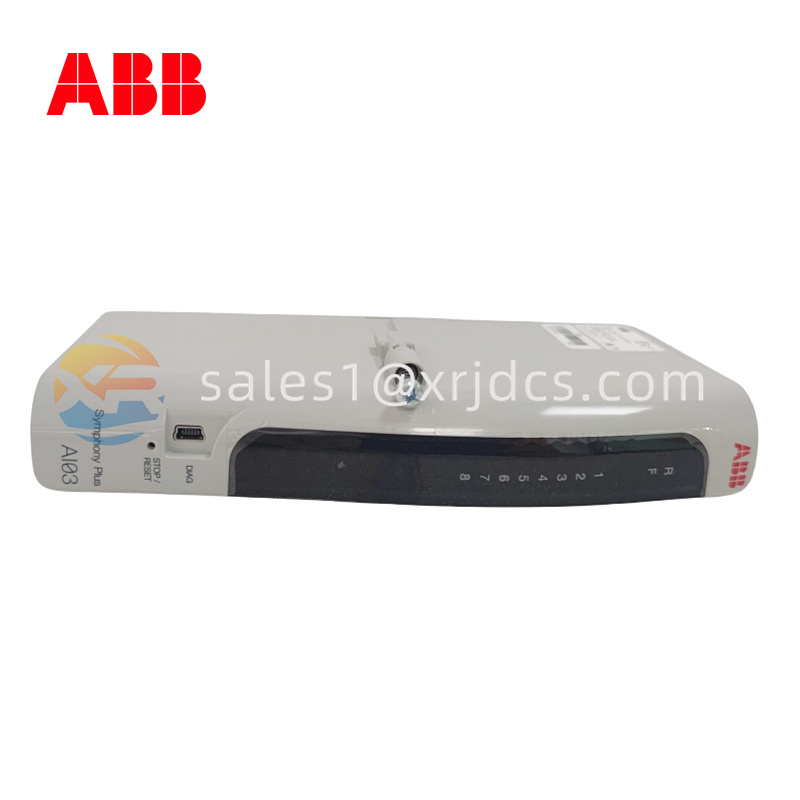

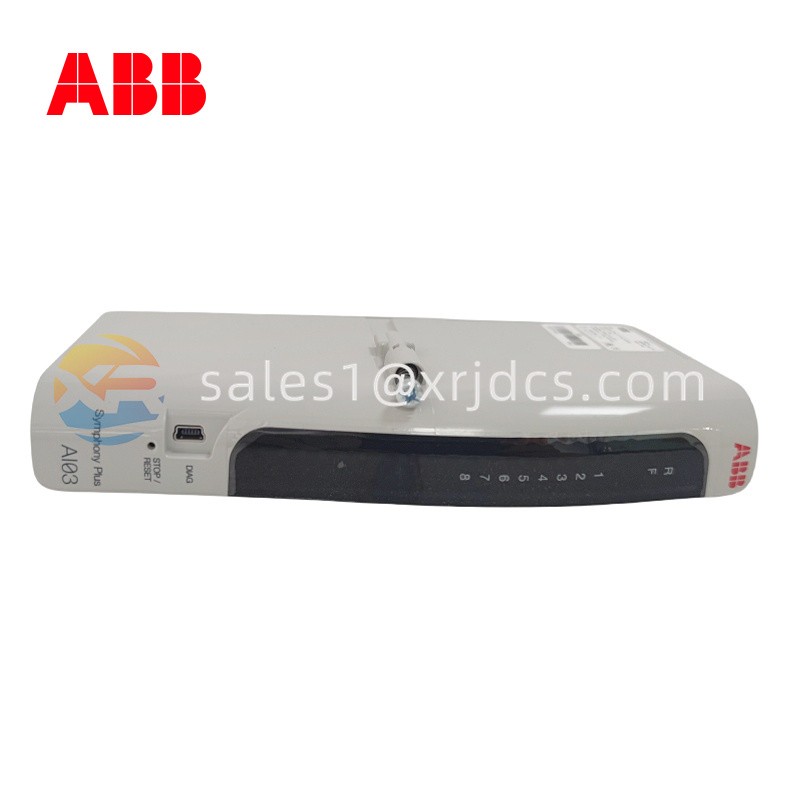

ABB AI03 – Analog Input Module

Overview

The ABB AI03 is a high-precision analog input module designed for industrial automation systems requiring stable signal acquisition and reliable data transmission. Known for its durability and compatibility with a wide range of ABB control platforms, the AI03 enables seamless integration of analog sensors in demanding environments such as manufacturing, energy distribution, and process control.

Features

High Signal Accuracy: Designed to capture low-voltage analog signals with excellent linearity and minimal drift.

Industrial-Grade Reliability: Resistant to electrical noise and equipped with protective circuits to ensure long-term operation.

Flexible Configuration: Supports multiple analog input signal types, making it suitable for diverse field conditions.

Secure Mounting Design: Compact size and optimized terminal layout allow fast wiring and stable installation.

Real-Time Diagnostics: Built-in status indicators and error reporting functions simplify on-site troubleshooting.

Structure & Composition

The ABB AI03 module is constructed with:

A reinforced electronic board for stable analog-to-digital conversion

Terminal block interfaces for sensor wiring

LED indicators for module status and channel operation

Shielded casing to reduce electromagnetic interference

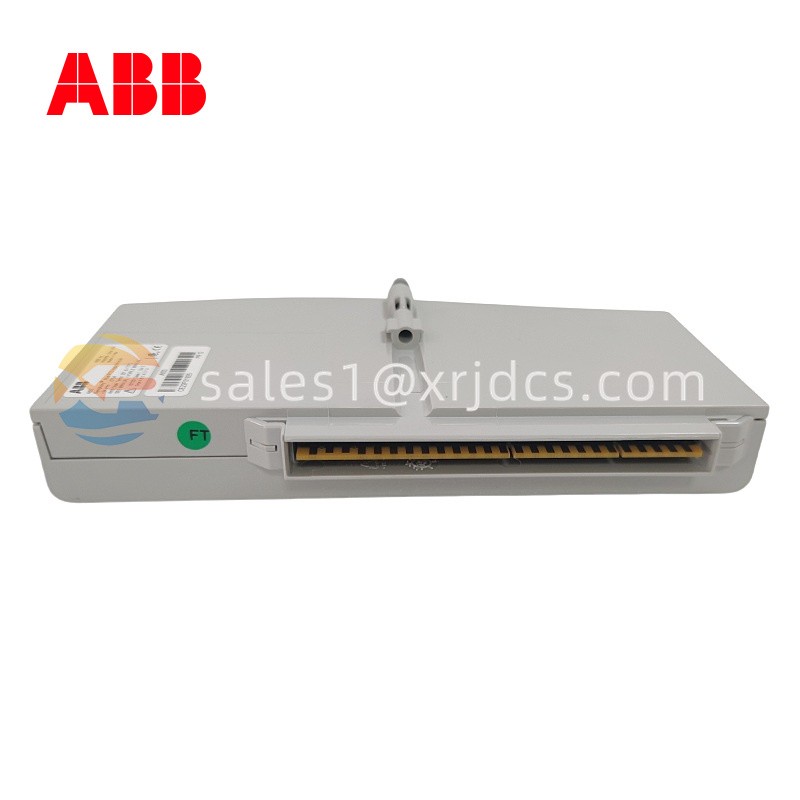

Rear bus connector for seamless communication with ABB controller racks

Technical Parameters

(For this model, parameters are not presented in a table to vary formatting as requested.)

Input Channels: 4 analog inputs

Supported Signal Types: Current (0–20 mA / 4–20 mA), Voltage (0–10 V)

Resolution: 12–16 bit (depending on system configuration)

Isolation: Channel-to-bus electrical isolation

Operating Voltage: 24 VDC

Operating Temperature Range: –20°C to +60°C

Mounting Method: DIN-rail or system rack installation

Communication: Internal system bus interface

Application Fields

The ABB AI03 is utilized across various industries:

Power generation and distribution monitoring

Petrochemical and refinery automation

Water treatment plants

Factory production lines

Building automation and environmental monitoring systems

Installation & Maintenance

Ensure the analog input wiring follows shielded-cable guidelines to reduce noise.

Mount the module in a well-ventilated control cabinet with adequate spacing for thermal dissipation.

Connect the rear system bus firmly before powering the controller.

Periodically check terminal connections for loosening due to vibration.

Use ABB configuration tools to calibrate or adjust signal ranges when replacing sensors.

Additional Notes

The ABB AI03 is engineered to integrate smoothly into ABB’s modular control architecture, offering long-term service stability and versatile signal handling for complex industrial automation tasks. Its robust performance and ease of maintenance make it a preferred choice for system integrators seeking reliable analog acquisition within distributed control systems.
