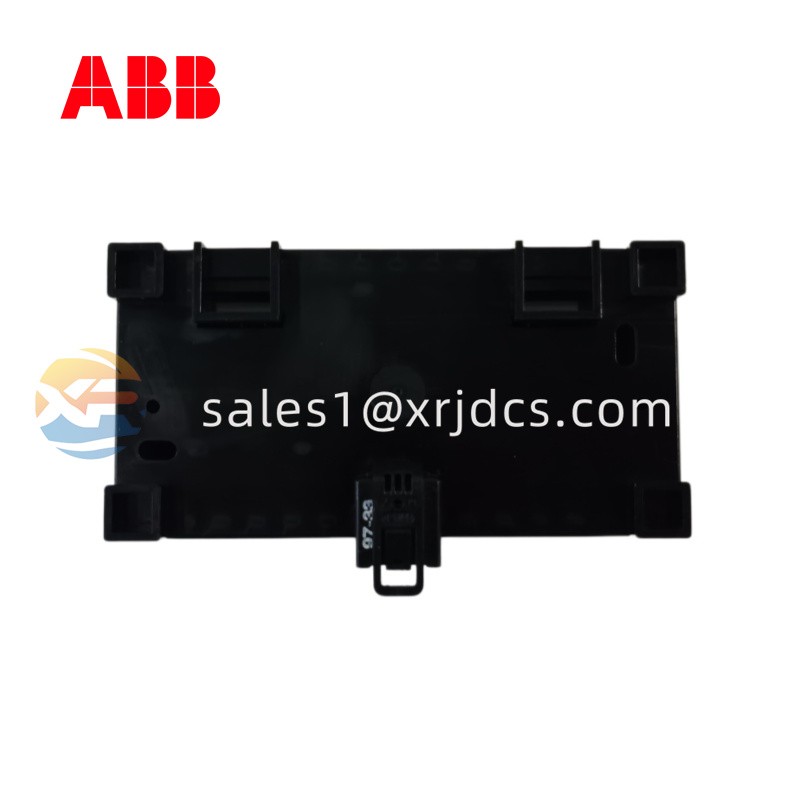

ABB CS31ICSO16N1 Current/Voltage Monitoring Module

Product Overview

The ABB CS31ICSO16N1 is a versatile monitoring module designed for real-time measurement of electrical parameters in industrial automation and power distribution systems. It enables precise monitoring of current and voltage signals from multiple sources, providing critical data for control systems, protective relays, and energy management solutions.

This module combines reliability, high accuracy, and robust industrial design, making it suitable for applications that demand continuous operation in harsh environments. Its integration with ABB automation systems ensures seamless communication with PLCs and DCS platforms.

Key Features

Multi-channel monitoring for current and voltage signals

High accuracy and low measurement drift

Compact and modular design for easy integration

Supports analog outputs compatible with PLC/DCS systems

Enhanced electrical isolation for operator safety

Built-in diagnostic LEDs for operational status and fault detection

Structure and Components

The CS31ICSO16N1 module is designed with modularity and reliability in mind:

Measurement Circuits: Capture and condition current and voltage signals from field devices

Signal Conversion Unit: Converts raw measurements into standard analog outputs (e.g., 4–20 mA)

Electrical Isolation Barriers: Protect connected control systems and personnel

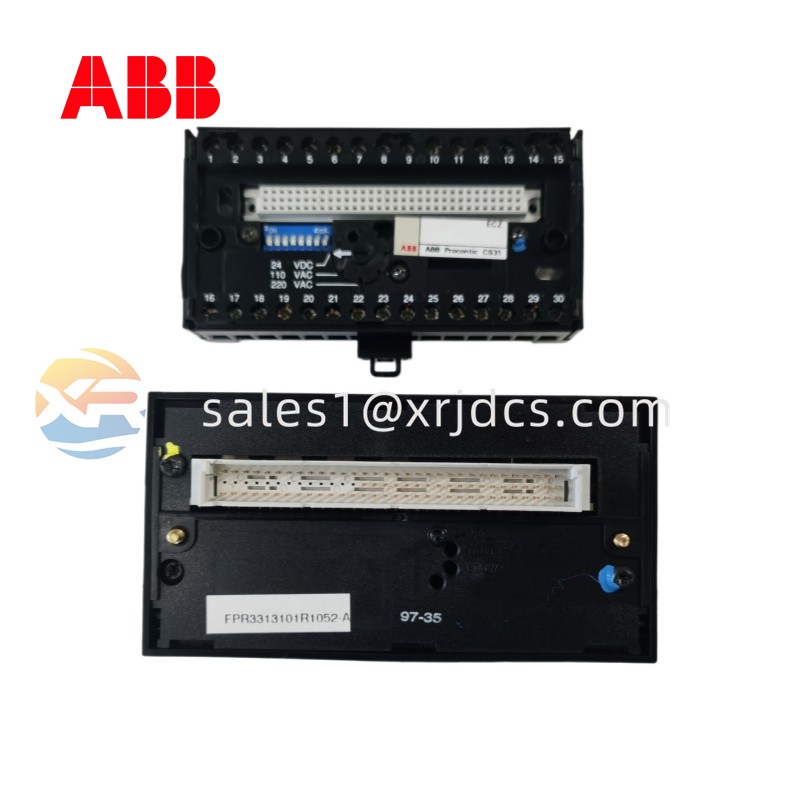

Terminal Connectors: Facilitate secure and organized wiring

Housing & Mounting Frame: Rugged construction for installation in industrial control cabinets

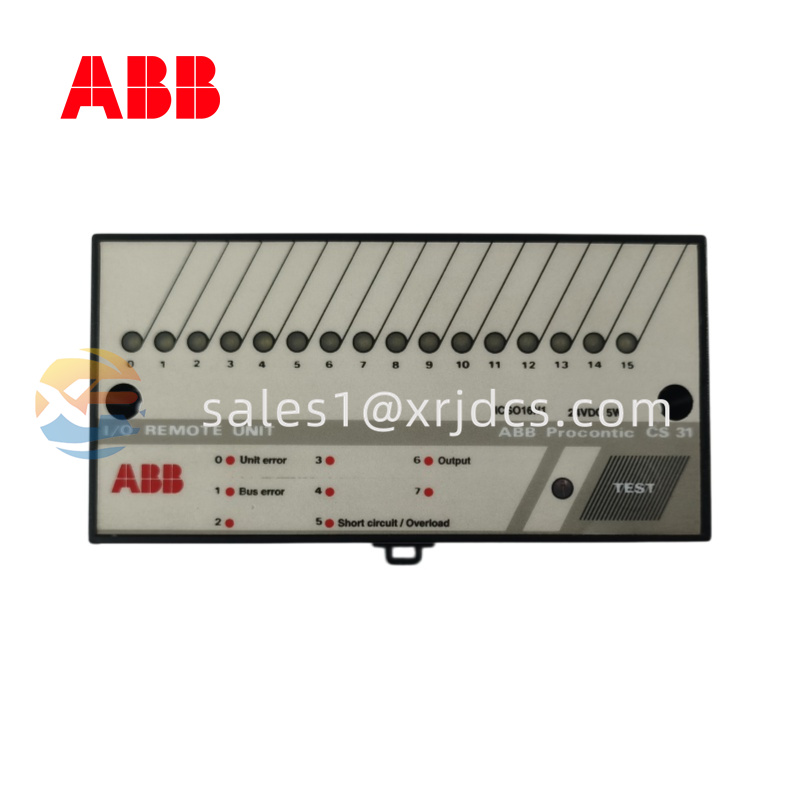

Status Indicators: Provide visual feedback for monitoring module operation


Technical Specifications

Model: CS31ICSO16N1

Manufacturer: ABB

Module Type: Current/Voltage Monitoring Module

Number of Channels: 16 input channels

Input Types: AC/DC current and voltage signals

Output: Standard analog output (4–20 mA)

Isolation Voltage: 600 V

Operating Temperature: -20°C to +55°C

Storage Temperature: -40°C to +70°C

Mounting Type: DIN rail or panel-mounted

Protection Rating: IP20


Application Areas

The ABB CS31ICSO16N1 module is ideal for a variety of industrial applications:

Electrical power distribution monitoring

Industrial automation and process control systems

Energy management and metering systems

Manufacturing and production line monitoring

Renewable energy installations (solar, wind, etc.)

Oil, gas, and chemical plant electrical monitoring

Installation and Maintenance

Installation Guidelines:

Install the module on a DIN rail or secure panel within a control cabinet.

Connect measurement inputs according to labeling and system schematics.

Ensure proper grounding and isolation before powering the system.

Avoid exposure to dust, moisture, or high vibration areas.

Maintenance Tips:

Inspect connections periodically for corrosion or loosening.

Check status LEDs for abnormal conditions.

Maintain cabinet ventilation to prevent overheating.

Perform calibration checks regularly to maintain measurement accuracy.


Advantages and Benefits

Provides accurate, real-time monitoring of multiple electrical signals

Enhances system safety and reliability with robust isolation

Simplifies integration with ABB automation platforms

Facilitates predictive maintenance and reduces system downtime

Modular design allows flexible system expansion
