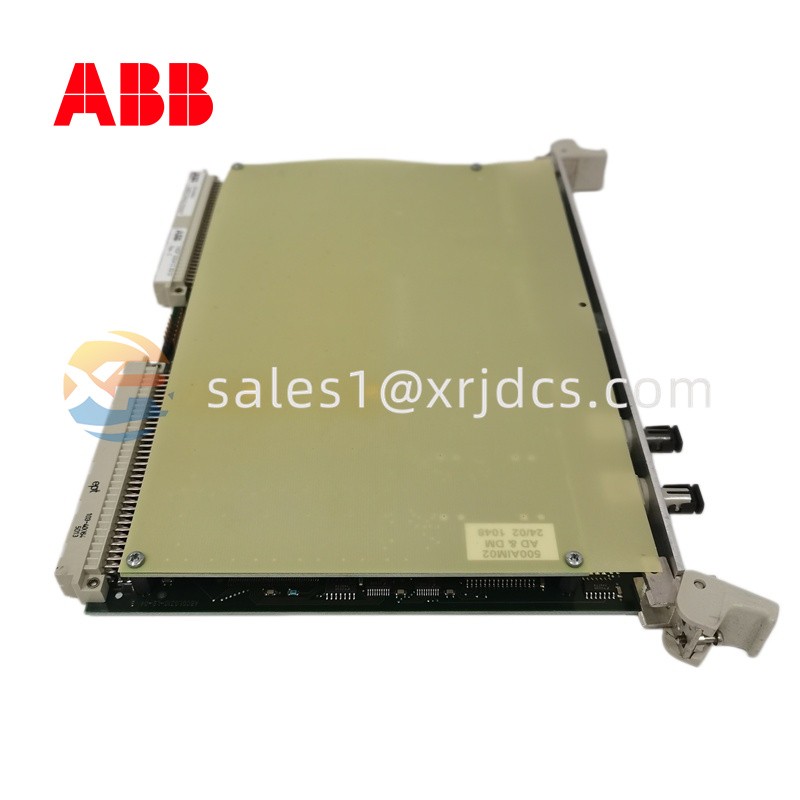

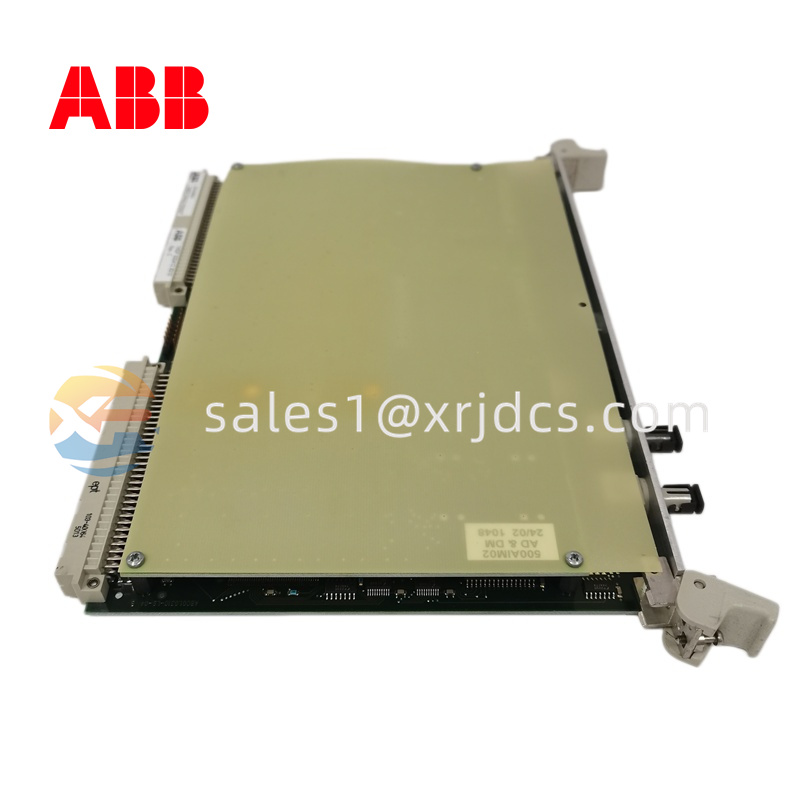

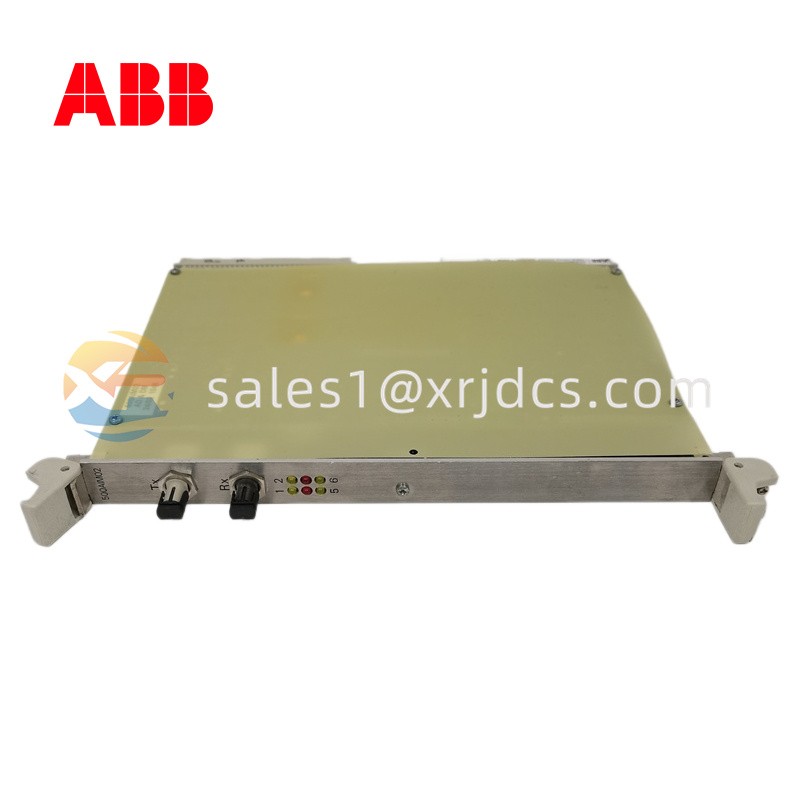

ABB 500AIM02 1MRB150022R0002Y – Industrial I/O Analog Input Module
Product Overview
The ABB 500AIM02 1MRB150022R0002Y is a versatile industrial analog input module developed for advanced automation systems. Serving as a bridge between field sensors and control systems (like PLCs or DCS), this module effectively captures and processes analog signals—such as voltage and current—making it ideal for industrial monitoring and control applications. Its robustness, accuracy, and broad compatibility position it as a core component in modern automation architectures.
Key Features & Capabilities
Multi‑Channel Analog Input Support – Capable of receiving multiple analog signals simultaneously (0‑10 V, 4‑20 mA, etc.), enabling broad sensor compatibility.
High Resolution & Precision – Designed for accurate signal conversion with strong repeatability and reliable performance.
Multi‑Protocol Communication – Supports standard industrial communication protocols such as Modbus, PROFIBUS, and Ethernet/IP, facilitating seamless integration with PLC and automation networks.
Industrial‑Grade Reliability – Built for harsh factory environments with stable operation across extended temperature ranges.
Flexible Configuration – Allows customizable input ranging and setup to suit varying application needs.
Technical Specifications
| Specification Category |
Details |
| Model Number |
500AIM02 1MRB150022R0002Y |
| Manufacturer |
ABB |
| Module Type |
Analog Input Module |
| Power Supply |
24 V DC (typical) |
| Input Signal Type |
Analog (e.g., 0‑10 V, 4‑20 mA, sensor signals) |
| Input Channels |
Multiple (dependent on configuration) |
| Communication Protocols |
Modbus, PROFIBUS, Ethernet/IP |
| Operating Temperature |
Approx. –20 °C to +60 °C |
| Mounting Type |
DIN‑Rail (common industrial mount) |
| Industrial Compliance |
Designed to meet rugged operating standards |
Note: Configurations vary by installation and module revision.
Functional Description
At its core, the ABB 500AIM02 acts as a data acquisition module, connecting field devices such as pressure transducers, temperature sensors, flow meters, and other analog measurement devices to a central control system. It converts physical analog signals into digital formats, ensuring control systems receive accurate, real‑time data for monitoring, control, or logging purposes.
Industrial Applications
This module is widely adopted in sectors requiring robust process control and precise analog data measurement:
Process Control Systems – chemical, pharmaceutical, and petrochemical automation.
Oil & Gas Monitoring – real‑time measurement of pressure, temperature, and flow analytics.
Manufacturing Automation – production line and quality control systems.
Energy & Utilities – performance monitoring in power generation or distribution systems.
Water & Wastewater Treatment – analog sensor data collection and process control.
Installation & Operation Tips
Mount securely on a standard DIN rail in a control panel or automation rack.
Ensure proper power supply stability (24 V DC) before connecting sensors.
Shield sensor wiring to avoid EMI interference, especially in environments with heavy machinery.
Configure I/O mapping and scaling through control software to match sensor characteristics.
Maintenance & Best Practices
Routine inspection of wiring terminations and connectors can prevent signal loss or noise issues.
Firmware updates (if applicable) should be applied according to ABB guidelines.
Environmental checks to maintain operation within rated temperature/humidity ranges.
Why Use the ABB 500AIM02?
This analog input module stands out for its flexible input support, industrial communication compatibility, and robust design. Whether in complex oil refinery systems or automated manufacturing lines, it ensures that analog data critical to operational performance is captured accurately and relayed efficiently to control systems—supporting both real‑time monitoring and automated process control.
